250 PS - Husqvarna Pole Saw (1996-02) Pump Assembly Parts Diagram

Pole Saw

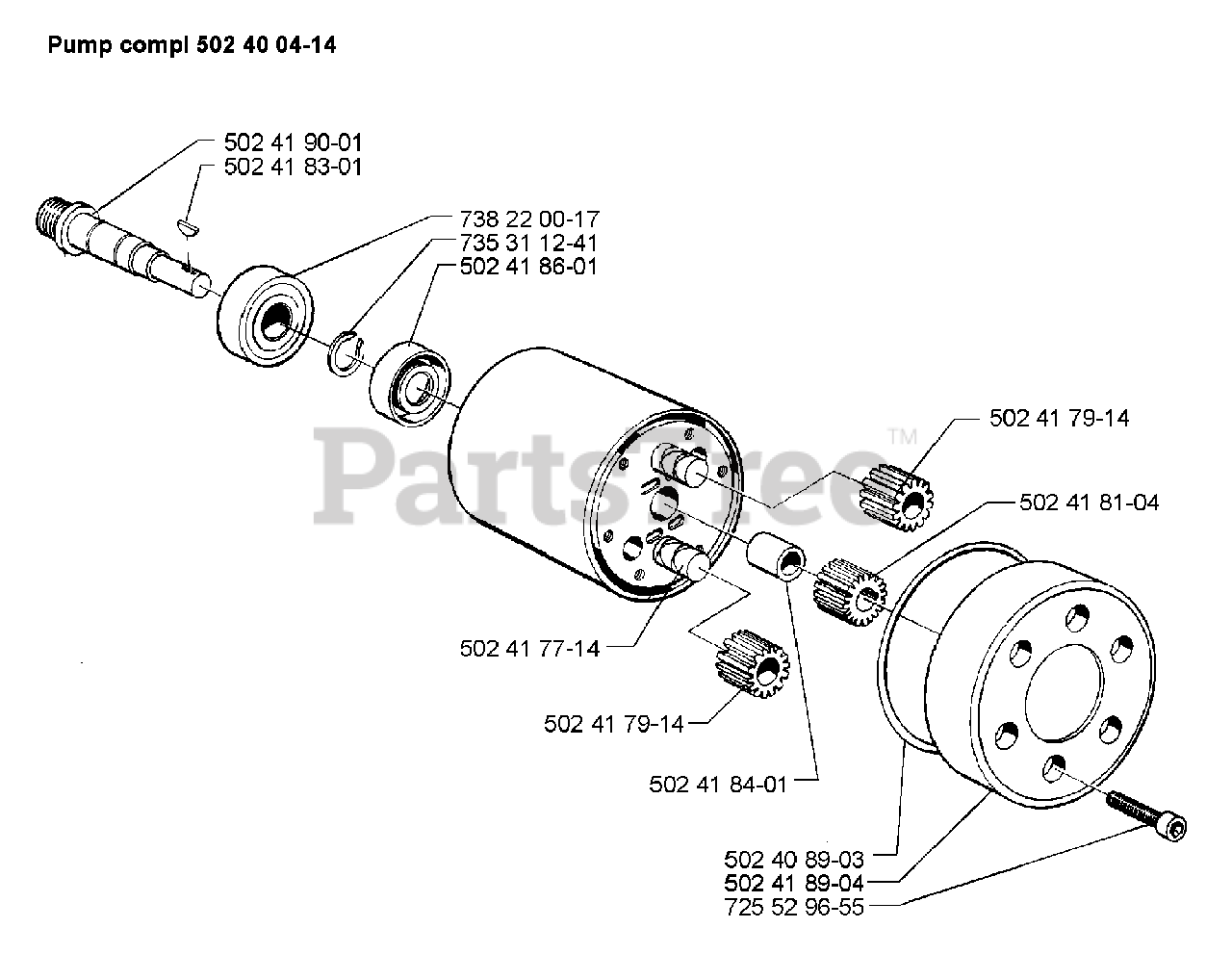

Pump Assembly Parts Diagram

  • Title
502400414

Husqvarna 502400414

HYDRAULIC PUMP

$

$

Not available

502408903

$

$

Not available

502417714

$

$

Not available

502417914

$

$

Not available

502418104

Husqvarna 502418104

GEAR WHEEL Z17

$

$

Not available

502418301

Husqvarna 502418301

WOODRUFF KEY

$

$

Not available

502418401

Husqvarna 502418401

SLIDE BEARING

$

$

Not available

502418601

Husqvarna 502418601

SEALING RING

$

$

Not available

502418904

Husqvarna 502418904

PRESSURE CHAMBER

$

$

Not available

502419001

Husqvarna 502419001

PUMP SHAFT

$

$

Not available

725529655

Husqvarna 725529655

SCREW MC6S 4 X 22

$

$

Not available

735311241

Husqvarna 735311241

LOCKING RING SW10

$

$

Not available

738220017

Husqvarna 738220017

BALL BEARING 6200 ZZ

$

$

Not available
