250 PS - Husqvarna Pole Saw (1996-02) Motor Assembly Parts Diagram

Pole Saw

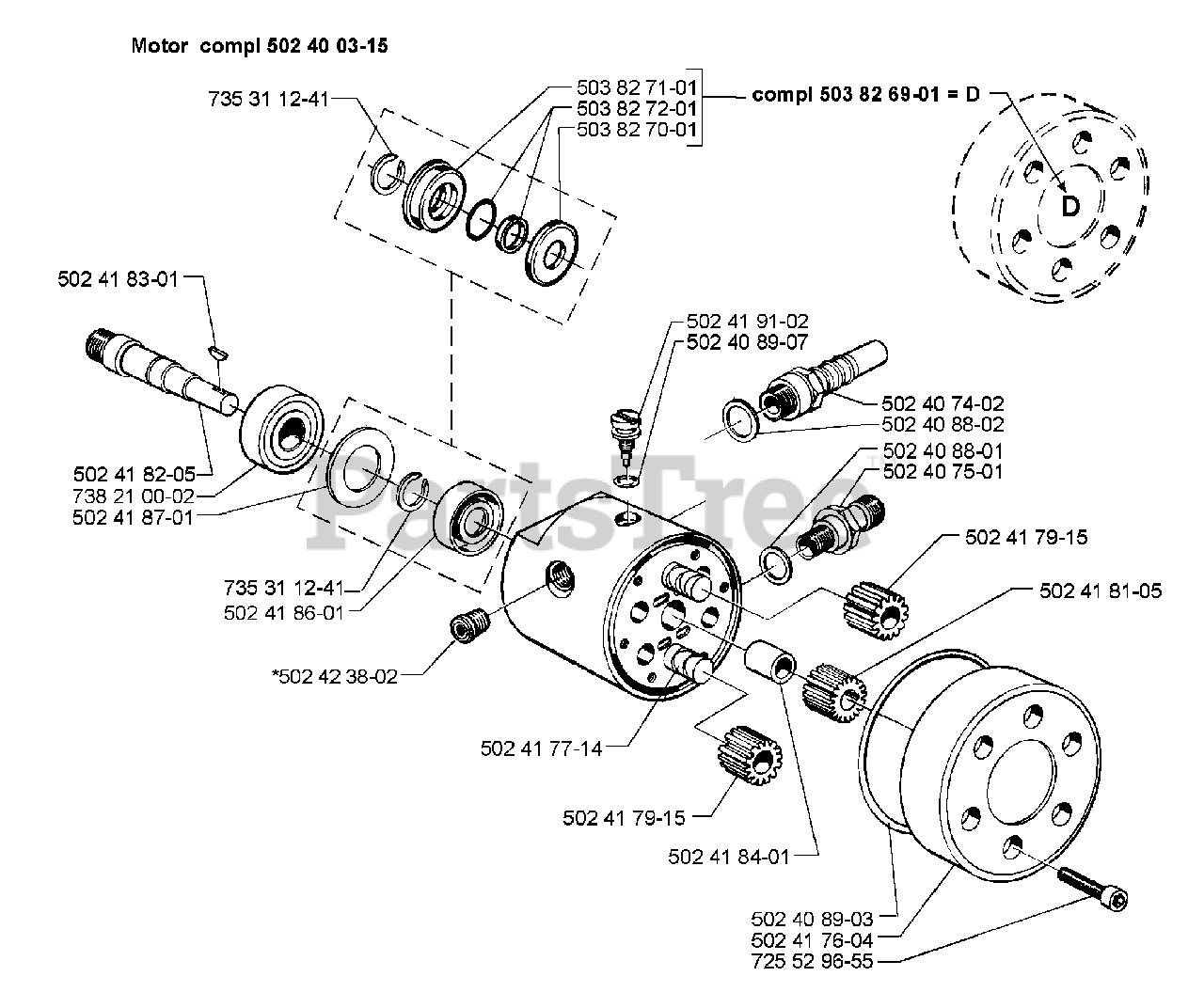

Motor Assembly Parts Diagram

  • Title

502400315

Husqvarna 502400315

MOTOR

$

$

Not available

502407402

Husqvarna 502407402

NIPPLE-RETURN SIDE

$

$

Not available

502407501

Husqvarna 502407501

NIPPLE-COMPRESSION SIDE

$

$

Not available

502408801

Husqvarna 502408801

WASHER-COMPRESSION SIDE

$

$

Not available

502408802

Husqvarna 502408802

WASHER-RETURN SIDE

$

$

Not available

502408903

Husqvarna 502408903

O-RING

$

$

Not available

502408907

Husqvarna 502408907

O-RING

$

$

Not available

502417604

Husqvarna 502417604

$

$

Currently unavailable

502417714

Husqvarna 502417714

PUMP

$

$

Not available

502417915

Husqvarna 502417915

GEAR

$

$

Not available

502418105

Husqvarna 502418105

GEAR WHEEL Z17

$

$

Not available

502418205

Husqvarna 502418205

ENGINE SHAFT

$

$

Not available

502418301

Husqvarna 502418301

WOODRUFF KEY

$

$

Not available

502418401

Husqvarna 502418401

SLIDE BEARING

$

$

Not available

502418601

Husqvarna 502418601

SEALING RING

$

$

Not available

502418701

Husqvarna 502418701

WASHER

$

$

Not available

502419102

Husqvarna 502419102

ADJUSTMENT SCREW-CHAIN LUBE

$

$

Not available

502423802

Husqvarna 502423802

VALVE

$

$

Not available

503826901

Husqvarna 503826901

VALVE KIT

$

$

Not available

503827001

Husqvarna 503827001

SEAL

$

$

Not available

503827101

Husqvarna 503827101

SEAL

$49.18

$

Usually ships in 3-10 days

0

503827201

Husqvarna 503827201

SEAL

$

$

Not available

725529655

Husqvarna 725529655

SCREW MC6S 4 X 22

$

$

Not available

735311241

Husqvarna 735311241

LOCKING RING SW10

$

$

Not available

738210002

Husqvarna 738210002

BALL BEARING 6000-2Z

$34.99

$

In Stock, only 1 left!

0
