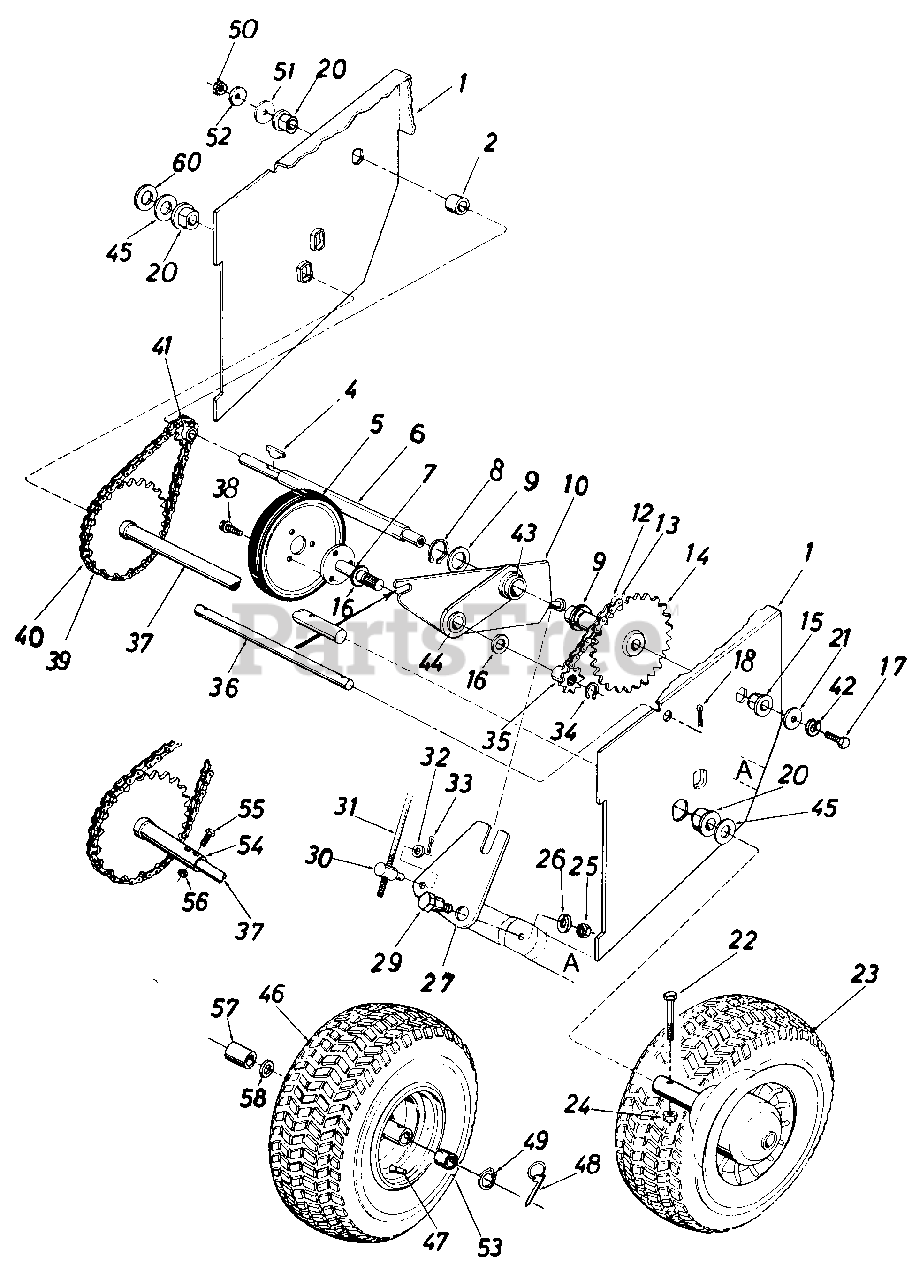

250-586-146 - MTD Edger (1990) (DIY Home Warehouse) Parts Parts Diagram

Edger

Parts Parts Diagram

  • Title

1

MTD 784-5197

Frame Ass'y.

$

$

Not available

2

MTD 750-0499

Spacer .50" I.D. x .75" O.D. x.78" Lg.

$23.99

$

Usually ships in 3-6 days

0

4

MTD 714-0129

#4 Hi-Pro Key 3/32 x 5/8" Dia.
(Superseded to 914-0129)

$

$

Not available

5

MTD 05080A

Friction Wheel Ass'y.
(Superseded to 05080AP)

$30.99

$

In Stock, Qty 12

0

6

MTD 738-0496A

Hex Shaft

$

$

Not available

7

MTD 05883

Friction Wheel Mounting 0 0 Plate Ass'y.

$

$

Not available

8

MTD 716-0102

Snap Ring 1.00" Dia. Shaft

$5.49

$

In Stock, Qty 20+

0

9

MTD 736-0163

Fl-Wash. 1.00" x 1.63" O.D. x .03

$4.49

$

In Stock, Qty 20+

0

10

MTD 05880

Sliding Bracket Ass'y.

$

$

Not available

12

MTD 713-0285

#41 Chain 1/2" Pitch x 35 Links

$

$

Not available

13

MTD 713-0723

Master Link for #41 Chain
(Superseded to 913-0723)

$

$

Not available

14

MTD 713-0281

32 Teeth Sprocket Ass'y.

$

$

Currently unavailable

15

MTD 741-0225

Hex Flange Brg. .630" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

16

MTD 736-0290

Fl-Wash. .62" I.D. x 1.00n O.D. x .06

$6.99

$

In Stock, Qty 20+

0

17

MTD 710-0538

Hex Lock Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 9

0

18

MTD 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

20

MTD 741-0490

Flange Brg. w/Flats .75" I.D.
(Superseded to 941-0490)

$13.99

$

In Stock, Qty 20+

0

21

MTD 736-0231

Fl-Wash. .34" I.D. x 1.12" O.D. x .125

$4.99

$

In Stock, Qty 20+

0

22

MTD 710-0624

Hex Bolt 5/16-24 x 1.50" Lg.

Note: (440 & 450)

$5.99

$

Usually ships in 3-6 days

0

23

Wheel Ass'y.

Note: (440 & 450)

$

$

Not available

MTD 734-1461

Wheel Ass'y. Comp.

Note: (10.5 x 4.0)

$

$

Currently unavailable

24

MTD 712-0273

Hex Ins. Jam L-Nut 5/16-24 Thd.
(Superseded to 912-0273)

Note: (440 & 450)

$4.99

$

Usually ships in 3-6 days

0

25

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

26

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

27

MTD 05898A

Shifting Linkage Bracket

$

$

Not available

29

MTD 738-0281

Shld. Bolt .625" Dia. x .170" Lg.

$10.99

$

In Stock, only 1 left!

0

30

MTD 711-0677

Adjustment Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

31

MTD 747-0356

Shifting Rod 5/16" Dia. x 32.50" Lg.

$

$

Not available

32

MTD 736-0264

Fl-Wash. .34" I.D. x .64" O.D. x .06

$6.99

$

In Stock, only 1 left!

0

33

MTD 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

34

MTD 716-0145

Snap Ring .562" Dia. Shaft
(Superseded to 716-0397)

$

$

Not available

35

MTD 713-0280

Sprocket 7 Teeth x .50" Pitch

$

$

Not available

36

MTD 738-0497

Shaft .50" Dia. x 9.50" Lg.

$

$

Currently unavailable

37

MTD 713-0283

28 Teeth Wheel Axle Ass'y.

Note: (440 & 450)

$

$

Currently unavailable

MTD 713-0323

32 Teeth Wheel Axle Ass'y.

Note: (550)

$

$

Not available

MTD 738-0713

Wheel Axle

Note: (586)

$

$

Not available

38

MTD 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

39

MTD 713-0270

#41 Chain 1/2" Pitch x 43 Links

Note: (440 & 450)

$

$

Not available

MTD 713-0287

#420 Chain 1/2" Pitch x 39 Links

Note: (550 & 586)

$

$

Not available

40

MTD 713-0723

Master Link for #41 Chain
(Superseded to 913-0723)

Note: (440 & 450)

$

$

Not available

MTD 713-0154

Master Link for #420 Chain
(Superseded to 913-0154)

Note: (550 & 586)

$

$

Not available

41

MTD 748-0204

8 Teeth Center Sprocket

$

$

Not available

42

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

43

MTD 741-0476

Bearing
(Superseded to 741-04488)

$9.49

$

In Stock, only 4 left!

0

44

MTD 748-0184

Bronze Bearing

$7.49

$

Usually ships in 3-6 days

0

45

MTD 736-0188

Fl-Wash. .76" I.D. x 1.49 O.D.

Note: (440, 450 & 550)

$4.49

$

In Stock, Qty 20+

0

MTD 736-0315

Fl-Washer

Note: (586 only)

$6.99

$

In Stock, Qty 6

0

46

Wheel Assembly

Note: (550 & 586)

$

$

Not available

MTD 734-1253

Wheel Ass'y. Comp. (13 x 5.0)

Note: (550)

$

$

Currently unavailable

MTD 734-1416

Wheel Ass'y. Comp. (15 x 6.0)

Note: (586)

$

$

Currently unavailable

47

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

48

MTD 714-0143

Klick Pin
(Superseded to 714-0143A)

Note: (550 & 586)

$6.49

$

In Stock, Qty 7

0

49

MTD 716-0101

Snap Ring .75 Dia.

Note: (550 & 586)

$3.99

$

In Stock, Qty 20+

0

50

MTD 712-0200A

Hex Ins. L-Nut 1/2-20 Thd.

$4.49

$

In Stock, only 1 left!

0

51

MTD 736-0257

Fl-Wash. .53 I.D. x 1.25 O.D. x . 10
(Superseded to 936-0179)

$4.99

$

In Stock, only 2 left!

0

52

MTD 736-0253

Bell-Wash. .50 I.D. x 1.0 O.D. x .075

$3.99

$

In Stock, Qty 20+

0

53

MTD 741-0401

Sleeve Brg.
(Superseded to 941-0401)

Note: (550 & 586)

$7.49

$

In Stock, Qty 12

0

54

MTD 713-0384

32 Teeth Sprocket Hub Ass'y.

Note: (586)

$

$

Not available

55

MTD 710-0698

Hex Bolt 1/4-28 x 1.5"

Note: (586)

$

$

Not available

56

MTD 712-0896

Hex L-Nut 1/4-28 Thd.

Note: (586)

$4.99

$

In Stock, Qty 6

0

57

MTD 750-0506

Spacer

Note: (586)

$

$

Not available

58

MTD 736-0287

Fl-Washer

Note: (586)

$4.49

$

In Stock, Qty 20+

0

60

MTD 736-0315

Fl-Washer

Note: (586 Only)

$6.99

$

In Stock, Qty 6

0
