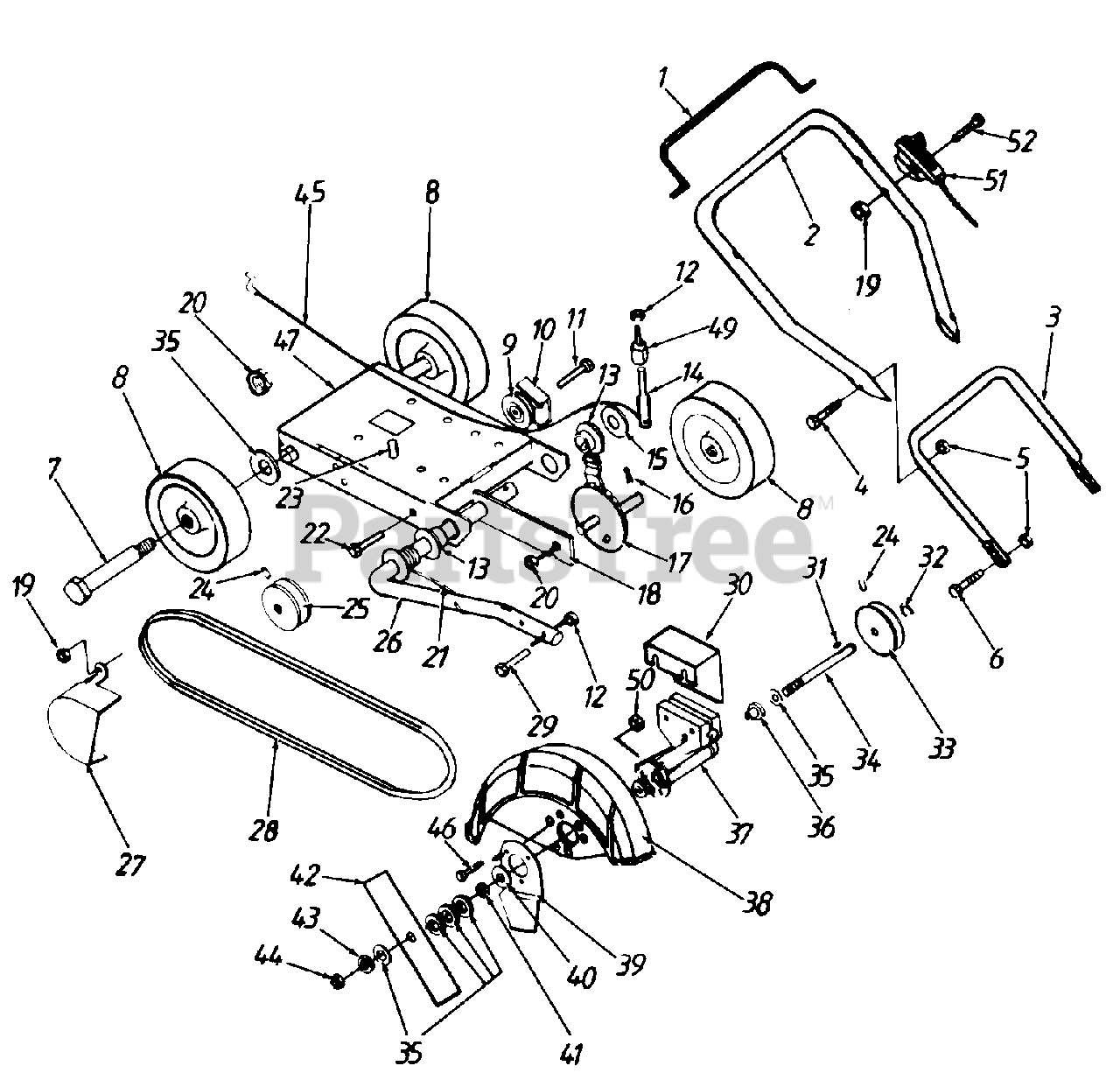

  • Title

1

MTD 706-15632-01-91

Lever-Depth Control
(Superseded to 747-0748)

$

$

Not available

2

MTD 706-10751-00-90

Upper Handle

$

$

Not available

3

MTD 706-18771-02-90

Lower Handle

$

$

Currently unavailable

4

MTD 710-0442

Hex Bolt 5/16-18 x 1.5"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

5

MTD 706-10003-02

Hex Keps L-Nut 5/16-18 Thd.

$

$

Not available

6

MTD 706-10058-10

Hex Bolt 5/16-18 x .625"
(Superseded to 710-3038)

$4.99

$

In Stock, only 3 left!

0

7

MTD 706-10118-01

Wheel Bolt

$

$

Not available

8

MTD 706-15808

Wheel 6"

$

$

Not available

9

MTD 706-10668

Idler Pulley

$

$

Not available

10

MTD 706-10693-00-05

Bracket-ldler Pulley

$

$

Not available

11

MTD 706-14387-15

Bolt

Note: (Special)

$

$

Not available

12

MTD 712-0429

Hex L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

13

MTD 706-10646

Bushing

$

$

Not available

14

MTD 706-15856

Arm-Pivot Rod

$

$

Not available

15

MTD 706-10628-00-05

Flat Washer 5/8" I.D.
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

16

MTD 706-10021-12

Cotter Pin 1/8 x 3/4
(Superseded to 914-0474)

$

$

Not available

17

MTD 706-10076-01

Adjustor Assembly

Note: (Depth)

$

$

Not available

18

MTD 706-15806-00-05

Arm-Front Wheel

$

$

Not available

19

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

20

MTD 706-10639

Hex Keps L-Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

21

MTD 706-15804

Spring-Cutterhead

$

$

Not available

22

MTD 710-0376

Hex Bolt 5/16-18 x 1"

$3.99

$

In Stock, Qty 20+

0

23

MTD 706-10605-16

Engine Bolt
(Superseded to 710-0654A)

Note: (Special)

$4.49

$

In Stock, Qty 20+

0

24

MTD 706-16117

Locking Set Screw 5/16-18
(Superseded to 710-3006)

$4.49

$

In Stock, only 1 left!

0

25

MTD 706-18870-03-05

Pulley Engine

$

$

Not available

26

MTD 706-15803-00-05

Rod Cutterhead

$

$

Not available

27

MTD 706-15807

Belt Guard

$

$

Currently unavailable

28

MTD 706-16301

V-Belt
(Superseded to 954-0935)

$21.99

$

Usually ships in 3-6 days

0

29

MTD 710-0442

Hex Bolt 5/16-18 x 1.51'
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

30

MTD 706-18723-00-91

Belt Guard

Note: (Cutterhead)

$

$

Not available

31

MTD 706-15635

Woodruff Key
(Superseded to 914-0112)

$

$

Not available

32

MTD 706-18798

Retaining Ring
(Superseded to 916-0182)

$

$

Not available

33

MTD 706-18870-02-05

Pulley Cutterhead

$

$

Not available

34

MTD 706-18797-02

Shaft Cutterhead
(Superseded to 911-0855)

$43.99

$

Usually ships in 3-6 days

0

35

MTD 706-15829

Flat Washer .0631 Thk.
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

36

MTD 706-18796

Bushing Cutterhead
(Superseded to 741-0576)

$

$

Not available

37

MTD 706-18721-01

Housing Cutterhead Shaft

$

$

Not available

38

MTD 706-14203-00-90

Blade Guard
(Superseded to 731-1193)

$

$

Not available

39

MTD 706-18729-00-91

Edge Guide

$

$

Not available

40

MTD 706-11231

Flat Washer .035 Thk.
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

41

MTD 706-18848

Heavy Hex Jam Nut 3/8-24
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

42

MTD 706-16746-00-90

9" Replacement Blade

$

$

Currently unavailable

43

MTD 736-0217

Spring L-Wash. 818n I.D.

$4.49

$

In Stock, Qty 8

0

44

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

45

MTD 706-15811-01

Cable Depth Control
(Superseded to 946-0591)

$

$

Not available

46

MTD 710-0941

Hex Bolt #10-24 x .75"

$

$

Currently unavailable

47

MTD 706-14405-00-14

Base Edger Frame

$

$

Currently unavailable

49

MTD 706-13884

Spacer Pivot Arm

$

$

Not available

50

MTD 712-0161

Nylok Nut #10-24

$4.49

$

In Stock, Qty 20+

0

51

MTD 746-0748

Throttle Control
(Superseded to 746-0800A)

$61.99

$

Usually ships in 3-6 days

0

52

MTD 710-0606

Hex Bolt 1/4-20 x 1.5

$5.49

$

In Stock, Qty 10

0
