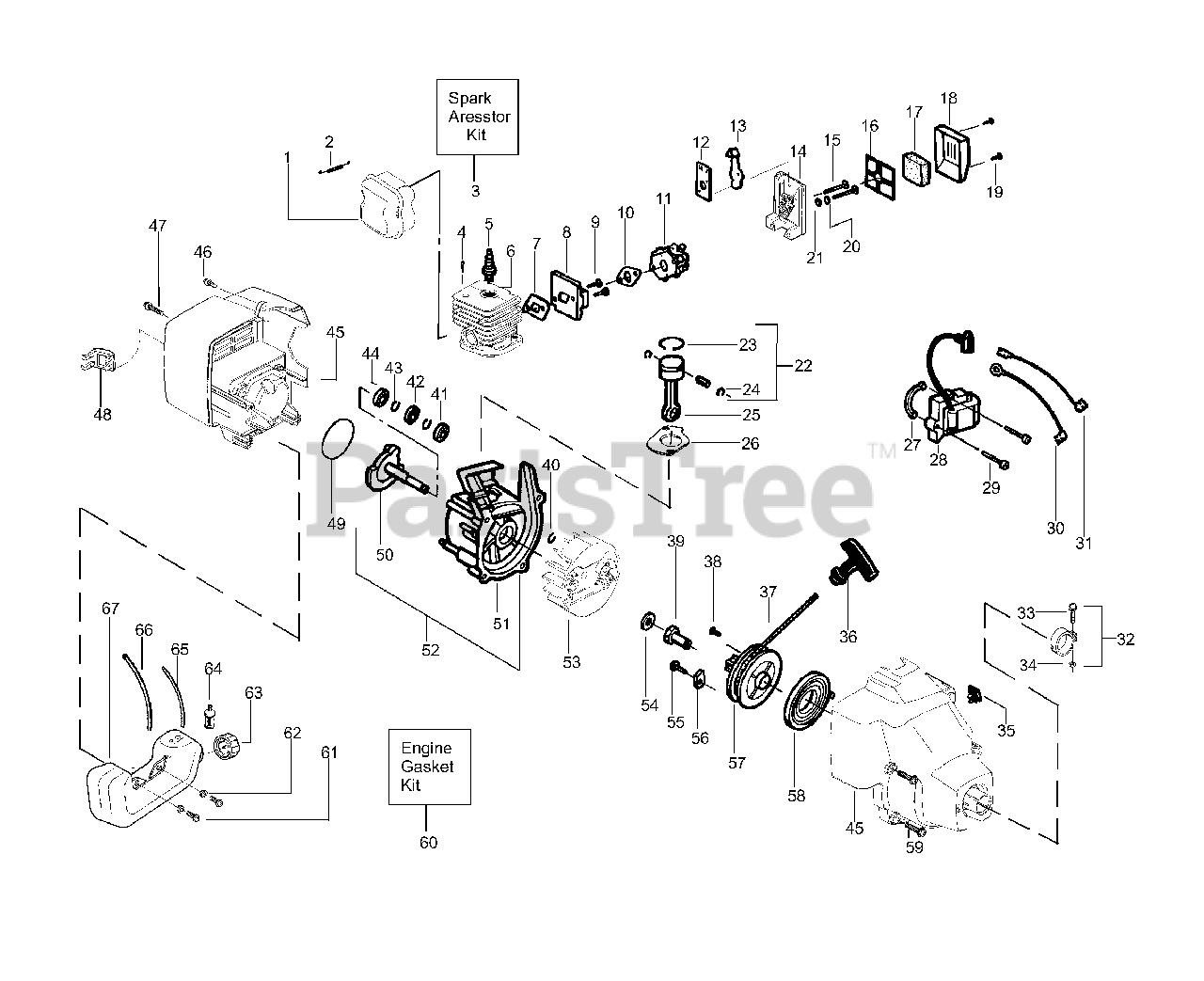

25 HO SST - Weed Eater High Output String Trimmer Engine Parts Diagram

High Output String Trimmer

Engine Parts Diagram

  • Title

1

Poulan 530071390

Kit - Muffler

Note: (Incl. 2,3)

$18.99

$

Usually ships in 3-10 days

0

2

Poulan 530042088

Spring-Muffler

$3.99

$

In Stock, only 1 left!

0

3

Poulan 530071391

Kit-Spark Arrestor

$

$

Not available

4

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 7

0

5

Poulan 952030201

Spark Plug (RCJ 8Y)
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

6

Poulan 530069757

Kit - Cylinder
(Superseded to 582144301)

$

$

Not available

7

Poulan 530069913

Gasket-Cylind./Carb.

$8.99

$

Usually ships in 3-10 days

0

8

Poulan 530049301

Adapter-Carb.
(Superseded to 530069994)

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

10

Poulan 530069913

Gasket-Carb.

$8.99

$

Usually ships in 3-10 days

0

11

Poulan 530069754

Kit - Carburetor Ass'y

Note: (Incl. Limiter Cap)

$68.99

$

Usually ships in 3-10 days

0

12

Poulan 530038747

Choke Plate Mounting

$3.99

$

In Stock, only 3 left!

0

13

Poulan 530038686

Shutter-Choke

$3.99

$

In Stock, Qty 7

0

14

Poulan 530052431

Air Box

$

$

Not available

15

Poulan 530015887

Screw

$4.99

$

In Stock, only 2 left!

0

16

Poulan 530036569

Plate - Filter Support

$

$

Not available

17

Poulan 530036575

Foam-Air Filter

$5.99

$

In Stock, only 2 left!

0

18

Poulan 530036568

Cover-Air Filter

$

$

Not available

19

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

20

Poulan 530015852

Spacer-Choke

$3.49

$

In Stock, only 1 left!

0

21

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

22

Poulan 530069987

Kit - Piston

Note: (Incl. 23, 24 & Pin)

$27.99

$

Usually ships in 3-10 days

0

23

Poulan 530053565

Piston Ring
(Superseded to 545154009)

$4.99

$

In Stock, only 2 left!

0

24

Poulan 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

25

Poulan 530069615

Assy-Connecting Rod

$24.99

$

Usually ships in 3-10 days

0

26

Poulan 530069913

Gasket-Cylinder

$8.99

$

Usually ships in 3-10 days

0

27

Poulan 530036145

Spacer-Module

$3.99

$

In Stock, only 3 left!

0

28

Poulan 530055160

Ignition Module

$46.99

$

Usually ships in 3-10 days

0

29

Poulan 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 530014662

Assy-Ground Wire

$7.49

$

Usually ships in 3-10 days

0

31

Poulan 530014663

Assy-Leadwire

$9.99

$

Usually ships in 3-10 days

0

32

Poulan 530038720

Assy-Nose Cone Clamp
(Superseded to 530056365)

Note: (Incls. 33 & 34)

$4.99

$

Usually ships in 3-10 days

0

33

Poulan 530015650

Screw-Nose Cone

$

$

Not available

34

Poulan 530016124

Nut-Nose Cone

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 530071356

Kit-On/Off Switch

$8.99

$

In Stock, only 1 left!

0

36

Poulan 530027569

Handle-Starter

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 530069232

Kit - Rope

$7.49

$

In Stock, Qty 20+

0

38

Poulan 530016080

Screw

$6.49

$

In Stock, only 1 left!

0

39

Poulan 530038604

Coupling-Drive

$5.99

$

Usually ships in 3-10 days

0

40

Poulan 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

41

Poulan 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

42

Poulan 530019179

C'case Seal

$

$

Not available

43

Poulan 530015945

Retainer Ring-C'case

$3.99

$

Usually ships in 3-10 days

0

44

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

45

Poulan 530069685

Assy.-Fan Hsg/Shroud

$

$

Not available

46

Poulan 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

47

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

48

Poulan 530054536

Guard-Muffler

$

$

Not available

49

O-Ring-C'case/Shrd

Note: Refer to "Featherlite SST 25HO Gas Trimmer Service Reference" in literature for more information.

$

$

Not available

50

Poulan 530054083

Assy-Crankshaft

$

$

Not available

51

Poulan 530012414

Assy-Crankcase
(Superseded to 530071627)

Note: (Incl. 41-44)

$

$

Not available

52

Poulan 530014729

Assy-C'case & C'shaft

Note: (Incl. 40,50,51)

$

$

Not available

53

Poulan 530069886

Assy-Flywheel
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

54

Poulan 530015828

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

55

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

56

Poulan 530027523

Retainer-Can

$7.49

$

In Stock, only 2 left!

0

57

Poulan 530069400

Kit-Starter Pulley
(Superseded to 530071786)

Note: (Incl. 39)

$11.99

$

In Stock, Qty 7

0

58

Poulan 530042085

Spring-Starter
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

59

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

60

Poulan 530069913

Kit-Engine Gasket

Note: (Incl. 7,10,26,49)

$8.99

$

Usually ships in 3-10 days

0

61

Poulan 530015886

Screw

$6.49

$

In Stock, only 3 left!

0

62

Poulan 530016131

Washer

$3.99

$

In Stock, only 1 left!

0

63

Poulan 530014347

Assy-Fuel Cap

$9.49

$

In Stock, Qty 15

0

64

Poulan 530095646

Assy-Fuel Pickup

$6.99

$

In Stock, Qty 20+

0

65

Poulan 530069247

Kit-Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

66

Poulan 530069216

Kit-Fuel Line (Large)

$11.99

$

In Stock, Qty 20+

0

67

Poulan 530049379

Assy-Fuel Tank
(Superseded to 545103802)

Note: (Incl. filter, lines & fuel cap)

$18.99

$

Usually ships in 3-10 days

0
