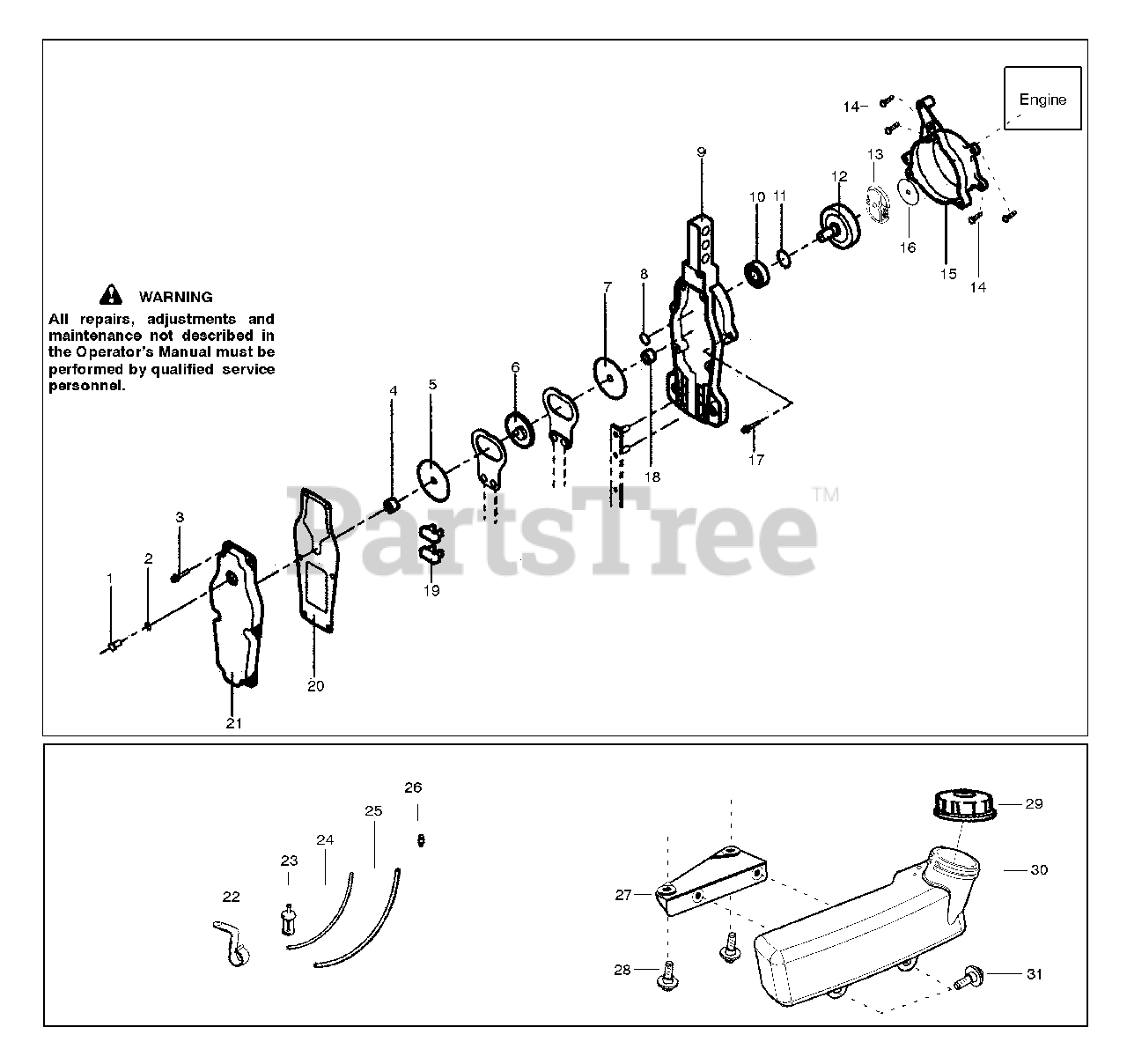

25 HHT - Poulan Pro Hedge Trimmer Gearbox & Tank Assembly Parts Diagram

Hedge Trimmer

Gearbox & Tank Assembly Parts Diagram

  • Title
1

Poulan 530016423

Plug-Grease

$2.49

$

Usually ships in 3-10 days

0

2

Poulan 214B0700

O-ring
(Superseded to 545145448)

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 545145422

Socket Screw Flange

$3.99

$

Usually ships in 3-10 days

0

4

$

$

Not available

5

Poulan 11050176

Fixing Plate

$

$

Not available

$

$

Not available

7

Poulan 11050176

Fixing Plate

$

$

Not available

8

Poulan 545145431

C-Snapring for Shaft

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 51068108

Cam Case

$85.99

$

Usually ships in 3-10 days

0

10

$

$

Not available

11

Poulan 545145430

C-Snapring for Hole

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 11014222

Clutch Drum C.P

$

$

Not available

13

Poulan 530071803

Kit-Clutch Assy.
(Superseded to 530057740)

$24.99

$

Usually ships in 3-10 days

0

14

$6.49

$

In Stock, only 3 left!

0

15

Poulan 51070131

Engine Base

$

$

Not available

16

Poulan 530015611

Washer-Clutch

$6.49

$

In Stock, only 1 left!

0

17

Poulan 545145423

Socket Screw Flange

$2.49

$

Usually ships in 3-10 days

0

18

$

$

Not available

19

Poulan 545145433

Felt Packing

$4.99

$

In Stock, only 1 left!

0

20

$

$

Not available

21

Poulan 51069105

Cam Case Cover

$

$

Not available

22

Poulan 530016438

Clip-Wire

$

$

Not available

23

Poulan 530095646

Assy-Fuel Pickup

$6.99

$

In Stock, Qty 20+

0

24

Poulan 530069247

Kit-Fuel Line

Note: (small)

$7.99

$

In Stock, Qty 20+

0

25

Poulan 530069216

Kit-Fuel Line

Note: (large)

$11.99

$

In Stock, Qty 20+

0

26

Poulan 530023877

Fitting-Fuel Line

$5.99

$

In Stock, Qty 18

0

27

Poulan 530057738

Bracket-Tank

$

$

Not available

28

Poulan 530016431

Screw-Retainer

$

$

Not available

29

Poulan 530049386

Assy-Fuel Cap
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

30

Poulan 545104302

Assy-Fuel Tank

Note: (Incl. 23-26, 29)

$

$

Not available

31

Poulan 530016379

Screw-Retainer

$4.99

$

Usually ships in 3-10 days

0
