25 HHT - Poulan Hedge Trimmer (2010-06) ENGINE Parts Diagram

Hedge Trimmer

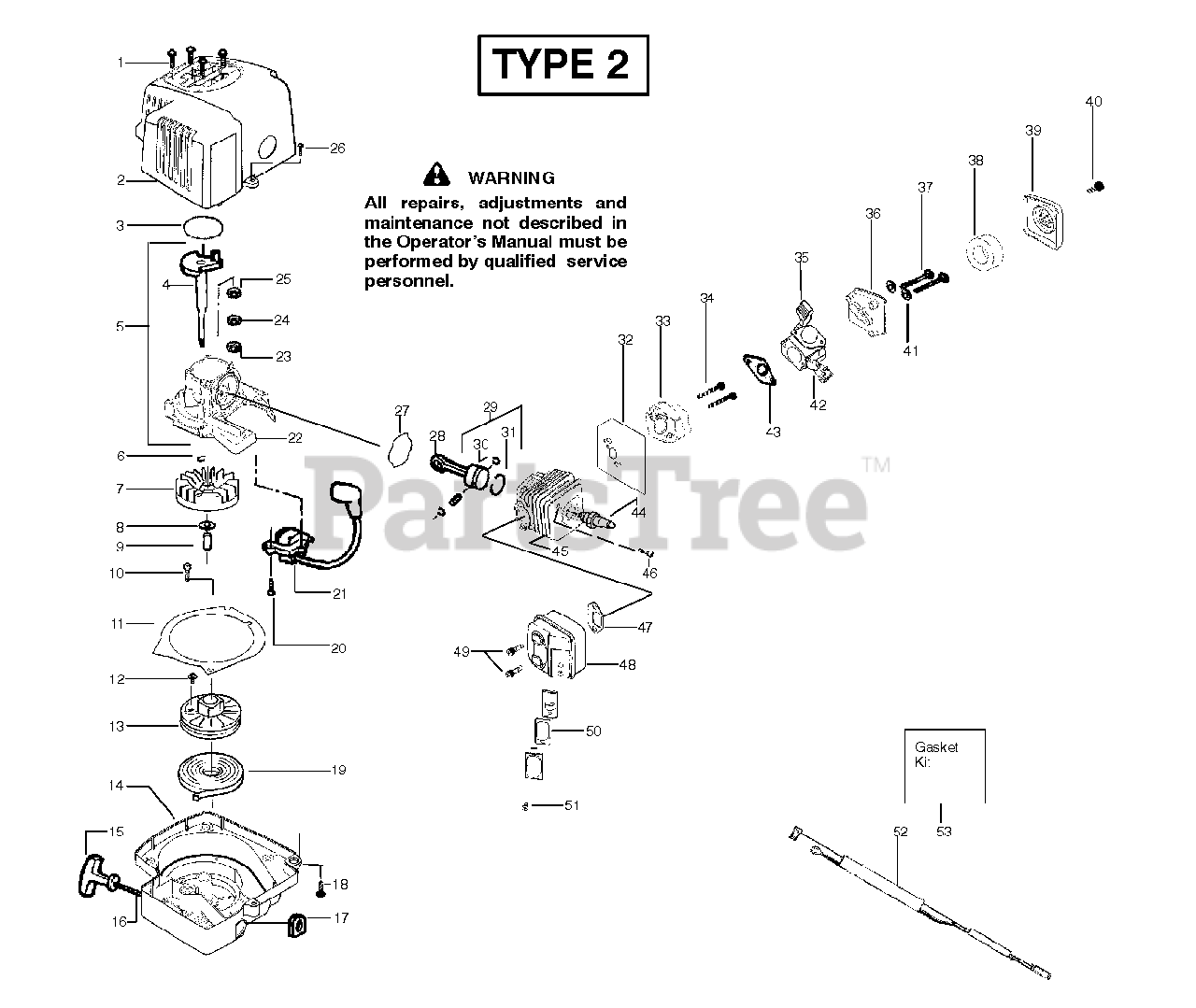

ENGINE Parts Diagram

  • Title

1

Poulan 530016386

SCREW

$8.99

$

In Stock, only 1 left!

0

2

Poulan 530058799

ASSY SHROUD/HEAT SHIELD

$

$

Not available

3

Poulan 530071486

GASKET KIT

Note: KIT

$10.99

$

Usually ships in 3-10 days

0

4

Poulan 530012571

CRANKSHAFT ASSY
(Superseded to 545145801)

$24.99

$

Usually ships in 3-10 days

0

5

Poulan 530071681

CRANKCASE

Note: . 4 6 22

$

$

Not available

6

Poulan 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 530071487

FLYWHEEL
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

8

Poulan 530015828

WASHER FLAT

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 530055729

SPACER

$9.22

$

Usually ships in 3-10 days

0

10

Poulan 530015496

SCREW-10-16 X 1/2 HI-LO

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530055681

PLATE-BAFFLE

$

$

Not available

12

Poulan 530016392

SCREW SEMS TOOTHED WASHER

$4.99

$

Usually ships in 3-10 days

0

13

Poulan 530069353

STARTER PULLEY

Note: . 12

$

$

Not available

14

Poulan 530058801

ASSY FAN HSG W/ EYELET

$

$

Not available

15

Poulan 530027569

HANDLE-STARTER

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 530069232

KIT-ROPE

$7.49

$

In Stock, Qty 17

0

17

Poulan 530019182

GROMMET

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530016386

SCREW

Note: F /HSG TO SHRD

$8.99

$

In Stock, only 1 left!

0

19

Poulan 530042085

STARTER SPRING
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

20

Poulan 530016357

SCREW

$6.49

$

In Stock, only 4 left!

0

21

Poulan 530054137

IGNITION MODULE

$

$

Not available

22

Poulan 530012510

CRANKCASE

Note: . 23 24 25

$

$

Not available

23

Poulan 530055728

OUTER BEARING

$9.99

$

Usually ships in 3-10 days

0

24

Poulan 530019264

SEAL

$7.49

$

In Stock, only 1 left!

0

25

Poulan 530032125

BEARING
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

26

Poulan 530015934

SCREW

$4.99

$

In Stock, only 1 left!

0

27

Poulan 530071486

GASKET KIT

Note: KIT

$10.99

$

Usually ships in 3-10 days

0

28

Poulan 530069945

KIT-CONN ROD ASSY
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

29

Poulan 530071476

PISTON

Note: . 30 31

$40.99

$

Usually ships in 3-10 days

0

30

Poulan 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 1 left!

0

31

Poulan 530012472

RING-PISTON
(Superseded to 545154009)

$4.99

$

In Stock, only 4 left!

0

32

Poulan 530071486

GASKET KIT

Note: KIT

$10.99

$

Usually ships in 3-10 days

0

33

Poulan 530057634

ADAPTER

$12.99

$

Usually ships in 3-10 days

0

34

Poulan 530016441

SCREW

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 530071718

CHOKE CONTROL

$20.99

$

In Stock, only 4 left!

0

36

Poulan 530055680

AIR BOX

$4.99

$

In Stock, only 2 left!

0

37

Poulan 530016429

SCREW

$6.49

$

In Stock, only 4 left!

0

38

Poulan 530047932

AIR FILTER FOAM

$5.99

$

In Stock, only 1 left!

0

39

Poulan 530055679

AIR FILTER COVER

$

$

Not available

40

Poulan 530015957

SCREW

$4.99

$

In Stock, Qty 6

0

41

Poulan 530015158

WASHER
(Superseded to 530015123)

$4.99

$

In Stock, only 4 left!

0

42

Poulan 530071633

CARBURETOR ASSY (C1U-W13A)

Note: C1U--W13A

$53.99

$

In Stock, only 1 left!

0

43

Poulan 530071486

GASKET KIT

$10.99

$

Usually ships in 3-10 days

0

44

Poulan 952030249

PLUG-SPARK (RCJ-6Y)

Note: RCJ--6Y

$4.49

$

In Stock, Qty 20+

0

45

Poulan 530012553

CYLINDER

$

$

Not available

46

Poulan 530015953

SCREW

$6.49

$

In Stock, Qty 7

0

47

Poulan 530071486

GASKET KIT

Note: KIT

$10.99

$

Usually ships in 3-10 days

0

48

Poulan 000000000

Note: . 47 49 50 51

$

$

Not available

49

Poulan 530016338

SCREW MUFFLER

$3.99

$

In Stock, only 2 left!

0

50

Poulan 530071544

PARTITION

$

$

Not available

51

Poulan 530015241

SCREW-6-19X5/16PLAST PA

Note: . 3 27 32 43 47

$3.99

$

Usually ships in 3-10 days

0

52

Poulan 530057728

LEAD WIRE

$

$

Not available

53

Poulan 530071486

GASKET KIT

$10.99

$

Usually ships in 3-10 days

0
