24BG55M3006 - MTD Log Splitter (2011) 170-L0-11 Cylinder Head Parts Diagram

Log Splitter

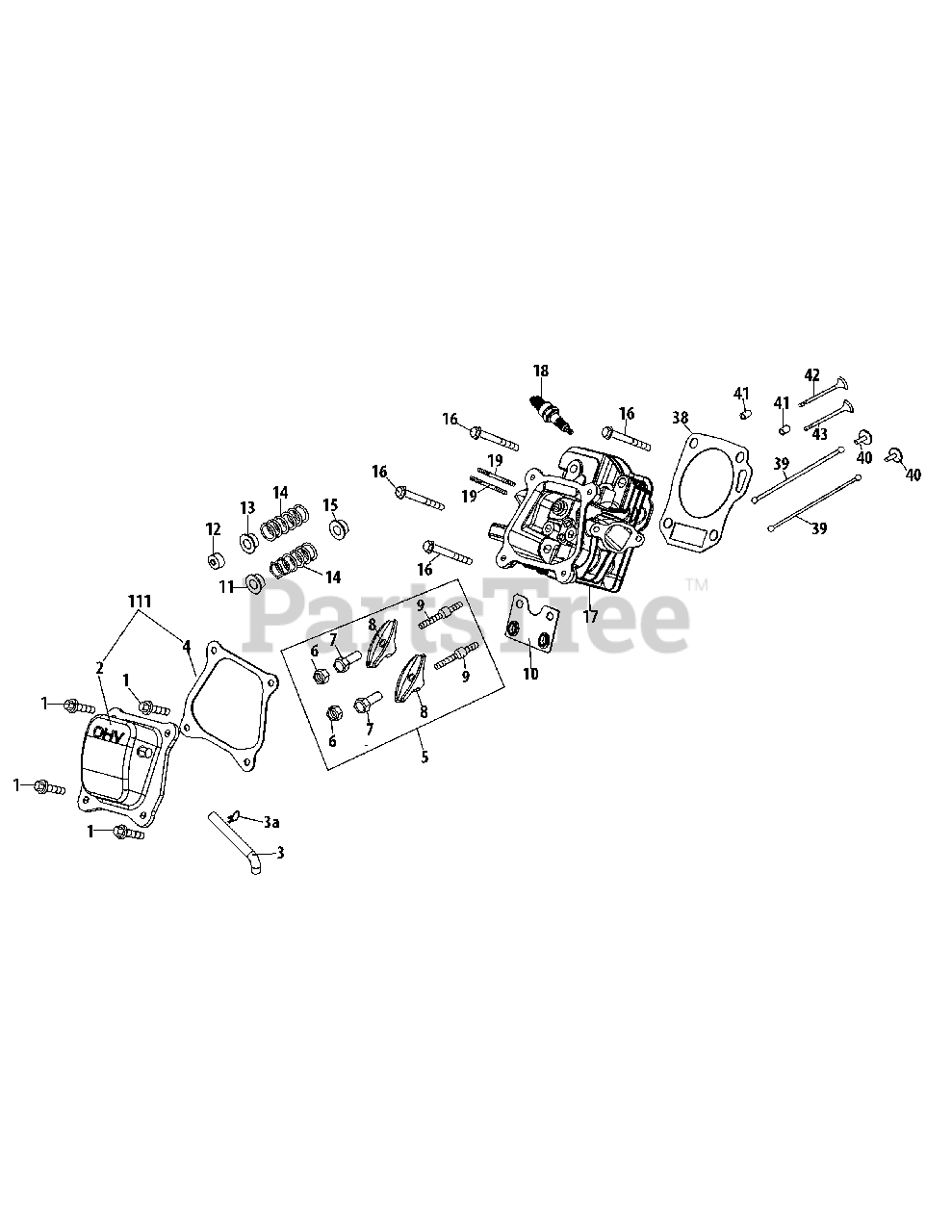

170-L0-11 Cylinder Head Parts Diagram

  • Title

1

MTD 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

2

MTD 951-11054

Valve Cover
(Superseded to 951-11054B)

$15.99

$

Usually ships in 3-6 days

0

3

MTD 731-07059

Hose

$6.49

$

In Stock, only 1 left!

0

3a

MTD 726-04101

Hose Clamp

$4.49

$

Usually ships in 3-6 days

0

4

MTD 951-11565

Valve Cover Gasket
(Superseded to 751P11565B)

$10.99

$

In Stock, Qty 12

0

5

MTD 951-11892

Roker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

6

MTD 751-11124

Nut, Pivot Locking

$9.49

$

In Stock, only 2 left!

0

7

MTD 751-11123

Adjusting Nut, Valve

$10.99

$

In Stock, only 4 left!

0

8

MTD 951-11893

Rocker Arm

$7.99

$

Usually ships in 3-6 days

0

9

MTD 710-04902

Bolt, Pivot

$6.99

$

In Stock, only 4 left!

0

10

MTD 951-11895

Push Rod Guide

$8.99

$

Usually ships in 3-6 days

0

11

MTD 951-12000

Retainer, In. Valve Spring

$4.49

$

In Stock, only 1 left!

0

12

MTD 951-12002

Adjuster, Ex. Valve
(Superseded to 751P12002A)

$2.99

$

In Stock, only 3 left!

0

13

MTD 951-12003

Retainer, Ex. Valve Spring

$4.49

$

In Stock, only 1 left!

0

14

MTD 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

15

MTD 951-11894

Intake Valve Seal

$10.99

$

Usually ships in 3-6 days

0

16

MTD 710-04933

Bolt M8×55

$3.99

$

In Stock, Qty 10

0

17

MTD 951-10668A

Cylinder Head Assembly
(Superseded to 951-10722B)

Note: (Incl. 4,6-15,17,20,25,26,38,42,43)

$170.99

$

In Stock, only 1 left!

0

18

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

19

MTD 710-04911

Stud M8×36

$4.49

$

Usually ships in 3-6 days

0

19

MTD 951-10657

Muffler Stud Assembly

$10.99

$

Usually ships in 3-6 days

0

38

MTD 951-11572

Gasket Cylinder Head

$11.99

$

In Stock, Qty 18

0

39

MTD 951-10648

Push Rod

$17.99

$

In Stock, only 3 left!

0

40

MTD 951-11899

Tappet

$8.49

$

In Stock, only 4 left!

0

41

MTD 715-04090

Dowel Pin, 10×16
(Superseded to 715-04108)

$4.49

$

In Stock, only 1 left!

0

42

MTD 951-10647A

Exhaust Valve

$64.99

$

Usually ships in 3-6 days

0

43

MTD 951-10647A

Intake Valve

$64.99

$

Usually ships in 3-6 days

0

111

MTD 951-11063A

Valve Cover Kit
(Superseded to 951-12626)

Note: (Incl. 2,4)

$28.99

$

Usually ships in 3-6 days

0

MTD 951-10819

Cylinder Head Service Kit

Note: Not shown (Incl. 4,15,16,38)

$19.99

$

Usually ships in 3-6 days

0

MTD 751-12549

Gasket Kit - External
(Superseded to 951-12573)

Note: Not shown (Incl. 4,20,25,26,27,29)

$31.99

$

Usually ships in 3-6 days

0

MTD 751-12550

Gasket Kit - Complete
(Superseded to 951-12572)

Note: Not shown (Incl. 4,20,25-27,29,38,52,53,62,66,69)

$66.99

$

Usually ships in 3-6 days

0
