24BF51MX700 - Yard Machines Gold Log Splitter (2015) 1X65LU Cylinder Head & Muffler Parts Diagram

Gold Log Splitter

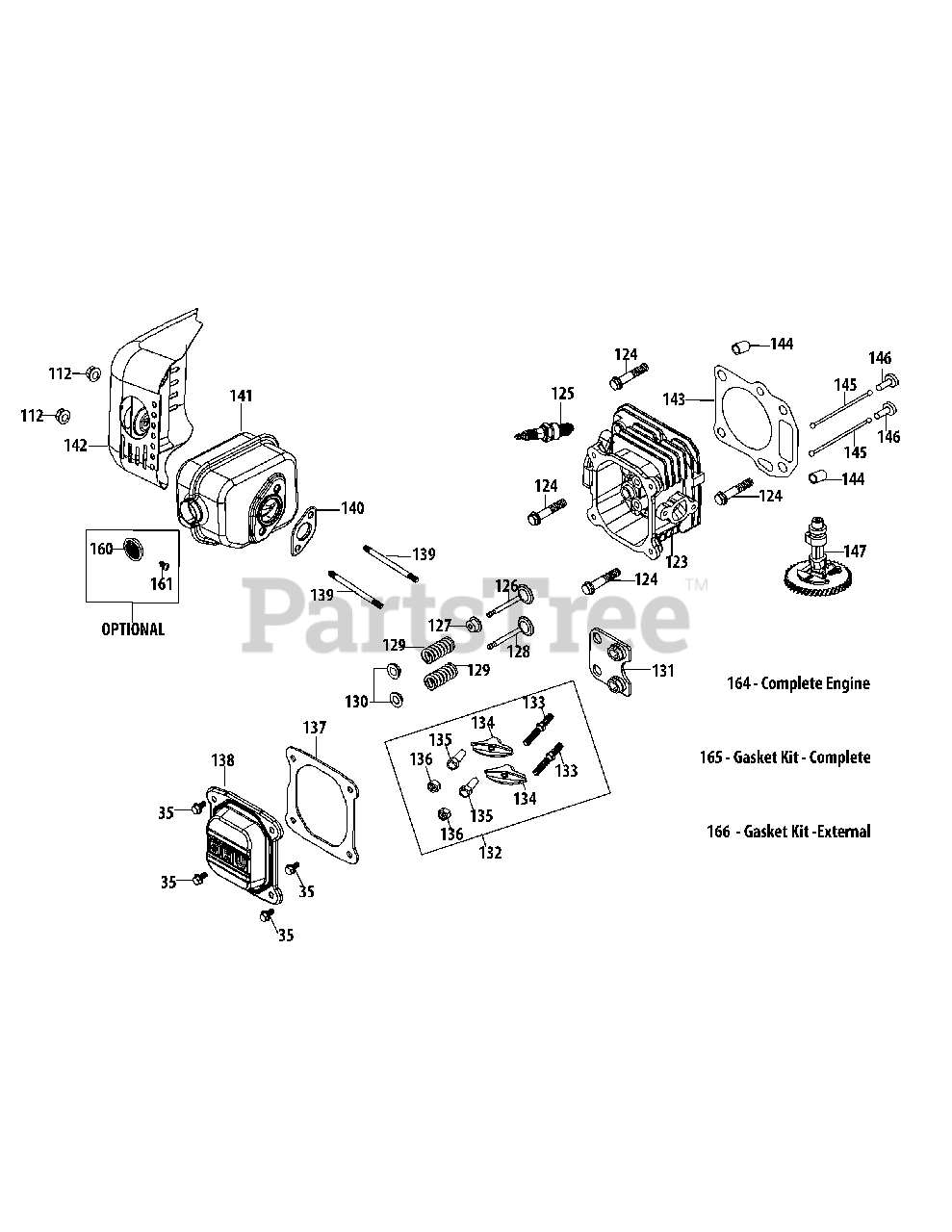

1X65LU Cylinder Head & Muffler Parts Diagram

  • Title

35

MTD 710-04916

Bolt M6X14 Multi-Purpose

$4.49

$

In Stock, Qty 12

0

112

MTD 712-04212

Nut M6X10Mm Starter/Carb/Muff
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

123

MTD 951-14448

Cylinder Head Asm

Note: (Incl.120,121,123,126-131,133-137,140,143)

$189.99

$

Usually ships in 3-6 days

0

123

MTD 951-14445

Cylinder Head Service Kit

Note: (Incl.124,127,137,143)

$41.99

$

Usually ships in 3-6 days

0

124

MTD 710-04982

Bolt M8X54 Cylinder Head

$3.99

$

Usually ships in 3-6 days

0

125

MTD 951-14437

Spark Plug/F5Rtc

$8.49

$

In Stock, Qty 20+

0

126

MTD 951-10313

Valve Kit

$65.99

$

In Stock, only 1 left!

0

127

MTD 951-11818

Intake Valve Seal

$11.99

$

Usually ships in 3-6 days

0

128

MTD 951-10313

Valve Kit

$65.99

$

In Stock, only 1 left!

0

129

MTD 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

130

MTD 951-11977

Valve Spring Retainer

$4.49

$

In Stock, only 2 left!

0

131

MTD 951-11687

Push Rod Guide

$7.49

$

Usually ships in 3-6 days

0

132

MTD 951-11606

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

133

MTD 710-04902

Rocker Arm Stud

$6.99

$

In Stock, only 4 left!

0

134

MTD 951-12001

Rocker Arm

$7.99

$

In Stock, only 1 left!

0

135

MTD 751-11123

Fulcrum Nut

$10.99

$

In Stock, only 4 left!

0

136

MTD 751-11124

Jam Nut

$9.49

$

In Stock, only 2 left!

0

137

MTD 951-11551

Valve Cover Gasket

$10.99

$

In Stock, Qty 11

0

138

MTD 751-14609

Valve Cover
(Superseded to 951-14609A)

$16.99

$

Usually ships in 3-6 days

0

139

MTD 710-05094

Muffler Stud M6X95

$4.49

$

In Stock, Qty 20+

0

139

MTD 951-10342

Muffler Stud Assembly

$9.99

$

In Stock, Qty 10

0

140

MTD 951-14427

Muffler Gasket
(Superseded to 951-14427A)

$7.49

$

In Stock, Qty 20+

0

141

MTD 951-10403

Muffler Assembly

$82.99

$

Usually ships in 3-6 days

0

142

MTD 951-14430

Muffler Shield
(Superseded to 951-15072)

$25.99

$

Usually ships in 3-6 days

0

143

MTD 951-14431

Cylinder Head Gasket

$16.99

$

In Stock, only 1 left!

0

144

MTD 715-04108

Cylinder Head Dowel Pin F10×16

$4.49

$

In Stock, only 1 left!

0

145

MTD 951-10314

Push Rod

$17.99

$

Usually ships in 3-6 days

0

146

MTD 951-14432

Tappet
(Superseded to 951-14432A)

$8.99

$

Usually ships in 3-6 days

0

147

MTD 951-11741

Camshaft Assembly

$66.99

$

Usually ships in 3-6 days

0

160

MTD 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

161

MTD 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

164

MTD 952Z1X65LU

Complete Engine
(Superseded to 952Z1X65LUA)

$655.99

$

Usually ships in 3-6 days

0

165

MTD 751-14614

Gasket Kit - Complete
(Superseded to 951-14614)

Note: (Incl.37,38,63,78,86,104,107,117,119,120,121,137,140,143)

$50.99

$

Usually ships in 3-6 days

0

166

MTD 751-14615

Gasket Kit -External
(Superseded to 951-14615)

Note: (Incl.37,86,104,117,119,120,121,137,140)

$32.99

$

Usually ships in 3-6 days

0
