24BF51MM004 - MTD Gold Log Splitter (2012) 1P70L0A-11 Carburetor Parts Diagram

Gold Log Splitter

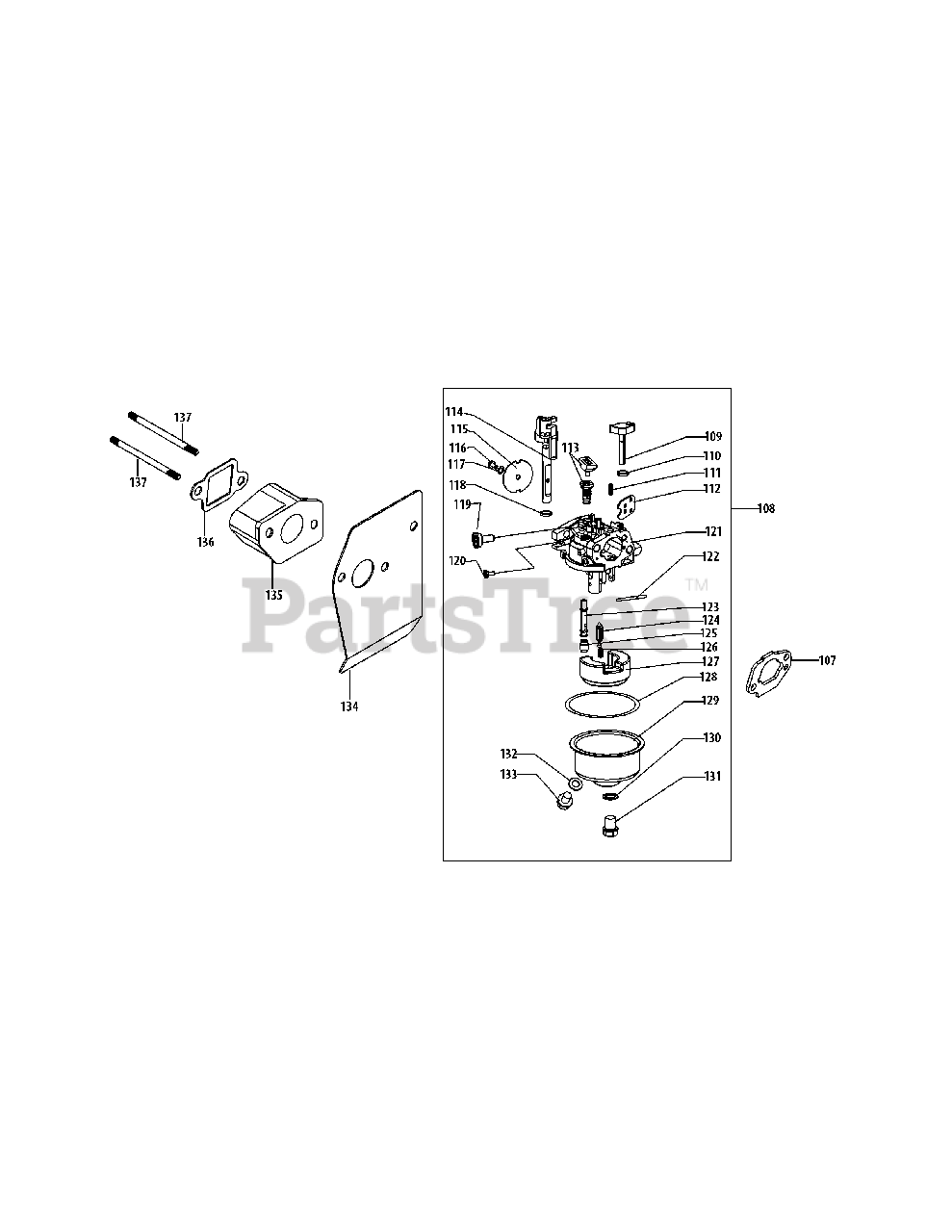

1P70L0A-11 Carburetor Parts Diagram

  • Title
107

MTD 951-11525

Carburetor Gasket Plate

$5.49

$

In Stock, only 1 left!

0

108

MTD 951-10929

Carburetor Assembly

$96.99

$

In Stock, only 1 left!

0

109

MTD n/a

Choke Shaft

$

$

Currently unavailable

110

MTD n/a

Fiber O-Ring

$

$

Currently unavailable

111

MTD n/a

Choke Plate

$

$

Currently unavailable

112

MTD n/a

Choke Return Spring

$

$

Currently unavailable

113

MTD n/a

Idle Jet Assembly

$

$

Currently unavailable

114

MTD n/a

Throttle Shaft

$

$

Currently unavailable

115

MTD n/a

Throttle Plate

$

$

Currently unavailable

116

MTD n/a

Lock Washer

$

$

Currently unavailable

117

MTD n/a

Screw M3×6

$

$

Currently unavailable

118

MTD n/a

Fiber O-Ring

$

$

Currently unavailable

119

MTD n/a

Idle Speed Adjusting Screw

$

$

Currently unavailable

120

MTD n/a

Idle Mixture Screw

$

$

Currently unavailable

121

MTD n/a

Carburetor Body

$

$

Currently unavailable

122

MTD n/a

Float Pin

$

$

Currently unavailable

123

MTD n/a

Emulsion Tube

$

$

Currently unavailable

124

MTD n/a

Needle Valve

$

$

Currently unavailable

125

MTD n/a

Main Jet

$

$

Currently unavailable

126

MTD n/a

Needle Valve Spring

$

$

Currently unavailable

127

MTD n/a

Float

$

$

Currently unavailable

128

MTD 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

129

MTD n/a

Fuel Bowl

$

$

Currently unavailable

130

MTD 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

131

MTD 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 13

0

132

MTD 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

133

MTD 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 10

0

134

MTD 951-12110

Carburetor Gasket

$4.49

$

In Stock, Qty 6

0

135

MTD 951-11255

Carburetor Insulator

$4.49

$

In Stock, only 4 left!

0

136

MTD 951-11254

Carburetor Insulator Gasket

$6.49

$

In Stock, only 1 left!

0

137

MTD 710-04981

Carb Stud M6×113

$3.99

$

Usually ships in 3-6 days

0

MTD 951-12178

Carburetor Kit - Major
(Superseded to 951-12178A)

Note: (Incl.110,118,119,122-129,130,132) (not shown)

$56.99

$

Usually ships in 3-6 days

0
