24BF51MM004 - MTD Gold Log Splitter (2010) 1P70L0A Fuel Tank & Mounting Parts Diagram

Gold Log Splitter

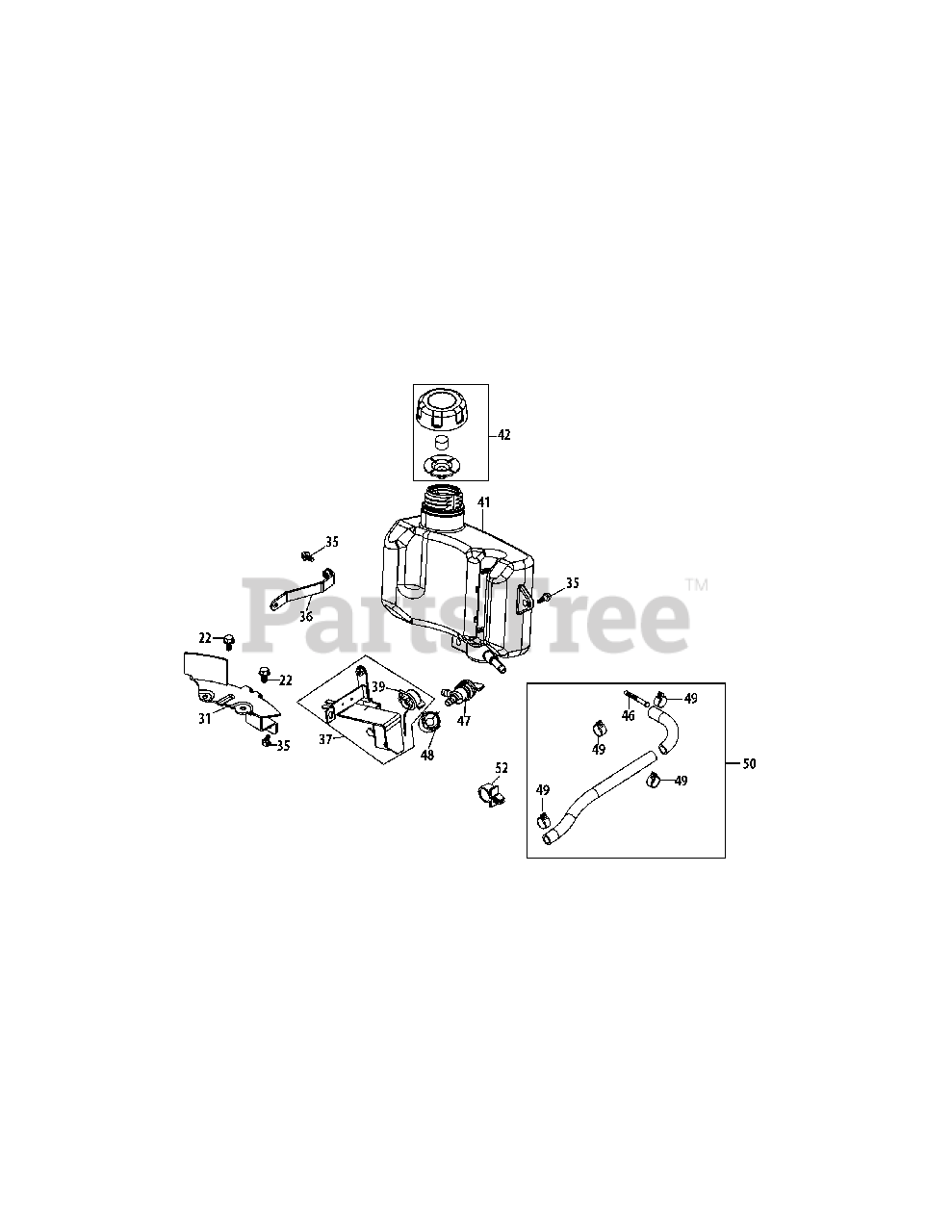

1P70L0A Fuel Tank & Mounting Parts Diagram

  • Title

22

MTD 710-04916

Bolt M6X14 Multi-Purpose

$4.49

$

In Stock, Qty 12

0

31

MTD 951-12184

Fuel Tank Bottom Bracket

$

$

Not available

35

MTD 710-04968

Fuel Tank Bolt (Carb)

$6.99

$

In Stock, only 3 left!

0

36

MTD 951-12185

Left Fuel Tank Bracket

$7.99

$

Usually ships in 3-6 days

0

37

MTD 951-12186

Fuel Tank / Console Bracket Assy

$

$

Not available

39

MTD 951-12289

Ignition Switch

$

$

Not available

41

MTD 951-12191

Fuel Tank

$57.99

$

Usually ships in 3-6 days

0

42

MTD 951-12291

Fuel Cap Assembly

$

$

Not available

46

MTD 951-10358A

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

47

MTD 951-12290

Fuel Shut-Off Valve

$19.99

$

Usually ships in 3-6 days

0

48

MTD 951-12192

Fuel Shut-Off Valve Mounting Clip

$4.49

$

Usually ships in 3-6 days

0

49

MTD 951-11700

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

50

MTD 951-12188

Fuel Line Kit

$27.99

$

Usually ships in 3-6 days

0

52

MTD 723-04071

Plastic Support Clamp
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0
