24BF51MM004 - MTD Gold Log Splitter (2010) 1P70L0A Flywheel & Shroud Parts Diagram

Gold Log Splitter

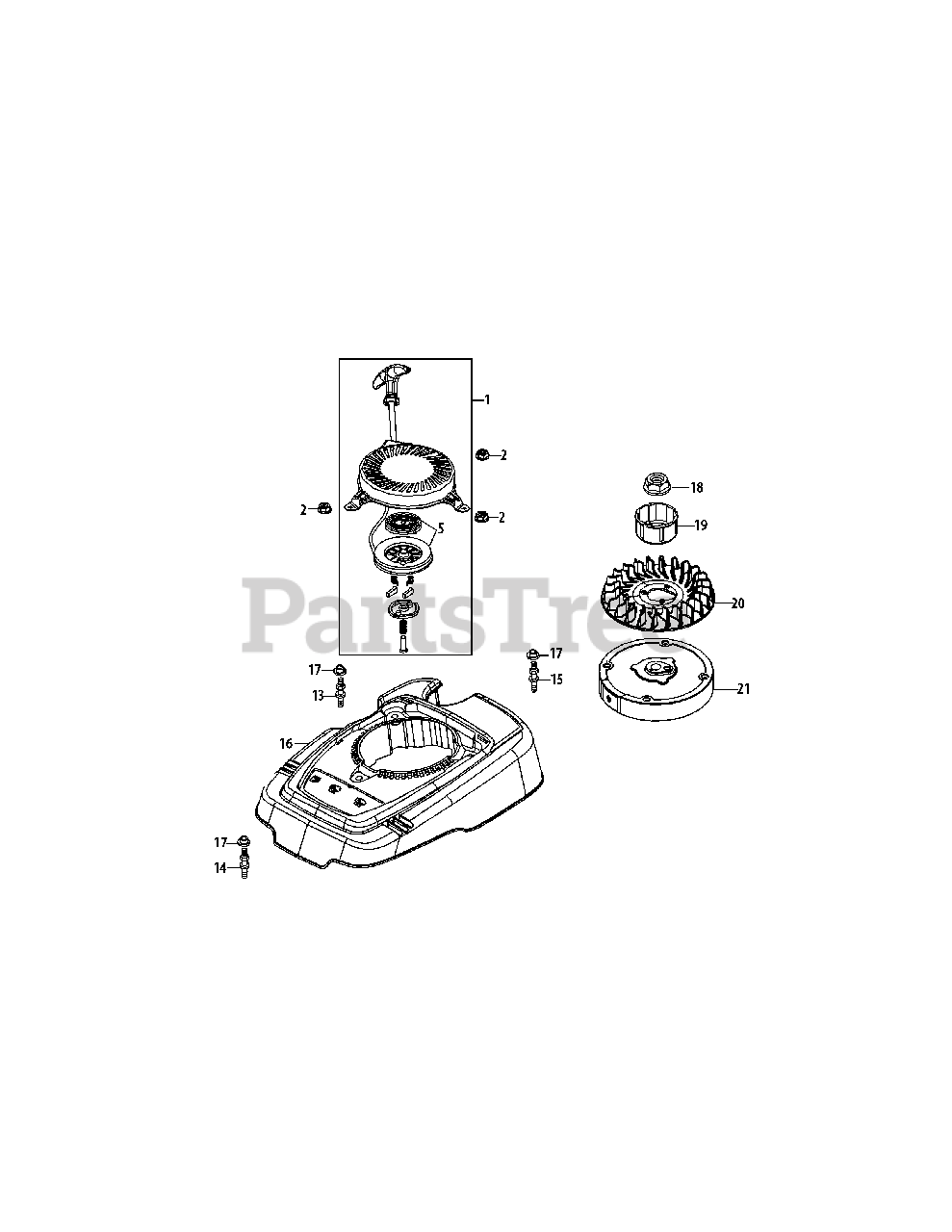

1P70L0A Flywheel & Shroud Parts Diagram

  • Title
1

MTD 951-11720

Recoil Starter Assembly
(Superseded to 951-12683)

$92.99

$

In Stock, only 4 left!

0

2

MTD 712-04212

Nut M6X10Mm Starter/Carb/Muffler
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

5

MTD 951-11721

Recoil Spring and Pulley Ass'y

$46.99

$

In Stock, only 1 left!

0

13

MTD 710-04976

Starter/Shroud Stud Left/Black

$4.49

$

In Stock, Qty 9

0

14

MTD 710-04977

Starter/Shroud Stud Front/Unmarked

$4.49

$

In Stock, Qty 5

0

15

MTD 710-04978

Starter/Shroud Stud Right/White

$3.99

$

In Stock, only 4 left!

0

16

MTD 951-12183

M6 Integrated Shroud

$

$

Not available

17

MTD 750-05320

Spacer

$4.49

$

In Stock, only 3 left!

0

18

MTD 712-04287

Flywheel Nut M14

$6.99

$

In Stock, only 1 left!

0

19

MTD 951-12176

Starter Cup

$

$

Not available

20

MTD 951-10909

Cooling Fan
(Superseded to 951-10934)

$23.99

$

Usually ships in 3-6 days

0

21

MTD 951-10935

Flywheel

$

$

Not available
