24BF51MM004 - MTD Gold Log Splitter (2010) 1P70L0A Carburetor Assembly Parts Diagram

Gold Log Splitter

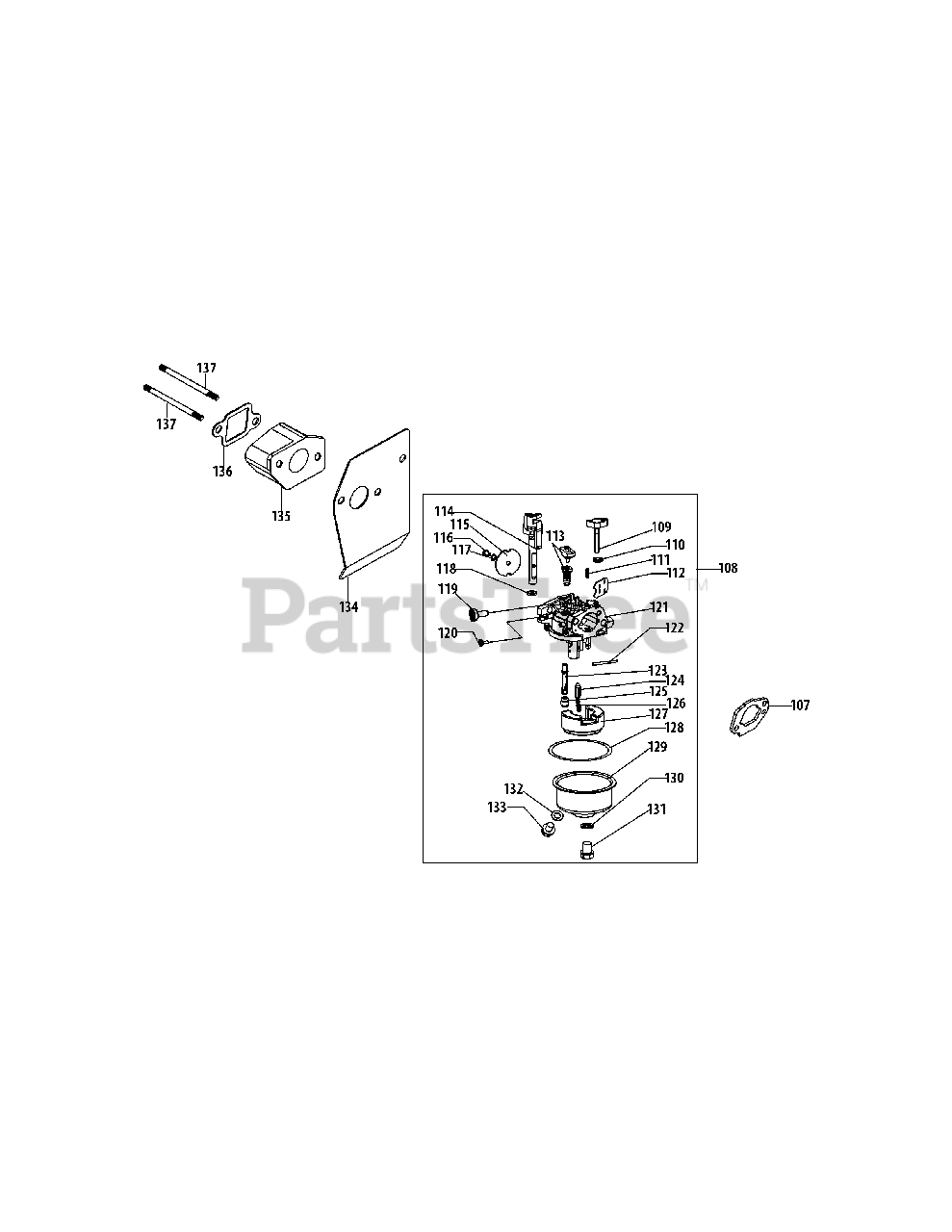

1P70L0A Carburetor Assembly Parts Diagram

  • Title
107

MTD 951-11525

Carburetor Gasket Plate

$5.49

$

In Stock, only 1 left!

0

108

MTD 951-10929

Carburetor Assembly

$96.99

$

In Stock, only 1 left!

0

109

N/A

Choke Shaft

$

$

Not available

110

N/A

Fiber O-Ring

$

$

Not available

111

N/A

Choke Detent Spring

$

$

Not available

112

N/A

Choke Plate

$

$

Not available

113

N/A

Idle Jet Assembly

$

$

Not available

114

N/A

Throttle Shaft

$

$

Not available

115

N/A

Throttle Plate

$

$

Not available

116

N/A

Screw M3X6 Throttle Plate

$

$

Not available

117

N/A

Lock Washer

$

$

Not available

118

N/A

Fiber O-Ring

$

$

Not available

119

N/A

Idle Speed Adjusting Screw

$

$

Not available

120

N/A

Idle Mixture Screw

$

$

Not available

121

N/A

Carburetor Body

$

$

Not available

122

N/A

Float Pin

$

$

Not available

123

N/A

Emulsion Tube

$

$

Not available

124

N/A

Needle Valve

$

$

Not available

125

N/A

Main Jet

$

$

Not available

126

N/A

Needle Valve Spring

$

$

Not available

127

N/A

Float

$

$

Not available

128

MTD 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

129

N/A

Fuel Bowl

$

$

Not available

130

MTD 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

131

MTD 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 13

0

132

MTD 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

133

MTD 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 10

0

134

MTD 951-12110

Carburetor Gasket

$4.49

$

In Stock, Qty 6

0

135

MTD 951-11255

Carburetor Insulator

$4.49

$

In Stock, only 4 left!

0

136

MTD 951-11254

Carburetor Insulator Gasket

$6.49

$

In Stock, only 1 left!

0

137

MTD 710-04981

Carb Stud M6X113

$3.99

$

Usually ships in 3-6 days

0

MTD 951-12178A

Carburetor Repair Kit - Major

Note: Not shown (Incl.110,113,118,119,122-128,130,132)

$56.99

$

Usually ships in 3-6 days

0
