24BA561D206 - Yard Machines Log Splitter (2000) (Quality Stores) General Assembly Parts Diagram

Log Splitter

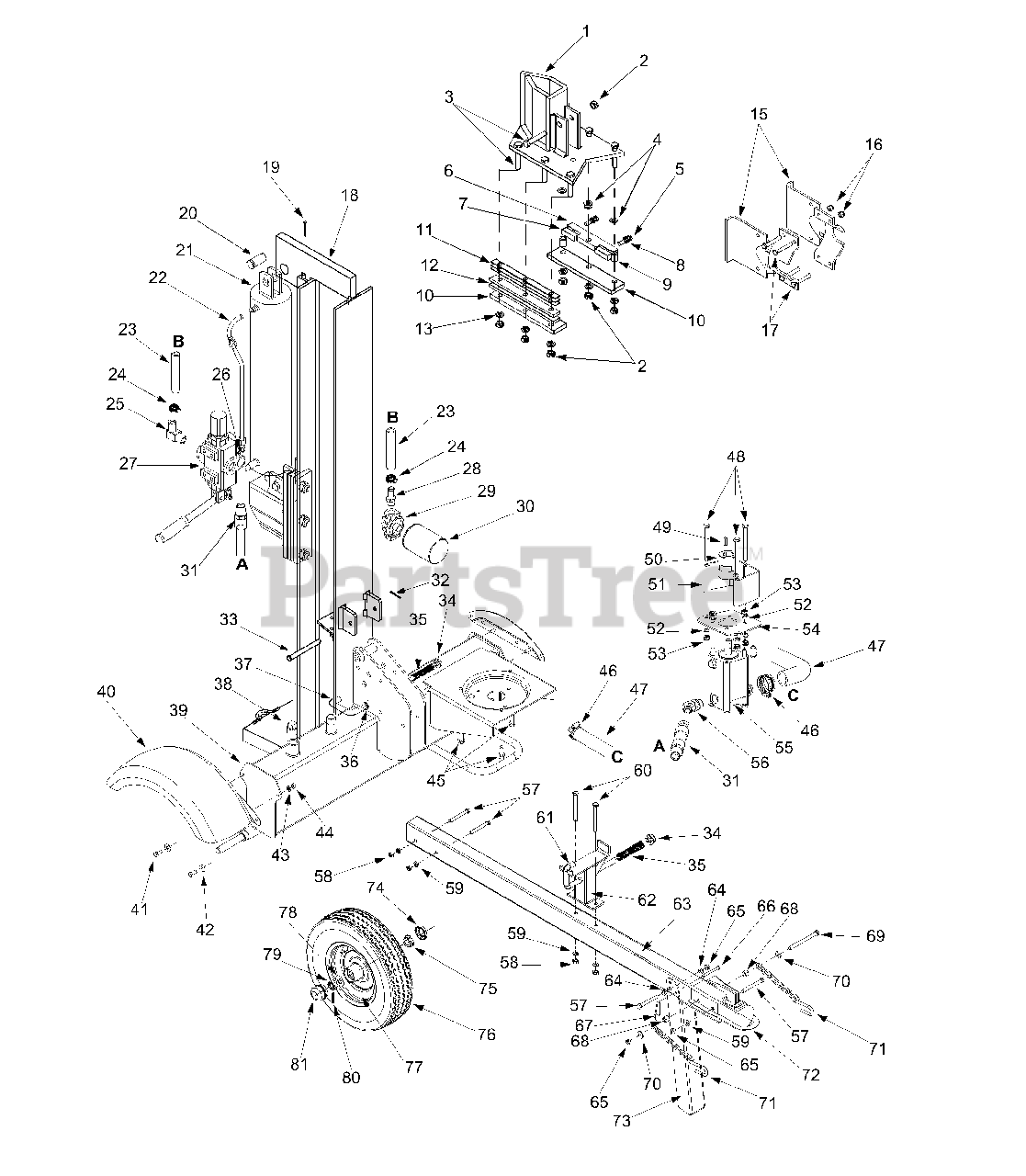

General Assembly Parts Diagram

  • Title

1

MTD 781-0323B

Wedge Asm
(Superseded to 753-04120)

Variations

MTD 781-0323B-0483

Wedge Assembly Replacement Kit - CHARCOAL GRAY (0483)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0629

Wedge Assembly Replacement Kit - SILVER FLAKE (0629)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0637

Wedge Assembly Replacement Kit - POWDER BLACK (0637)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0638

Wedge Assembly Replacement Kit - MTD/TROY-BILT RED (0638)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0648

Wedge Assembly Replacement Kit - TECH GRAY (0648)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0662

Wedge Assembly Replacement Kit - OYSTER GRAY (0662)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0716

Wedge Assembly Replacement Kit - CUB YELLOW-99 (0716)

$342.99

$

Usually ships in 3-6 days

0

$342.99

$

Usually ships in 3-6 days

0

2

MTD 712-0239

Lock Nut 1/2-20

$5.99

$

In Stock, Qty 20+

0

3

MTD 710-1018

Hex Cap Screw 1/2-20 x 2.75

$11.99

$

In Stock, Qty 19

0

4

MTD 736-0192

Flat Washer .531 x .93 x .090

$4.49

$

In Stock, Qty 18

0

5

MTD 710-0459A

Hex Cap Screw 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

6

MTD 781-0356

Floating Gib Plate

Variations

MTD 781-0356-0483

Floating Gib Plate - CHARCOAL GRAY (0483)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0498

Floating Gib Plate - OLD CUB YELLOW (0498)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0637

Floating Gib Plate - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0638

Floating Gib Plate - MTD/TROY-BILT RED (0638)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0716

Floating Gib Plate - CUB YELLOW-99 (0716)

$131.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

7

MTD 781-0351

Adjustable Gib

Variations

MTD 781-0351-0483

Log Splitter Adjustable Gib, 2" - CHARCOAL GRAY (0483)

$18.99

$

Usually ships in 3-6 days

0

MTD 781-0351-0637

Log Splitter Adjustable Gib, 2" - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

8

MTD 712-3001

Hex Jam Nut 3/8-24
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

9

MTD 750-0750

Spacer
(Superseded to 950-0750)

$

$

Not available

10

MTD 781-0537

Back Bracket

Variations

MTD 781-0537-0483

Pusher Back Plate, Powder Black - CHARCOAL GRAY (0483)

$44.99

$

In Stock, Qty 7

0

MTD 781-0537-0637

Pusher Back Plate, Powder Black - POWDER BLACK (0637)

$44.99

$

In Stock, Qty 7

0

MTD 781-0537-0638

Pusher Back Plate - MTD/TROY-BILT RED (0638)

$44.99

$

Usually ships in 3-6 days

0

MTD 781-0537-0498

PUSHER BACK PLATE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0537-0716

PLATE-PUSHER BACK - CUB YELLOW-99 (0716)

$

$

Not available

MTD 781-0537-0662

PLATE-PUSHER BACK - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0537-0674

PLATE-PUSHER BACK - YARDMAN YELLOW (0674)

$

$

Not available

$35.99

$

Usually ships in 3-6 days

0

11

MTD 781-0352A

Adjustable Gib Shim
(Superseded to 781-0352A-0637)

Variations

MTD 781-0352A-0483

Adjustable Gib Shim - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0352A-0498

Adjustable Gib Shim - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0352A-0637

Adjustable Gib Shim - POWDER BLACK (0637)

$

$

Not available

MTD 781-0352A-0638

Adjustable Gib Shim - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0352A-0662

Adjustable Gib Shim - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0352A-0692

Adjustable Gib Shim - AGWAY BLUE (0692)

$

$

Not available

MTD 781-0352A-0716

Adjustable Gib Shim - CUB YELLOW-99 (0716)

$

$

Not available

$

$

12

MTD 781-0350A

Fixed Gib

Variations

MTD 781-0350A-0483

Fixed Side Gib - CHARCOAL GRAY (0483)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0498

Fixed Side Gib - OLD CUB YELLOW (0498)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0637

Fixed Side Gib - POWDER BLACK (0637)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0638

Fixed Side Gib - MTD/TROY-BILT RED (0638)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0662

Fixed Side Gib - OYSTER GRAY (0662)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0665

Fixed Side Gib - YARDMAN GREEN (0665)

$30.99

$

In Stock, Qty 8

0

$28.99

$

Usually ships in 3-6 days

0

13

MTD 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 6

0

15

MTD 781-0168A

Stripper Side

Variations

MTD 781-0168A-0483

Stripper Half - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0168A-0638

Stripper Half - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0168A-0498

No Longer Available STRIPPER H - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0168A-0637

STRIPPER HALF - POWDER BLACK (0637)

$

$

Not available

MTD 781-0168A-0662

STRIPPER HALF - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0168A-0716

No Longer Available STRIPPER H - CUB YELLOW-99 (0716)

$

$

Not available

$102.99

$

Usually ships in 3-6 days

0

16

MTD 712-0130

Lock Nut 3/8-16

$3.99

$

In Stock, Qty 11

0

17

MTD 710-0859

Hex Cap Screw 3/8-16 x 2.5

$6.99

$

In Stock, Qty 16

0

18

MTD 681-0126

Beam Asm

Variations

MTD 681-0126-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 714-0211

Cotter Pin

$4.49

$

In Stock, Qty 14

0

20

MTD 711-1135

Clevis Pin

$62.99

$

Usually ships in 3-6 days

0

21

MTD 718-0306

Hydraulic Cylinder
(Superseded to 918-0306)

Variations

MTD 718-0306-0483

CYLINDER-HYD 4.5"D - CHARCOAL GRAY (0483)

$

$

Not available

MTD 718-0306-0498

CYLINDER-HYD 4.5"D - OLD CUB YELLOW (0498)

$

$

Not available

MTD 718-0306-0637

CYLINDER-HYD 4.5"D - POWDER BLACK (0637)

$

$

Not available

MTD 718-0306-0638

CYLINDER-HYD 4.5"D - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 718-0306-0662

CYLINDER-HYD 4.5"D - OYSTER GRAY (0662)

$

$

Not available

MTD 718-0306-0674

CYLINDER-HYD 4.5"D - YARDMAN YELLOW (0674)

$

$

Not available

$

$

21

MTD 753-0563

Seal Kit

Note: Not shown, for Fisher Hydraulic cylinders. Fisher cylinders use a snap ring retainer system to secure the piston assembly into the cylinder.

$240.99

$

In Stock, only 1 left!

0

21

MTD 753-0690

Seal Kit, NLA

Note: Not shown, for Best Metals Hydraulic cylinders. BEST cylinders will have "BM" or "BEST" cast into the end cap.

$

$

Currently unavailable

22

MTD 727-0471

Hydraulic Tube

$

$

Not available

23

MTD 727-0443

Return Hose 3/4" ID x 44" Lg

$118.99

$

In Stock, only 2 left!

0

24

MTD 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

25

MTD 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

26

MTD 737-0192

90 Degree Solid Male Adapter

$41.99

$

Usually ships in 3-6 days

0

27

MTD 718-0481

Control Valve
(Superseded to 918-0481A)

Variations

MTD 718-0481-0498

Logsplitter Valve - OLD CUB YELLOW (0498)

$383.99

$

In Stock, only 1 left!

0

MTD 718-0481-0637

Logsplitter Valve - POWDER BLACK (0637)

$383.99

$

In Stock, only 1 left!

0

$383.99

$

In Stock, only 1 left!

0

28

MTD 737-0235

3/4" Hose Adapter

$23.99

$

In Stock, only 2 left!

0

29

MTD 737-0306

Filter Housing
(Superseded to 681-0179)

$

$

Not available

30

MTD 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

31

MTD 727-0502

High Pressure Hydraulic Hose

$209.99

$

Usually ships in 3-6 days

0

32

MTD 714-0470

Cotter Pin 1/8" Dia

$4.49

$

In Stock, Qty 20+

0

33

MTD 738-0805

Hinge Pin 1/2 x 4.8" Lg.

$

$

Not available

34

MTD 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

35

MTD 732-0583

Comp. Spring 4" Lg.

$12.99

$

In Stock, Qty 19

0

36

MTD 736-0116

Flat Washer .635 ID x .93 OD
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

37

MTD 781-0690

Locking Rod

$35.99

$

In Stock, only 1 left!

0

38

MTD 737-0236

Pipe Plug
(Superseded to 737-0348A)

$23.99

$

In Stock, only 1 left!

0

39

MTD 681-0092A

Frame Asm

Variations

MTD 681-0092A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 681-0138

Fender Asm
(Superseded to 781-04000)

Variations

MTD 681-0138-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 681-0138-0498

No Longer Available 781-04000- - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0138-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 681-0138-0638

FENDER LOGSPLTR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0138-0662

Fender - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0138-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0138-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

MTD 681-0138-0716

No Longer Available FENDER LOG - CUB YELLOW-99 (0716)

$

$

Not available

$

$

41

MTD 710-0157

Hex Cap Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 18

0

42

MTD 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

43

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

MTD 712-0123

Hex Nut 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

45

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.

$4.49

$

In Stock, only 3 left!

0

46

MTD 726-0174

Hose Clamp

$9.99

$

Usually ships in 3-6 days

0

47

MTD 735-0256

Suction Hose

$

$

Not available

48

MTD 710-1338

Hex Screw 5/16-24 x 3.25

$

$

Not available

49

MTD 714-0122

Sq. Key 3/16" x .75

$3.99

$

In Stock, Qty 20+

0

50

MTD 717-0891

Flexible Coupling .750 x .500
(Superseded to 917-0891)

Note: use with 718-04127, for 3/4" engine crankshaft

$159.99

$

Usually ships in 3-6 days

0

50

MTD 718-04145

Flexible Coupling .875 x .500
(Superseded to 918-04145)

Note: use with 718-04127, for 7/8" engine crankshaft

$90.99

$

In Stock, Qty 8

0

50

MTD 718-04395

Coupling, .875 Diameter

Note: use with 718-04127, for 7/8" engine crankshaft, Not shown

$18.99

$

In Stock, Qty 20+

0

50

MTD 718-04392

Coupling, .500 Diameter

Note: use with 718-04127, Not shown

$14.99

$

In Stock, only 1 left!

0

50

MTD 735-04103

Bushing, Spider Coupling

Note: use with 718-04127, Not shown

$14.99

$

In Stock, only 1 left!

0

50

MTD 710-1842

Set Screw
(Superseded to 710-1842A)

Note: use with 718-04127, Not shown

$5.49

$

In Stock, only 1 left!

0

50

MTD 718-0686

Flexible Coupling .875 x .437
(Superseded to 918-0686)

Note: use with 718-0683

$104.99

$

In Stock, only 4 left!

0

51

MTD 719-0353

Coupling Shield

$54.99

$

Usually ships in 3-6 days

0

52

MTD 736-0119

L-Washer 5/16" ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

MTD 712-0123

Hex Nut 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

54

MTD 781-0097

Rear Coupling Support Bracket
(Superseded to 781-0097-0637)

Variations

MTD 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$69.99

$

In Stock, only 3 left!

0

$69.99

$

In Stock, only 3 left!

0

55

MTD 718-0683

Gear Pump (11 gpm)
(Superseded to 753-05194)

Note: No longer available, furnish 753-05194 Kit

$1509.99

$

In Stock, only 1 left!

0

55

MTD 753-05194

Pump Kit

Note: includes pump & couplings

$1509.99

$

In Stock, only 1 left!

0

55

MTD 718-04127

Gear Pump (9.5 gpm)
(Superseded to 918-04127)

$751.99

$

Usually ships in 3-6 days

0

56

MTD 737-0329

45 Degree Elbow

$

$

Not available

57

MTD 710-0521

Hex Bolt 3/8-16 x 3" Lg.

$5.49

$

In Stock, Qty 10

0

58

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

59

MTD 736-0169

L-Washer 3/8" ID

$3.99

$

In Stock, Qty 20+

0

60

MTD 710-0411

Hex Bolt 3/8-16 x 4" Lg.

$8.49

$

In Stock, Qty 17

0

61

MTD 781-0690

Locking Rod

$35.99

$

In Stock, only 1 left!

0

62

MTD 681-0110

Support Beam Asm
(Superseded to 681-0110-0637)

Variations

MTD 681-0110-0637

SUPPORT ASM. BEAM - POWDER BLACK (0637)

$

$

Not available

$

$

63

MTD 781-0680A

Tube
(Superseded to 781-0680B)

Variations

MTD 781-0680A-0498

TONGUE TUBE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0680A-0637

TUBE-TONGUE - POWDER BLACK (0637)

$

$

Not available

MTD 781-0680A-0638

TUBE-TONGUE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0680A-0648

TUBE-TONGUE - TECH GRAY (0648)

$

$

Not available

MTD 781-0680A-0650

TUBE-TONGUE - RED METALLIC (0650)

$

$

Not available

MTD 781-0680A-0665

TUBE-TONGUE - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0680A-0483

TUBE-TONGUE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0680A-0662

TUBE-TONGUE - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0680A-0674

TUBE-TONGUE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 781-0680A-0689

TUBE-TONGUE - POLO GREEN (0689)

$

$

Not available

MTD 781-0680A-0716

TONGUE TUBE - CUB YELLOW-99 (0716)

$

$

Not available

$192.99

$

Usually ships in 3-6 days

0

64

MTD 736-0185

Flat Washer 3/8

$3.99

$

In Stock, Qty 20+

0

65

MTD 712-0375

Hex Lock Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

66

MTD 711-0813

Clevis Pin 5/16 x 2.5"
(Superseded to 911-0813)

$6.99

$

Usually ships in 3-6 days

0

67

MTD 732-0194

Spring Pin

$4.99

$

In Stock, Qty 12

0

68

MTD 750-0497

Spacer 3/8" ID x .625' OD

$10.99

$

Usually ships in 3-6 days

0

69

MTD 710-0944

Hex Bolt 3/8-16 x 4" Lg.

$10.99

$

In Stock, Qty 14

0

70

MTD 736-0262

Flat Washer 3/8" ID x .87" OD

$3.99

$

Usually ships in 3-6 days

0

71

MTD 713-0433

Chain - Tow Hitch
(Superseded to 713-0433A)

$44.99

$

In Stock, only 1 left!

0

72

MTD 727-0311

Hitch Coupler

$

$

Not available

73

MTD 781-0162

Jack Stand

Variations

MTD 781-0162-0483

STAND-JACK - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0162-0637

STAND-JACK - POWDER BLACK (0637)

$

$

Not available

MTD 781-0162-0638

STAND-JACK - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0162-0648

STAND-JACK - TECH GRAY (0648)

$

$

Not available

MTD 781-0162-0674

STAND-JACK - YARDMAN YELLOW (0674)

$

$

Not available

MTD 781-0162-0716

STAND-JACK - CUB YELLOW-99 (0716)

$

$

Not available

$

$

74

MTD 721-0168

Bearing Seal Only
(Superseded to 921-0168)

$9.49

$

In Stock, Qty 18

0

75

MTD 741-0987

Bearing Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

76

MTD 634-0186

Wheel Assembly

$363.99

$

Usually ships in 3-6 days

0

77

MTD 634-0188

Rim Assembly - Gray

$175.99

$

Usually ships in 3-6 days

0

78

MTD 736-0351

Flat Washer .76" ID x 1.5" OD

$4.49

$

In Stock, Qty 20+

0

79

MTD 712-0359

Slotted Nut 3/4-16

$11.99

$

Usually ships in 3-6 days

0

80

MTD 714-0162

Cotter Pin 5/32" x 1-1/4" Lg.

$4.99

$

In Stock, Qty 20+

0

81

MTD 734-0873

Hub Cap

$11.99

$

In Stock, only 3 left!

0
