24AD586B000 - Yard Machines Log Splitter (2002) General Assembly Parts Diagram

Log Splitter

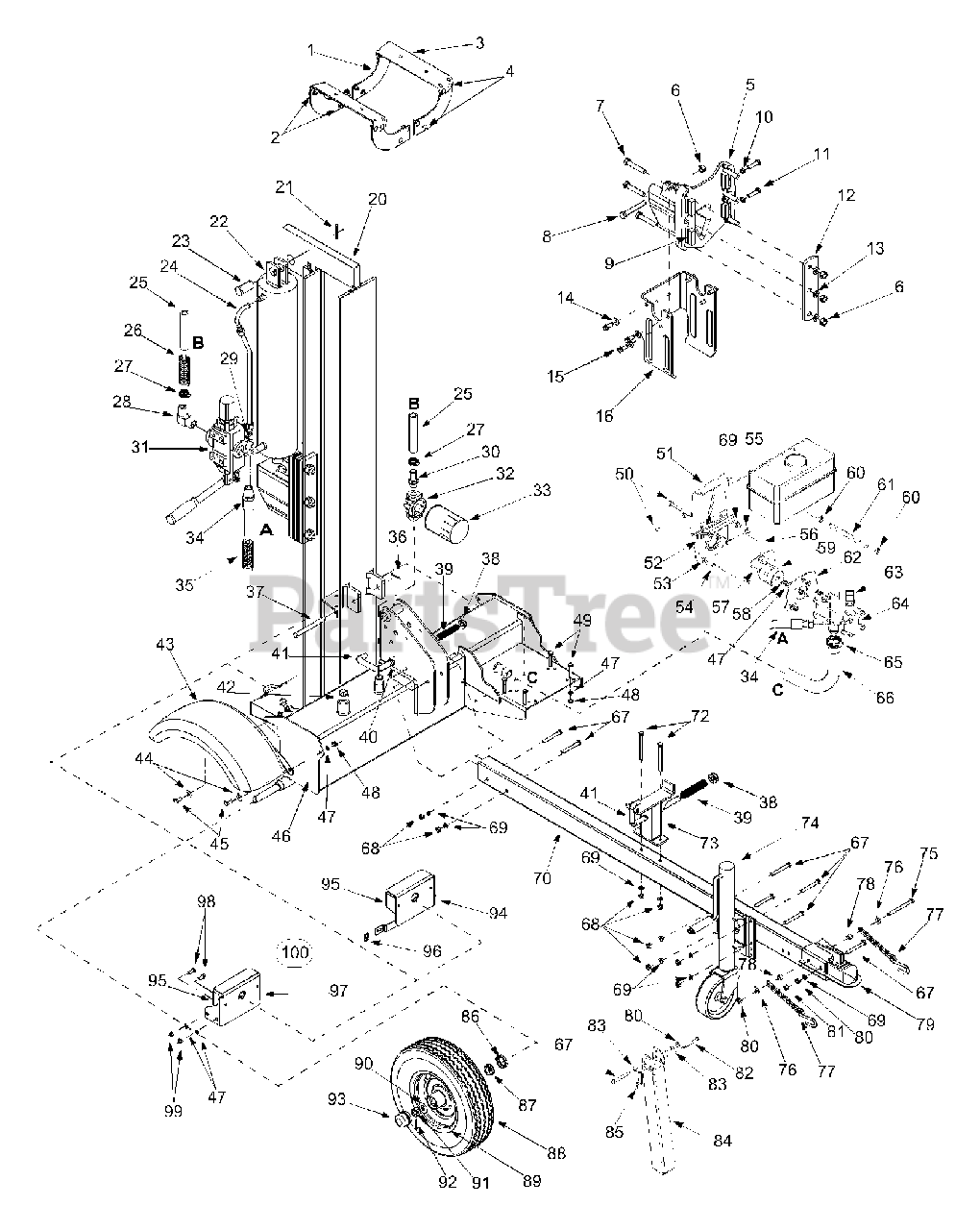

General Assembly Parts Diagram

  • Title

1

MTD 781-0686

Log Tray Bracket
(Superseded to 753-05423)

Variations

MTD 781-0686-0498

Log Splitter Tray Bracket - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0686-0637

Log Splitter Tray Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 712-0431

Flanged Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

3

MTD 781-0682

Log Tray
(Superseded to 753-05424)

Variations

MTD 781-0682-0637

Log Splitter Tray Kit - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

MTD 781-0682-0665

Log Splitter Tray Kit - YARDMAN GREEN (0665)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

4

MTD 710-3097

Carriage Bolt 3/8-16 x 1.0

$6.99

$

In Stock, Qty 5

0

5

MTD 719-0550

Wedge Assembly
(Superseded to 719-0550A)

$245.99

$

Usually ships in 3-6 days

0

6

MTD 712-0239

Lock Nut 1/2-20

$5.99

$

In Stock, Qty 20+

0

7

MTD 710-1018

Hex Cap Screw 1/2-20 x 2.75

$11.99

$

In Stock, Qty 19

0

8

MTD 710-0515

Hex Cap Screw 1/2-20 x 3.50

$11.99

$

Usually ships in 3-6 days

0

9

MTD 781-0351

Adjustable Gib

Variations

MTD 781-0351-0483

Log Splitter Adjustable Gib, 2" - CHARCOAL GRAY (0483)

$18.99

$

In Stock, Qty 18

0

MTD 781-0351-0637

Log Splitter Adjustable Gib, 2" - POWDER BLACK (0637)

$18.99

$

In Stock, Qty 18

0

$18.99

$

In Stock, Qty 18

0

10

MTD 712-0711

Hex Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0459A

Hex Cap Screw 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

12

MTD 781-0790

Back Plate
(Superseded to 781-0790A-0637)

Variations

MTD 781-0790-0637

Logsplitter Wedge Plate - POWDER BLACK (0637)

$40.99

$

In Stock, only 2 left!

0

$40.99

$

In Stock, only 2 left!

0

13

MTD 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 6

0

14

MTD 736-0300

Flat Washer .406 ID x .875 OD

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.

$4.49

$

In Stock, Qty 20+

0

16

MTD 781-1048

Dislodger
(Superseded to 781-04426)

Variations

MTD 781-1048-0637

Dislodger Bracket - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

20

MTD 681-0129A

Beam Assembly
(Superseded to 981-04080)

$

$

Not available

21

MTD 714-0211

Cotter Pin

$4.49

$

In Stock, Qty 14

0

22

MTD 718-0313

Hydraulic Cylinder
(Superseded to 918-0313A)

Note: replace with 718-0313A

Variations

MTD 718-0313-0498

CYLINDER-LOGSPLITT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 718-0313-0637

CYLINDER-LOGSPLITT - POWDER BLACK (0637)

$

$

Not available

MTD 718-0313-0638

CYLINDER-LOGSPLITT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 718-0313-0662

CYLINDER-LOGSPLITT - OYSTER GRAY (0662)

$

$

Not available

MTD 718-0313-0674

CYLINDER-LOGSPLITT - YARDMAN YELLOW (0674)

$

$

Not available

$

$

22

MTD 753-0564

Kit Seal 5.0" for Fisher Hydraulics cylinder 718-0313

Note: Fisher cylinders use a snap ring retainer system to secure the piston assembly into the cylinder.

$259.99

$

Usually ships in 3-6 days

0

22

MTD 753-0691

Kit Seal 5.0" for Best Metals cylinder 718-0313

Note: BEST cylinders will have "BM" or "BEST" cast into the end cap.

$

$

Not available

22

MTD 718-0313A

Hydraulic Cylinder
(Superseded to 918-0313A)

Note: replaces 718-0313

$

$

Not available

22

MTD 953-05609

Kit Seal 5.0" for XINGHUI cylinder 718-0313A

Note: See Service Kit 753-05609

$80.99

$

Usually ships in 3-6 days

0

22

MTD 953-05610

Kit Seal 5.0" for ENERGY cylinder 718-0313A

Note: See Service Kit 753-05610

$252.99

$

Usually ships in 3-6 days

0

23

MTD 711-1135

Clevis Pin

$62.99

$

Usually ships in 3-6 days

0

24

MTD 727-0471

Hydraulic Tube

$

$

Not available

25

MTD 727-0443

Return Hose 3/4" ID x 44" Lg.

$118.99

$

In Stock, only 2 left!

0

26

MTD 781-0526

Hose Guard
(Superseded to 781-0526A)

$53.99

$

Usually ships in 3-6 days

0

27

MTD 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

28

MTD 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

29

MTD 737-0192

90 Degree Solid Male Adapter

$41.99

$

Usually ships in 3-6 days

0

30

MTD 737-0235

3/4" Hose Adapter

$23.99

$

In Stock, only 2 left!

0

31

MTD 718-0481

Control Valve
(Superseded to 918-0481A)

Variations

MTD 718-0481-0498

Logsplitter Valve - OLD CUB YELLOW (0498)

$383.99

$

In Stock, only 2 left!

0

MTD 718-0481-0637

Logsplitter Valve - POWDER BLACK (0637)

$383.99

$

In Stock, only 2 left!

0

$383.99

$

In Stock, only 2 left!

0

32

MTD 737-0316

Filter Housing
(Superseded to 753-06643)

$97.99

$

Usually ships in 3-6 days

0

33

MTD 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

34

MTD 727-0502

High Pressure Hydraulic Hose

$209.99

$

Usually ships in 3-6 days

0

35

MTD 781-0538

Hose Guard
(Superseded to 781-0538A)

$35.99

$

Usually ships in 3-6 days

0

36

MTD 714-0470

Cotter Pin 1/8"

$4.49

$

In Stock, Qty 20+

0

37

MTD 738-0805

Hinge Pin 1/2 x 4.8" Lg.

$

$

Not available

38

MTD 726-0214

Push Cap

$10.99

$

In Stock, only 4 left!

0

39

MTD 732-0583

Compression Spring 4"

$12.99

$

In Stock, Qty 19

0

40

MTD 736-0116

Flat Washer .635 ID x .93 OD
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

41

MTD 781-0690

Locking Rod

$35.99

$

In Stock, only 1 left!

0

42

MTD 737-0348

Vented Dipstick
(Superseded to 737-0348A)

$23.99

$

In Stock, only 1 left!

0

43

MTD 681-0138

Fender Assembly
(Superseded to 781-04000)

Variations

MTD 681-0138-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 681-0138-0498

No Longer Available 781-04000- - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0138-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 681-0138-0638

FENDER LOGSPLTR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0138-0662

Fender - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0138-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0138-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

MTD 681-0138-0716

No Longer Available FENDER LOG - CUB YELLOW-99 (0716)

$

$

Not available

$

$

44

MTD 736-0159

Washer 5/16

$4.49

$

In Stock, Qty 20+

0

45

MTD 710-0157

Hex Cap Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 18

0

46

MTD 681-0178

Frame Assembly 7.0 Gal
(Superseded to 981-04041B-0637)

$

$

Not available

47

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

MTD 712-0123

Hex Nut 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

49

MTD 710-0409

Hex Cap Screw 5/16-24 x 1.75

$4.99

$

Usually ships in 3-6 days

0

50

MTD 710-1253

Hex Cap Screw 5/16-24 x 5.25

$

$

Not available

51

MTD 781-0535

Fuel Tank Mounting Bracket

$

$

Not available

52

MTD 781-0536

Fuel Tank Mounting Bracket

$

$

Not available

53

MTD 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

54

MTD 710-0117

Hex Cap Screw 5/16-24 x 1.0
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

55

MTD 710-0514

Hex Cap Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

56

MTD 719-0315

Shoulder Spacer

$126.99

$

Usually ships in 3-6 days

0

57

MTD 714-0114

Key 1/4" x 2.00"
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

57

MTD 714-0122

Key 3/16" x .75"

$3.99

$

In Stock, Qty 20+

0

58

MTD 712-0123

Hex Screw 5/16
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

59

MTD 718-0685

Flexible Coupling 1.00 x .437
(Superseded to 918-0685)

Note: use with 718-0684, see ref. 64

$262.99

$

Usually ships in 3-6 days

0

59

MTD 718-04393

Coupling, 1.00 Diameter

Note: use with 718-04128, for 1" engine crankshaft, (Not shown)

$

$

Not available

59

MTD 718-04395

Coupling, .875 Diameter

Note: use with 718-04128, for 7/8" engine crankshaft, (Not shown)

$18.99

$

In Stock, Qty 20+

0

59

MTD 718-04392

Coupling, .500 Diameter

Note: use with 718-04128, (Not shown)

$14.99

$

In Stock, Qty 20+

0

59

MTD 735-04103

Bushing, Spider Coupling

Note: use with 718-04128, (Not shown)

$14.99

$

In Stock, Qty 20+

0

59

MTD 710-1842

Set Screw
(Superseded to 710-1842A)

Note: use with 718-04128, (Not shown)

$5.49

$

In Stock, only 2 left!

0

60

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

61

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

62

MTD 781-0097

Rear Coupling Support Bracket
(Superseded to 781-0097-0637)

Variations

MTD 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$69.99

$

In Stock, only 3 left!

0

$69.99

$

In Stock, only 3 left!

0

63

MTD 737-0264

Adapter 7/8-14

$

$

Not available

64

MTD 718-0684

Gear Pump (16 gmp)
(Superseded to 753-05195)

Note: No longer available, furnish 753-05195 Kit

$1621.99

$

Usually ships in 3-6 days

0

64

MTD 753-05195

Pump Kit

Note: includes pump & couplings

$1621.99

$

Usually ships in 3-6 days

0

64

MTD 718-04128

Gear Pump (15 gpm)
(Superseded to 918-04128)

$970.99

$

Usually ships in 3-6 days

0

65

MTD 726-0174

Hose Clamp

$9.99

$

Usually ships in 3-6 days

0

66

MTD 727-0451

Suction Hose

$107.99

$

Usually ships in 3-6 days

0

67

MTD 710-0521

Hex Cap Screw 3/8-16 x 3.0

$5.49

$

In Stock, Qty 11

0

68

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 12

0

69

MTD 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

70

MTD 781-0680A

Tube
(Superseded to 781-0680B)

Variations

MTD 781-0680A-0498

TONGUE TUBE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0680A-0637

TUBE-TONGUE - POWDER BLACK (0637)

$

$

Not available

MTD 781-0680A-0638

TUBE-TONGUE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0680A-0648

TUBE-TONGUE - TECH GRAY (0648)

$

$

Not available

MTD 781-0680A-0650

TUBE-TONGUE - RED METALLIC (0650)

$

$

Not available

MTD 781-0680A-0665

TUBE-TONGUE - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0680A-0483

TUBE-TONGUE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0680A-0662

TUBE-TONGUE - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0680A-0674

TUBE-TONGUE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 781-0680A-0689

TUBE-TONGUE - POLO GREEN (0689)

$

$

Not available

MTD 781-0680A-0716

TONGUE TUBE - CUB YELLOW-99 (0716)

$

$

Not available

$192.99

$

Usually ships in 3-6 days

0

72

MTD 710-0411

Hex Cap Screw 3/8-16 x 4.0

$8.49

$

In Stock, Qty 17

0

73

MTD 681-0110

Support Beam Assembly
(Superseded to 681-0110-0637)

Variations

MTD 681-0110-0637

SUPPORT ASM. BEAM - POWDER BLACK (0637)

$

$

Not available

$

$

74

MTD 681-0006

Adjustable Jack Stand
(Superseded to 981-04029)

$295.99

$

Usually ships in 3-6 days

0

75

MTD 710-0944

Hex Cap Screw 3/8-16 x 4.25

$10.99

$

In Stock, Qty 12

0

76

MTD 736-0262

Flat Washer .385 ID x .870 OD

$3.99

$

In Stock, Qty 20+

0

77

MTD 713-0433

Chain
(Superseded to 713-0433A)

$44.99

$

In Stock, only 1 left!

0

78

MTD 750-0497

Spacer

$10.99

$

Usually ships in 3-6 days

0

79

MTD 727-0311

Hitch Coupler

$

$

Not available

80

MTD 712-0375

Lock Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

81

MTD 712-3008

Hex Jam Nut 3/8-16

$4.99

$

In Stock, Qty 16

0

82

MTD 711-0813

Clevis Pin
(Superseded to 911-0813)

$6.99

$

Usually ships in 3-6 days

0

83

MTD 736-0185

Flat Washer

$3.99

$

In Stock, Qty 20+

0

84

MTD 781-0162

Jack Stand

Variations

MTD 781-0162-0483

STAND-JACK - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0162-0637

STAND-JACK - POWDER BLACK (0637)

$

$

Not available

MTD 781-0162-0638

STAND-JACK - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0162-0648

STAND-JACK - TECH GRAY (0648)

$

$

Not available

MTD 781-0162-0674

STAND-JACK - YARDMAN YELLOW (0674)

$

$

Not available

MTD 781-0162-0716

STAND-JACK - CUB YELLOW-99 (0716)

$

$

Not available

$

$

85

MTD 732-0194

Spring Pin

$4.99

$

In Stock, Qty 12

0

86

MTD 721-0168

Bearing Seal
(Superseded to 921-0168)

$9.49

$

In Stock, Qty 17

0

87

MTD 741-0987

Bearing Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 18

0

88

MTD 634-0186

Wheel Assembly

$363.99

$

Usually ships in 3-6 days

0

89

MTD 634-0188

Rim Assembly

$175.99

$

Usually ships in 3-6 days

0

90

MTD 736-0351

Flat Washer .76" ID x 1.5" OD

$4.49

$

In Stock, Qty 20+

0

91

MTD 712-0359

Slotted Nut 3/4-16

$11.99

$

Usually ships in 3-6 days

0

92

MTD 714-0162

Cotter Pin 5/32" x 1-1/4" Lg.

$4.99

$

In Stock, Qty 20+

0

93

MTD 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

94

MTD 681-0074

Light Bracket Assembly LH
(Superseded to 681-0074-0637)

Variations

MTD 681-0074-0637

BRACKET-TAILLIGHT - POWDER BLACK (0637)

$

$

Not available

$

$

95

MTD 625-0009

Tail Light Assembly

Note: If equipped

$

$

Not available

96

MTD 712-0292

Nut 1/4-20

$10.99

$

In Stock, only 2 left!

0

97

MTD 781-0624

Light Bracket Assembly RH
(Superseded to 781-0624-0637)

Variations

MTD 781-0624-0637

BRACKET-TAILLIGHT - POWDER BLACK (0637)

$

$

Not available

$

$

98

MTD 710-0157

Hex Cap Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 18

0

99

MTD 712-0123

Hex Nut 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

100

MTD OEM-290-004

Taillight Kit (NLA)

Note: If equipped

$

$

Not available

MTD 725-2061

RH Taillight Assembly

Note: Not shown

$

$

Not available

MTD 725-2062

LH Taillight Assembly

Note: Not shown

$

$

Not available

MTD 725-2063

Wiring Harness

Note: Not shown

$

$

Not available
