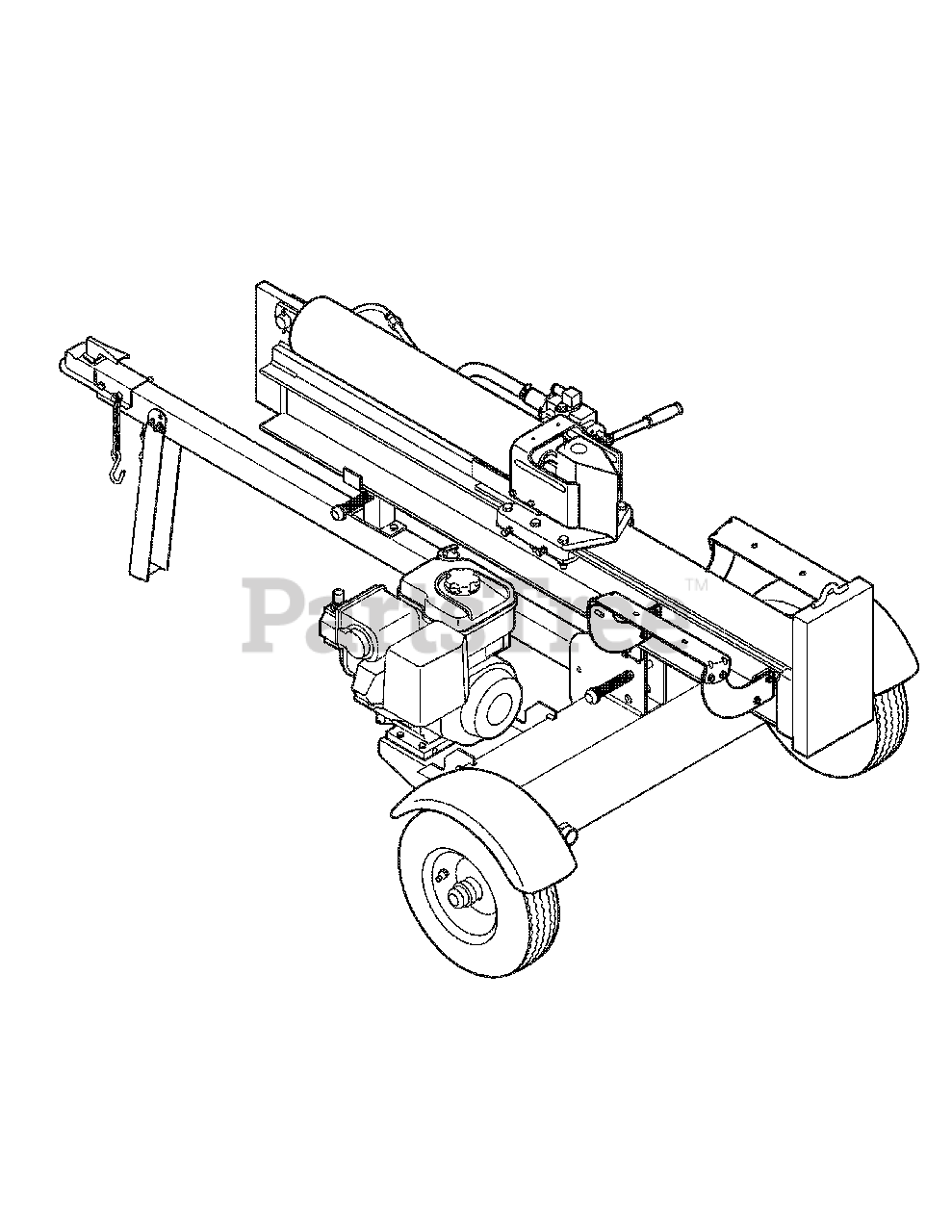

24AD584D700 - Yard Machines Log Splitter (2006) .Quick Reference Parts Diagram

Log Splitter

.Quick Reference Parts Diagram

  • Title

MTD 759-3336

Spark Plug
(Superseded to RC12YC)

$4.49

$

In Stock, Qty 20+

0

MTD BS-493537S

Pre Filter

$6.49

$

In Stock, Qty 19

0

MTD BS-491588S

Air Filter

$6.49

$

In Stock, Qty 20+

0

N/A

Fuel Filter

$

$

Not available

MTD 618-0313A

Hydraulic Cylinder

$

$

Currently unavailable

MTD 723-0405

Hydraulic Filter
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

MTD 737-04093

Inlet Filter

$90.99

$

Usually ships in 3-6 days

0

MTD 737-0348A

Vented Dipstick

$23.99

$

Usually ships in 3-6 days

0

MTD 718-04134

Flexable Coupling
(Superseded to 718-04134P)

$116.99

$

Usually ships in 3-6 days

0

MTD 781-0351

Adjustable Gibbs

Variations

MTD 781-0351-0483

Log Splitter Adjustable Gib, 2" - CHARCOAL GRAY (0483)

$18.99

$

In Stock, Qty 17

0

MTD 781-0351-0637

Log Splitter Adjustable Gib, 2" - POWDER BLACK (0637)

$18.99

$

In Stock, Qty 17

0

$18.99

$

In Stock, Qty 17

0

MTD 747-04539

Hydraulic Valve Control
(Superseded to 747-04539A)

$45.99

$

In Stock, only 1 left!

0

MTD 720-04088

Grip

$10.99

$

Usually ships in 3-6 days

0

MTD 713-04036

Valve Handle Link
(Superseded to 913-04036)

$21.99

$

In Stock, only 2 left!

0

MTD 713-0433A

Chain

$44.99

$

In Stock, only 1 left!

0

MTD 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

MTD 634-0186

Wheel Assembly

$363.99

$

Usually ships in 3-6 days

0
