24AD563B190 - White Outdoor Log Boss 27-Ton Log Splitter (1998) General Assembly Parts Diagram

Log Boss 27-Ton Log Splitter

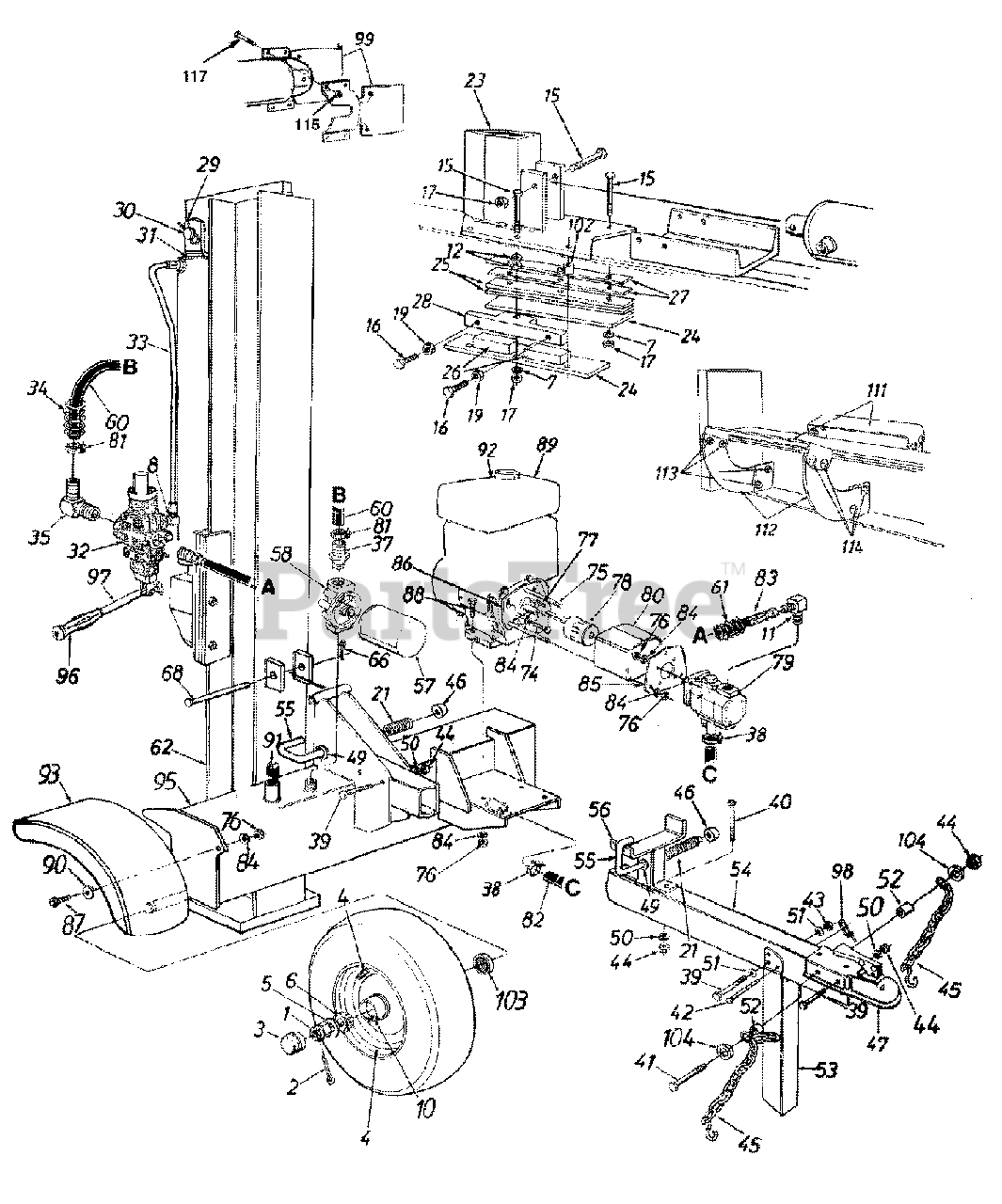

General Assembly Parts Diagram

  • Title

1

MTD 712-0359

Slotted Nut 3/4-16 Thd.

$11.99

$

In Stock, only 1 left!

0

2

MTD 714-0162

Cotter Pin 5/32" Dia.

$4.99

$

In Stock, Qty 20+

0

3

MTD 734-0873

Hub Cap

$11.99

$

In Stock, only 3 left!

0

4

MTD 634-0186

Wheel Ass'y. Comp.

$363.99

$

Usually ships in 3-6 days

0

4

MTD 734-0872

Tire Only

$169.99

$

Usually ships in 3-6 days

0

4

MTD 634-0188

Rim Only

$175.99

$

Usually ships in 3-6 days

0

4

MTD 934-0255

Air Valve Only

$4.49

$

In Stock, Qty 20+

0

5

MTD 936-0351

Fl-Wash. .76" I.D. x 1.5" O.D.
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

6

MTD 941-04298

Bearing Cone

$16.99

$

In Stock, Qty 19

0

7

MTD 936-0921

L-Wash. 1/2" I.D.
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

8

MTD 737-0192

90° Solid Male Adapter

$41.99

$

Usually ships in 3-6 days

0

10

MTD 741-3029

Bearing Cup
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

11

MTD 737-0265

90 degree Male Adapter

$

$

Not available

12

MTD 936-0192

Fl-Wash. .531" I.D. x .94" O.D.

$4.49

$

In Stock, Qty 18

0

?13

MTD 710-0514

Hex Cap Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-1018

Hex Bolt 1/2-20 x 2.75" Lg.(Grade 8)

$11.99

$

In Stock, Qty 19

0

16

MTD 710-0459A

Hex Bolt 3/8-24 x 1.5" Lg.

$6.99

$

In Stock, Qty 8

0

17

MTD 912-0239

Hex L-Nut 1/2-20 Thd.
(Superseded to 712-0239)

$

$

Not available

19

MTD 912-3001

Hex Jam Nut 3/8-24 Thd.(Grade 5)

$6.99

$

In Stock, Qty 17

0

21

MTD 732-0583

Comp. Spring 4" Lg.

$12.99

$

In Stock, Qty 19

0

23

MTD 753-04120

Wedge Ass'y.

$342.99

$

Usually ships in 3-6 days

0

24

MTD 781-0537

Back Plate

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0537-0483

Pusher Back Plate, Powder Black - CHARCOAL GRAY (0483)

$44.99

$

In Stock, Qty 7

0

MTD 781-0537-0637

Pusher Back Plate, Powder Black - POWDER BLACK (0637)

$44.99

$

In Stock, Qty 7

0

MTD 781-0537-0638

Pusher Back Plate - MTD/TROY-BILT RED (0638)

$44.99

$

Usually ships in 3-6 days

0

MTD 781-0537-0498

PUSHER BACK PLATE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0537-0716

PLATE-PUSHER BACK - CUB YELLOW-99 (0716)

$

$

Not available

MTD 781-0537-0662

PLATE-PUSHER BACK - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0537-0674

PLATE-PUSHER BACK - YARDMAN YELLOW (0674)

$

$

Not available

$35.99

$

Usually ships in 3-6 days

0

25

MTD 781-0350A

Fixed Side Gib

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0350A-0483

Fixed Side Gib - CHARCOAL GRAY (0483)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0498

Fixed Side Gib - OLD CUB YELLOW (0498)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0637

Fixed Side Gib - POWDER BLACK (0637)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0638

Fixed Side Gib - MTD/TROY-BILT RED (0638)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0662

Fixed Side Gib - OYSTER GRAY (0662)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0665

Fixed Side Gib - YARDMAN GREEN (0665)

$30.99

$

In Stock, Qty 8

0

$28.99

$

Usually ships in 3-6 days

0

26

MTD 781-0351

Adjustable Gib

Variations

MTD 781-0351-0483

Log Splitter Adjustable Gib, 2" - CHARCOAL GRAY (0483)

$18.99

$

In Stock, Qty 18

0

MTD 781-0351-0637

Log Splitter Adjustable Gib, 2" - POWDER BLACK (0637)

$18.99

$

In Stock, Qty 18

0

$18.99

$

In Stock, Qty 18

0

27

MTD 781-0352A-0637

Adjustable Gib Shim

$

$

Not available

28

MTD 781-0356

Floating Gib Plate

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0356-0483

Floating Gib Plate - CHARCOAL GRAY (0483)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0498

Floating Gib Plate - OLD CUB YELLOW (0498)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0637

Floating Gib Plate - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0638

Floating Gib Plate - MTD/TROY-BILT RED (0638)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0716

Floating Gib Plate - CUB YELLOW-99 (0716)

$131.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

29

MTD 714-0211

Cotter Pin

$4.49

$

In Stock, Qty 14

0

30

MTD 711-1135

Clevis Pin

$62.99

$

Usually ships in 3-6 days

0

31

MTD 918-0306

Hydraulic Cylinder

$

$

Not available

32

MTD 918-0481A

Control Valve

$383.99

$

In Stock, only 2 left!

0

33

MTD 727-0471

Metal Pressure Tube

$

$

Not available

34

MTD 781-0526

Hose Guard
(Superseded to 781-0526A)

$53.99

$

Usually ships in 3-6 days

0

35

MTD 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

37

MTD 737-0235

3/4" Hose Barb.

$23.99

$

In Stock, only 2 left!

0

38

MTD 726-0174

Hose Clamp 1.5" O.D.

$9.99

$

Usually ships in 3-6 days

0

39

MTD 710-0521

Hex Bolt 3/8-16 x 3" Lg. (Grade 8)

$5.49

$

In Stock, Qty 11

0

40

MTD 710-0411

Hex Bolt 3/8-16 x 4" Lg.

$8.49

$

In Stock, Qty 17

0

41

MTD 710-0944

Hex Bolt 3/8-16 x 4.25" Lg.

$10.99

$

In Stock, Qty 12

0

42

MTD 911-0813

Clevis Pin 5/16 x 2.5" Lg.

$6.99

$

Usually ships in 3-6 days

0

43

MTD 712-0375

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

44

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

45

MTD 713-0433A

Chain-Tow Hitch

$44.99

$

In Stock, only 1 left!

0

46

MTD 726-0214

Push Cap

$10.99

$

Usually ships in 3-6 days

0

47

MTD 727-0311

Hitch Coupler

Note: NLA

$

$

Not available

49

MTD 936-0116

Fl-Wash. .635" I.D. x .93" O.D.

$6.99

$

In Stock, only 1 left!

0

50

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

51

MTD 936-0185

Fl-Wash. .406" I.D. x .75" O.D.
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

52

MTD 750-0497

Spacer .445" Lg.

$10.99

$

Usually ships in 3-6 days

0

53

MTD 781-0162-0637

Jack Stand

$

$

Not available

54

MTD 781-0680B-0648

Tongue Tube
(Superseded to 781-0680B-0637)

$

$

Not available

55

MTD 781-0690

Locking Rod

$35.99

$

In Stock, only 1 left!

0

56

MTD 781-0398

Beam Support Ass'y.

Variations

MTD 781-0398-0638

SUPPORT ASSY-BEAM - MTD/TROY-BILT RED (0638)

$88.99

$

In Stock, only 1 left!

0

MTD 781-0398-0637

SUPPORT ASSY-BEAM - POWDER BLACK (0637)

$118.99

$

Usually ships in 3-6 days

0

MTD 781-0398-0483

SUPPORT ASSY-BEAM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0398-0498

No Longer Available SUPPORT ASSY-BEAM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0398-0648

SUPPORT ASSY-BEAM - TECH GRAY (0648)

$

$

Not available

MTD 781-0398-0665

SUPPORT ASSY-BEAM - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0398-0716

SUPPORT ASM-BEAM - CUB YELLOW-99 (0716)

$

$

Not available

$103.99

$

Usually ships in 3-6 days

0

57

MTD 723-0405

Filter Element
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

58

MTD 681-0179

Filter Head

$

$

Not available

60

MTD 727-0443

Return Hose 3/4" I.D. x 44" Lg.

$118.99

$

In Stock, only 2 left!

0

61

MTD 781-0538A

Hose Guard

$35.99

$

Usually ships in 3-6 days

0

62

MTD 681-0127

Vertical Beam Weldment

Variations

MTD 681-0127-0637

No Longer Available USE 681-0127 BEAM ASM.W/TRAY - POWDER BLACK (0637)

$

$

Not available

MTD 681-0127-0648

No Longer Available USE 681-0127 BEAM ASM.W/TRAY - TECH GRAY (0648)

$

$

Not available

$

$

66

MTD 914-0470

Cotter Pin 1/8" Dia.
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

68

MTD 738-0805

Hinge Pin 1/2 x 4.8" Lg.

$

$

Not available

74

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

75

MTD 710-1253

Hex Bolt 5/16-24 x 5.25" Lg.

Note: NLA

$

$

Not available

76

MTD 912-3057

Hex Nut 5/16-24 Thd.

$6.99

$

In Stock, only 3 left!

0

77

MTD 914-0122

Sq.-Key 1/4" x 2" Lg.
(Superseded to 714-0122)

$

$

Not available

78

MTD 917-0891

Flexible Coupling

$159.99

$

Usually ships in 3-6 days

0

79

MTD 753-05194

Gear Pump

$1509.99

$

In Stock, only 1 left!

0

80

MTD 719-0278

Coupling Shield

$72.99

$

Usually ships in 3-6 days

0

81

MTD 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

82

MTD 727-0451

Suction Hose 1" I.D.

$107.99

$

Usually ships in 3-6 days

0

83

MTD 727-0502

High Pressure Hydraulic Hose 48"

$209.99

$

Usually ships in 3-6 days

0

84

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

85

MTD 781-0097-0637

Rear Coupling Support Brkt.

$69.99

$

In Stock, only 3 left!

0

86

MTD 781-0098A-0637

Front Coupling Support Brkt.

$43.99

$

Usually ships in 3-6 days

0

87

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

88

MTD 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.99

$

Usually ships in 3-6 days

0

89

Engine

$

$

Not available

90

MTD 936-0159

Fl-Wash. .344" I.D. x .875" O.D.
(Superseded to 736-0159)

$

$

Not available

91

MTD 937-0236

L-Vent Pipe Plug
(Superseded to 737-0348A)

$23.99

$

In Stock, only 1 left!

0

92

MTD 735-0639

Spark Plug Boot

Note: (optional)

$

$

Not available

93

MTD 681-0138-0662

Fender

Note: NLA

$

$

Not available

95

MTD 681-0103A-0648

Frame Weldment

Note: NLA

$

$

Currently unavailable

96

MTD 720-04088

Grip

$10.99

$

Usually ships in 3-6 days

0

97

MTD 947-0583

Control Handle

$129.99

$

In Stock, only 3 left!

0

98

MTD 732-0194

Spring Pin

$4.99

$

In Stock, Qty 12

0

99

MTD 781-0168A-0637

Dislodger

$

$

Not available

102

MTD 950-0750

Spacer 1/2" I.D. x .86" Lg.

$

$

Not available

103

MTD 921-0168

Bearing Seal Only

$9.49

$

In Stock, Qty 18

0

104

MTD 736-0262

Fl-Wash. 3/8" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 10

0

111

MTD 753-05424

Log Cradle

Note: (optional)

$53.99

$

Usually ships in 3-6 days

0

112

MTD 753-05424

Cradle Support Brkt.

Note: (optional)

$53.99

$

Usually ships in 3-6 days

0

113

MTD 912-0431

Flanged Lock Nut 3/8-16 Thd.

Note: (optional)

$4.99

$

In Stock, Qty 20+

0

114

MTD 710-3097

Carriage Bolt 3/8-16 x 1" Lg.

Note: (optional)

$6.99

$

In Stock, Qty 5

0

115

MTD 712-0130

Hex L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 11

0

117

MTD 710-3144

Hex Bolt 3/8-16 x 2.0" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

MTD 290-004-000

Taillight Kit

Note: NLA

$

$

Not available
