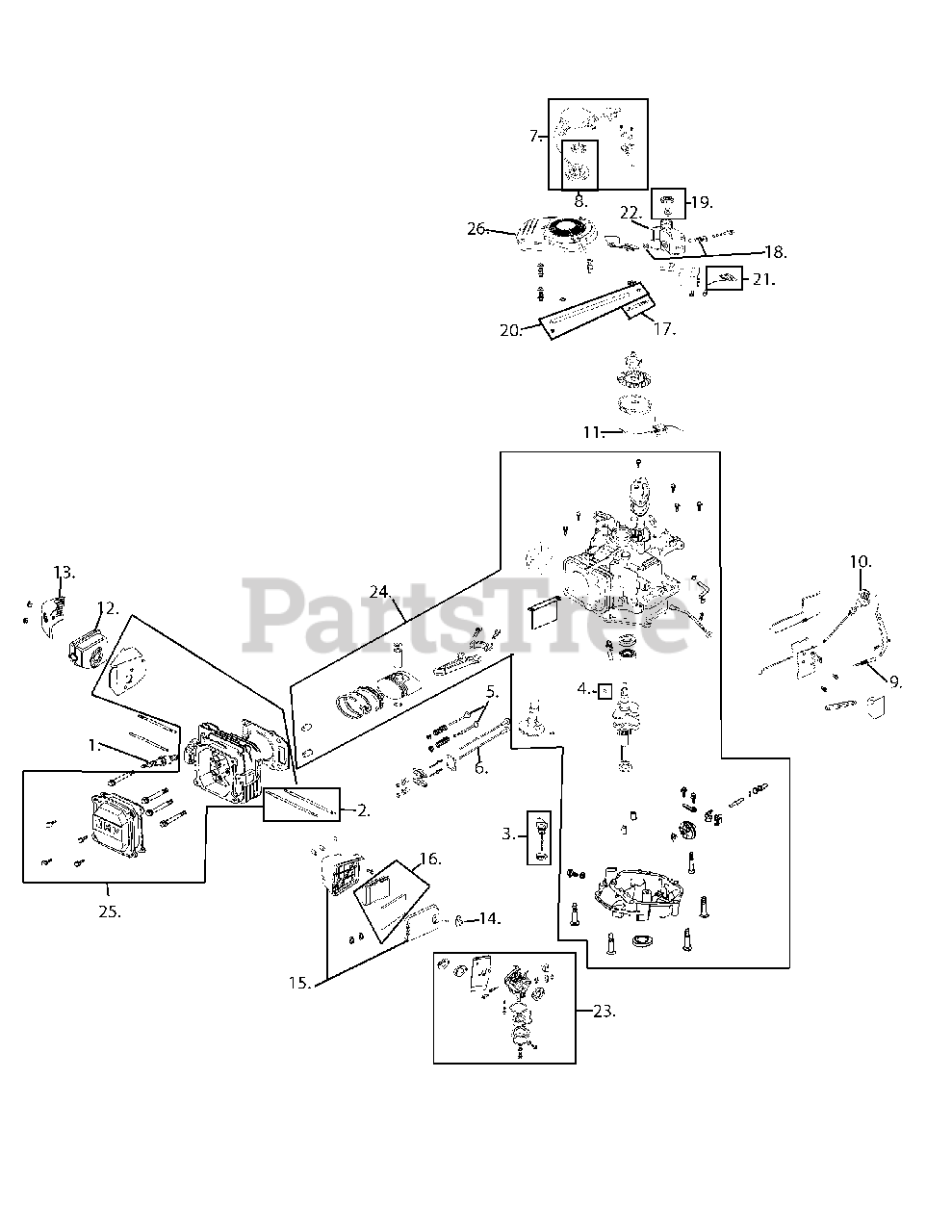

24AA5DMK000 - Yard Machines Log Splitter (2007) Engine Parts Diagram

Log Splitter

Engine Parts Diagram

  • Title

1

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

2

MTD 951-10304

Muffler Stud Assembly
(Superseded to 710-05093)

$4.49

$

In Stock, only 2 left!

0

3

MTD 951-10617

Dipstick Assembly

$17.99

$

Usually ships in 3-6 days

0

4

MTD 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

5

MTD 951-10313

Valve Kit

$65.99

$

In Stock, only 1 left!

0

6

MTD 951-10314

Push Rod Kit

$17.99

$

Usually ships in 3-6 days

0

7

MTD 951-10299A

Recoil Starter Assembly

$69.99

$

In Stock, Qty 7

0

8

MTD 951-10319

Recoil Spring & Pulley Assembly

$47.99

$

In Stock, only 3 left!

0

9

MTD 951-10618

Governor Return Spring

$

$

Not available

10

MTD 951-10619

Choke Control Knob

$10.99

$

Usually ships in 3-6 days

0

11

MTD 951-10620

Ignition Coil

$108.99

$

Usually ships in 3-6 days

0

12

MTD 951-10403

Muffler Assembly

$82.99

$

Usually ships in 3-6 days

0

13

MTD 951-10404

Muffler Shield

$

$

Not available

14

MTD 951-10297

Air Cleaner Thumb Screw

$5.99

$

In Stock, only 2 left!

0

15

MTD 951-10305

Air Cleaner Housing Assembly Complete
(Superseded to 951-10876)

$38.99

$

In Stock, only 2 left!

0

16

MTD 951-10298

Air Cleaner Kit

$17.99

$

In Stock, Qty 20+

0

17

MTD 951-10358A

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

18

MTD 951-10335

Rubber Fuel Tank Mounting Washer

$5.99

$

Usually ships in 3-6 days

0

19

MTD 951-10300

Fuel Cap Assembly

$11.99

$

In Stock, only 1 left!

0

20

MTD 951-10363

Fuel Line Kit

Note: (Inc. Hose, Clamps & Filter)

$28.99

$

In Stock, only 2 left!

0

21

MTD 951-10622

Ignition Switch

$

$

Not available

22

MTD 951-10337

Fuel Tank

$60.99

$

Usually ships in 3-6 days

0

23

MTD 951-10623

Carburetor Assembly
(Superseded to 951-14238)

$95.99

$

Usually ships in 3-6 days

0

24

MTD 951-10624

Short Block Assembly
(Superseded to 951-11862)

$

$

Not available

25

MTD 951-10743

Cylinder Head Assembly

$133.99

$

Usually ships in 3-6 days

0

26

MTD 731-05692

Engine Shroud - Black
(Superseded to 931-05692)

$41.99

$

Usually ships in 3-6 days

0

MTD 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

MTD 951-10626

Carburetor Kit - Minor

Note: Not shown, (Inc. Carburetor Insulator Plate Gasket, Bowl Gasket, Fuel Bowl Gasket, Needle Valve Spring, Needle Valve Float)

$

$

Not available

MTD 951-10627

Carburetor Kit - Major

Note: Not shown, (Inc. Bowl Gasket, Float, Dust Seals, Main Jet, Pilot Screw, Idle Speed Adjusting Screw, Needle Valve Spring, Float Pin, Fuel Cup Gasket, Fuel Drain Plug Gasket)

$

$

Not available

MTD 951-10628

Gasket Kit- External
(Superseded to 951-10885)

Note: Not shown, (Inc. Breather Gasket, Valve Cover Gasket, Carburetor to Insulator Gasket, Carburetor Insulator Plate, Muffler Gasket, Crankcase Drain Bolt Washer, Dipstick O-Ring)

$34.99

$

Usually ships in 3-6 days

0

MTD 951-10629

Gasket Kit - Complete

Note: Not shown, (Inc.Upper & Lower Crankcase Seal, Governor Shaft Seal, Sump Gasket, Cylinder Head Gasket, Breather Mesh Screen, Breather Gasket, Valve Cover Gasket, Carburetor to Insulator Gasket, Carburetor Insulator Plate, Muffler Gasket, Crankcase Drain Bolt Washer, Dipstick O-Ring)

$

$

Not available

MTD 952Z1P61L0

Complete Engine

Note: Not shown

$

$

Not available
