24A-7400066 - Troy-Bilt Pack Horse Powered Wheelbarrow (2009) Drive Assembly Parts Diagram

Pack Horse Powered Wheelbarrow

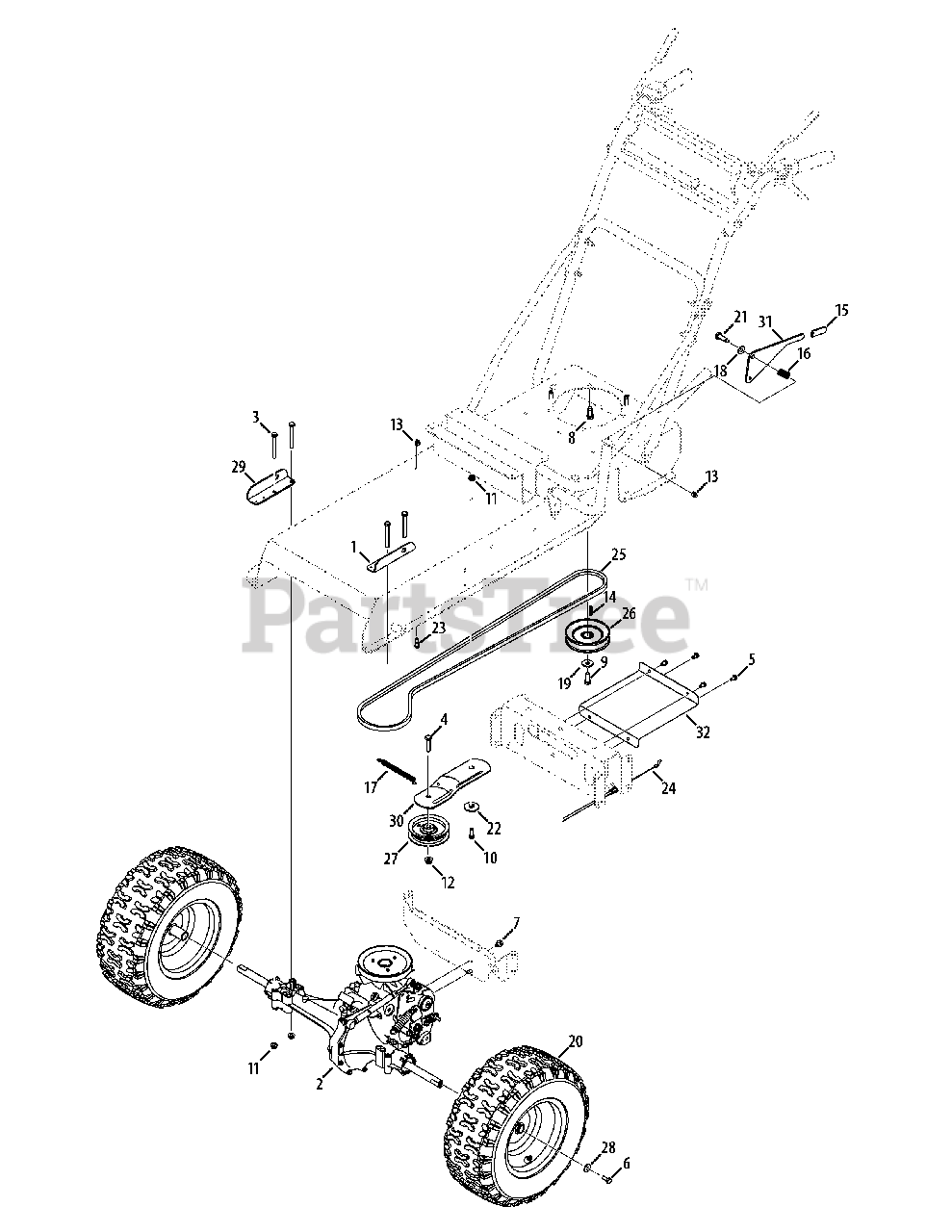

Drive Assembly Parts Diagram

  • Title

1

Troy-Bilt 781-04380-0638

Support Bracket, LH

$

$

Not available

2

Troy-Bilt 918-04845

Transmission Assembly w/ Damper

$

$

Not available

2

Troy-Bilt 727-04291

Cylinder, Damper

$

$

Not available

2

Troy-Bilt 732-04293

Spring, .75 OD X 3.240

$12.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-0176

Hex Head Screw, ....-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

4

Troy-Bilt 710-0520

Hex Head Screw, 3..-16 x 1.50

$4.49

$

In Stock, Qty 6

0

5

Troy-Bilt 710-0599

Screw, .-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0627

Hex Head Screw, ....-24 x .750

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0607

Screw, ....-18 x 0.500

$6.99

$

In Stock, Qty 11

0

8

Troy-Bilt 710-0654A

Screw, 3..-16 x 1.000

$4.49

$

In Stock, only 3 left!

0

9

Troy-Bilt 710-1039

Hex Head Screw, 3..-24 x 1.00

$4.49

$

In Stock, only 3 left!

0

10

Troy-Bilt 710-3038

Hex Head Screw, ....-18 x .875

$4.99

$

In Stock, only 3 left!

0

11

Troy-Bilt 712-04063

Flangelock Nut, ....-18

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04065

Flangelock Nut, 3..-16

$3.99

$

In Stock, Qty 17

0

13

Troy-Bilt 912-0442

Cap Lock Nut, .-20
(Superseded to 712-0442)

$

$

Not available

14

Troy-Bilt 914-0105

Square Key, 3... x 1.00

$3.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 720-04008

Shift Handle Grip

$4.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 732-0193

Compression Spring, .39 x .60 x .88

$4.99

$

In Stock, Qty 6

0

17

Troy-Bilt 732-04639

Extension Spring, .55 DIA x 6.25 LG

$

$

Not available

18

Troy-Bilt 936-0267

Washer, Flat, .385 x .87 x .06
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 936-0452

Washer, Bell, .396 x 1.140 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 7

0

20

Troy-Bilt 634-04135-0911

X-Trac Wheel, Complete, 16 x 6.5 x 8

$182.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 738-04125

Screw, Shield, .374 DIA. x 1.05 LG.

$4.99

$

In Stock, only 3 left!

0

22

Troy-Bilt 738-04166

Spacer, Shoulder, .5000 x .1475

$6.49

$

In Stock, Qty 8

0

23

Troy-Bilt 738-04395

Screw, Shoulder, .-20 x .31 x .50

$4.49

$

In Stock, only 1 left!

0

24

Troy-Bilt 946-04623

Transmission Cable

$

$

Not available

25

Troy-Bilt 954-04165

V-Belt, 4L x 78 LG POLY

$53.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 756-04378

Engine Pulley

$

$

Not available

27

Troy-Bilt 756-0627D

Idler Pulley, 3.50 DIA.

$30.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 781-04347-0638

Support Bracket, RH

$

$

Not available

30

Troy-Bilt 781-04349-0637

Idler Bracket

$

$

Not available

31

Troy-Bilt 781-04376-0637

Transmission Release Bracket

$

$

Not available

32

Troy-Bilt 781-04377-0638

Pulley Guard

$

$

Not available
