24A-67M3001 - Yard-Man Blower (2012) General Assembly 24A-67M3 Parts Diagram

Blower

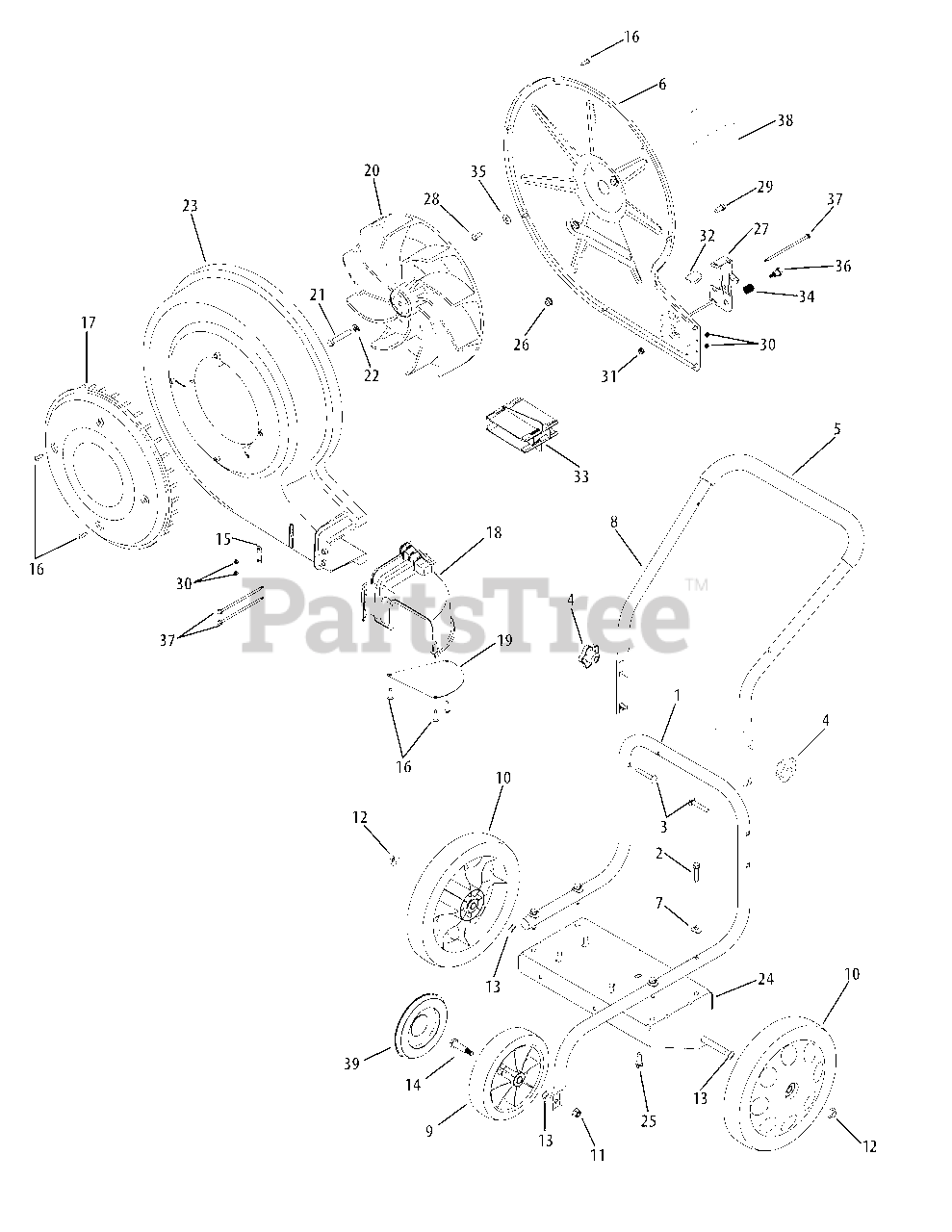

General Assembly 24A-67M3 Parts Diagram

  • Title

1

MTD 749-04292

Lower Handle Assembly

Variations

MTD 749-04292-0638

HANDLE-LOWER BLOWER - MTD/TROY-BILT RED (0638)

$69.99

$

Usually ships in 3-6 days

0

MTD 749-04292-0691

HANDLE-LOWER BLOWER - BLACK JACK (0691)

$60.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0

2

MTD 710-04605

Hex Screw, 5/16-18 x 1.50
(Superseded to 710-04605B)

$6.99

$

In Stock, Qty 20+

0

3

MTD 710-0487

Carriage Screw, 5/16-18 x 2.00

$7.49

$

Usually ships in 3-6 days

0

4

MTD 720-04072A

Star Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

5

MTD 720-04091

Foam Grip, .970 x 25

$21.99

$

Usually ships in 3-6 days

0

6

MTD 781-04165

Back Plate
(Superseded to 781-04165A)

Variations

MTD 781-04165-0638

PLATE-BACK BLOWER - MTD/TROY-BILT RED (0638)

$73.99

$

Usually ships in 3-6 days

0

MTD 781-04165-0691

PLATE-BACK BLOWER - BLACK JACK (0691)

$73.99

$

Usually ships in 3-6 days

0

MTD 781-04165-4021

PLATE-BACK BLOWER - CUB YELLOW 2 (4021)

$73.99

$

Usually ships in 3-6 days

0

$59.99

$

Usually ships in 3-6 days

0

7

MTD 936-0451

Saddle Washer, .320 x .93 x .060
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

8

MTD 749-04291

Upper Handle

Variations

MTD 749-04291-0606

HNDL-UPPER BLOWER - MAJESTIC ORANGE (0606)

$56.99

$

Usually ships in 3-6 days

0

MTD 749-04291-0638

HANDLE-UPPER BLOWER - MTD/TROY-BILT RED (0638)

$56.99

$

Usually ships in 3-6 days

0

MTD 749-04291-0691

HANDLE-UPPER BLOWER - BLACK JACK (0691)

$56.99

$

Usually ships in 3-6 days

0

MTD 749-04291-4021

HANDLE-UPPER BLOWER - CUB YELLOW 2 (4021)

$56.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

9

MTD 734-2004B

Wheel, 8 x 2.125, Grey
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

10

MTD 734-04093

Wheel, 12 x 2.125, Grey

$67.99

$

In Stock, only 2 left!

0

11

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

MTD 726-0299

Push Cap, 1/2"

$8.49

$

In Stock, Qty 20+

0

13

MTD 936-0504

Wave Washer, .510 x .750 x .017

$4.49

$

In Stock, Qty 10

0

14

MTD 738-0213

Shoulder Screw, .498 x 1.445

$7.99

$

In Stock, only 2 left!

0

15

MTD 781-04212-0637

Guide Plate

$7.99

$

Usually ships in 3-6 days

0

16

MTD 710-04373A

Hex Screw, 12-16 x .75

$4.49

$

In Stock, Qty 15

0

17

MTD 731-05591

Blower Cover, Black

$34.99

$

Usually ships in 3-6 days

0

18

MTD 631-04253

Chute Assembly

$37.99

$

In Stock, only 1 left!

0

19

MTD 781-04175

Chute Plate

Variations

MTD 781-04175-4021

Discharge Chute Plate - CUB YELLOW 2 (4021)

$9.49

$

Usually ships in 3-6 days

0

MTD 781-04175-0638

Discharge Chute Plate - MTD/TROY-BILT RED (0638)

$9.49

$

Usually ships in 3-6 days

0

MTD 781-04175-0606

Discharge Chute Plate - MAJESTIC ORANGE (0606)

$8.99

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0

20

MTD 631-04213

Impeller Assembly

$160.99

$

Usually ships in 3-6 days

0

21

MTD 710-1254

Hex Screw, 3/8-24 x 2.25

$7.99

$

In Stock, Qty 9

0

22

MTD 936-0217

Lock Washer, 3/8
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 9

0

23

MTD 731-05592

Blower Housing

$79.99

$

Usually ships in 3-6 days

0

24

MTD 681-04067A

Frame

Variations

MTD 681-04067A-0638

FRAME ASM-BLOWER - MTD/TROY-BILT RED (0638)

$94.99

$

Usually ships in 3-6 days

0

MTD 681-04067A-0691

FRAME ASM-BLOWER - BLACK JACK (0691)

$88.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

25

MTD 710-0654A

Sems Screw, 3/8-16 x 1.000

$4.49

$

In Stock, only 3 left!

0

26

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

MTD 781-04181

Louver Lever
(Superseded to 781-04181B)

Variations

MTD 781-04181-0638

LEVER-BLOWER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

MTD 781-04181-0691

LEVER-BLOWER - BLACK JACK (0691)

$22.99

$

Usually ships in 3-6 days

0

MTD 781-04181-4021

LEVER-BLOWER - CUB YELLOW 2 (4021)

$25.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

28

MTD 710-0888

Hex Bolt, 5/16-24 x 1.00 (208cc )

$4.49

$

In Stock, Qty 5

0

29

MTD 710-3008

Hex Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

30

MTD 712-04035

Hex Lock Nut, #8-32

$4.49

$

Usually ships in 3-6 days

0

31

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

32

MTD 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

33

MTD 731-05644

Louver Plate

$8.49

$

Usually ships in 3-6 days

0

34

MTD 932-3042

Comp. Spring, .515 x .641 x .95

$4.99

$

In Stock, only 1 left!

0

35

MTD 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

36

MTD 738-04222

Shoulder Screw, .437 x .50 x 1/4-20

$2.99

$

Usually ships in 3-6 days

0

37

MTD 738-04223

Shoulder Screw, .18 x 4.8 x 8-32

$4.99

$

Usually ships in 3-6 days

0

38

MTD 781-04292-0637

Engine Plate (208cc engine)

$8.99

$

Usually ships in 3-6 days

0

39

MTD 731-0981C

Hubcap

$10.99

$

Usually ships in 3-6 days

0
