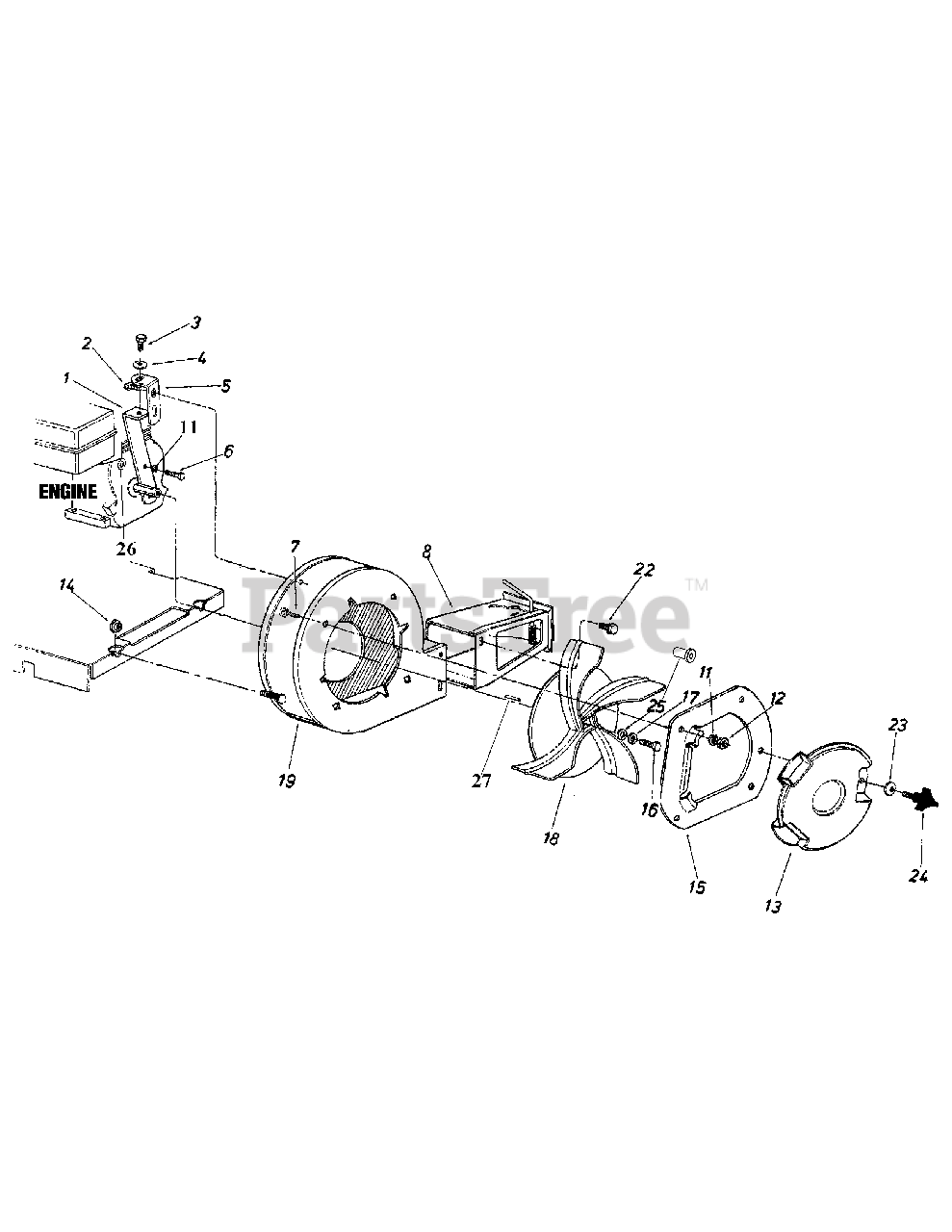

24A-657E729 - Yard Machines Blower (2005-2) (Home Depot) Impeller Parts Diagram

Blower

Impeller Parts Diagram

  • Title

1

MTD 14540B

Engine Housing Bracket
(Superseded to 14540B-0637)

Variations

MTD 14540B-0637

BRACE-ENGINE HSG - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 710-0607

Hex Self Tapping Screw 5/16 x .5

$6.99

$

In Stock, Qty 11

0

3

MTD 710-1260A

Hex Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

4

MTD 736-0170

Special L-Washer 5/16" x .88 OD

$5.99

$

Usually ships in 3-6 days

0

5

MTD 14541

Right Angle Bracket
(Superseded to 14541-0637)

Variations

MTD 14541-0637

BRACKET-RIGHT ANGL - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 710-0627

Hex Locking Bolt 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0672

Hex Locking Bolt 5/16-24 x 1.25 (Honda Engine)

$4.49

$

In Stock, Qty 18

0

7

MTD 710-0260A

Carriage Bolt 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

8

MTD 14479

Directional Discharge Assembly

Variations

MTD 14479-0483

No Longer Available DISCHARGEASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 14479-0498

No Longer Available DISCHARGEASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 14479-0637

No Longer Available DISCHARGEASM - POWDER BLACK (0637)

$

$

Not available

MTD 14479-0638

No Longer Available DISCHARGEASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14479-0665

No Longer Available DISCHARGEASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 14479-0691

No Longer Available DISCHARGE ASM - BLACK JACK (0691)

$

$

Not available

MTD 14479-0662

No Longer Available DISCHARGE - OYSTER GRAY (0662)

$

$

Not available

MTD 14479-0709

No Longer Available DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

11

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

13

MTD 731-0608

Blower Guard

$

$

Not available

14

MTD 711-0758

Hex Shoulder Nut .50"
(Superseded to 911-0758)

$11.99

$

Usually ships in 3-6 days

0

15

MTD 14563A

Nozzle Plate Assembly

Variations

MTD 14563A-0483

No Longer Available PLATE ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 14563A-0498

No Longer Available PLATE ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 14563A-0637

PLATE ASSY-NOZZLE - POWDER BLACK (0637)

$

$

Not available

MTD 14563A-0638

No Longer Available PLATE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14563A-0691

PLATE ASSY-NOZZLE - BLACK JACK (0691)

$

$

Not available

MTD 14563A-0709

No Longer Available PLATE ASM - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

16

MTD 710-1254

Hex Bolt 3/8-24 x 1.25

$7.99

$

In Stock, Qty 8

0

16

MTD 710-1273

Hex Bolt 3/8-24 x 2.75 (Honda Engine)

$7.99

$

Usually ships in 3-6 days

0

17

MTD 736-0217

Lock Washer 3/8

$4.49

$

In Stock, Qty 8

0

18

MTD 681-0075A

Blower Impeller Assembly

Variations

MTD 681-0075A-0637

IMPLR ASM-BLOWER - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 681-04015

Blower Impeller Assembly (Honda Engine)
(Superseded to 681-04015-0637)

Variations

MTD 681-04015-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 14496B

Blower Housing Assembly

Variations

MTD 14496B-0483

No Longer Available HOUSING AS - CHARCOAL GRAY (0483)

$

$

Not available

MTD 14496B-0498

HOUSING ASM-BLOWER - OLD CUB YELLOW (0498)

$

$

Not available

MTD 14496B-0638

HOUSING ASM-BLOWER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14496B-0662

No Longer Available HOUSING AS - OYSTER GRAY (0662)

$

$

Not available

MTD 14496B-0665

No Longer Available HOUSING AS - YARDMAN GREEN (0665)

$

$

Not available

MTD 14496B-0691

No Longer Available HOUSING AS - BLACK JACK (0691)

$

$

Not available

MTD 14496B-0709

No Longer Available HOUSING AS - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

22

MTD 710-0259

Hex Sems Bolt 5/16-18 x .62

$

$

Not available

23

MTD 736-0242

Bell Washer .34 ID x .87 OD

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-3008

Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0247

Flat Washer

$9.49

$

In Stock, Qty 14

0

25

MTD 711-04221

Impeller Hub (Honda Engine)
(Superseded to 911-04221)

$

$

Not available

26

MTD 750-3198

Engine Spacer 1.0OD x .34LG (Honda Engine)

$

$

Not available

27

MTD 714-0105

Square Key, 3/16 (Honda Engine)
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0
