24A-652C000 - Yard Machines Blower (1998) Frame Assembly Parts Diagram

Blower

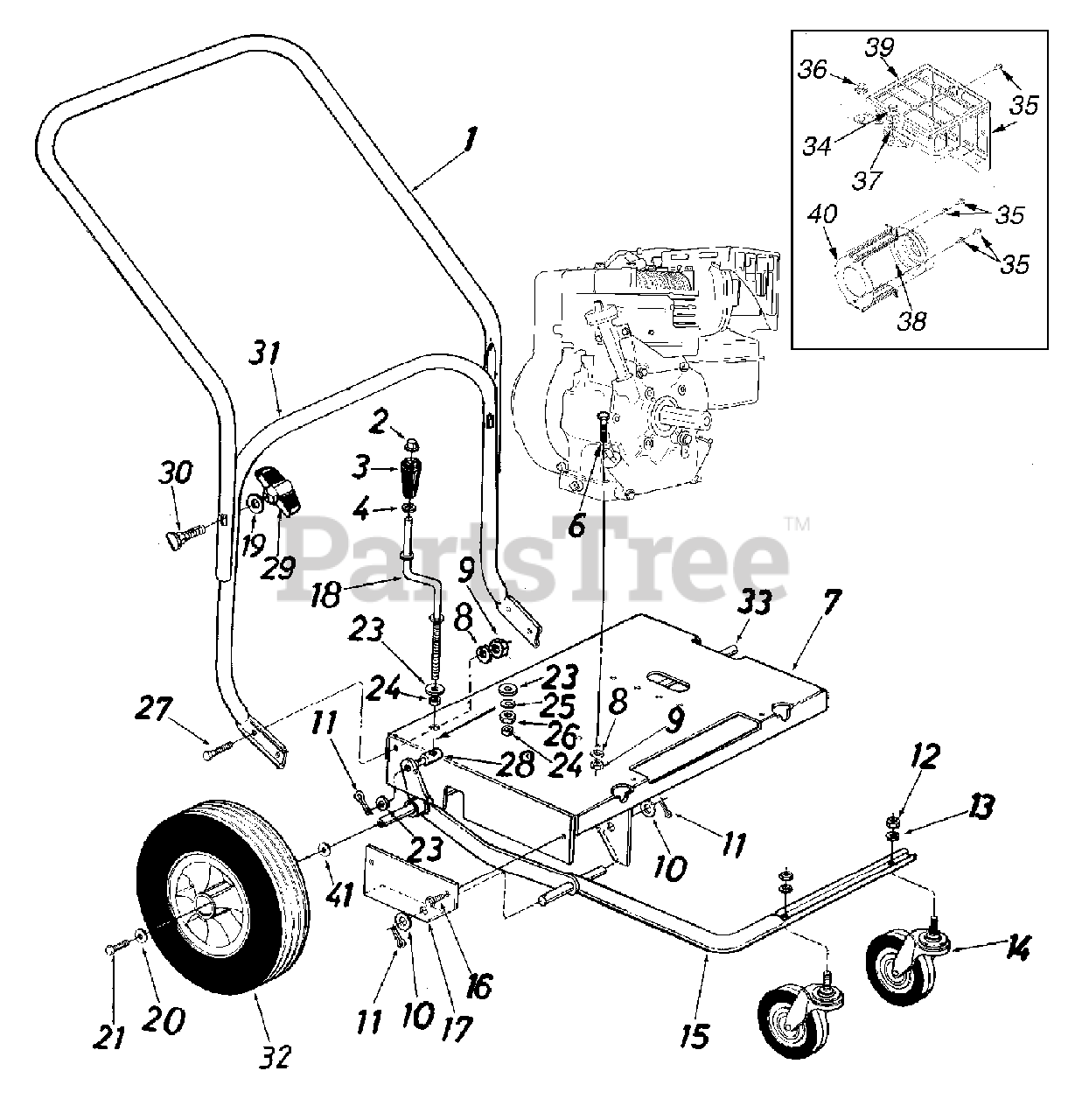

Frame Assembly Parts Diagram

  • Title

1

MTD 749-0784

Upper Handle
(Superseded to 749-0784-0637)

Variations

MTD 749-0784-0637

HANDLE-UPPER-PAINT - POWDER BLACK (0637)

$129.99

$

Usually ships in 3-6 days

0

$129.99

$

Usually ships in 3-6 days

0

2

MTD 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, Qty 20+

0

3

MTD 720-0171

Crank Knob
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

4

MTD 736-0117

Fl-Wash. .385" I.D. x .62"
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

6

MTD 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

7

MTD 16453

Engine Mounting Frame Ass'y.

Variations

MTD 16453-0637

No Longer Available FRAME ASM-ENG MTG - POWDER BLACK (0637)

$

$

Not available

MTD 16453-0638

No Longer Available FRAME ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16453-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 16453-0709

FRAME ASM-ENG MTG - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

8

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0187

Fl-Wash. .63" I.D. x 1.25"

$4.49

$

In Stock, Qty 20+

0

11

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.0"

$3.99

$

In Stock, only 2 left!

0

12

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

14

MTD 734-1036

Swivel Caster Wheel 5" Dia. x 1.25"

$75.99

$

Usually ships in 3-6 days

0

15

MTD 16273

Caster Arm Ass'y.

Variations

MTD 16273-0483

Double Caster Arm Assembly, Black - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16273-0498

Double Caster Arm Assembly, Black - OLD CUB YELLOW (0498)

$

$

Not available

MTD 16273-0637

Double Caster Arm Assembly, Black - POWDER BLACK (0637)

$

$

Not available

MTD 16273-0638

Double Caster Arm Assembly, Black - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16273-0648

Double Caster Arm Assembly, Black - TECH GRAY (0648)

$

$

Not available

MTD 16273-0662

Double Caster Arm Assembly, Black - OYSTER GRAY (0662)

$

$

Not available

MTD 16273-0674

Double Caster Arm Assembly, Black - YARDMAN YELLOW (0674)

$

$

Not available

MTD 16273-0691

Double Caster Arm Assembly, Black - BLACK JACK (0691)

$

$

Not available

MTD 16273-0709

Double Caster Arm Assembly, Black - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

16

MTD 710-0726

Hex Wash. Hd. "AB" Tap Scr. 5/16" x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

17

MTD 14529

Caster Arm Bracket

Variations

MTD 14529-0637

BRACKET-CASTER ARM - POWDER BLACK (0637)

$

$

Not available

MTD 14529-0638

BRACKET-CASTER ARM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14529-0691

BRACKET-CASTER ARM - BLACK JACK (0691)

$

$

Not available

MTD 14529-0709

No Longer Available BRACKET-CA - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

18

MTD 747-0542

Height Adjustment Crank

$20.99

$

Usually ships in 3-6 days

0

19

MTD 736-0451

Saddle Wash. .32" I.D. x .93"

$4.49

$

In Stock, Qty 7

0

20

MTD 736-0159

Fl-Wash. .34" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-0170

Hex L-Bolt 5/16-24 x .64" Lg.

$6.99

$

In Stock, only 1 left!

0

23

MTD 736-0300

Fl-Wash. .38" I.D. x .57"

$4.49

$

In Stock, Qty 20+

0

24

MTD 750-0528

Spacer .382" I.D. x .50" x .180" Lg.
(Superseded to 950-0528)

$

$

Not available

25

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-0354

Hex Nut 3/8-8 Thd.
(Superseded to 912-0354)

$

$

Not available

27

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

28

MTD 711-0797

Ferrule
(Superseded to 911-0797)

$

$

Not available

29

MTD 720-0241

Hand Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

30

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0"

$7.49

$

In Stock, Qty 20+

0

31

MTD 749-0785

Lower Handle

Variations

MTD 749-0785-0637

HANDLE-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 734-1035

Wheel Ass'y. Comp. 12" x 3"

$118.99

$

Usually ships in 3-6 days

0

33

MTD 738-0185

Rear Axle

$

$

Not available

34

MTD 710-0599

Scr. TT. 1/4-20: .5"

$4.49

$

In Stock, Qty 20+

0

35

MTD 710-1502

Scr. AB 8-18:.375

$

$

Not available

36

MTD 712-3004A

Nut-Lock Hx. Flg. 5/16-18

$3.99

$

In Stock, Qty 20+

0

37

7360329

Lockwasher

$

$

Not available

38

MTD 751-0447

Deflector

$

$

Not available

39

MTD 751-0632

Guard - Muffler

$

$

Not available

40

MTD 751-0646

Bracket - Muffler Guard

$

$

Not available

41

MTD 736-0162

Flat Washer

$4.49

$

In Stock, Qty 20+

0
