24A-464D700 - Yard Machines Chipper Shredder (2005-2) General Assembly Parts Diagram

Chipper Shredder

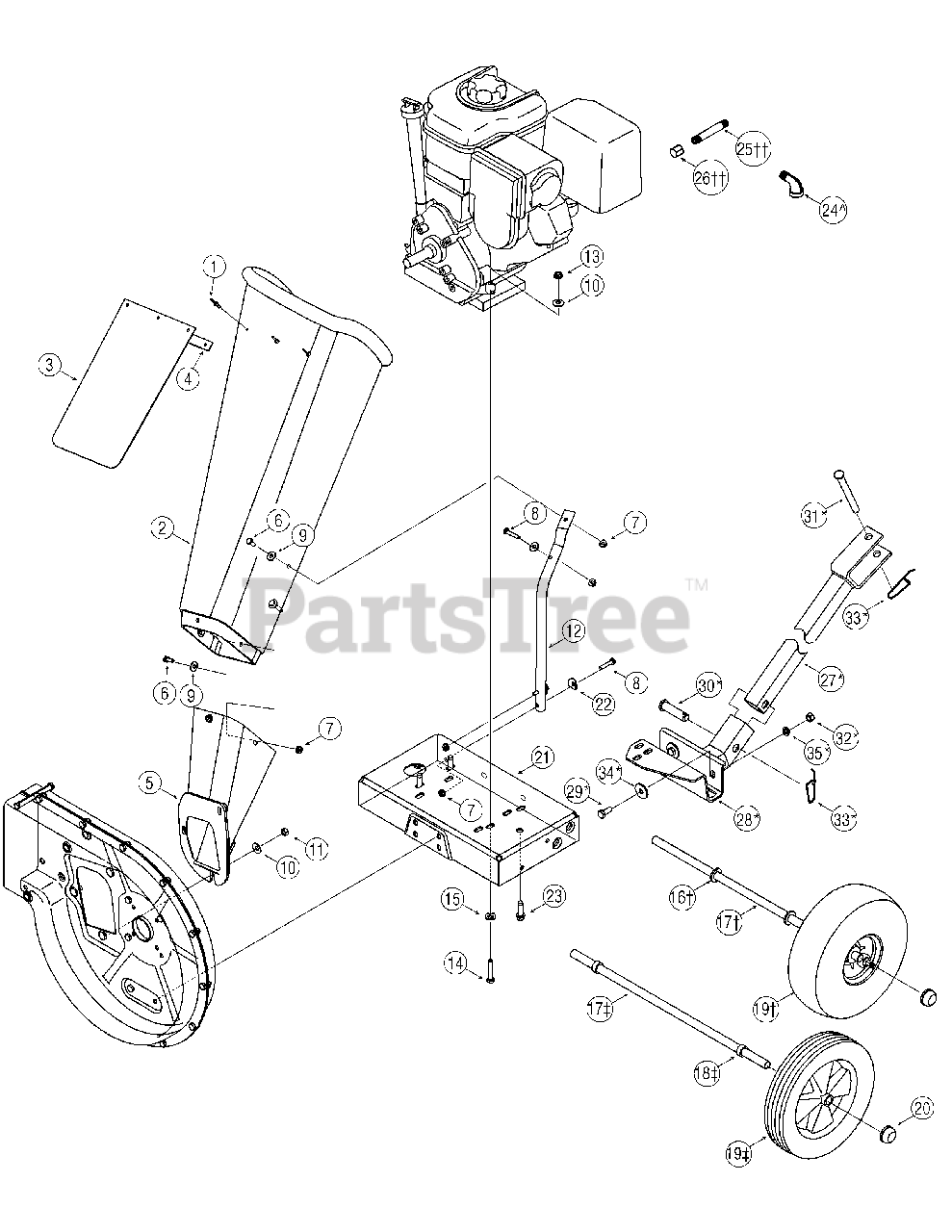

General Assembly Parts Diagram

  • Title

1

MTD 728-0175

Pop Rivet

$4.99

$

In Stock, Qty 6

0

2

MTD 731-1899

Chipper Shredder Chute
(Superseded to 753-05094)

$146.99

$

In Stock, only 1 left!

0

3

MTD 735-0249

Chute Flap
(Superseded to 735-0249A)

$24.99

$

Usually ships in 3-6 days

0

4

MTD 781-0633

Chute Flap Strip

$10.99

$

Usually ships in 3-6 days

0

5

MTD 681-0068A

Chipper Chute Assembly

Variations

MTD 681-0068A-0483

ASM-CHUTE - CHARCOAL GRAY (0483)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0638

ASM-CHUTE - MTD/TROY-BILT RED (0638)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0498

CHUTE ASM-CHIPPER - OLD CUB YELLOW (0498)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0650

ASM-CHUTE - RED METALLIC (0650)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0662

ASM-CHUTE - OYSTER GRAY (0662)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0674

ASM-CHUTE - YARDMAN YELLOW (0674)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0689

ASM-CHUTE - POLO GREEN (0689)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0691

ASM-CHUTE - BLACK JACK (0691)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0709

ASM-CHUTE - MASTERCRAFT GREEN (0709)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0716

CHUTE ASM-CHIPPER - CUB YELLOW-99 (0716)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0721

CHUTE ASM-CHIPPER - SEARS RED (0721)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-4044

CHUTE ASM-CHIPPER - CRAFTSMAN RED (4044)

$177.99

$

Usually ships in 3-6 days

0

$177.99

$

Usually ships in 3-6 days

0

6

MTD 710-0751

Hex Cap Screw 1/4 -20 X 1.25

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

8

MTD 710-0106

Hex Cap Screw 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

9

MTD 736-0173

Flat Washer.28 ID x.74 OD

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0242

Bell Washer.340 ID x.872

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

MTD 749-1004

Support Brace

Variations

MTD 749-1004-0637

SUPPORT-CHUTE - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

MTD 749-1004-0638

SUPPORT-CHUTE - MTD/TROY-BILT RED (0638)

$46.99

$

Usually ships in 3-6 days

0

MTD 749-1004-0689

SUPPORT-CHUTE - POLO GREEN (0689)

$46.99

$

Usually ships in 3-6 days

0

MTD 749-1004-0721

SUPPORT-CHUTE - SEARS RED (0721)

$43.99

$

Usually ships in 3-6 days

0

MTD 749-1004-4044

SUPPORT-CHUTE - CRAFTSMAN RED (4044)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

13

MTD 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-0805

Hex Cap Screw 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3180

Hex Cap Screw 5/16-18 x 1.75 - Model Series 464G Only

$5.49

$

In Stock, Qty 20+

0

15

MTD 736-0170

Bell Washer 5/16 x 1.0

$5.99

$

Usually ships in 3-6 days

0

16

MTD 736-0366

Flat Washer Model Series 464

$4.49

$

In Stock, Qty 20+

0

17

MTD 738-0814

Axle Assembly Model Series 462

$44.99

$

In Stock, only 1 left!

0

17

MTD 738-0813

Axle Assembly Model Series 464

$52.99

$

Usually ships in 3-6 days

0

18

MTD 750-0786

Spacer Model Series 462
(Superseded to 950-0786)

$7.49

$

Usually ships in 3-6 days

0

19

MTD 734-1600

Wheel Comp., 10.0 x 2.5 Plastic, Model Series 462

$93.99

$

Usually ships in 3-6 days

0

19

MTD 734-1845

Wheel Complete, 10.0 x 4. Gray Model Series 464
(Superseded to 753-08108)

$126.99

$

Usually ships in 3-6 days

0

20

MTD 726-0214

Push Cap

$10.99

$

In Stock, only 4 left!

0

21

MTD 681-0184A

Frame
(Superseded to 681-0184C)

Variations

MTD 681-0184A-0483

FRAME ASM-SHREDDER - CHARCOAL GRAY (0483)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184A-0638

FRAME ASM-SHREDDER - MTD/TROY-BILT RED (0638)

$117.99

$

Usually ships in 3-6 days

0

MTD 681-0184A-0689

FRAME ASM-SHREDDER - POLO GREEN (0689)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184A-0691

FRAME ASM-SHREDDER - BLACK JACK (0691)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184A-0709

FRAME ASM-SHREDDER - MASTERCRAFT GREEN (0709)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184A-0721

FRAME ASM-SHREDDER - SEARS RED (0721)

$117.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0

21

MTD 681-0183A

Frame - Model Series 464G Only
(Superseded to 681-0183B)

Variations

MTD 681-0183A-0638

FRAME-ENGINE MOUNTING - MTD/TROY-BILT RED (0638)

$63.99

$

Usually ships in 3-6 days

0

MTD 681-0183A-0691

FRAME-ENGINE MOUNTING - BLACK JACK (0691)

$63.99

$

Usually ships in 3-6 days

0

MTD 681-0183A-0721

FRAME-ENGINE MTG - SEARS RED (0721)

$63.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

22

MTD 736-0451

Washer,.320 ID x.93 OD

$4.49

$

In Stock, Qty 11

0

23

MTD 710-0502A

Screw, 3/8-16 x 1.250

$6.99

$

In Stock, only 2 left!

0

24

MTD 737-0195

Elbow Fitting, Models 462 & 464D
(Superseded to 937-0195)

$16.99

$

Usually ships in 3-6 days

0

25

MTD 737-0298

Oil Drain Pipe - Model Series 464G Only

$12.99

$

Usually ships in 3-6 days

0

26

MTD 737-0132

Oil Drain End Cap - Model Series 464G Only

$10.99

$

Usually ships in 3-6 days

0

27

MTD 681-0133

Tongue Hitch Mount, (if equipped)
(Superseded to 981-0133B)

Variations

MTD 681-0133-4021

TOW BAR (CUB YELLOW 2) - CUB YELLOW 2 (4021)

$77.99

$

In Stock, only 2 left!

0

MTD 681-0133-0637

TONGUE TOW BAR BLACK - POWDER BLACK (0637)

$77.99

$

In Stock, only 2 left!

0

$72.99

$

Usually ships in 3-6 days

0

28

MTD 681-0134A

Base Hitch Mount (if equipped)
(Superseded to 681-0134B-0637)

Variations

MTD 681-0134A-0637

BAR-TOW BASE - POWDER BLACK (0637)

$83.99

$

In Stock, only 1 left!

0

$83.99

$

In Stock, only 1 left!

0

29

MTD 710-3001

Hex Cap Screw, 3/8-16 x .88 (if equipped)

$7.49

$

In Stock, Qty 9

0

30

MTD 711-0299

Clevis Pin,.625 x 2.4 (if equipped)

$36.99

$

Usually ships in 3-6 days

0

31

MTD 711-0835

Clevis Pin,.50 x 4.62 (if equipped)
(Superseded to 911-0835)

$12.99

$

In Stock, only 3 left!

0

32

MTD 712-3017

Hex Nut, 3/8-16 (if equipped)

$4.49

$

In Stock, Qty 20+

0

33

MTD 732-0194

Spring Pin (if equipped)

$4.99

$

In Stock, Qty 12

0

34

MTD 736-0133

Flat Washer,.411 x 1.25 x 1.0 (if equipped)

$5.49

$

In Stock, Qty 7

0

35

MTD 736-0169

Lock Washer, 3/8 (if equipped)

$3.99

$

In Stock, Qty 20+

0

—

MTD 723-0400

Safety Glasses (Not Shown)

$26.99

$

Usually ships in 3-6 days

0

—

MTD 664-04022

Chipper Bag Ass’y (Not Shown)
(Superseded to 964-04022)

$74.99

$

Usually ships in 3-6 days

0

—

MTD 664-04023

Chipper Bag Ass’y (Not Shown) Model Series 462
(Superseded to 664P04023A)

$103.99

$

In Stock, only 2 left!

0
