24A-464B062 - Yard Machines Chipper Shredder (2002) (Lowes) General Assembly Parts Diagram

Chipper Shredder

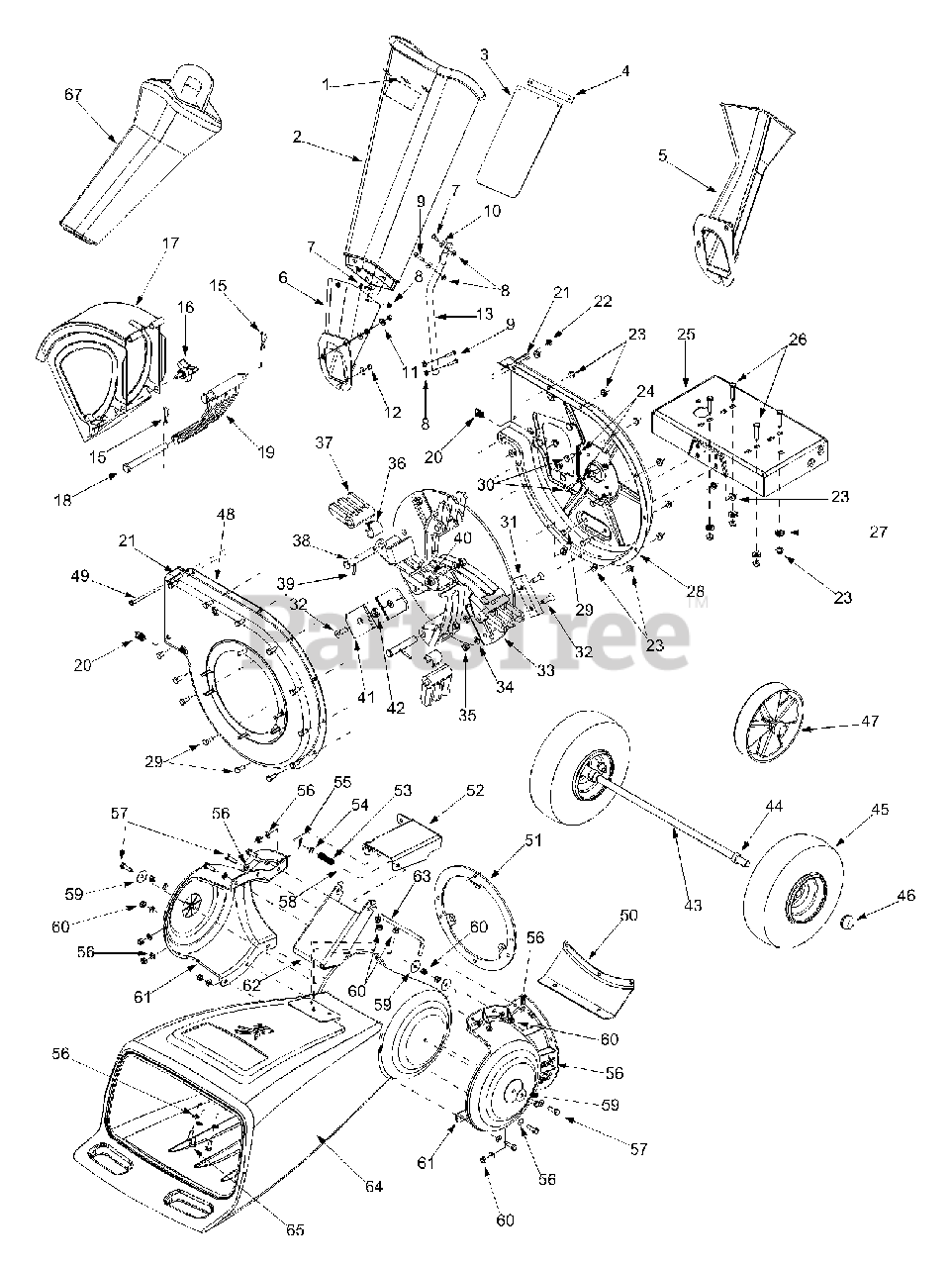

General Assembly Parts Diagram

  • Title

1

MTD 728-0175

Pop Rivet

$4.99

$

In Stock, only 4 left!

0

2

MTD 731-1899

Chipper Chute
(Superseded to 753-05094)

$146.99

$

In Stock, only 1 left!

0

3

MTD 735-0249

Chute Flap
(Superseded to 735-0249A)

$24.99

$

Usually ships in 3-6 days

0

4

MTD 781-0633

Chute Flap Strip

$10.99

$

Usually ships in 3-6 days

0

5

MTD 681-0095

Chipper Chute

Note: For Model 462 Only

Variations

MTD 681-0095-0638

CHUTE ASSY-CHIPPER COMPLETE - MTD/TROY-BILT RED (0638)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0691

CHUTE ASSY-CHIPPER COMPLETE - BLACK JACK (0691)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0709

CHUTE ASSY-CHIPPER COMPLETE - MASTERCRAFT GREEN (0709)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0483

CHUTE ASSY-CHIPPER COMPLETE - CHARCOAL GRAY (0483)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0498

CHUTE ASSY-CHIPPER COMPLETE - OLD CUB YELLOW (0498)

$229.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0650

CHUTE ASSY-CHIPPER COMPLETE - RED METALLIC (0650)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0665

CHUTE ASSY-CHIPPER COMPLETE - YARDMAN GREEN (0665)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0716

CHUTE ASSY-CHIPPER COMPLETE - CUB YELLOW-99 (0716)

$229.99

$

Usually ships in 3-6 days

0

MTD 681-0095-4021

CHUTE ASSY-CHIPPER COMPLETE - CUB YELLOW 2 (4021)

$229.99

$

Usually ships in 3-6 days

0

$239.99

$

Usually ships in 3-6 days

0

6

MTD 681-0068A

Chipper Chute Assembly

Variations

MTD 681-0068A-0483

ASM-CHUTE - CHARCOAL GRAY (0483)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0638

ASM-CHUTE - MTD/TROY-BILT RED (0638)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0498

CHUTE ASM-CHIPPER - OLD CUB YELLOW (0498)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0650

ASM-CHUTE - RED METALLIC (0650)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0662

ASM-CHUTE - OYSTER GRAY (0662)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0674

ASM-CHUTE - YARDMAN YELLOW (0674)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0689

ASM-CHUTE - POLO GREEN (0689)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0691

ASM-CHUTE - BLACK JACK (0691)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0709

ASM-CHUTE - MASTERCRAFT GREEN (0709)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0716

CHUTE ASM-CHIPPER - CUB YELLOW-99 (0716)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0721

CHUTE ASM-CHIPPER - SEARS RED (0721)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-4044

CHUTE ASM-CHIPPER - CRAFTSMAN RED (4044)

$177.99

$

Usually ships in 3-6 days

0

$177.99

$

Usually ships in 3-6 days

0

7

MTD 710-0751

Hex Cap Screw 1/4 -20 x.620

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0106

Hex Cap Screw 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

10

MTD 736-0173

Flat Washer.28 ID x.74 OD

$4.49

$

In Stock, Qty 20+

0

11

MTD 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

13

MTD 749-1004

Support Brace

Variations

MTD 749-1004-0637

SUPPORT-CHUTE - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

MTD 749-1004-0638

SUPPORT-CHUTE - MTD/TROY-BILT RED (0638)

$46.99

$

Usually ships in 3-6 days

0

MTD 749-1004-0689

SUPPORT-CHUTE - POLO GREEN (0689)

$46.99

$

Usually ships in 3-6 days

0

MTD 749-1004-0721

SUPPORT-CHUTE - SEARS RED (0721)

$43.99

$

Usually ships in 3-6 days

0

MTD 749-1004-4044

SUPPORT-CHUTE - CRAFTSMAN RED (4044)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

15

MTD 714-0149B

Cotter Pin

$4.49

$

In Stock, Qty 18

0

16

MTD 681-0048

Wing Knob 5/16-18
(Superseded to 720-0170)

$11.99

$

In Stock, only 2 left!

0

17

MTD 681-0094

Discharge Chute Assembly
(Superseded to 681-0094A)

Variations

MTD 681-0094-0483

CHUTE-DISCHARGE - CHARCOAL GRAY (0483)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0498

CHUTE-DISCHARGE - OLD CUB YELLOW (0498)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0637

CHUTE-DISCHARGE - POWDER BLACK (0637)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0638

Discharge Chute - MTD/TROY-BILT RED (0638)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0691

CHUTE-DISCHARGE - BLACK JACK (0691)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0721

Discharge Chute - SEARS RED (0721)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-4021

CHUTE-DISCHARGE - CUB YELLOW 2 (4021)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-4044

Discharge Chute - CRAFTSMAN RED (4044)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0665

CHUTE ASSY-DISCHARGE - YARDMAN GREEN (0665)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0689

CHUTE-DISCHARGE - POLO GREEN (0689)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0709

CHUTE-DISCHARGE - MASTERCRAFT GREEN (0709)

$129.99

$

Usually ships in 3-6 days

0

$135.99

$

Usually ships in 3-6 days

0

18

MTD 711-0835

Clevis Pin
(Superseded to 911-0835)

$12.99

$

In Stock, only 3 left!

0

19

MTD 781-0457

Flail Screen
(Superseded to 781-0457-0637)

Variations

MTD 781-0457-0637

Shredder Screen, Black - POWDER BLACK (0637)

$41.99

$

In Stock, Qty 10

0

$41.99

$

In Stock, Qty 10

0

20

MTD 726-0211

U-Nut 5/16-18

$4.49

$

In Stock, only 1 left!

0

21

MTD 750-0793

Spacer
(Superseded to 950-0793)

$3.99

$

In Stock, Qty 12

0

22

MTD 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

23

MTD 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

24

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

25

MTD 681-0184

Frame
(Superseded to 681-0184C)

Variations

MTD 681-0184-0483

FRAME ASM-SHREDDER - CHARCOAL GRAY (0483)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184-0638

FRAME ASM-SHREDDER - MTD/TROY-BILT RED (0638)

$117.99

$

Usually ships in 3-6 days

0

MTD 681-0184-0689

FRAME ASM-SHREDDER - POLO GREEN (0689)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184-0691

FRAME ASM-SHREDDER - BLACK JACK (0691)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184-0709

FRAME ASM-SHREDDER - MASTERCRAFT GREEN (0709)

$102.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0

26

MTD 710-0805

Hex Cap Screw 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

27

MTD 736-0170

Bell Washer 5/16 x 1.0

$5.99

$

Usually ships in 3-6 days

0

28

MTD 681-0117

Inner Impeller Housing Assembly

Variations

MTD 681-0117-0637

Flail Housing Assembly - POWDER BLACK (0637)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0483

Flail Housing Assembly - CHARCOAL GRAY (0483)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0638

Flail Housing Assembly - MTD/TROY-BILT RED (0638)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0691

Flail Housing Assembly - BLACK JACK (0691)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0721

Flail Housing Assembly - SEARS RED (0721)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-4044

Flail Housing Assembly - CRAFTSMAN RED (4044)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0689

Flail Housing Assembly - POLO GREEN (0689)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0709

Flail Housing Assembly - MASTERCRAFT GREEN (0709)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-4021

Flail Housing Assembly - CUB YELLOW 2 (4021)

$185.99

$

Usually ships in 3-6 days

0

$150.99

$

Usually ships in 3-6 days

0

29

MTD 710-3008

Hex Cap Screw 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

30

MTD 710-0157

Hex Cap Screw 5/16-24 x.75

$4.49

$

In Stock, Qty 15

0

31

MTD 781-0490

Chipper Blade
(Superseded to 981-0490)

$30.99

$

In Stock, Qty 8

0

32

MTD 710-1054

Hex Cap Screw 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

33

MTD 681-0030

Impeller Assembly
(Superseded to 981-04096)

$600.99

$

Usually ships in 3-6 days

0

34

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

35

MTD 712-0411

Hex Lock Nut 5/16-24

$4.49

$

In Stock, Qty 20+

0

36

MTD 781-0735

Pin Clip

$4.49

$

In Stock, Qty 20+

0

37

MTD 719-0329

Flail Blade

$31.99

$

In Stock, only 4 left!

0

38

MTD 711-0833B

Clevis Pin
(Superseded to 911-0833B)

$12.99

$

In Stock, only 4 left!

0

39

MTD 715-0166

Pin

$6.99

$

In Stock, Qty 19

0

40

MTD 736-0247

Flat Washer 3/8 x 1.25

$9.49

$

In Stock, Qty 12

0

41

MTD 742-0571

Shredder Blade
(Superseded to 942-0571)

$37.99

$

In Stock, Qty 9

0

42

MTD 710-1254

Hex Cap Screw 3/8-24 x 2.25

$7.99

$

In Stock, Qty 8

0

43

MTD 738-0813

Axle Assembly

$52.99

$

Usually ships in 3-6 days

0

MTD 738-0814

Axle Assembly

Note: For Model 462 Only

$44.99

$

In Stock, only 1 left!

0

44

MTD 750-0786

Spacer
(Superseded to 950-0786)

$7.49

$

Usually ships in 3-6 days

0

45

MTD 734-1597A

Wheel Assembly 10.0 x 4.0
(Superseded to 934-04009)

Variations

MTD 734-1597A-0911

Wheel Assembly Complete, 10 - Carlisle Gray (0911)

$122.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

46

MTD 726-0214

Push Cap

$10.99

$

In Stock, Qty 5

0

47

MTD 734-1600

Wheel Assembly 10.0 x 2.5

Note: For Model 462 Only

$93.99

$

Usually ships in 3-6 days

0

48

MTD 681-0004A

Outer Impeller Housing Assembly

Variations

MTD 681-0004A-0498

HOUSING ASSY-FLAIL - OLD CUB YELLOW (0498)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0637

HOUSING ASSY-FLAIL - POWDER BLACK (0637)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0638

HOUSING ASSY-FLAIL - MTD/TROY-BILT RED (0638)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0483

HOUSING ASSY-FLAIL - CHARCOAL GRAY (0483)

$219.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0662

HOUSING ASSY-FLAIL - OYSTER GRAY (0662)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0665

HOUSING ASSY-FLAIL - YARDMAN GREEN (0665)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0668

HOUSING ASSY-FLAIL - MOSS GREEN (0668)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0689

HOUSING ASSY-FLAIL - POLO GREEN (0689)

$219.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0691

HOUSING ASSY-FLAIL - BLACK JACK (0691)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0709

HOUSING ASSY-FLAIL - MASTERCRAFT GREEN (0709)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0721

HOUSING ASSY-FLAIL - SEARS RED (0721)

$219.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-4044

HOUSING ASSY-FLAIL - CRAFTSMAN RED (4044)

$219.99

$

Usually ships in 3-6 days

0

$191.99

$

Usually ships in 3-6 days

0

49

MTD 710-0825

Hex Cap Screw 1/4-20 x 3.75

$5.49

$

In Stock, only 3 left!

0

50

MTD 781-0515

Support Bracket

Variations

MTD 781-0515-0483

BRACKET-SUPPORT-FR - CHARCOAL GRAY (0483)

$53.99

$

Usually ships in 3-6 days

0

MTD 781-0515-0638

BRACKET-SUPPORT-FR - MTD/TROY-BILT RED (0638)

$49.99

$

Usually ships in 3-6 days

0

MTD 781-0515-0637

BRACKET-SUPPORT-FR - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

MTD 781-0515-0662

BRACKET-SUPPORT-FR - OYSTER GRAY (0662)

$53.99

$

Usually ships in 3-6 days

0

MTD 781-0515-0665

BRACKET-SUPPORT-FR - YARDMAN GREEN (0665)

$53.99

$

Usually ships in 3-6 days

0

MTD 781-0515-0691

BRACKET-SUPPORT-FR - BLACK JACK (0691)

$49.99

$

Usually ships in 3-6 days

0

MTD 781-0515-4044

BRKT-FRNT SUPPORT - CRAFTSMAN RED (4044)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

51

MTD 781-0574

Support Plate

Variations

MTD 781-0574-0483

PLATE-HOPPER BACK- - CHARCOAL GRAY (0483)

$185.99

$

Usually ships in 3-6 days

0

MTD 781-0574-0637

PLATE-HOPPER BACK- - POWDER BLACK (0637)

$185.99

$

Usually ships in 3-6 days

0

MTD 781-0574-0638

PLATE-HOPPER BACK- - MTD/TROY-BILT RED (0638)

$172.99

$

Usually ships in 3-6 days

0

MTD 781-0574-0662

PLATE-HOPPER BACK- - OYSTER GRAY (0662)

$172.99

$

Usually ships in 3-6 days

0

MTD 781-0574-0665

PLATE-HOPPER BACK- - YARDMAN GREEN (0665)

$172.99

$

Usually ships in 3-6 days

0

$172.99

$

Usually ships in 3-6 days

0

52

MTD 681-0104

Impeller Bracket Assembly

Variations

MTD 681-0104-0637

BRACKET ASM-HOPPER - POWDER BLACK (0637)

$63.99

$

Usually ships in 3-6 days

0

MTD 681-0104-0638

BRACKET ASM-HOPPER - MTD/TROY-BILT RED (0638)

$59.99

$

In Stock, only 3 left!

0

MTD 681-0104-0691

BRACKET ASM-HOPPER - BLACK JACK (0691)

$63.99

$

Usually ships in 3-6 days

0

MTD 681-0104-0721

BRACKET ASM-HOPPER - SEARS RED (0721)

$63.99

$

Usually ships in 3-6 days

0

MTD 681-0104-4044

BRACKET ASM-HOPPER - CRAFTSMAN RED (4044)

$63.99

$

Usually ships in 3-6 days

0

$51.99

$

Usually ships in 3-6 days

0

53

MTD 732-0306

Compression Spring 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

54

MTD 736-0117

Flat Washer
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

55

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

56

MTD 736-0264

Flat Washer.330 ID x.630 OD

$6.99

$

In Stock, only 2 left!

0

57

MTD 710-0376

Hex Cap Screw 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

58

UNKNOWN

$

$

Not available

59

MTD 736-0362

Flat Washer.320 ID x 1.25 OD

$4.49

$

In Stock, only 4 left!

0

60

MTD 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

61

MTD 731-1710

Hopper Collar
(Superseded to 731-1710A)

$59.99

$

In Stock, Qty 8

0

62

MTD 681-0123

Hopper Bracket Assembly

Variations

MTD 681-0123-0637

Hopper Bracket Assembly - POWDER BLACK (0637)

$63.99

$

In Stock, only 1 left!

0

MTD 681-0123-0638

BRACKET ASM. HOPPER - MTD/TROY-BILT RED (0638)

$63.99

$

Usually ships in 3-6 days

0

MTD 681-0123-0691

BRACKET ASM. HOPPE - BLACK JACK (0691)

$63.99

$

Usually ships in 3-6 days

0

MTD 681-0123-0721

BRACKET ASM. HOPPER - SEARS RED (0721)

$63.99

$

In Stock, only 1 left!

0

MTD 681-0123-4044

BRACKET ASM. HOPPER - CRAFTSMAN RED (4044)

$63.99

$

In Stock, only 1 left!

0

$55.99

$

Usually ships in 3-6 days

0

63

MTD 711-1128

Lock Rod

$16.99

$

Usually ships in 3-6 days

0

64

MTD 731-1707

Hopper Assembly
(Superseded to 731-1707A)

$436.99

$

Usually ships in 3-6 days

0

65

MTD 710-3008

Hex Cap Screw 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

?66

MTD 764-0199A

Bag
(Superseded to 964-04022)

Note: (Not Shown)

$74.99

$

In Stock, only 1 left!

0

67

MTD 731-1617

Tamper Plug

Note: (If Equipped)

$139.99

$

Usually ships in 3-6 days

0
