Chipper Shredder

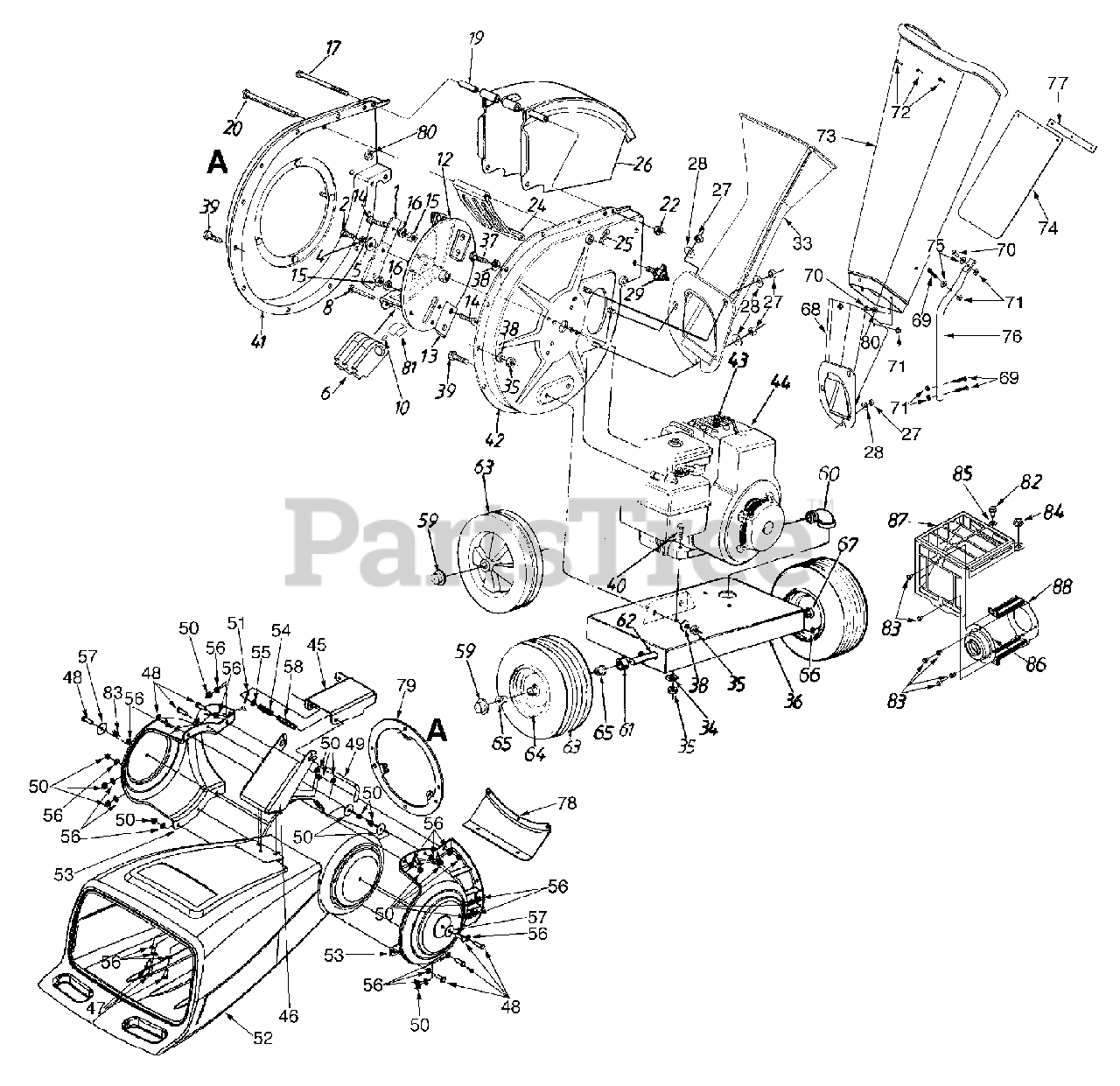

General Assembly Parts Diagram

  • Title

1

MTD 742-0571

Blade
(Superseded to 942-0571)

$37.99

$

In Stock, Qty 9

0

2

MTD 710-1254

Hx Patch Bolt 3/8-24 x 2.25" (Gr. 8)

$7.99

$

In Stock, Qty 8

0

4

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 6

0

5

MTD 736-0247

Fl-Wash. .406" I.D. x 1.25" O.D. Hdn.

$9.49

$

In Stock, Qty 12

0

6

MTD 719-0329

Flail Blade

$31.99

$

In Stock, only 4 left!

0

8

MTD 711-0833B

Clevis Pin .496" Dia.
(Superseded to 911-0833B)

$12.99

$

In Stock, only 4 left!

0

10

MTD 715-0166

Spring Roll Pin 1.00" Lg.

$6.99

$

In Stock, Qty 19

0

12

MTD 681-0030

Impeller Ass'y. Comp.
(Superseded to 981-04096)

Note: (Incl. Ref. 1, 6, 8, 10, 12, 13, 14)

$600.99

$

Usually ships in 3-6 days

0

13

MTD 781-0490

Chipper Blade
(Superseded to 981-0490)

$30.99

$

In Stock, Qty 8

0

14

MTD 710-1054

Flat Hd. Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0411

Hex Top L-Nut 5/16-24 (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

16

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

MTD 710-0825

Hex Bolt 1/4-20 x 3.75" Lg.

$5.49

$

In Stock, only 3 left!

0

19

MTD 750-0793

Chute Hinge Spacer 1.66" Lg.
(Superseded to 950-0793)

$3.99

$

In Stock, Qty 12

0

20

MTD 711-0835

Clevis Pin .5" Dia. x 4.62" Lg.
(Superseded to 911-0835)

$12.99

$

In Stock, only 3 left!

0

22

MTD 712-3027

Hex Flg. L-Nut 1/4-20 Thd.
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

24

MTD 781-0457

Shredder Screen
(Superseded to 781-0457-0637)

Variations

MTD 781-0457-0637

Shredder Screen, Black - POWDER BLACK (0637)

$41.99

$

In Stock, Qty 10

0

$41.99

$

In Stock, Qty 10

0

25

MTD 714-0149B

Internal Cotter Pin 3/8" Dia.

$4.49

$

In Stock, Qty 18

0

26

MTD 681-0094

Chute Deflector Ass'y.
(Superseded to 681-0094A)

Note: Code N

Variations

MTD 681-0094-0483

CHUTE-DISCHARGE - CHARCOAL GRAY (0483)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0498

CHUTE-DISCHARGE - OLD CUB YELLOW (0498)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0637

CHUTE-DISCHARGE - POWDER BLACK (0637)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0638

Discharge Chute - MTD/TROY-BILT RED (0638)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0691

CHUTE-DISCHARGE - BLACK JACK (0691)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0721

Discharge Chute - SEARS RED (0721)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-4021

CHUTE-DISCHARGE - CUB YELLOW 2 (4021)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-4044

Discharge Chute - CRAFTSMAN RED (4044)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0665

CHUTE ASSY-DISCHARGE - YARDMAN GREEN (0665)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0689

CHUTE-DISCHARGE - POLO GREEN (0689)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0709

CHUTE-DISCHARGE - MASTERCRAFT GREEN (0709)

$129.99

$

Usually ships in 3-6 days

0

$135.99

$

Usually ships in 3-6 days

0

27

MTD 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

28

UNKNOWN

$

$

Not available

29

MTD 681-0048

Hand Knob Ass'y.
(Superseded to 720-0170)

$11.99

$

In Stock, only 2 left!

0

33

MTD 681-0095

Chipper Chute Ass'y.

Note: Model 462B only

Variations

MTD 681-0095-0638

CHUTE ASSY-CHIPPER COMPLETE - MTD/TROY-BILT RED (0638)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0691

CHUTE ASSY-CHIPPER COMPLETE - BLACK JACK (0691)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0709

CHUTE ASSY-CHIPPER COMPLETE - MASTERCRAFT GREEN (0709)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0483

CHUTE ASSY-CHIPPER COMPLETE - CHARCOAL GRAY (0483)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0498

CHUTE ASSY-CHIPPER COMPLETE - OLD CUB YELLOW (0498)

$229.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0650

CHUTE ASSY-CHIPPER COMPLETE - RED METALLIC (0650)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0665

CHUTE ASSY-CHIPPER COMPLETE - YARDMAN GREEN (0665)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0716

CHUTE ASSY-CHIPPER COMPLETE - CUB YELLOW-99 (0716)

$229.99

$

Usually ships in 3-6 days

0

MTD 681-0095-4021

CHUTE ASSY-CHIPPER COMPLETE - CUB YELLOW 2 (4021)

$229.99

$

Usually ships in 3-6 days

0

$239.99

$

Usually ships in 3-6 days

0

34

MTD 736-0170

Spec. L-Wash. 5/16" I.D.

$5.99

$

Usually ships in 3-6 days

0

35

MTD 712-3004A

Hex Nut 5/16-18 Thd. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

36

MTD 781-0510B

Shredder Frame
(Superseded to 681-0184C)

Note: Code N

Variations

MTD 781-0510B-0483

FRAME ASM-SHREDDER - CHARCOAL GRAY (0483)

$102.99

$

Usually ships in 3-6 days

0

MTD 781-0510B-0638

FRAME ASM-SHREDDER - MTD/TROY-BILT RED (0638)

$117.99

$

Usually ships in 3-6 days

0

MTD 781-0510B-0689

FRAME ASM-SHREDDER - POLO GREEN (0689)

$102.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0

37

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

38

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

40

MTD 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

41

MTD 681-0004A

Flail Housing Ass'y.-L.H.

Note: Code N

Variations

MTD 681-0004A-0498

HOUSING ASSY-FLAIL - OLD CUB YELLOW (0498)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0637

HOUSING ASSY-FLAIL - POWDER BLACK (0637)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0638

HOUSING ASSY-FLAIL - MTD/TROY-BILT RED (0638)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0483

HOUSING ASSY-FLAIL - CHARCOAL GRAY (0483)

$219.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0662

HOUSING ASSY-FLAIL - OYSTER GRAY (0662)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0665

HOUSING ASSY-FLAIL - YARDMAN GREEN (0665)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0668

HOUSING ASSY-FLAIL - MOSS GREEN (0668)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0689

HOUSING ASSY-FLAIL - POLO GREEN (0689)

$219.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0691

HOUSING ASSY-FLAIL - BLACK JACK (0691)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0709

HOUSING ASSY-FLAIL - MASTERCRAFT GREEN (0709)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0721

HOUSING ASSY-FLAIL - SEARS RED (0721)

$219.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-4044

HOUSING ASSY-FLAIL - CRAFTSMAN RED (4044)

$219.99

$

Usually ships in 3-6 days

0

$191.99

$

Usually ships in 3-6 days

0

42

MTD 681-0117

Flail Housing Ass'y.-R.H.

Note: Code N

Variations

MTD 681-0117-0637

Flail Housing Assembly - POWDER BLACK (0637)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0483

Flail Housing Assembly - CHARCOAL GRAY (0483)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0638

Flail Housing Assembly - MTD/TROY-BILT RED (0638)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0691

Flail Housing Assembly - BLACK JACK (0691)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0721

Flail Housing Assembly - SEARS RED (0721)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-4044

Flail Housing Assembly - CRAFTSMAN RED (4044)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0689

Flail Housing Assembly - POLO GREEN (0689)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0709

Flail Housing Assembly - MASTERCRAFT GREEN (0709)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-4021

Flail Housing Assembly - CUB YELLOW 2 (4021)

$185.99

$

Usually ships in 3-6 days

0

$150.99

$

Usually ships in 3-6 days

0

43

MTD 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

44

Engine

$

$

Not available

45

MTD 681-0104

Bracket Ass'y. - R.R.

Note: Code N

Variations

MTD 681-0104-0637

BRACKET ASM-HOPPER - POWDER BLACK (0637)

$63.99

$

Usually ships in 3-6 days

0

MTD 681-0104-0638

BRACKET ASM-HOPPER - MTD/TROY-BILT RED (0638)

$59.99

$

In Stock, only 3 left!

0

MTD 681-0104-0691

BRACKET ASM-HOPPER - BLACK JACK (0691)

$63.99

$

Usually ships in 3-6 days

0

MTD 681-0104-0721

BRACKET ASM-HOPPER - SEARS RED (0721)

$63.99

$

Usually ships in 3-6 days

0

MTD 681-0104-4044

BRACKET ASM-HOPPER - CRAFTSMAN RED (4044)

$63.99

$

Usually ships in 3-6 days

0

$51.99

$

Usually ships in 3-6 days

0

46

MTD 681-0123

Bracket Ass'y. - Frt.

Note: Code N

Variations

MTD 681-0123-0637

Hopper Bracket Assembly - POWDER BLACK (0637)

$63.99

$

In Stock, only 1 left!

0

MTD 681-0123-0638

BRACKET ASM. HOPPER - MTD/TROY-BILT RED (0638)

$63.99

$

Usually ships in 3-6 days

0

MTD 681-0123-0691

BRACKET ASM. HOPPE - BLACK JACK (0691)

$63.99

$

Usually ships in 3-6 days

0

MTD 681-0123-0721

BRACKET ASM. HOPPER - SEARS RED (0721)

$63.99

$

In Stock, only 1 left!

0

MTD 681-0123-4044

BRACKET ASM. HOPPER - CRAFTSMAN RED (4044)

$63.99

$

In Stock, only 1 left!

0

$55.99

$

Usually ships in 3-6 days

0

?47

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg. (Gr. 2)
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

48

MTD 710-0376

Hex Bolt 5/16-18 x 1.0" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

49

MTD 711-1128

Lock Rod

Note: Code N

$16.99

$

Usually ships in 3-6 days

0

50

MTD 712-0429

Hex L-Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

51

MTD 714-0104

Internal Cotter Pin .072 x 1.12 Lg.

$4.49

$

In Stock, Qty 20+

0

52

MTD 731-1707

Hopper
(Superseded to 731-1707A)

Note: Code N

$436.99

$

Usually ships in 3-6 days

0

53

MTD 731-1710

Collar-Hopper
(Superseded to 731-1710A)

Note: Code N

$59.99

$

In Stock, Qty 8

0

54

MTD 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

55

MTD 736-0117

Flat Wash. 3/8 x .620 x .033
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

56

MTD 736-0264

Flat Wash. .330 x .630 x .06

$6.99

$

In Stock, only 2 left!

0

57

MTD 736-0362

Flat Wash. .320 I.D. x 1.25 O.D.

$4.49

$

In Stock, only 4 left!

0

58

MTD 750-0785

Spacer .382 I.D. x .50 O.D. x 1.12
(Superseded to 950-0785)

$32.99

$

Usually ships in 3-6 days

0

59

MTD 726-0214

Push Cap 5/8" Dia. Rod

$10.99

$

In Stock, Qty 5

0

60

MTD 737-0195

Drain Elbow
(Superseded to 937-0195)

Note: Model 462B only

$16.99

$

Usually ships in 3-6 days

0

61

MTD 750-0786

Spacer .64 I.D. x .38" Lg.
(Superseded to 950-0786)

$7.49

$

Usually ships in 3-6 days

0

62

MTD 738-0814

Shredder Axle

Note: Model 462B/463C

$44.99

$

In Stock, only 1 left!

0

MTD 738-0813

Shredder Axle

Note: Model 465A

$52.99

$

Usually ships in 3-6 days

0

63

MTD 734-1600

Wheel Ass'y. Comp.

Note: Model 462B/463C

$93.99

$

Usually ships in 3-6 days

0

MTD 734-1597

Wheel Ass'y. Comp.
(Superseded to 934-04009)

Note: Model 465A

Variations

MTD 734-1597-0911

Wheel Assembly Complete, 10 - Carlisle Gray (0911)

$122.99

$

Usually ships in 3-6 days

0

MTD 734-1597-0931

Wheel Assembly Complete, 10 - Carlisle Beige (0931)

$122.99

$

Usually ships in 3-6 days

0

MTD 734-1597-0941

Wheel Assembly Complete, 10 - Carlisle Yellow (0941)

$122.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

64

MTD 734-1455A

Rim Only

Note: Model 465A

Variations

MTD 734-1455A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 734-1455A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 734-1455A-0662

No Longer Available RIM - OYSTER GRAY (0662)

$

$

Not available

MTD 734-1455A-0674

No Longer Available RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

65

MTD 741-0487A

Flange Bearing .632" I.D.
(Superseded to 741-0487C)

Note: Model 465A

$7.49

$

Usually ships in 3-6 days

0

66

MTD 734-0255

Air Valve
(Superseded to 934-0255)

Note: Model 465A

$4.49

$

In Stock, Qty 20+

0

67

MTD 737-0211

Grease Fitting
(Superseded to 737-0211A)

Note: Model 463C/465A

$10.99

$

Usually ships in 3-6 days

0

68

MTD 681-0068

Chute Ass'y.
(Superseded to 681-0068A)

Note: Model 463C/465A

Variations

MTD 681-0068-0483

ASM-CHUTE - CHARCOAL GRAY (0483)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068-0638

ASM-CHUTE - MTD/TROY-BILT RED (0638)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068-0662

ASM-CHUTE - OYSTER GRAY (0662)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068-0674

ASM-CHUTE - YARDMAN YELLOW (0674)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068-0689

ASM-CHUTE - POLO GREEN (0689)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068-0691

ASM-CHUTE - BLACK JACK (0691)

$177.99

$

Usually ships in 3-6 days

0

$177.99

$

Usually ships in 3-6 days

0

69

MTD 710-0106

Hex Bolt 1/4-20 x 1.25

Note: Model 463C/465A

$3.99

$

In Stock, Qty 12

0

70

MTD 710-0258

Hex Bolt 1/4-20 x 0625
(Superseded to 710-0751)

Note: Model 463C/465A

$3.99

$

In Stock, Qty 20+

0

71

MTD 712-3027

Lock Nut 1/4-20
(Superseded to 912-3027)

Note: Model 463C/465A

$4.49

$

In Stock, Qty 20+

0

72

MTD 728-0175

Pop Rivet

Note: Model 463C/465A

$4.99

$

In Stock, only 4 left!

0

73

MTD 731-1899

Chipper Chute
(Superseded to 753-05094)

Note: Model 463C/465A Code N

$146.99

$

In Stock, only 1 left!

0

74

MTD 735-0249

Chute Flap
(Superseded to 735-0249A)

Note: Model 463C/465A

$24.99

$

Usually ships in 3-6 days

0

75

MTD 736-0173

Flat Wash. .28 I.D.

Note: Model 463C/465A

$4.49

$

In Stock, Qty 20+

0

76

MTD 749-1004

Chute Support

Note: Model 463C/465A Code N

Variations

MTD 749-1004-0637

SUPPORT-CHUTE - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

MTD 749-1004-0638

SUPPORT-CHUTE - MTD/TROY-BILT RED (0638)

$46.99

$

Usually ships in 3-6 days

0

MTD 749-1004-0689

SUPPORT-CHUTE - POLO GREEN (0689)

$46.99

$

Usually ships in 3-6 days

0

MTD 749-1004-0721

SUPPORT-CHUTE - SEARS RED (0721)

$43.99

$

Usually ships in 3-6 days

0

MTD 749-1004-4044

SUPPORT-CHUTE - CRAFTSMAN RED (4044)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

77

MTD 781-0633

Flat Strip

Note: Model 463C/465A

$10.99

$

Usually ships in 3-6 days

0

78

MTD 781-0515

Front Support Bracket

Variations

MTD 781-0515-0483

BRACKET-SUPPORT-FR - CHARCOAL GRAY (0483)

$53.99

$

Usually ships in 3-6 days

0

MTD 781-0515-0638

BRACKET-SUPPORT-FR - MTD/TROY-BILT RED (0638)

$49.99

$

Usually ships in 3-6 days

0

MTD 781-0515-0637

BRACKET-SUPPORT-FR - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

MTD 781-0515-0662

BRACKET-SUPPORT-FR - OYSTER GRAY (0662)

$53.99

$

Usually ships in 3-6 days

0

MTD 781-0515-0665

BRACKET-SUPPORT-FR - YARDMAN GREEN (0665)

$53.99

$

Usually ships in 3-6 days

0

MTD 781-0515-0691

BRACKET-SUPPORT-FR - BLACK JACK (0691)

$49.99

$

Usually ships in 3-6 days

0

MTD 781-0515-4044

BRKT-FRNT SUPPORT - CRAFTSMAN RED (4044)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

79

MTD 781-0574

Back Up Plate

Variations

MTD 781-0574-0483

PLATE-HOPPER BACK- - CHARCOAL GRAY (0483)

$185.99

$

Usually ships in 3-6 days

0

MTD 781-0574-0637

PLATE-HOPPER BACK- - POWDER BLACK (0637)

$185.99

$

Usually ships in 3-6 days

0

MTD 781-0574-0638

PLATE-HOPPER BACK- - MTD/TROY-BILT RED (0638)

$172.99

$

Usually ships in 3-6 days

0

MTD 781-0574-0662

PLATE-HOPPER BACK- - OYSTER GRAY (0662)

$172.99

$

Usually ships in 3-6 days

0

MTD 781-0574-0665

PLATE-HOPPER BACK- - YARDMAN GREEN (0665)

$172.99

$

Usually ships in 3-6 days

0

$172.99

$

Usually ships in 3-6 days

0

MTD 764-0199A

Bag
(Superseded to 964-04022)

Note: (Not Shown)

$74.99

$

In Stock, only 1 left!

0

MTD 723-0400

Safety Glasses

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0

80

MTD 726-0211

U-Nut

$4.49

$

In Stock, only 1 left!

0

81

MTD 781-0735

Spring Clip

$4.49

$

In Stock, Qty 20+

0

82

MTD 710-0599

Scr. TT. 1/4-20: .5"

$4.49

$

In Stock, Qty 20+

0

83

MTD 710-1502

Scr. AB 8-18:.375

$

$

Not available

84

MTD 712-3004A

Nut-Lock Hx. Flg. 5/16-18

$3.99

$

In Stock, Qty 20+

0

85

7360329

Lockwasher

$

$

Not available

86

MTD 751-0447

Deflector

$

$

Not available

87

MTD 751-0632

Guard - Muffler

$

$

Not available

88

MTD 751-0646

Bracket - Muffler Guard

$

$

Not available
