24A-452J706 - MTD Chipper Shredder (2012) Chipper Shredder General Assembly Parts Diagram

Chipper Shredder

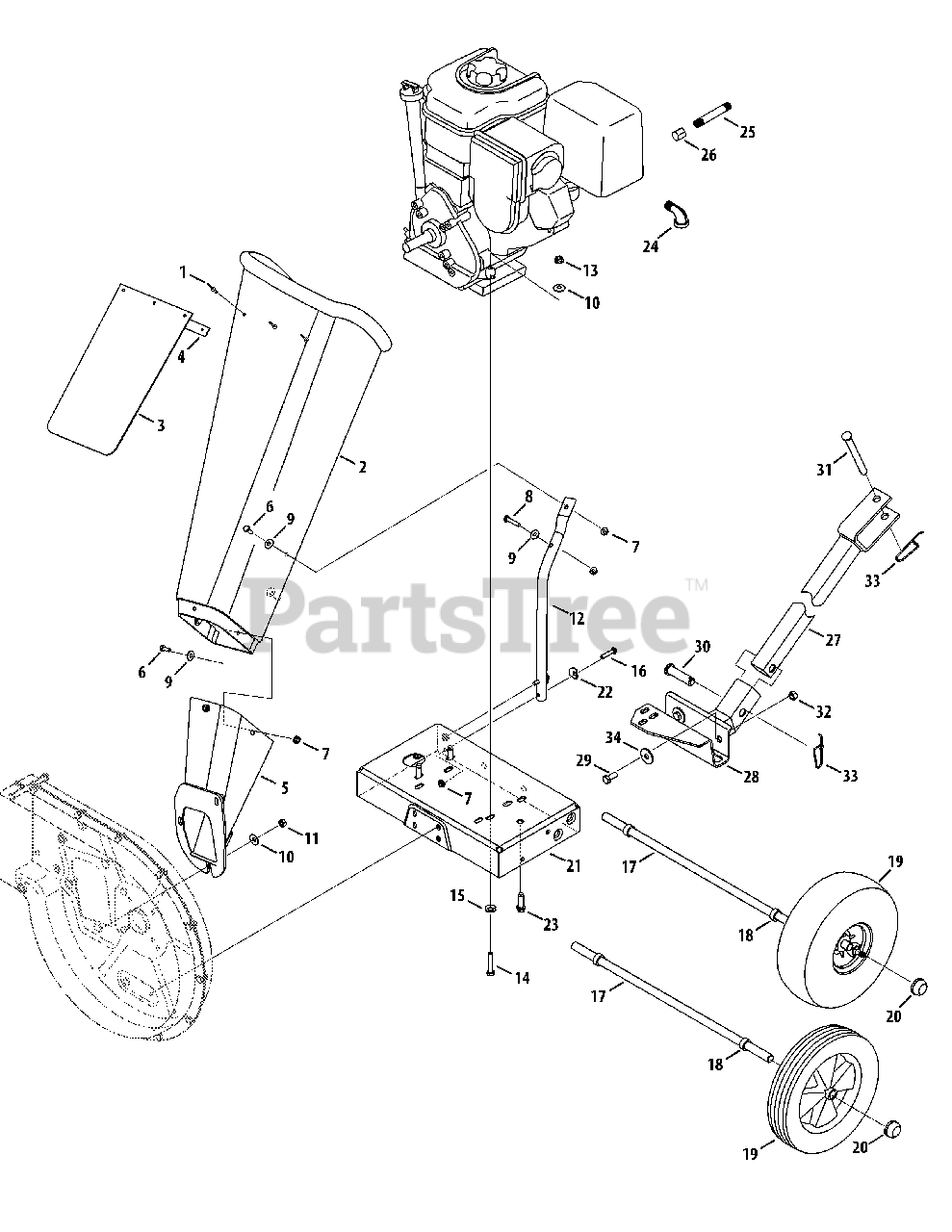

Chipper Shredder General Assembly Parts Diagram

  • Title

1

MTD n/a

Pop Rivet

Note: Not used in this application

$

$

Currently unavailable

2

MTD 681-04118-0638

Chipper Shredder Chute

$147.99

$

Usually ships in 3-6 days

0

3

MTD n/a

Chute Flap

Note: Not used in this application

$

$

Currently unavailable

4

MTD n/a

Chute Flap Strip

Note: Not used in this application

$

$

Currently unavailable

5

MTD n/a

Chipper Chute Assembly

Note: Not used in this application

$

$

Currently unavailable

6

MTD n/a

Hex Cap Screw 1/4 -20 x.620

Note: Not used in this application

$

$

Currently unavailable

7

MTD n/a

Hex Lock Nut 1/4-20

Note: Not used in this application

$

$

Currently unavailable

8

MTD n/a

Hex Cap Screw 1/4-20 x 1.25

Note: Not used in this application

$

$

Currently unavailable

9

MTD n/a

Flat Washer.28 ID x.74 OD

Note: Not used in this application

$

$

Currently unavailable

10

MTD 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

11

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

12

MTD n/a

Support Brace

Note: Not used in this application

$

$

Currently unavailable

13

MTD 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-0805

Hex Cap Screw 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

15

MTD 936-0170

Bell Washer 5/16 x 1.0
(Superseded to 736-0170)

$

$

Not available

16

MTD n/a

Hex Cap Screw, 1/4-20 x 1.250

Note: Not used in this application

$

$

Currently unavailable

17

MTD 738-0814

Axle Assembly

$44.99

$

In Stock, only 1 left!

0

18

MTD 950-0786

Spacer

$7.49

$

Usually ships in 3-6 days

0

19

MTD 734-1600

Wheel Comp., 10.0 x 2.5 Plastic

$93.99

$

Usually ships in 3-6 days

0

20

MTD 726-0214

Push Cap

$10.99

$

In Stock, only 4 left!

0

21

MTD 681-0184C-0638

Frame

$117.99

$

Usually ships in 3-6 days

0

22

MTD n/a

Washer,.320 ID x.93 OD

Note: Not used in this application

$

$

Currently unavailable

23

MTD 710-0502A

Screw, 3/8-16 x 1.250

$6.99

$

In Stock, only 2 left!

0

24

MTD 937-0195

Elbow Fitting

$16.99

$

Usually ships in 3-6 days

0

25

MTD n/a

Oil Drain Pipe

Note: Not used in this application

$

$

Currently unavailable

26

MTD n/a

Oil Drain End Cap

Note: Not used in this application

$

$

Currently unavailable

27

MTD 981-0133-0637

Tongue Hitch Mount
(Superseded to 981-0133B-0637)

Note: If Equipped

$77.99

$

In Stock, only 2 left!

0

28

MTD 681-0134A-0637

Base Hitch Mount
(Superseded to 681-0134B-0637)

Note: If Equipped

$83.99

$

In Stock, only 1 left!

0

29

MTD 710-3001

Hex Cap Screw, 3/8-16 x.88

Note: If Equipped

$7.49

$

In Stock, Qty 9

0

30

MTD 711-0299

Clevis Pin,.625 x 2.4

Note: If Equipped

$36.99

$

Usually ships in 3-6 days

0

31

MTD 911-0835

Clevis Pin,.50 x 4.62

Note: If Equipped

$12.99

$

In Stock, only 3 left!

0

32

MTD 712-04065

Flange Lock Nut, 3/8-16

Note: If Equipped

$3.99

$

In Stock, Qty 20+

0

33

MTD 732-0194

Spring Pin

Note: If Equipped

$4.99

$

In Stock, Qty 12

0

34

MTD 936-0133

Flat Washer,.411 x 1.25 x 1.0
(Superseded to 736-0133)

Note: If Equipped

$

$

Not available

MTD 964-04022

Chipper Bag Ass’y
(Superseded to 664P04022A)

Note: (not shown)

$74.99

$

Usually ships in 3-6 days

0

MTD 723-0400

Safety Glasses

Note: (not shown)

$26.99

$

Usually ships in 3-6 days

0
