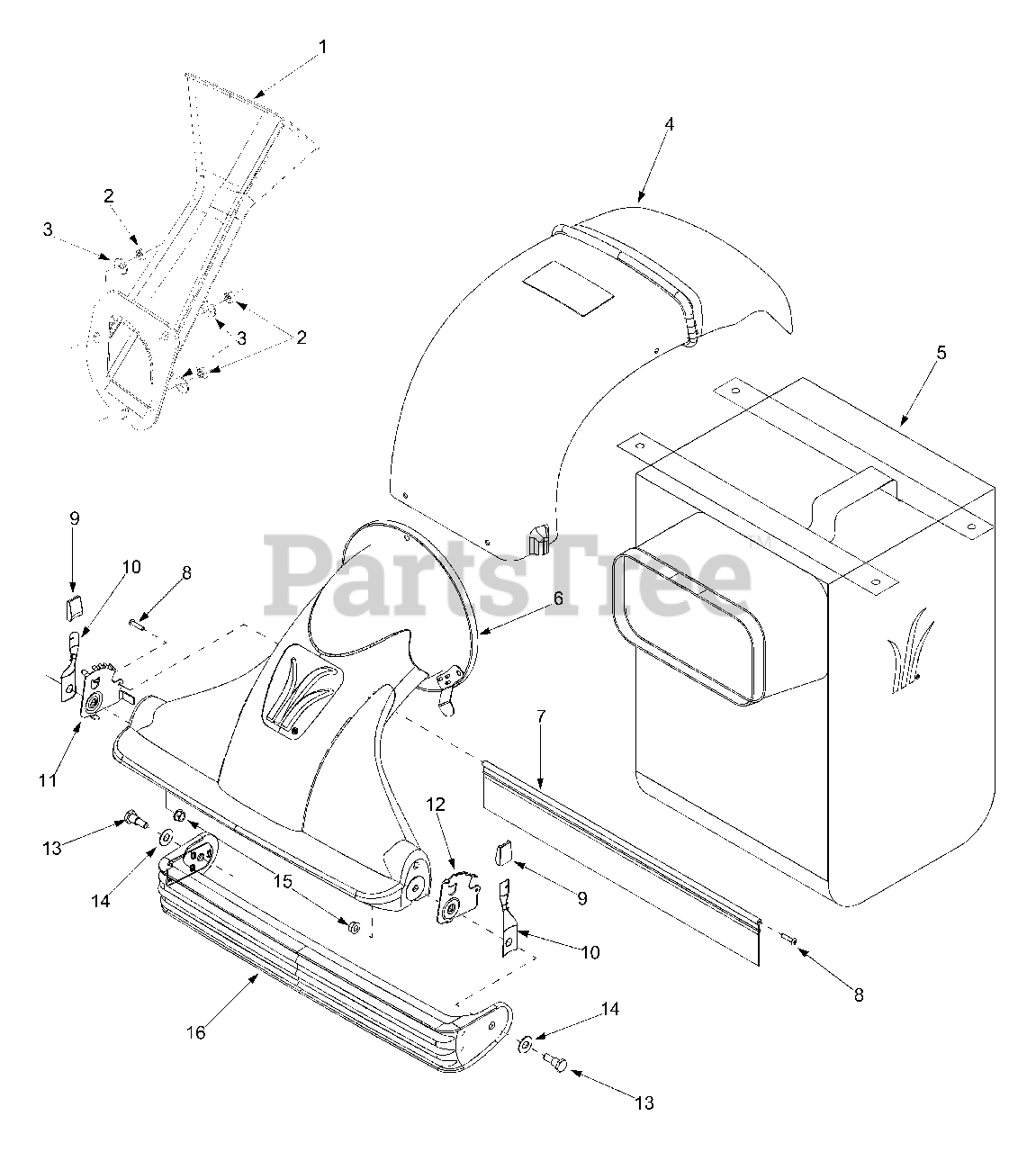

24A-203C701 - Yard-Man Shredder Vacuum (2005) (Scotty's) General Assembly Parts Diagram

Shredder Vacuum

General Assembly Parts Diagram

1

MTD 681-0095-0638

CHUTE ASSY-CHIPPER COMPLETE - MTD/TROY-BILT RED (0638)

Variations

$257.99

$

Usually ships in 3-6 days

0

2

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-1690A

Discharge Chute

$207.99

$

Usually ships in 3-6 days

0

5

MTD 764-04001

Bag
(Superseded to 964-04001)

$219.99

$

In Stock, only 1 left!

0

6

MTD 631-0069

Nozzle Assembly
(Superseded to 631-0086)

$

$

Not available

7

MTD 731-1831

Nozzle Flap

$20.99

$

In Stock, only 4 left!

0

8

MTD 710-0969

Screw

$4.49

$

In Stock, only 2 left!

0

9

MTD 720-0190

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 2 left!

0

10

MTD 732-0754

Spring Lever

$9.99

$

Usually ships in 3-6 days

0

11

MTD 781-0702-0637

Index Door Bracket, RH - POWDER BLACK (0637)
(Superseded to 781-0702-0637)

Variations

$24.99

$

In Stock, only 1 left!

0

12

MTD 781-0703-0637

Index Door Bracket, LH - POWDER BLACK (0637)
(Superseded to 781-0703-0637)

Variations

$24.99

$

In Stock, only 1 left!

0

13

MTD 738-0913

Shoulder Screw

$12.99

$

In Stock, only 3 left!

0

14

MTD 736-3084

Flat Washer.510 x 1.120 x.060

$4.99

$

In Stock, Qty 20+

0

15

MTD 712-0431

Hex Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

MTD 631-0047

Door Assembly

$

$

Not available
