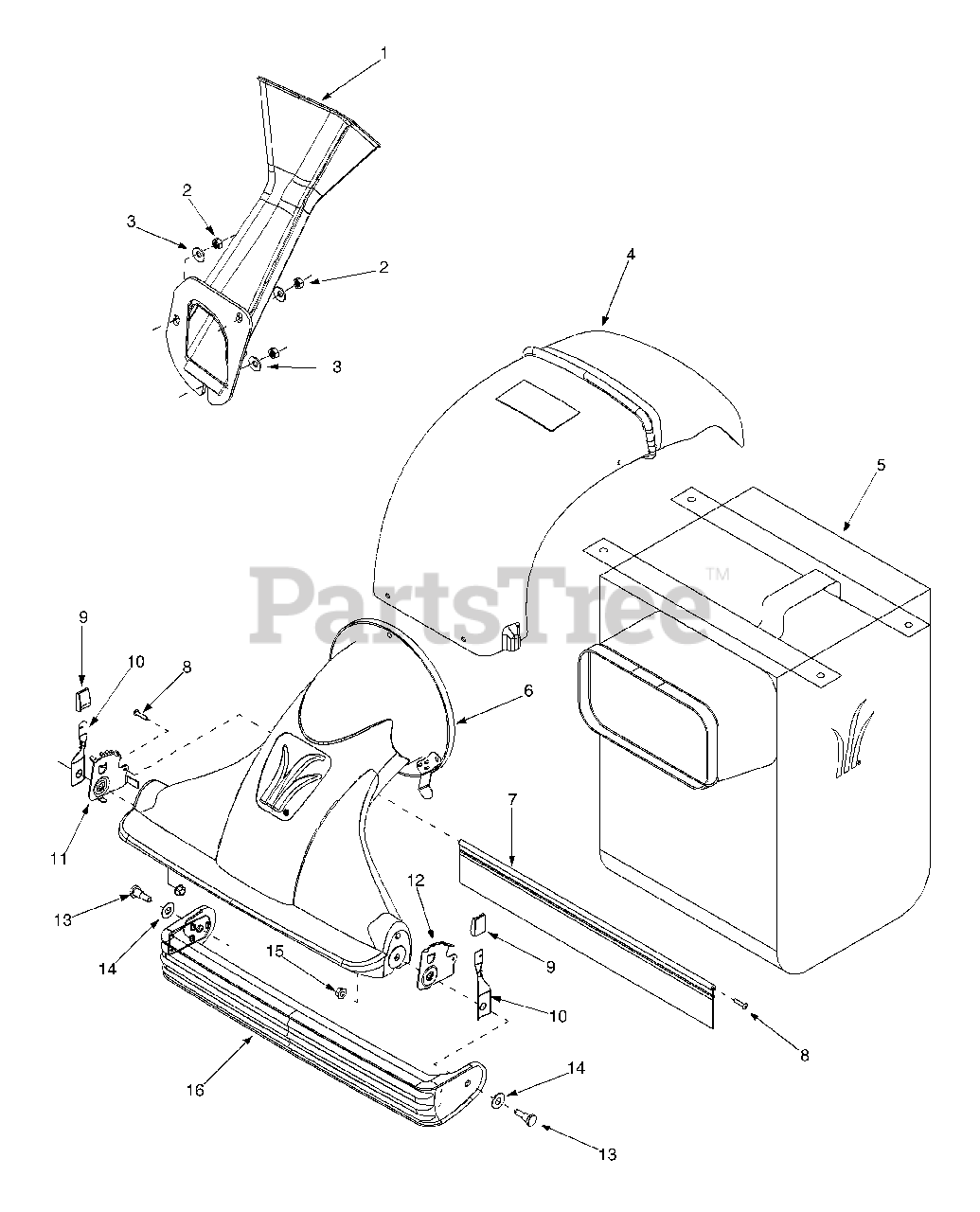

24A-203B401 - Yard-Man Shredder Vacuum (2003) Nozzle & Bag Parts Diagram

Shredder Vacuum

Nozzle & Bag Parts Diagram

  • Title

1

MTD 681-0095

Chipper Chute

Variations

MTD 681-0095-0638

CHUTE ASSY-CHIPPER COMPLETE - MTD/TROY-BILT RED (0638)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0691

CHUTE ASSY-CHIPPER COMPLETE - BLACK JACK (0691)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0709

CHUTE ASSY-CHIPPER COMPLETE - MASTERCRAFT GREEN (0709)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0483

CHUTE ASSY-CHIPPER COMPLETE - CHARCOAL GRAY (0483)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0498

CHUTE ASSY-CHIPPER COMPLETE - OLD CUB YELLOW (0498)

$229.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0650

CHUTE ASSY-CHIPPER COMPLETE - RED METALLIC (0650)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0665

CHUTE ASSY-CHIPPER COMPLETE - YARDMAN GREEN (0665)

$257.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0716

CHUTE ASSY-CHIPPER COMPLETE - CUB YELLOW-99 (0716)

$229.99

$

Usually ships in 3-6 days

0

MTD 681-0095-4021

CHUTE ASSY-CHIPPER COMPLETE - CUB YELLOW 2 (4021)

$229.99

$

Usually ships in 3-6 days

0

$239.99

$

Usually ships in 3-6 days

0

2

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0242

Bell Washer .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-1690A

Discharge Chute

$207.99

$

Usually ships in 3-6 days

0

5

MTD 764-0492

Bag
(Superseded to 964-04001)

$219.99

$

Usually ships in 3-6 days

0

6

MTD 631-0069

Nozzle Assembly
(Superseded to 631-0086)

$

$

Not available

7

MTD 731-1831

Nozzle Flap

$20.99

$

In Stock, only 4 left!

0

8

MTD 710-0969

Screw

$4.49

$

In Stock, only 2 left!

0

9

MTD 720-0190

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

10

MTD 732-0754

Spring Lever

$9.99

$

Usually ships in 3-6 days

0

11

MTD 781-0702

Index Bracket RH
(Superseded to 781-0702-0637)

Variations

MTD 781-0702-0637

Index Door Bracket, RH - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

12

MTD 781-0703

Index Bracket LH
(Superseded to 781-0703-0637)

Variations

MTD 781-0703-0637

Index Door Bracket, LH - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

13

MTD 738-0913

Shoulder Screw

$12.99

$

In Stock, only 3 left!

0

14

MTD 736-3084

Flat Washer .510 x 1.12 x .060

$4.99

$

In Stock, Qty 20+

0

15

MTD 712-0431

Hex Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

MTD 631-0047

Door Assembly

$

$

Not available

MTD 777D00121

Label- Yard Man Chipper Shredder

$

$

Not available

MTD 777D00183

Label- 5.5HP OHV

$

$

Not available

MTD 777D01301

Label- 1-800#/ Model Plate

$

$

Not available

MTD 777I20123

Label- Caster Wheel Lock

$2.99

$

Usually ships in 3-6 days

0

MTD 777I20373

Label- Chipper Shredder SP

$

$

Not available

MTD 777S30041

Label- Warning / Avoid Injury

$

$

Not available

MTD 777S30131

Label- Caution Do Not Operate

$

$

Not available

MTD 777S30183

Label- Flail Housing Warning

$

$

Not available
