24A-203B401 - Yard-Man Shredder Vacuum (2002) Drive & Wheels Parts Diagram

Shredder Vacuum

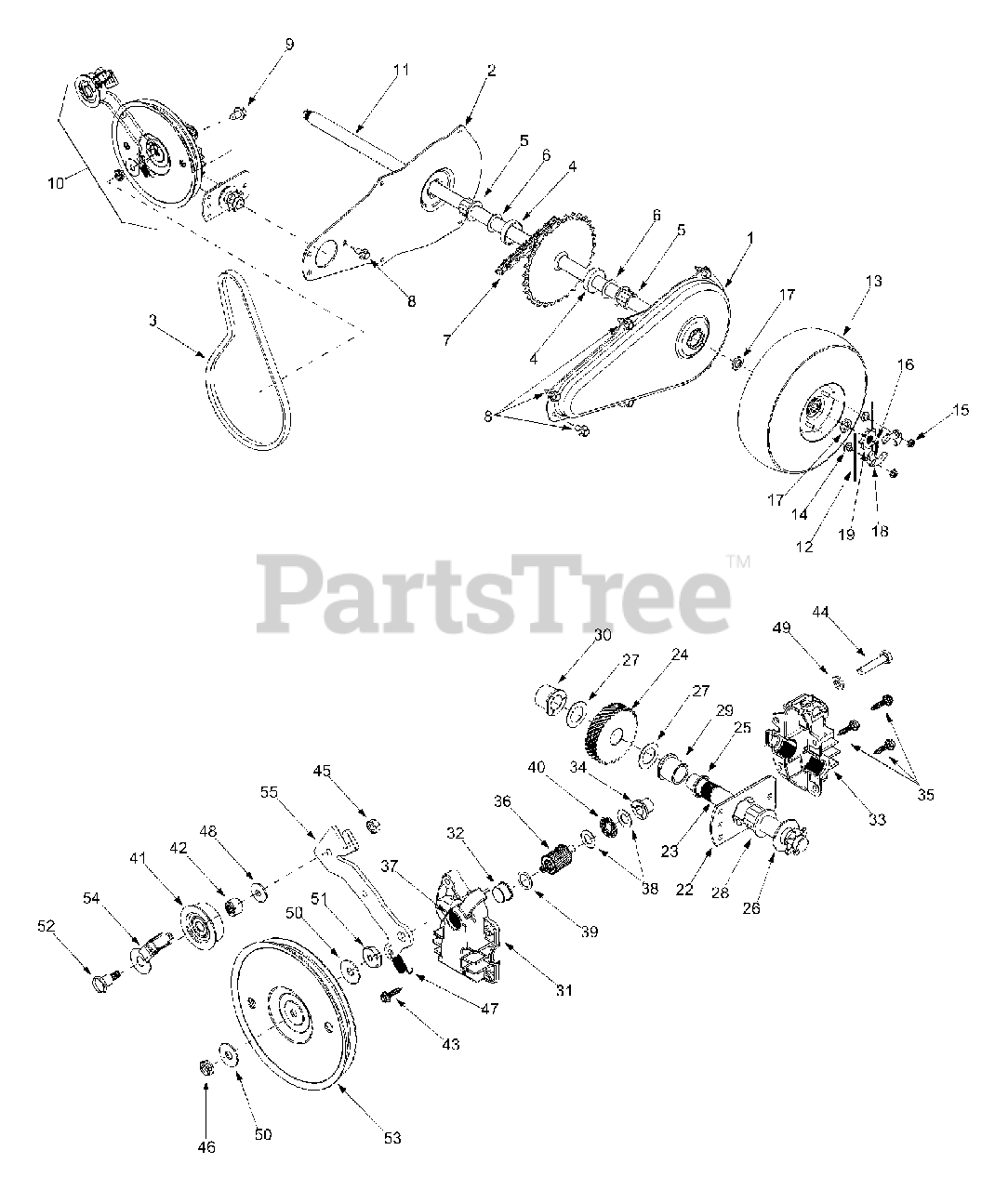

Drive & Wheels Parts Diagram

  • Title

1

MTD 781-0677

Chain Case LH

Variations

MTD 781-0677-0637

CASE CHAIN LH - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

MTD 781-0677-0665

CASE CHAIN LH - YARDMAN GREEN (0665)

$47.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

2

MTD 781-0676

Chain Case RH

Variations

MTD 781-0676-0637

CASE CHAIN RH - POWDER BLACK (0637)

$77.99

$

Usually ships in 3-6 days

0

MTD 781-0676-0665

CASE CHAIN RH - YARDMAN GREEN (0665)

$77.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

3

MTD 754-0457

V-Belt
(Superseded to 954-0457)

$23.99

$

In Stock, only 1 left!

0

4

MTD 748-0313

Spacer

$3.99

$

Usually ships in 3-6 days

0

5

MTD 741-0413

Hex Flange Bearing

$9.99

$

Usually ships in 3-6 days

0

6

MTD 736-0336

Flat Washer
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

7

MTD 713-0422

Chain
(Superseded to 913-0422)

$30.99

$

Usually ships in 3-6 days

0

8

MTD 710-0896

Hex Washer Screw 1/4-14

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0603

Hex Washer Screw 5/16

$4.99

$

Usually ships in 3-6 days

0

10

MTD 618-0256

Transmission Assembly

$464.99

$

Usually ships in 3-6 days

0

11

MTD 611-0063

Axle Assembly

$

$

Not available

12

MTD 10622B

Plastic Spring Ratchet

$5.49

$

In Stock, Qty 20+

0

13

MTD 634-0136

Wheel Complete 10 x 4 x 4
(Superseded to 634-0244)

Variations

MTD 634-0136-0911

Wheel Assembly, CSV - Carlisle Gray (0911)

$138.99

$

Usually ships in 3-6 days

0

MTD 634-0136-0931

Wheel Assembly, CSV - Carlisle Beige (0931)

$138.99

$

Usually ships in 3-6 days

0

MTD 634-0136-0941

WHEEL ASM-COMP CSV - Carlisle Yellow (0941)

$

$

Not available

$138.99

$

Usually ships in 3-6 days

0

14

MTD 712-0456

Hex Nut 1/4-20

$10.99

$

Usually ships in 3-6 days

0

15

MTD 712-3027

Hex Flanged Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

16

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0366

Flat Washer 5/8 ID x 1.0 OD

$4.49

$

In Stock, only 2 left!

0

18

MTD 748-0188B

Pawl LH .345 ID
(Superseded to 948-0188B)

$11.99

$

Usually ships in 3-6 days

0

MTD 748-0381

Pawl RH .345 ID

$11.99

$

In Stock, only 1 left!

0

19

MTD 748-0405

Wheel Ratchet 1.62 OD x .5 serr

$11.99

$

In Stock, only 2 left!

0

?21

MTD 618-0255

Transmission Assembly Complete
(Superseded to 918-0255)

$782.99

$

Usually ships in 3-6 days

0

22

MTD 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

MTD 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

23

MTD 711-1118

Output Shaft 6T Sprocket
(Superseded to 911-1118)

$32.99

$

Usually ships in 3-6 days

0

24

MTD 717-1432

Helical 34T Gear

$58.99

$

Usually ships in 3-6 days

0

25

MTD 721-0213

Oil Seal

$10.99

$

In Stock, only 1 left!

0

26

MTD 736-0187

Flat Washer .64 ID x 1.24 OD

$4.49

$

In Stock, Qty 20+

0

27

MTD 736-0336

Flat Washer 5/8 x 1.0
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

28

MTD 741-0413

Hex Flange Bearing .631 ID

$9.99

$

Usually ships in 3-6 days

0

29

MTD 741-0414

Flange Bearing .629 ID

$10.99

$

Usually ships in 3-6 days

0

30

MTD 741-0415

Flange Bearing .566 ID
(Superseded to 941-0415)

$10.99

$

Usually ships in 3-6 days

0

31

MTD 719-0325

Lower Housing

$92.99

$

Usually ships in 3-6 days

0

32

MTD 748-0373

Flange Bearing .503 ID

$4.49

$

Usually ships in 3-6 days

0

33

MTD 719-0324A

Upper Housing

$92.99

$

Usually ships in 3-6 days

0

34

MTD 748-0208A

Flange Bearing .378 ID

$4.49

$

Usually ships in 3-6 days

0

35

MTD 710-0589

Hex Washer Screw #10-16 x .75

$6.99

$

Usually ships in 3-6 days

0

36

MTD 717-1433

Pinion Shaft 10T

$40.99

$

Usually ships in 3-6 days

0

37

MTD 721-0329

Oil Seal
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

38

MTD 736-0314

Thrust Washer .382 ID x .684 OD

$6.99

$

Usually ships in 3-6 days

0

39

MTD 736-0520

Flat Washer .504 ID x .70 OD
(Superseded to 936-0520)

$5.99

$

Usually ships in 3-6 days

0

40

MTD 741-0479

Thrust Bearing .375 ID x .812 OD

$11.99

$

Usually ships in 3-6 days

0

41

MTD 656-0008

Pulley Ass'y Idler w/ Bearing
(Superseded to 956-0008)

$20.99

$

In Stock, only 2 left!

0

42

MTD 741-0556

Needle Bearing .375 ID x .375 OD

$17.99

$

In Stock, only 3 left!

0

43

MTD 710-0589

Hex Screw #10-16 x .75

$6.99

$

Usually ships in 3-6 days

0

44

MTD 710-1062

Hex Cap Screw 1/4-20 x 1.25

$6.49

$

Usually ships in 3-6 days

0

45

MTD 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

46

MTD 712-3045

Hex Jam Nut 5/16-24 LH Thd
(Superseded to 912-3045)

$4.99

$

Usually ships in 3-6 days

0

47

MTD 732-0357A

Extension Spring 1.12 Lg

$4.49

$

In Stock, only 3 left!

0

48

MTD 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

49

MTD 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

50

MTD 736-0425

Bell Washer .325 ID x .930 OD

$4.99

$

In Stock, Qty 13

0

51

MTD 738-0440

Shoulder Spacer .375 ID x .165 OD

$5.99

$

In Stock, only 4 left!

0

52

MTD 738-0826

Shoulder Bolt 1/4-28 x .375

$12.99

$

Usually ships in 3-6 days

0

53

MTD 756-0656

Flat Pulley 5.06 Dia

$36.99

$

Usually ships in 3-6 days

0

54

MTD 782-7569

Belt Keeper

$7.49

$

Usually ships in 3-6 days

0

55

MTD 682-0054

Idler Bracket

$25.99

$

Usually ships in 3-6 days

0
