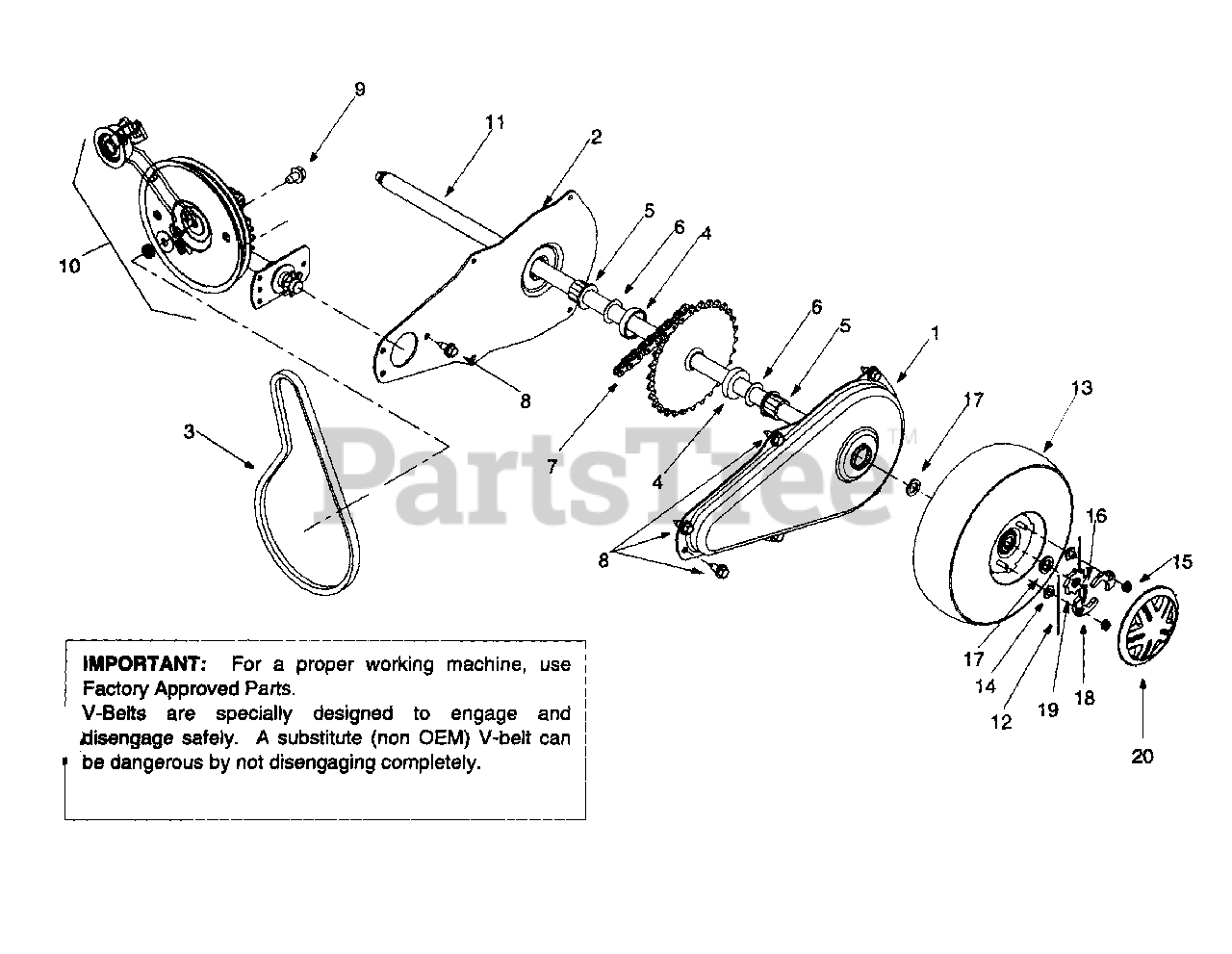

24A-203B401 - Yard-Man Shredder Vacuum (1999) Drive Parts Diagram

Shredder Vacuum

Drive Parts Diagram

  • Title

1

MTD 781-0677

Chain Case LH

Variations

MTD 781-0677-0637

CASE CHAIN LH - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

MTD 781-0677-0665

CASE CHAIN LH - YARDMAN GREEN (0665)

$47.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

2

MTD 781-0676

Chain Case RH

Variations

MTD 781-0676-0637

CASE CHAIN RH - POWDER BLACK (0637)

$77.99

$

Usually ships in 3-6 days

0

MTD 781-0676-0665

CASE CHAIN RH - YARDMAN GREEN (0665)

$77.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

3

MTD 754-0457

V-Belt
(Superseded to 954-0457)

$23.99

$

In Stock, only 1 left!

0

4

MTD 748-0313

Spacer

$3.99

$

Usually ships in 3-6 days

0

5

MTD 741-0413

Hex Flange Bearing

$9.99

$

Usually ships in 3-6 days

0

6

MTD 736-0336

Flat Washer
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

7

MTD 713-0422

Chain
(Superseded to 913-0422)

$30.99

$

Usually ships in 3-6 days

0

8

MTD 710-0896

Hex Washer Screw 1/4-14

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0603

Hex Washer Screw 5/16

$4.99

$

Usually ships in 3-6 days

0

10

MTD 618-0256

Transmission Asm

$464.99

$

Usually ships in 3-6 days

0

11

MTD 611-0063

Axle Asm

$

$

Not available

12

MTD 10622B

Plastic Spring Ratchet

$5.49

$

In Stock, Qty 20+

0

13

MTD 634-0136

Wheel Complete 10 x 4 x 4
(Superseded to 634-0244)

Variations

MTD 634-0136-0911

Wheel Assembly, CSV - Carlisle Gray (0911)

$138.99

$

Usually ships in 3-6 days

0

MTD 634-0136-0931

Wheel Assembly, CSV - Carlisle Beige (0931)

$138.99

$

Usually ships in 3-6 days

0

MTD 634-0136-0941

WHEEL ASM-COMP CSV - Carlisle Yellow (0941)

$

$

Not available

$138.99

$

Usually ships in 3-6 days

0

MTD 634-0129

Rim Asm

Note: Complete

Variations

MTD 634-0129-0662

RIM-WHEEL RTCHT CS - OYSTER GRAY (0662)

$143.99

$

In Stock, only 1 left!

0

MTD 634-0129-0674

RIM-WHEEL RTCHT CS - YARDMAN YELLOW (0674)

$152.99

$

Usually ships in 3-6 days

0

MTD 634-0129-0499

No Longer Available RIM-WHEEL RTCHT CS - CUB BEIGE (0499)

$

$

Not available

$143.99

$

Usually ships in 3-6 days

0

MTD 734-0210

Pneumatic Tire 10.0 x 4.0
(Superseded to 734-1598-0901)

$119.99

$

Usually ships in 3-6 days

0

MTD 734-0255

Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

MTD 741-0487A

Flange Bearing .632 ID
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

14

MTD 712-0456

Hex Nut 1/4-20

$10.99

$

Usually ships in 3-6 days

0

15

MTD 712-3027

Hex Flanged Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

16

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0366

Flat Washer 5/8 ID x 1.0 OD

$4.49

$

In Stock, only 2 left!

0

18

MTD 748-0188B

Pawl LH .345 ID
(Superseded to 948-0188B)

$

$

Not available

MTD 748-0381

Pawl RH .345 ID

$11.99

$

Usually ships in 3-6 days

0

19

MTD 748-0405

Wheel Ratchet 1.62 OD x .5 serr

$11.99

$

In Stock, only 1 left!

0

20

MTD 731-1825

Hubcap
(Superseded to 931-1825)

$

$

Not available
