24A-203B401 - Yard-Man Shredder Vacuum (1998) Wheel Assembly Parts Diagram

Shredder Vacuum

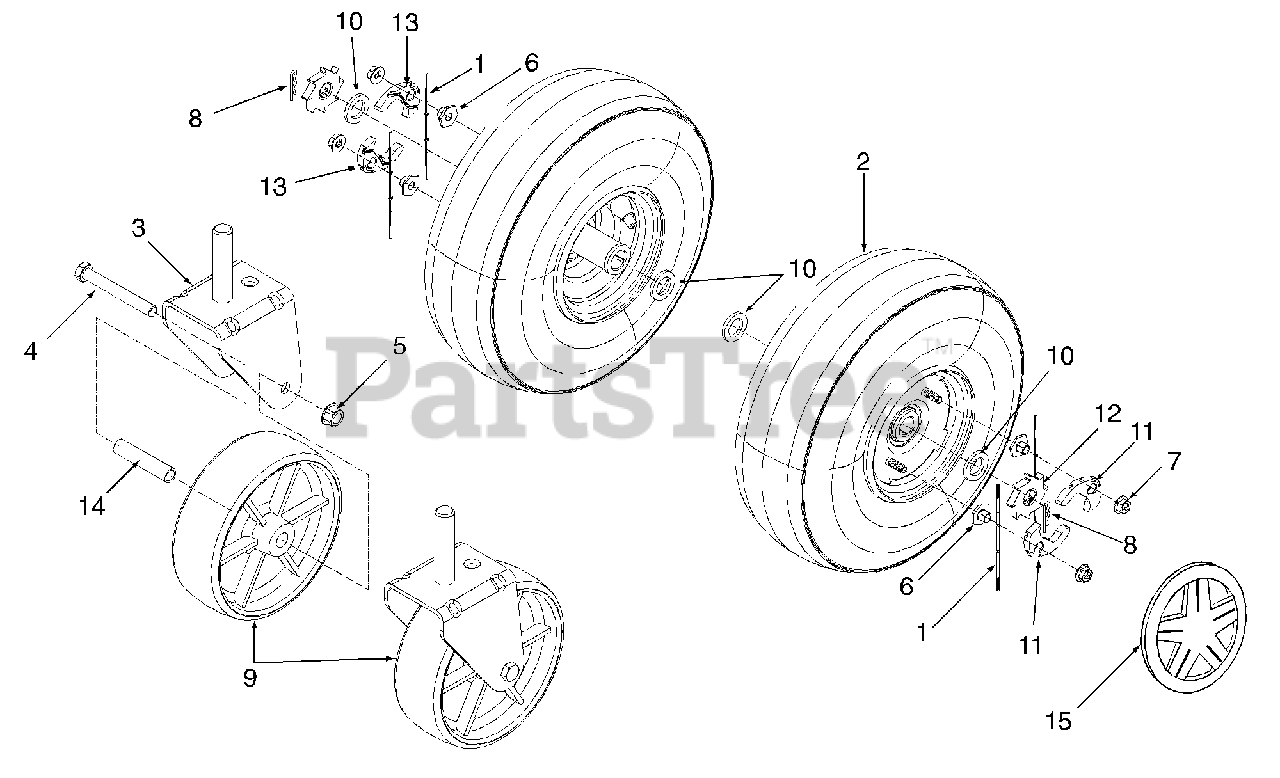

Wheel Assembly Parts Diagram

  • Title
1

MTD 10622B

Spring, Plastic Ratchet

$5.49

$

In Stock, Qty 20+

0

2

MTD 634-0136

Wheel Assembly, Complete
(Superseded to 634-0244)

Variations

MTD 634-0136-0911

Wheel Assembly, CSV - Carlisle Gray (0911)

$138.99

$

Usually ships in 3-6 days

0

MTD 634-0136-0931

Wheel Assembly, CSV - Carlisle Beige (0931)

$138.99

$

Usually ships in 3-6 days

0

MTD 634-0136-0941

WHEEL ASM-COMP CSV - Carlisle Yellow (0941)

$

$

Not available

$138.99

$

Usually ships in 3-6 days

0

MTD 634-0129-0674

Ratchet Rim Ass'y, Complete

$152.99

$

Usually ships in 3-6 days

0

MTD 734-0210

Tire, Pneumatic, 10 x 4
(Superseded to 734-1598-0901)

$119.99

$

Usually ships in 3-6 days

0

MTD 734-0255

Valve, Tubeless Air
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

MTD 741-0487A

Bearing, Flange, .632 ID
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

3

MTD 681-0088-0665

Bracket Assembly, Pivot Wheel

$56.99

$

Usually ships in 3-6 days

0

4

MTD 710-0194

Screw, Hex Cap, 3/8-16 x 3.0

$

$

Not available

5

MTD 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

6

MTD 712-0456

Nut, Special Hex 1/4-20

$10.99

$

Usually ships in 3-6 days

0

7

MTD 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

8

MTD 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

9

MTD 734-1804

Wheel, 6.00 x 2.00
(Superseded to 734-1804A)

$41.99

$

Usually ships in 3-6 days

0

10

MTD 736-0366

Washer, Flat, .64 x 1.12 x .12

$4.49

$

In Stock, only 2 left!

0

11

MTD 748-0188B

Pawl, LH .345 ID
(Superseded to 948-0188B)

$

$

Not available

12

MTD 748-0405

Ratchet, Wheel, .5 Serr ID x 1.62

$11.99

$

In Stock, only 1 left!

0

13

MTD 748-0381

Pawl, RH .345 ID

$11.99

$

Usually ships in 3-6 days

0

14

MTD 750-1042

Spacer, .384 ID x .5 OD x 2.3 Lg

$13.99

$

Usually ships in 3-6 days

0

15

MTD 731-1825

Hubcap, 4.0 Yellow
(Superseded to 931-1825)

$

$

Not available
