24A-203B401 - Yard-Man Shredder Vacuum (1998) Handle Assembly Parts Diagram

Shredder Vacuum

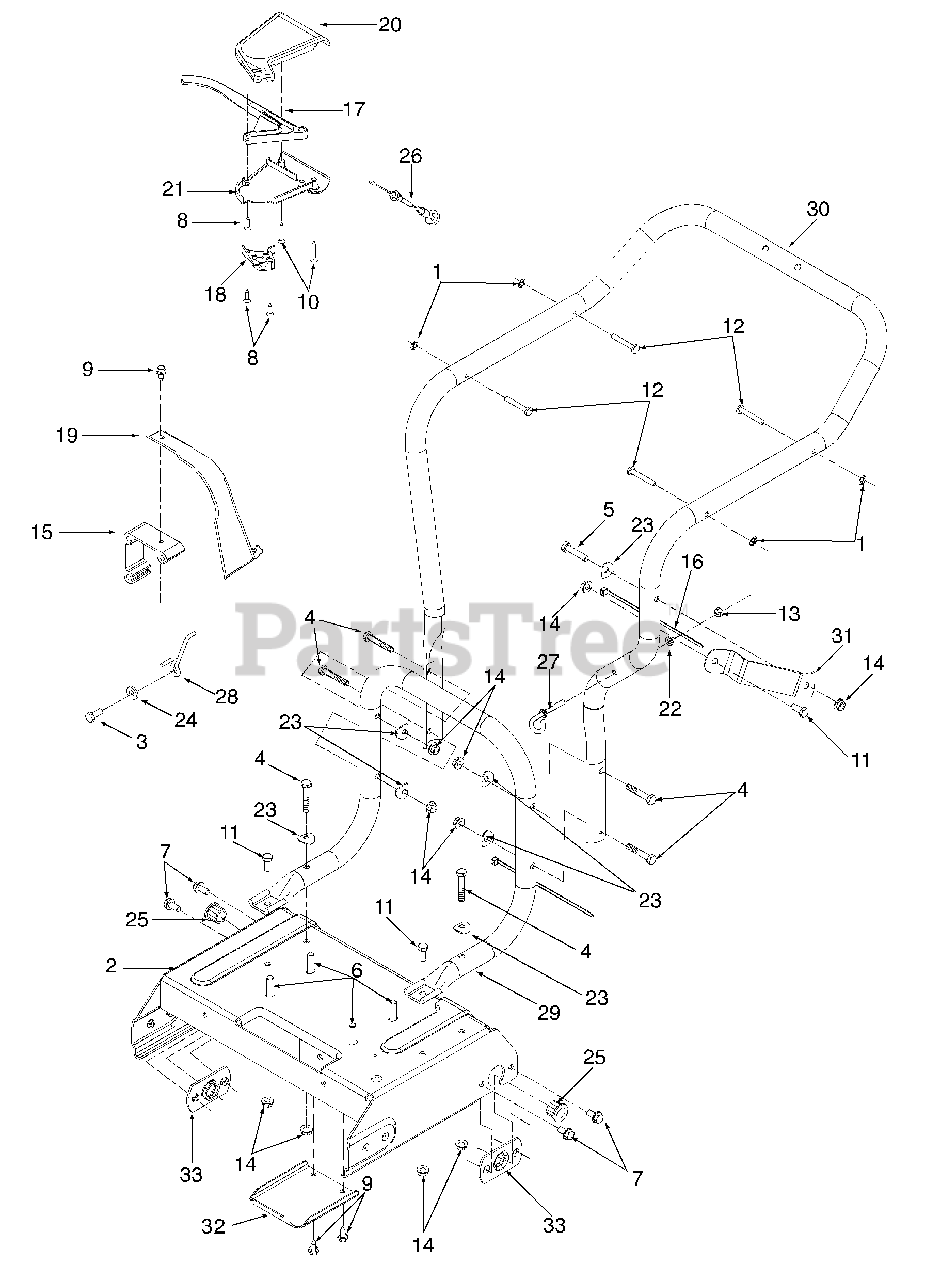

Handle Assembly Parts Diagram

  • Title

1

MTD 1539-019

Nut, Push, .25

$4.49

$

In Stock, Qty 14

0

2

MTD 681-0097A-0665

Frame Assembly

$

$

Not available

3

MTD 710-0157

Screw, Hex Cap, 5/16-24 x .75 GR5

$4.49

$

In Stock, Qty 8

0

4

MTD 710-0380

Screw, Hex Cap, 5/16-18 x 1.75
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 14

0

5

MTD 710-0442

Screw, Hex Cap, 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

6

MTD 710-0502A

Screw, Hex Wash Hd Tapp, 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

7

MTD 710-0604

Screw, Hex Wash Hd Tapp, 5/16-18 x .62
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0841

Screw, Phil Cntrsnk, #10-12 x .75

$4.49

$

Usually ships in 3-6 days

0

9

MTD 710-0896

Screw, Hex Wash Hd, 1/4-14 x .62

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-1331

Screw, Phil Cntrsnk, #10-16 x 1.25

$4.49

$

In Stock, only 2 left!

0

11

MTD 710-3008

Screw, Hex Cap, 5/15-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

12

MTD 711-0737

Pin, Stud, .250 x 1.75
(Superseded to 911-0737)

$4.99

$

In Stock, Qty 10

0

13

MTD 712-0138

Nut, Hex, 1/4-28

$6.99

$

Usually ships in 3-6 days

0

14

MTD 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

15

MTD 719-0359

Adapter, Engine Mtg

$31.99

$

Usually ships in 3-6 days

0

16

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

17

MTD 731-0620

Lever, Drive Control
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

18

MTD 731-1059

Cap, Cable Mtg
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

19

MTD 731-1646

Belt Cover

$14.99

$

Usually ships in 3-6 days

0

20

MTD 731-1735

Upper Clutch Cover
(Superseded to 753-0832)

$61.99

$

Usually ships in 3-6 days

0

21

MTD 731-1736

Lower Clutch Cover

$

$

Currently unavailable

22

MTD 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

23

MTD 736-0451

Saddle Washer, .320 x .93

$4.49

$

Usually ships in 3-6 days

0

24

MTD 736-3008

Washer, Flat, .344 x .75 x .12
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

25

MTD 741-0413

Bearing, Flange, .631 ID x .72 OD

$9.99

$

Usually ships in 3-6 days

0

26

MTD 746-0714

Cable, Clutch, 56.0
(Superseded to 946-0714)

$33.99

$

Usually ships in 3-6 days

0

27

MTD 747-0815

Eye Bolt

$15.99

$

Usually ships in 3-6 days

0

28

MTD 747-0929A

Belt Keeper

$12.99

$

Usually ships in 3-6 days

0

29

MTD 749-0980-0665

Handle, Lower

$

$

Not available

30

MTD 749-0996-0665

Handle, Upper

$

$

Not available

31

MTD 781-0647-0665

Bracket, Chute Stabilizing

$12.99

$

Usually ships in 3-6 days

0

32

MTD 781-0697-0665

Transmission Cover

$

$

Currently unavailable

33

MTD 781-0700

Bracket, Axle
(Superseded to 781-0700-0637)

Variations

MTD 781-0700-0637

Axle Bracket - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0
