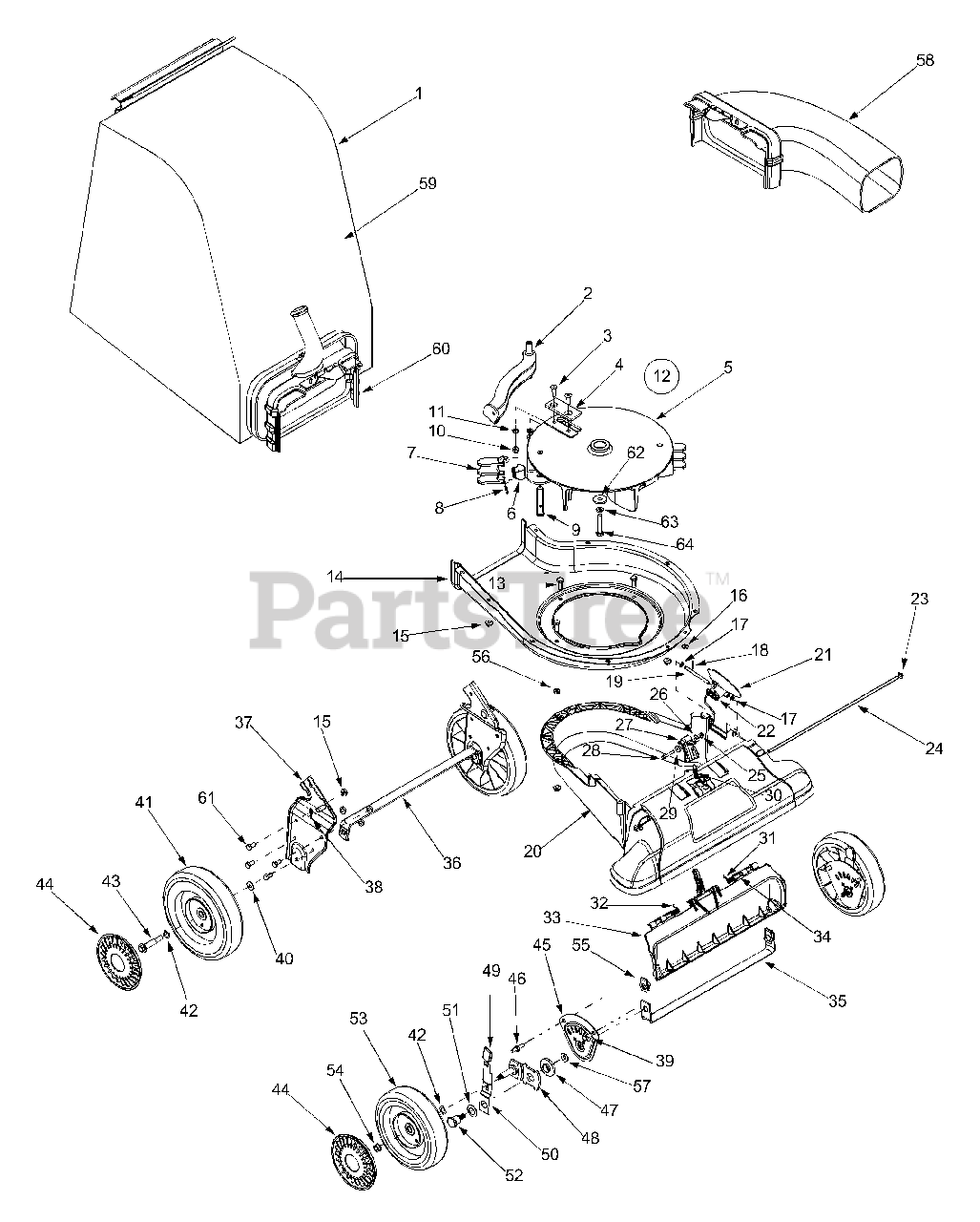

24A-061I401 - Yard-Man Shredder Vacuum (2004) Handles, Bag & Wheels Parts Diagram

Shredder Vacuum

Handles, Bag & Wheels Parts Diagram

  • Title

1

MTD 664-0094

Bag Assembly
(Superseded to 664P0094B)

$326.99

$

Usually ships in 3-6 days

0

2

MTD 681-0154

Screen Assembly
(Superseded to 681-0154-0637)

Variations

MTD 681-0154-0637

SCREEN ASM. - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 710-1054

Hex Screw 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

4

MTD 781-0490

Chipper Blade
(Superseded to 981-0490)

$30.99

$

In Stock, Qty 9

0

5

MTD 719-0530A

Impeller

$

$

Currently unavailable

6

MTD 781-0735

Pin Clip

$4.49

$

In Stock, Qty 20+

0

7

MTD 719-0329

Flail

$31.99

$

In Stock, Qty 5

0

8

MTD 715-0166

Spiral Pin

$6.99

$

In Stock, Qty 19

0

9

MTD 711-1401

Clevis Pin

$9.99

$

Usually ships in 3-6 days

0

10

MTD 712-0411

Lock Nut, 5/16-24

$4.49

$

In Stock, Qty 20+

0

11

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 681-0152

Impeller Assembly
(Superseded to 981-0152)

Note: (Incl. Ref 3 - Ref. 11)

$534.99

$

Usually ships in 3-6 days

0

13

MTD 710-1238

Hex Cap Screw 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

14

MTD 781-0721A

Lower Housing
(Superseded to 781-0721B)

Variations

MTD 781-0721A-0498

LOWER FLAIL HOUSING - OLD CUB YELLOW (0498)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721A-0638

HOUSING-FLAIL LWR - MTD/TROY-BILT RED (0638)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721A-0662

HOUSING-FLAIL LWR - OYSTER GRAY (0662)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721A-0665

HOUSING-FLAIL LWR - YARDMAN GREEN (0665)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721A-0689

HOUSING-FLAIL LWR - POLO GREEN (0689)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721A-0716

LOWER FLAIL HOUSING - CUB YELLOW-99 (0716)

$136.99

$

Usually ships in 3-6 days

0

$136.99

$

Usually ships in 3-6 days

0

15

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-3027

Hex Flange Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0142

Flat Washer .281 ID x .50 OD

$4.99

$

In Stock, Qty 20+

0

18

MTD 714-0225

Cotter Pin

$

$

Not available

19

MTD 711-1560

Pivot Rod

$

$

Not available

20

MTD 731-2294

Nozzle
(Superseded to 731-2294A)

$42.99

$

In Stock, Qty 6

0

21

MTD 781-1064

Base Adapter Door

$36.99

$

Usually ships in 3-6 days

0

22

MTD 732-1156

Torsion Spring

$4.99

$

Usually ships in 3-6 days

0

23

MTD 726-0106

Cap Speed Nut 1/4

$3.99

$

Usually ships in 3-6 days

0

24

MTD 711-1551

Pivot Rod

$12.99

$

Usually ships in 3-6 days

0

25

MTD 712-0161

Hex Lock Nut #10-24

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0400

Flat Washer .194 ID x .62 OD

$5.49

$

In Stock, Qty 12

0

27

MTD 731-2485

Nozzle Door Lever
(Superseded to 731-2485A)

$12.99

$

In Stock, only 1 left!

0

28

MTD 710-1156

Hex Screw #10-24 x 1.25

$

$

Not available

29

MTD 750-1294

Shoulder Spacer

$13.99

$

Usually ships in 3-6 days

0

30

MTD 732-3118

Extension Spring

$10.99

$

In Stock, only 1 left!

0

31

MTD 732-1151

Torsion Spring LH

$

$

Not available

32

MTD 732-1150

Torsion Spring RH

$4.99

$

Usually ships in 3-6 days

0

33

MTD 731-2294

Nozzle Door
(Superseded to 731-2294A)

$42.99

$

In Stock, Qty 6

0

34

MTD 711-1582

Rod .25 x 1.25 Lg

$

$

Not available

35

MTD 781-0725A

Front Wheel Support Brace
(Superseded to 781-0725A-0637)

Variations

MTD 781-0725A-0637

BRACE-FRONT WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 781-0777

Rear Wheel Support Brace

Variations

MTD 781-0777-0637

No Longer Available BRACE REAR - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 681-0155

Handle Bracket Ass'y LH

Variations

MTD 681-0155-0638

BRACKET ASM-HNDL LH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

MTD 681-0155-0721

BRACKET ASM-HNDL LH - SEARS RED (0721)

$42.99

$

Usually ships in 3-6 days

0

MTD 681-0155-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0155-0662

No Longer Available BRACKET AS - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0155-0665

No Longer Available BRACKET AS - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0155-0689

No Longer Available BRACKET AS - POLO GREEN (0689)

$

$

Not available

MTD 681-0155-0716

No Longer Available BRACKET AS - CUB YELLOW-99 (0716)

$

$

Not available

$36.99

$

Usually ships in 3-6 days

0

MTD 681-0156

Handle Brkt Ass'y RH

Note: (Not Shown)

Variations

MTD 681-0156-0638

BRACKET ASM-HNDL RH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

MTD 681-0156-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0156-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0156-0665

No Longer Available BRACKET AS - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0156-0689

No Longer Available BRACKET AS - POLO GREEN (0689)

$

$

Not available

MTD 681-0156-0716

No Longer Available BRACKET AS - CUB YELLOW-99 (0716)

$

$

Not available

MTD 681-0156-0721

No Longer Available BRACKET AS - SEARS RED (0721)

$

$

Not available

MTD 681-0156-4044

No Longer Available BRACKET AS - CRAFTSMAN RED (4044)

$

$

Not available

$36.99

$

Usually ships in 3-6 days

0

38

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

39

MTD 710-3025

Hex Cap Screw 5/16-18 x. 625

$3.99

$

In Stock, Qty 8

0

40

MTD 736-0105

Bell Washer.401 ID x.870 OD

$4.49

$

In Stock, Qty 20+

0

41

MTD 734-04007

Wheel 9 x 2
(Superseded to 734-04007A)

$49.99

$

Usually ships in 3-6 days

0

42

MTD 736-0232

Wave Washer .531 ID x .781 OD

$4.99

$

In Stock, Qty 12

0

43

MTD 738-1015

Shoulder Screw 3/8-16

$10.99

$

Usually ships in 3-6 days

0

44

MTD 731-0981A

Hubcap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

45

MTD 781-0785

Height Adjustment Bracket
(Superseded to 781-0785-0637)

Variations

MTD 781-0785-0637

BRACKET-HEIGHT ADJ - POWDER BLACK (0637)

$

$

Not available

$

$

46

MTD 738-1185

Stud 5/16-18 .56 x .75

$8.49

$

Usually ships in 3-6 days

0

47

MTD 741-0751

Height Adjustment Bearing

$8.99

$

Usually ships in 3-6 days

0

48

MTD 682-0113

Pivot Arm Assembly

$12.99

$

Usually ships in 3-6 days

0

49

MTD 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

50

MTD 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

51

MTD 736-0741

Bell Washer .760 ID x .25 OD

$4.99

$

Usually ships in 3-6 days

0

52

MTD 738-1173

Shoulder Screw .750 ID x .625 OD

$6.99

$

Usually ships in 3-6 days

0

53

MTD 734-1978

Wheel 8 x 2

$48.99

$

Usually ships in 3-6 days

0

54

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

55

MTD 726-0453

Lock Nut 3/8-16

$

$

Not available

56

MTD 712-0158

Hex Lock Nut 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

57

MTD 736-0314

Thrust Washer .375 ID x .70 OD

$6.99

$

Usually ships in 3-6 days

0

58

MTD 631-0090

Blower Chute
(Superseded to OEM-290-012)

$99.99

$

Usually ships in 3-6 days

0

59

MTD 764-0631

Bag
(Superseded to 664P0094B)

$326.99

$

Usually ships in 3-6 days

0

60

MTD 631-0083

Chute Assembly
(Superseded to 631P0083A)

$107.99

$

Usually ships in 3-6 days

0

61

MTD 710-1260A

Hex Index Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

62

MTD 736-0247

Flat Washer.375 ID x 1.25 OD

$9.49

$

In Stock, Qty 14

0

63

MTD 736-0217

Lock Washer 3/8

$4.49

$

In Stock, Qty 8

0

64

MTD 710-0818

Hex Cap Screw 3/8-24 x 2.0

$6.99

$

Usually ships in 3-6 days

0
