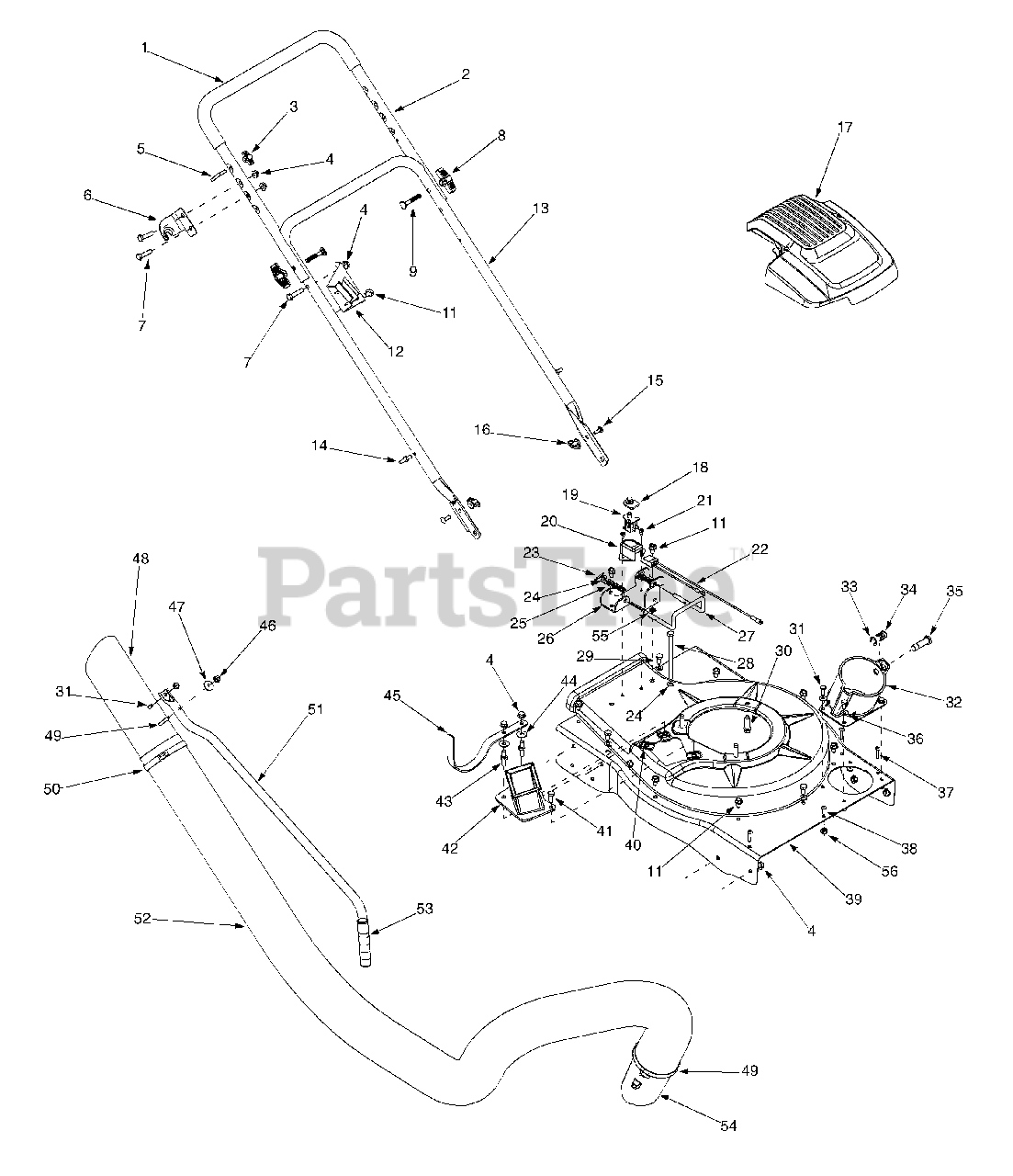

24A-060F401 - Yard-Man Shredder Vacuum (2003) General Assembly Parts Diagram

Shredder Vacuum

General Assembly Parts Diagram

  • Title

1

MTD 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

2

MTD 749-1423

Upper Handle
(Superseded to 749-1423-0637)

Variations

MTD 749-1423-0637

HANDLE-UPR SHORT D - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 720-0279

Knob

$4.49

$

Usually ships in 3-6 days

0

4

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, only 1 left!

0

6

MTD 781-1056

Upper Handle Bracket
(Superseded to 781-1056-0637)

Variations

MTD 781-1056-0637

Handle Bracket, Upper - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

7

MTD 710-0528

Hex Cap Screw 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

8

MTD 720-0314

Handle Knob 5/16-18

$6.49

$

In Stock, only 1 left!

0

9

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

11

MTD 710-0604A

Hex Washer Screw 5/16-18 x.625

$4.49

$

In Stock, Qty 20+

0

12

MTD 681-0174

Lower Handle Bracket
(Superseded to 753-05729)

$

$

Not available

13

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

14

MTD 711-1293

Studs

$4.99

$

Usually ships in 3-6 days

0

15

MTD 710-0703

Carriage Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 15

0

16

MTD 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

17

MTD 731-1402B

Shroud
(Superseded to 931-1402B)

$

$

Not available

18

MTD 725-1700

Switch Cover
(Superseded to 925-1700)

$11.99

$

In Stock, only 1 left!

0

19

MTD 725-3166

Safety Switch
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

20

MTD 731-1613

Safety Switch Cover
(Superseded to 931-1613)

$10.99

$

In Stock, only 1 left!

0

21

MTD 710-0224

Hex Washer Screw #10-16 x.50
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

22

MTD 629-0920

Wire Harness
(Superseded to 629-0920A)

$41.99

$

Usually ships in 3-6 days

0

23

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

24

MTD 736-0264

Flat Washer.330 ID x.630 OD

$6.99

$

In Stock, only 1 left!

0

25

MTD 732-0962

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

26

MTD 781-0778A

Mounting Bracket
(Superseded to 781-0778A-0637)

Variations

MTD 781-0778A-0637

BRACKET-MOUNTING - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

27

MTD 747-1153

Lock Rod

$16.99

$

Usually ships in 3-6 days

0

28

MTD 710-3195

Hex Cap Screw 5/16-18 x 4.5

$7.49

$

Usually ships in 3-6 days

0

29

MTD 710-3025

Hex Cap Screw 5/16-18 x.625

$3.99

$

In Stock, Qty 8

0

30

MTD 710-0502A

Hex Washer Screw 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

31

MTD 710-0751

Hex Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

32

MTD 731-2484

Hose Base Adapter
(Superseded to 681-0195)

$40.99

$

Usually ships in 3-6 days

0

33

MTD 716-0104

E Ring .500 Dia
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 15

0

34

MTD 732-3035

Compression Spring
(Superseded to 932-3035)

$11.99

$

Usually ships in 3-6 days

0

35

MTD 711-1571

Clevis Pin

$8.99

$

Usually ships in 3-6 days

0

36

MTD 736-3020

Flat Washer ..271 ID x .630 OD

$6.99

$

In Stock, Qty 9

0

37

MTD 710-0969

Screw #12-16 x 1.0

$4.49

$

In Stock, only 2 left!

0

38

MTD 710-0425

Machine Screw #10 - 24 x .625

$4.99

$

Usually ships in 3-6 days

0

39

MTD 781-1042

Upper Housing
(Superseded to 753-05381)

Variations

MTD 781-1042-0638

KIT-UPPER FLAIL HO - MTD/TROY-BILT RED (0638)

$204.99

$

Usually ships in 3-6 days

0

MTD 781-1042-0665

KIT-UPPER FLAIL HO - YARDMAN GREEN (0665)

$204.99

$

Usually ships in 3-6 days

0

MTD 781-1042-0721

KIT-UPPER FLAIL HO - SEARS RED (0721)

$204.99

$

Usually ships in 3-6 days

0

$204.99

$

Usually ships in 3-6 days

0

40

MTD 726-0454

U-Clip Lock Nut 5/16-18

$

$

Not available

41

MTD 710-3008

Hex Cap Screw 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

42

MTD 681-0122

Chipper Chute Assembly

Variations

MTD 681-0122-0498

CHUTE CHIPPER ASM. - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0122-0638

CHUTE CHIPPER ASM. - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0122-0662

CHUTE CHIPPER ASM. - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0122-0665

CHUTE CHIPPER ASM. - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0122-0689

CHUTE CHIPPER ASM. - POLO GREEN (0689)

$

$

Not available

MTD 681-0122-0716

No Longer Available CHUTE CHIP - CUB YELLOW-99 (0716)

$

$

Not available

MTD 681-0122-0721

CHUTE ASM-CHIPPER - SEARS RED (0721)

$

$

Not available

MTD 681-0122-4021

No Longer Available CHUTE CHIP - CUB YELLOW 2 (4021)

$

$

Not available

MTD 681-0122-4044

CHUTE ASM-CHIPPER - CRAFTSMAN RED (4044)

$

$

Not available

$80.99

$

Usually ships in 3-6 days

0

43

MTD 738-1167

Stud 5/16-18 x .56
(Superseded to 938-1167)

$

$

Not available

44

MTD 736-0371

Flat Washer .343 ID x .880 OD

$4.49

$

In Stock, only 3 left!

0

45

MTD 781-1058

Hose Bracket Hanger
(Superseded to 781-1058-0637)

Variations

MTD 781-1058-0637

BRACKET-HANGAR HO - POWDER BLACK (0637)

$

$

Not available

$

$

46

MTD 712-3027

Hex Flange Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

47

MTD 748-0457

Spacer

$5.49

$

Usually ships in 3-6 days

0

48

MTD 731-2478

Hose Nozzle
(Superseded to 731-2478A)

$77.99

$

In Stock, only 1 left!

0

49

MTD 710-3288

Hex Cap Screw 1/4-20 x 2.625

$6.99

$

In Stock, Qty 12

0

50

MTD 723-0295

Adjustment Clamp

$10.99

$

Usually ships in 3-6 days

0

51

MTD 749-1270

Nozzle Handle
(Superseded to 749-1270A)

Variations

MTD 749-1270-0637

HANDLE-NOZZLE CSV - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

52

MTD 764-0648

Vacuum Hose
(Superseded to 764-0648A)

$165.99

$

In Stock, only 4 left!

0

53

MTD 07071

Handle Grip

$12.99

$

Usually ships in 3-6 days

0

54

MTD 731-2292

Hose Adapter

$40.99

$

Usually ships in 3-6 days

0

55

MTD 736-0607

External L-Washer 5/16

$3.99

$

In Stock, Qty 20+

0

56

MTD 712-0161

Hex Lock Nut #10 - 24

$4.49

$

In Stock, only 1 left!

0
