24A-02MM001 - Yard-Man Shredder Vacuum (2010) Handle & Frame 24A-02MM001 Parts Diagram

Shredder Vacuum

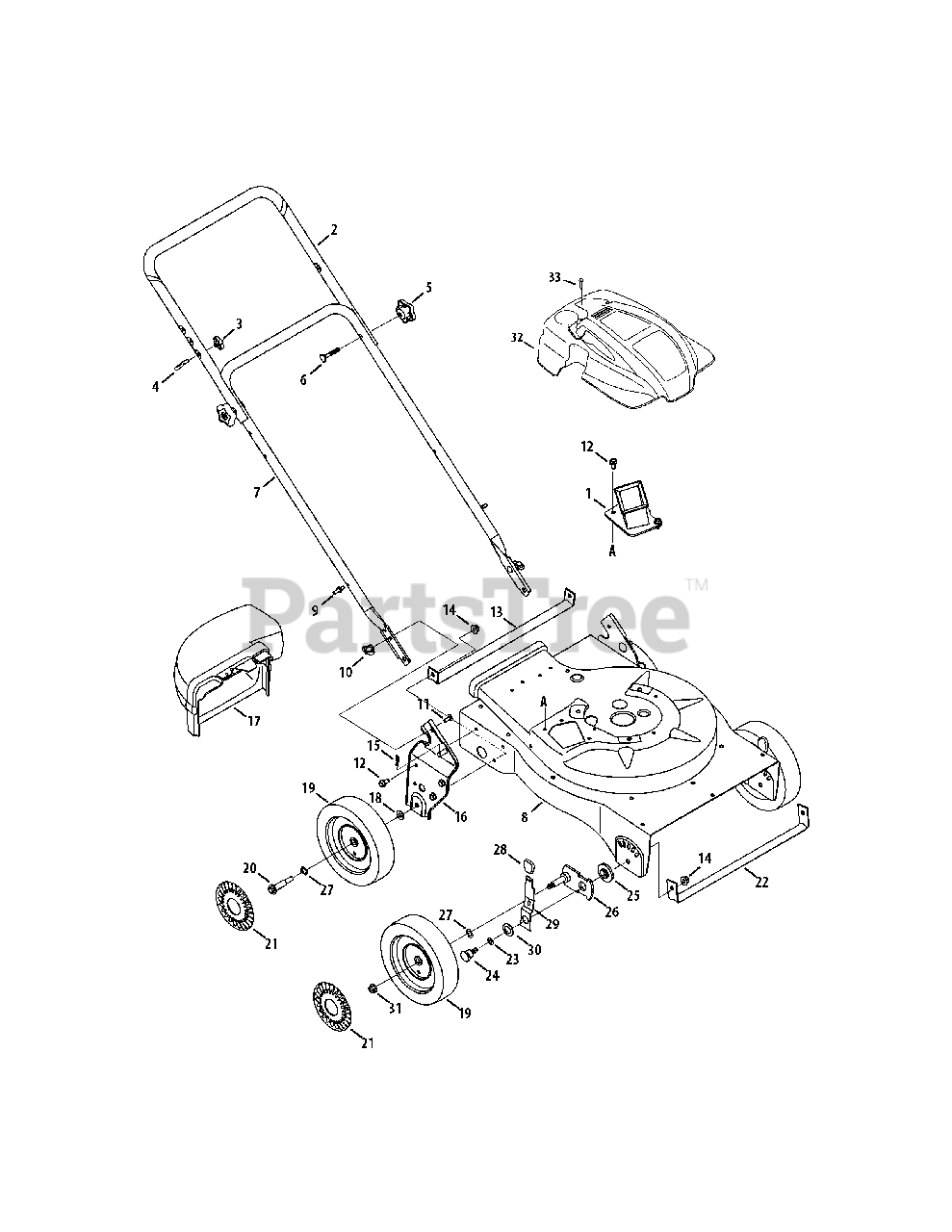

Handle & Frame 24A-02MM001 Parts Diagram

  • Title

1

MTD 681-04088-0709

Chipper Chute Assembly

$75.99

$

Usually ships in 3-6 days

0

2

MTD 749-04172-0637

Upper Handle

$39.99

$

In Stock, only 1 left!

0

3

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

5

MTD 720-04072A

Star Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

6

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

7

MTD 749-04165-0637

Lower Handle

$43.99

$

Usually ships in 3-6 days

0

8

MTD 781-04251-0709

Upper Housing

$150.99

$

Usually ships in 3-6 days

0

9

MTD 711-1293

Studs

$4.99

$

Usually ships in 3-6 days

0

10

MTD 912-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0703

Carriage Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0726

Screw, 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

13

MTD 781-04081-0637

Rear Wheel Support Brace

$27.99

$

Usually ships in 3-6 days

0

14

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

16

MTD 981-0155A-0637

Handle Bracket Assy. LH

$45.99

$

Usually ships in 3-6 days

0

16

MTD 981-0156A-0637

Handle Bracket Assy. RH

Note: (Not Shown)

$45.99

$

Usually ships in 3-6 days

0

17

MTD 631-0090

Blower Chute Assembly
(Superseded to OEM-290-012)

$99.99

$

Usually ships in 3-6 days

0

18

MTD 736-0105

Bell Washer.401 ID x.870 OD

$4.49

$

In Stock, Qty 20+

0

19

MTD 734-1987

Wheel, 8 x 1.8, Bar

$23.99

$

In Stock, Qty 5

0

20

MTD 738-1015

Shoulder Screw 3/8-16

$10.99

$

Usually ships in 3-6 days

0

21

MTD 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

22

MTD 781-04082-0637

Front Wheel Support Brace

$28.99

$

Usually ships in 3-6 days

0

23

MTD 936-0314

Thrust Washer.375 ID x.70 OD
(Superseded to 736-0314)

$

$

Not available

24

MTD 738-1172

Shoulder Screw, .750 ID x .500

$5.99

$

Usually ships in 3-6 days

0

25

MTD 741-04242

Height Adjustment Bearing

$7.49

$

Usually ships in 3-6 days

0

26

MTD 687-02342

Pivot Arm Assembly

$15.99

$

In Stock, only 2 left!

0

27

MTD 936-0232

Wave Washer, .531 ID x .781 OD
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

28

MTD 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

29

MTD 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

30

MTD 736-0741

Bell Washer.760 ID x.25OD

$4.99

$

Usually ships in 3-6 days

0

31

MTD 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

32

MTD 931-04471

Engine Shroud

$42.99

$

Usually ships in 3-6 days

0

33

MTD 710-04744

Screw, #12-16 x 1.00

$5.49

$

In Stock, Qty 11

0
