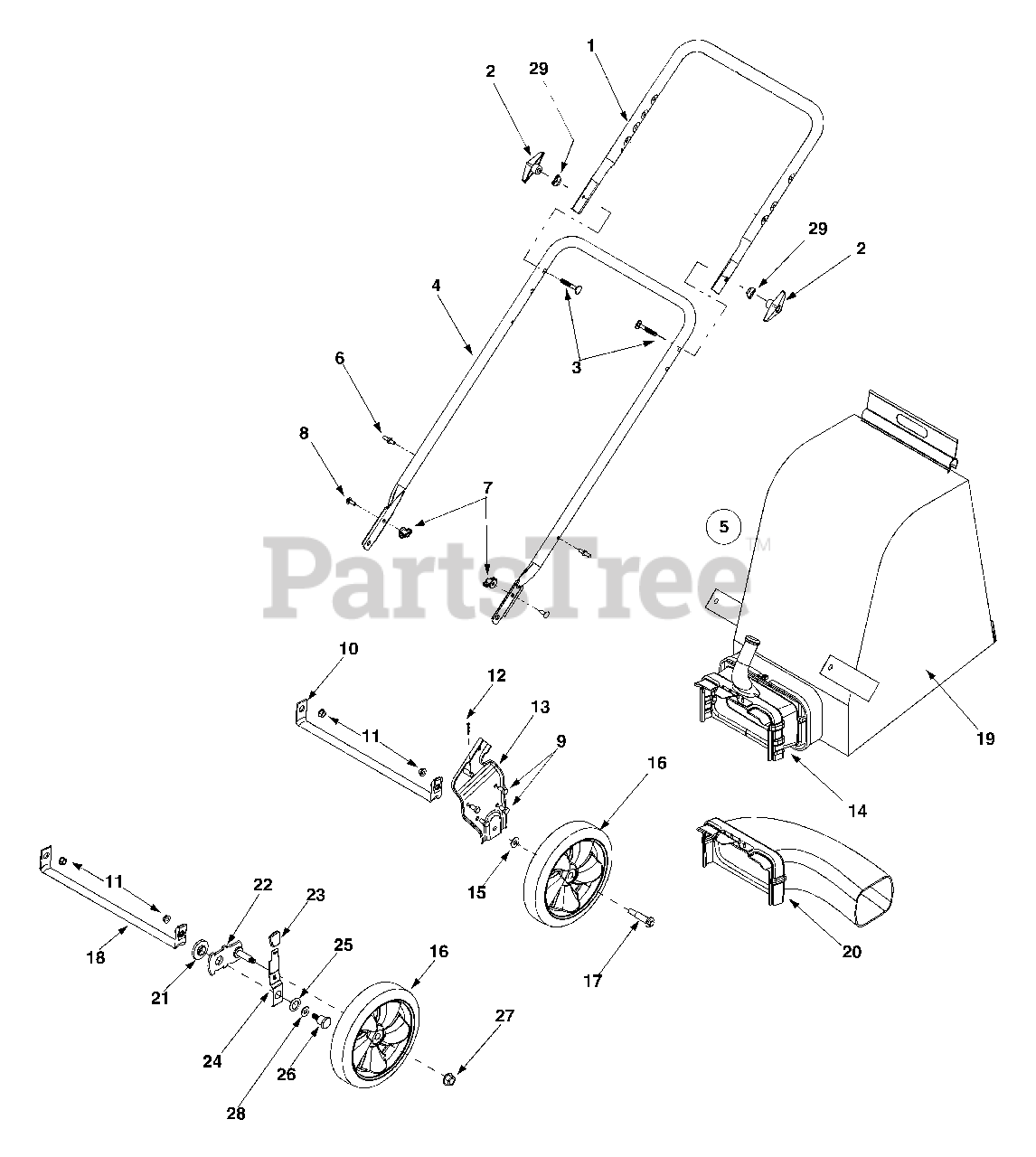

24A-021H700 - Yard Machines Shredder Vacuum (2005) Handle Parts Diagram

Shredder Vacuum

Handle Parts Diagram

1

MTD 749-04172-0637

Upper Handle - POWDER BLACK (0637)
(Superseded to 749-04172-0637)

Variations

$39.99

$

In Stock, only 1 left!

0

2

MTD 720-0241

Handle Knob 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

3

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

4

MTD 749-04165-0637

Lower Handle, Black - POWDER BLACK (0637)
(Superseded to 749-04165-0637)

Variations

$43.99

$

Usually ships in 3-6 days

0

5

MTD 664-0095

Bag Assembly
(Superseded to 664-04040)

$229.99

$

In Stock, Qty 11

0

6

MTD 711-1293

Studs

$4.99

$

Usually ships in 3-6 days

0

7

MTD 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0703

Carriage Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0726

Hex Cap Screw 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

10

MTD 781-04081-0637

BRACE-SUPT WHL RR - POWDER BLACK (0637)
(Superseded to 781-04081-0637)

Variations

$27.99

$

Usually ships in 3-6 days

0

11

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

13

MTD 681-0155A-0637

BRACKET ASM-HNDL LH - POWDER BLACK (0637)
(Superseded to 981-0155A)

Variations

$45.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-0721

BRACKET ASM-HNDL RH - SEARS RED (0721)
(Superseded to 981-0156A)

Note: (Not Shown)

Variations

$45.99

$

Usually ships in 3-6 days

0

14

MTD 631-0083

Chute Assembly
(Superseded to 631P0083A)

$107.99

$

Usually ships in 3-6 days

0

15

MTD 736-0105

Bell Washer.401 ID x.870 OD

$4.49

$

In Stock, Qty 20+

0

16

MTD 734-1987

Wheel 8 x 8.1

$23.99

$

In Stock, only 2 left!

0

17

MTD 738-1015

Shoulder Screw 3/8-16

$10.99

$

Usually ships in 3-6 days

0

18

MTD 781-04082-0637

BRACE-SUPT WHL FRT - POWDER BLACK (0637)
(Superseded to 781-04082-0637)

Variations

$28.99

$

Usually ships in 3-6 days

0

19

MTD 764-0632A

Bag
(Superseded to 664-04040)

$229.99

$

In Stock, Qty 11

0

20

MTD 631-0090

Blower Chute Ass'y
(Superseded to OEM-290-012)

Note: If Equipped

$99.99

$

Usually ships in 3-6 days

0

21

MTD 741-0751

Height Adjustment Bearing

$8.99

$

Usually ships in 3-6 days

0

22

MTD 687-02094

Pivot Arm Assembly
(Superseded to 987-02094)

$29.99

$

Usually ships in 3-6 days

0

23

MTD 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 3 left!

0

24

MTD 732-1026

Spring Lever

$6.99

$

In Stock, only 2 left!

0

25

MTD 736-0741

Bell Washer.760 ID x.25OD

$4.99

$

Usually ships in 3-6 days

0

26

MTD 738-1172

Shoulder Screw,.750 x.500

$5.99

$

Usually ships in 3-6 days

0

27

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

28

MTD 736-0314

Thrust Washer.375 x.70 x.030

$6.99

$

Usually ships in 3-6 days

0

29

MTD 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 10

0
