2490 (31AH54Q6766) - Troy-Bilt Vortex 24" Snow Thrower (2017) Engine Drive Parts Diagram

Vortex 24" Snow Thrower

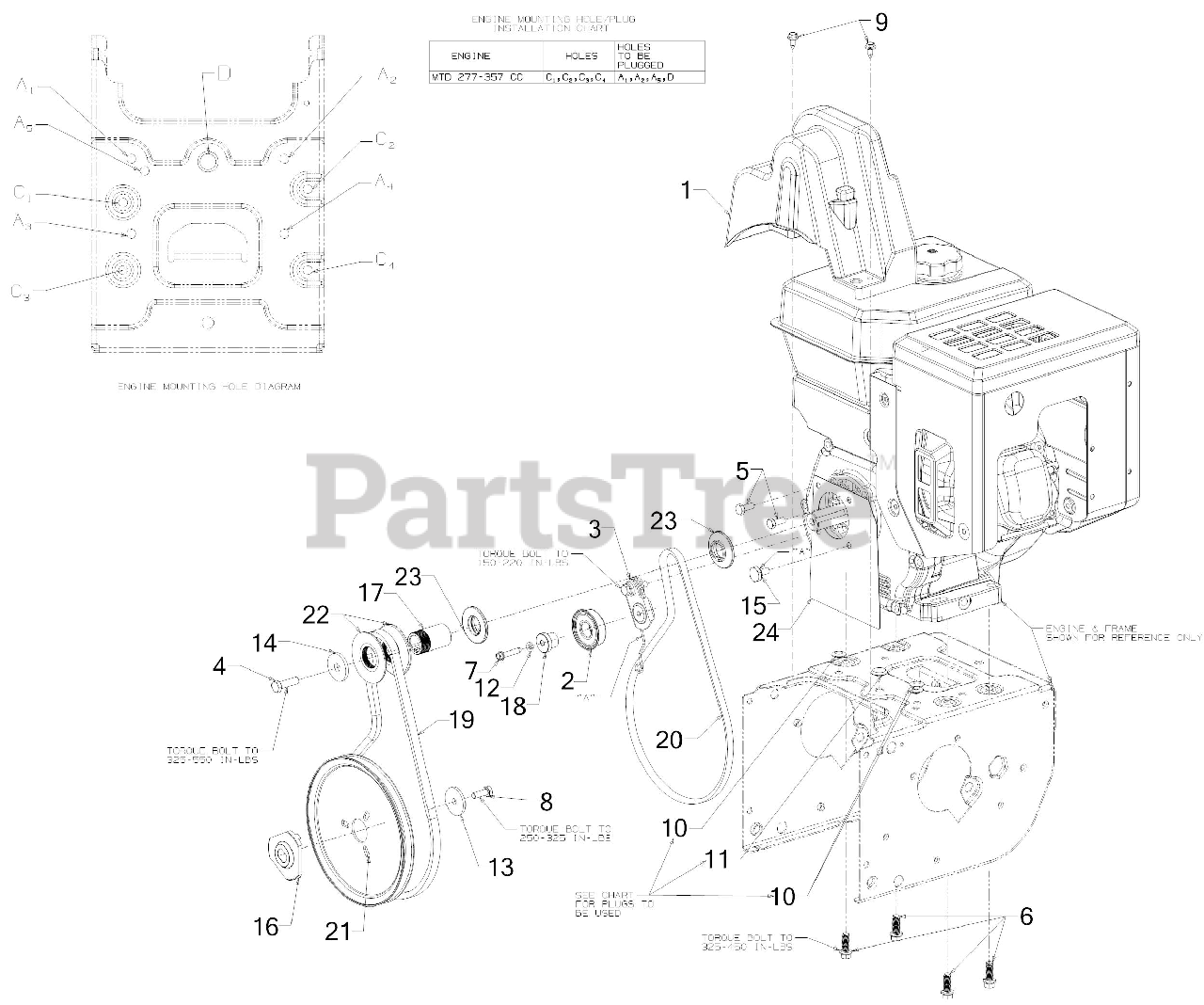

Engine Drive Parts Diagram

  • Title

1

Troy-Bilt 631-05323

BELT COVER (LARGE BLOCK)
(Superseded to 753-09065)

$27.99

$

In Stock, Qty 6

0

1

Troy-Bilt 710-04261

HEX SCREW #12-16 x .50

Note: (Not Shown)

$6.49

$

In Stock, only 3 left!

0

2

Troy-Bilt 684-04169

IDLER PULLEY ASSEMBLY

$34.99

$

In Stock, Qty 8

0

2

Troy-Bilt 790-00230

BEARING SLEEVE

Note: (Not Shown)

$7.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt 941-0919B

BALL BEARING

Note: (Not Shown)

$21.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 790-00208D

IDLER BRACKET

Note: (Not Shown)

$8.99

$

In Stock, Qty 9

0

3

Troy-Bilt 710-0672

SCREW 5/16-24 x 1.25 GR5

$4.49

$

In Stock, Qty 16

0

3

Troy-Bilt 732-04308C

TORSION SPRING

Note: (Not Shown)

$5.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 936-0119

LOCK WASHER 5/16

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 748-04112B

SHOULDER SPACER

Note: (Not Shown)

$4.49

$

In Stock, Qty 9

0

3

Troy-Bilt 926-04012

PUSH ON NUT
(Superseded to 726-04012)

Note: (Not Shown)

$

$

Not available

3

Troy-Bilt 750-04477A

IDLER BRACKET SPACER .340X.750X.330

Note: (Not Shown)

$5.49

$

In Stock, only 1 left!

0

4

Troy-Bilt 710-0191

SCREW 3/8-24X1.25

$4.99

$

In Stock, Qty 9

0

5

Troy-Bilt 710-0627

SCREW 5/16-24 x .750 GR5

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0654A

SCREW 3/8-16 x 1

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0809

SCREW 1/4-20 x 1.25

$6.99

$

In Stock, Qty 17

0

8

Troy-Bilt 710-1245B

SCREW 5/16-24 x .875 GR5

$8.49

$

In Stock, only 4 left!

0

9

Troy-Bilt 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 735-04099

PLUG-3/8 DIA ID x 3/32

$5.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 735-04100

PLUG-1/2 ID x 3/32

$5.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 936-0329

LOCK WASHER

$4.49

$

In Stock, Qty 9

0

13

Troy-Bilt 736-0505

FLAT WASHER

$6.49

$

In Stock, Qty 11

0

14

Troy-Bilt 736-3082A

FLAT WASHER .45 x 1.5 x .172 HT

$9.99

$

In Stock, Qty 16

0

15

Troy-Bilt 738-04439

SHOULDER SCREW

$3.99

$

In Stock, Qty 5

0

16

Troy-Bilt 748-04053A

ADAPTER PULLEY .75 DIA W/DD

$22.99

$

In Stock, only 3 left!

0

17

Troy-Bilt 750-04303

PULLEY SPACER

$17.99

$

In Stock, only 4 left!

0

18

Troy-Bilt 750-04571

SHOULDER SPACER

$6.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 954-04195A

BELT-.500 x 37

$34.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 954-04201A

V-BELT 3/8 x 35.68"

$34.99

$

In Stock, Qty 15

0

21

Troy-Bilt 756-04109

AUGER PULLEY

$54.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 756-04113

HALF PULLEY 4L V x 2.6 OD
(Superseded to 756-06563)

$3.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 756-04252

HALF PULLEY-3/8 V x 1.7160

$6.49

$

In Stock, only 2 left!

0

24

Troy-Bilt 790-00332A

ENGINE PLATE (FRONT COVER)

$6.49

$

Usually ships in 3-6 days

0
