249-612-000 - MTD Log Splitter (1989) Parts Parts Diagram

Log Splitter

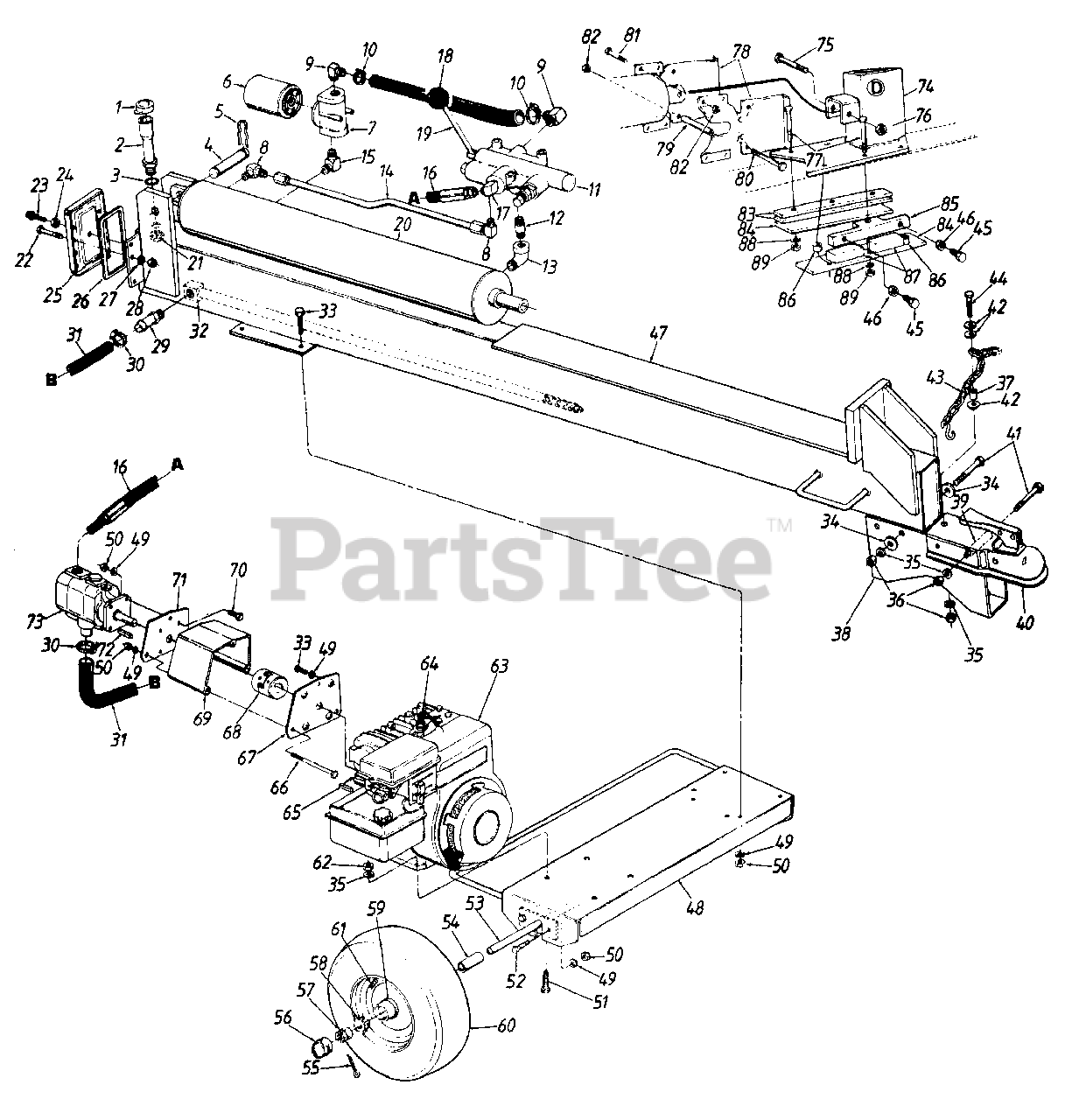

Parts Parts Diagram

  • Title

1

MTD 745-0174

Cap Ass'y.

$

$

Not available

2

MTD 781-0036

Filler Tube Ass'y.

$

$

Currently unavailable

3

MTD 721-0204

"O" Ring .92" I.D.

$

$

Not available

4

MTD 715-0205

Cylinder Mtg. Pin 3.82" Lg.

$

$

Not available

5

MTD 714-0203

External Cotter Pin

$9.49

$

Usually ships in 3-6 days

0

6

MTD 723-0405

Filter Element
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

7

MTD 723-0406

Filter Head
(Superseded to 681-0179)

$

$

Not available

8

MTD 737-0192

9Oø Solid Male Adapter

$41.99

$

Usually ships in 3-6 days

0

9

MTD 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

10

MTD 726-0146

Adj. Hose Clamp

$

$

Not available

11

MTD 717-0942

Control Valve
(Superseded to 917-0942)

$

$

Not available

12

MTD 737-0238

Pipe Nipple 1/2 NPT x 2" Lg.

$25.99

$

In Stock, Qty 5

0

13

MTD 737-0260

Street Elbow 1/2" Male x 1/2" Female NPT

$

$

Not available

14

MTD 727-0307

Metal Pressure Tube

$

$

Not available

15

MTD 737-0262

Male Pipe Elbow 3/4"

$

$

Currently unavailable

16

MTD 727-0431

High Pressure Hydraulic Hose 27.5" Lg

$

$

Not available

17

MTD 737-0171

90ø Solid Male Adapter

$

$

Not available

18

MTD 720-0231

Ball Knob

$

$

Not available

19

MTD 747-0709

Control Handle

$

$

Not available

20

MTD 717-0885B

Hydraulic Cylinder
(Superseded to 918-0307-0637)

$

$

Not available

21

MTD 712-0338

Hex Nut 1-1/16-12 Thd.

$

$

Not available

22

MTD 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x.62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

24

MTD 721-0205A

Gasket Washer 5/16" I.D.

$

$

Not available

25

MTD 781-0317

End Plate

$

$

Not available

26

MTD 721-0217

Gasket

$

$

Not available

27

MTD 736-0275

Fl-Wash. .34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

28

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

29

MTD 737-0191

Adapter 1" x 1-1/16-12 Thd.

$

$

Not available

30

MTD 726-0132

Hose Clamp 518"

$15.99

$

Usually ships in 3-6 days

0

31

MTD 727-0428

Suction Hose 1.0" I.D.

$

$

Not available

32

MTD 781-0021

Strainer Tube Ass'y.

$

$

Not available

33

MTD 710-0117

Hex Bolt 5/16-24 x 1.0" Lg.
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

34

MTD 738-0347

Shld. Spacer.625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

35

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

36

MTD 712-3017

Hex Nut 3/8-16 Thd. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

37

MTD 750-0507

Spacer .38" I.D. x .625" O.D.
(Superseded to 750-04776)

$5.49

$

In Stock, only 3 left!

0

38

MTD 781-0311

Beam Stand

$

$

Currently unavailable

39

MTD 750-0261

Spacer .375" I.D. x .625" O.D.

$

$

Not available

40

MTD 727-0289

Hitch Ass'y.

$

$

Not available

41

MTD 710-3130

Hex Bolt 3/8-16 x 3.25" Lg. (Grade 8)

$10.99

$

In Stock, only 4 left!

0

42

MTD 736-0262

Fl-Wash. .375" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 20+

0

43

MTD 713-0338

Chain-Tow Hitch

$

$

Currently unavailable

44

MTD 710-0520

Hex Bolt 3/8-16 x 1.5" Lg. (Grade 5)

$4.49

$

In Stock, Qty 5

0

45

MTD 710-1032

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

46

MTD 712-3001

Hex Jam Nut 3/8-24 Thd.
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

47

MTD 781-0335

Tank & Beam Ass'y.

$

$

Not available

48

MTD 781-0033B

Engine Frame Ass'y.

$

$

Currently unavailable

49

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

50

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

51

MTD 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

52

MTD 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.99

$

Usually ships in 3-6 days

0

53

MTD 781-0018

Axle Ass'y.

$

$

Not available

54

MTD 750-0442

Spacer .75" I.D. x 1.56" Lg.

$

$

Not available

55

MTD 714-0162

Cotter Pin 5/32" Dia.

$4.99

$

In Stock, Qty 20+

0

56

MTD 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

57

MTD 712-0299

Hex Slotted Nut 3/4-16 Thd.

$

$

Currently unavailable

58

MTD 741-0107

Roller Bearing w/Race
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 17

0

59

MTD 721-0168

Bearing Seal
(Superseded to 921-0168)

$9.49

$

In Stock, Qty 17

0

60

MTD 734-1016

Wheel Ass'y. Comp.
(Superseded to 634-0186)

Variations

MTD 734-1016-0911

Wheel Assembly, Complete - Carlisle Gray (0911)

$363.99

$

Usually ships in 3-6 days

0

MTD 734-1016-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$363.99

$

Usually ships in 3-6 days

0

MTD 734-1016-0941

No Longer Available - Carlisle Yellow (0941)

$

$

Not available

$363.99

$

Usually ships in 3-6 days

0

MTD 734-0872

Tire Only

$169.99

$

Usually ships in 3-6 days

0

61

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

62

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

63

MTD 130202-3116-01

Engine

$

$

Currently unavailable

64

MTD 735-0639

Spark Plug Boot

$

$

Not available

65

MTD 714-0122

Sq. Key 3/16-.75" Lg.

$3.99

$

In Stock, Qty 20+

0

66

MTD 710-0363

Hex Bolt 5/16-24 x 4" Lg.

$

$

Not available

67

MTD 781-0098

Front Coupling Support Bracket
(Superseded to 781-0098A-0637)

Variations

MTD 781-0098-0637

Bracket, Black - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

68

MTD 717-0891

Flexible Coupling
(Superseded to 917-0891)

$159.99

$

Usually ships in 3-6 days

0

69

MTD 719-0278

Coupling Shield

$72.99

$

Usually ships in 3-6 days

0

70

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

71

MTD 781-0097

Rear Coupling Support Bracket
(Superseded to 781-0097-0637)

Variations

MTD 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$69.99

$

In Stock, only 2 left!

0

$69.99

$

In Stock, only 2 left!

0

72

MTD 714-3024

Hi-Pro Key 1/8" x 1/2" Lg.

$

$

Not available

73

MTD 717-0936

Two Volume Pump
(Superseded to 753-05194)

Note: (Incl. Ref. 72)

$1509.99

$

In Stock, only 1 left!

0

74

MTD 781-0323

Wedge Mtg. Ass'y.
(Superseded to 753-04120)

$342.99

$

Usually ships in 3-6 days

0

75

MTD 710-1010

Hex Bolt 1/2-20 x 3" Lg. (Grade 8)

$

$

Not available

76

MTD 712-0239

Hex L-Nut 1/2-20 Thd.

$5.99

$

In Stock, Qty 20+

0

77

MTD 710-1018

Hex Bolt 1/2-20 x 2.75" Lg. (Grade 8)

$11.99

$

In Stock, Qty 19

0

78

MTD 781-0168A

Stripper Side

Variations

MTD 781-0168A-0483

Stripper Half - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0168A-0638

Stripper Half - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0168A-0498

No Longer Available STRIPPER H - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0168A-0637

STRIPPER HALF - POWDER BLACK (0637)

$

$

Not available

MTD 781-0168A-0662

STRIPPER HALF - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0168A-0716

No Longer Available STRIPPER H - CUB YELLOW-99 (0716)

$

$

Not available

$102.99

$

Usually ships in 3-6 days

0

79

MTD 750-0745

Spacer .407" I.D. x 4.25" Lg.

$

$

Not available

80

MTD 710-0831

Hex Bolt 3/8-16 x 5.5" Lg

$

$

Not available

81

MTD 710-3144

Hex Bolt 3/8-16 x 2" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

82

MTD 712-0430

Hex L-Nut 3/8-16 Thd.
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

83

MTD 781-0350

Fixed Side Gib
(Superseded to 781-0350A)

$28.99

$

Usually ships in 3-6 days

0

84

MTD 781-0346

Pusher Back Plate

$

$

Not available

85

MTD 781-0356

Floating Gib Plate

Variations

MTD 781-0356-0483

Floating Gib Plate - CHARCOAL GRAY (0483)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0498

Floating Gib Plate - OLD CUB YELLOW (0498)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0637

Floating Gib Plate - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0638

Floating Gib Plate - MTD/TROY-BILT RED (0638)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0716

Floating Gib Plate - CUB YELLOW-99 (0716)

$131.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

86

MTD 750-0743

Spacer 1/2" I.D. x .68" Lg.

$

$

Not available

87

MTD 781-0351

Adjustable Gib

Variations

MTD 781-0351-0483

Log Splitter Adjustable Gib, 2" - CHARCOAL GRAY (0483)

$18.99

$

In Stock, Qty 17

0

MTD 781-0351-0637

Log Splitter Adjustable Gib, 2" - POWDER BLACK (0637)

$18.99

$

In Stock, Qty 17

0

$18.99

$

In Stock, Qty 17

0

88

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, only 2 left!

0

89

MTD 712-0333

Hex Nut 1/2-20 Thd.
(Superseded to 912-0333)

$

$

Not available
