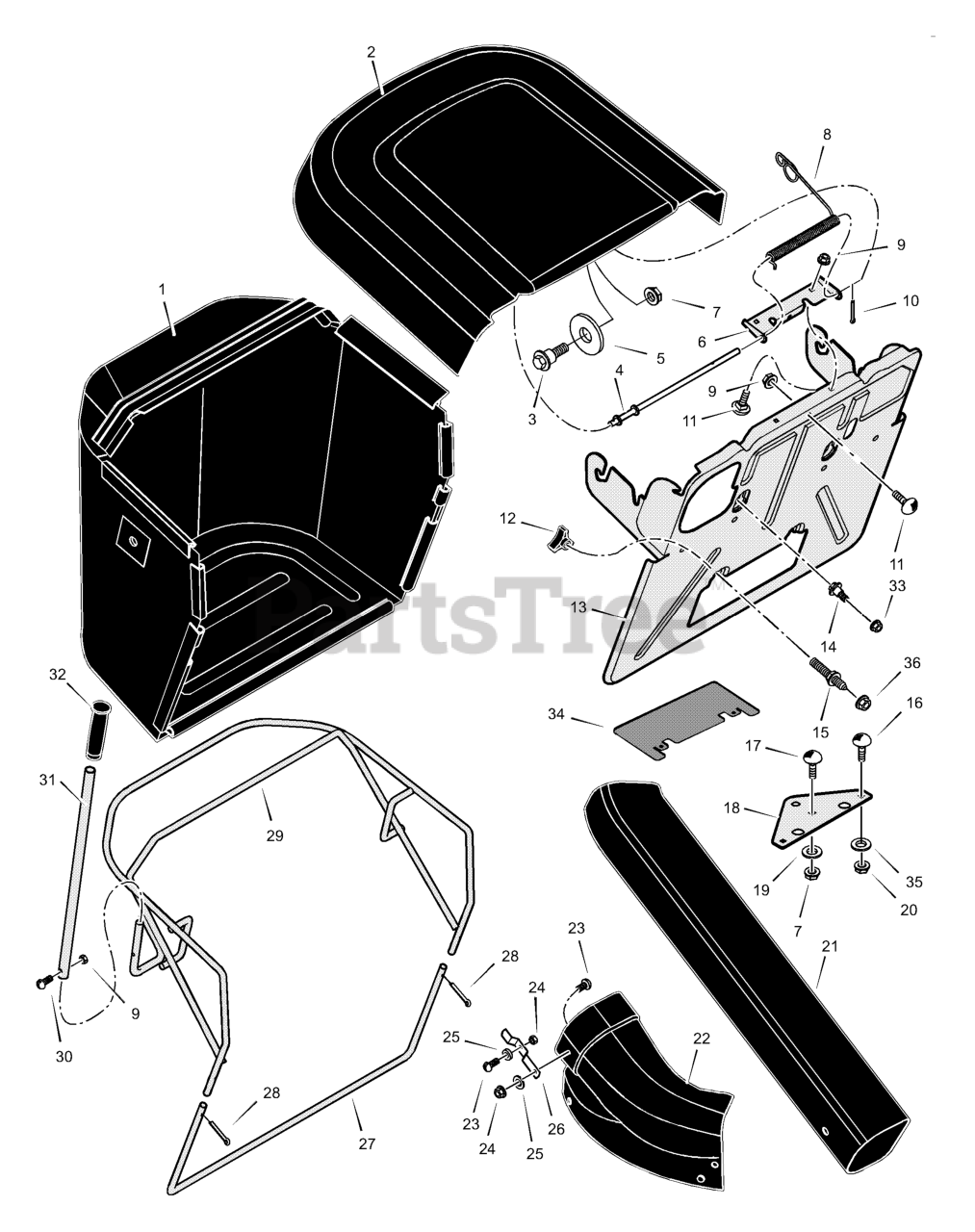

247930x11A - Murray Grass Bagger (2002) Diagram Parts Diagram

Grass Bagger

Diagram Parts Diagram

  • Title
1

Murray 1401246

Bag, Cloth
(Superseded to 1401173MA)

$

$

Not available

2

Murray 1401189

Cover, Bag (Green)

$

$

Currently unavailable

3

Murray 720084

Bolt, Shoulder

$

$

Currently unavailable

4

Murray 727533

Rod, Bag Lid

$

$

Currently unavailable

5

Murray 722596

Washer

$

$

Currently unavailable

6

Murray 721997

Hinge, Bag Top

$

$

Currently unavailable

7

Murray 720142

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

8

Murray 722516

Spring, Torsion

$

$

Currently unavailable

9

Murray 720146

Nut
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

10

Murray 727498

Pin, Cotter

$

$

Currently unavailable

11

Murray 720057

Bolt, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

12

Murray 725489

Knob
(Superseded to 740227MA)

$6.49

$

Usually ships in 2-12 days

0

13

Murray 1401182E701

Assembly, Bag Plate & Hanger

$

$

Currently unavailable

14

Murray 726097

Bolt, Shoulder

$

$

Currently unavailable

15

Murray 725243

Stud, Double End

$

$

Currently unavailable

16

Murray 720049

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

17

Murray 720050

Bolt, Carriage

$

$

Currently unavailable

18

Murray 721995

Bracket, Hitch Extension
(Superseded to 1401178E701MA)

$37.99

$

Usually ships in 2-12 days

0

19

Murray 722580

Washer
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

20

Murray 720145

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

21

Murray 721965

Tube, Connecting

$

$

Currently unavailable

22

Murray 721964

Tube, Extension

$

$

Currently unavailable

23

$

$

Currently unavailable

24

Murray 720122

Acorn Nut

$

$

Currently unavailable

25

Murray 722612

Washer

$

$

Currently unavailable

26

Murray 721993

Spring, Leaf

$

$

Currently unavailable

27

Murray 721988

Tube, Bag Frame

$

$

Currently unavailable

28

Murray 720387

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

29

Murray 721992

Frame, Bag

$

$

Currently unavailable

30

Murray 720033

Bolt
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

31

Murray 721985

Lever, Dump
(Superseded to 1401141E701MA)

$33.99

$

Usually ships in 2-12 days

0

32

Murray 721994

Grip
(Superseded to 1401176MA)

$7.49

$

Usually ships in 2-12 days

0

33

Murray 720606

Nut, Flange
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

34

Murray 722004

Baffle, Bag Plate
(Superseded to 1401242MA)

$16.99

$

Usually ships in 2-12 days

0

35

Murray 720609

Washer
(Superseded to 17X212MA)

$3.49

$

Usually ships in 2-12 days

0

36

Murray 720139

Nut
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

--

Murray F-020901L

Book, Instruction

$

$

Currently unavailable
