24767B - Murray Grass Bagger (2001) Tripple Bagger 42" & 46" Parts Diagram

Grass Bagger

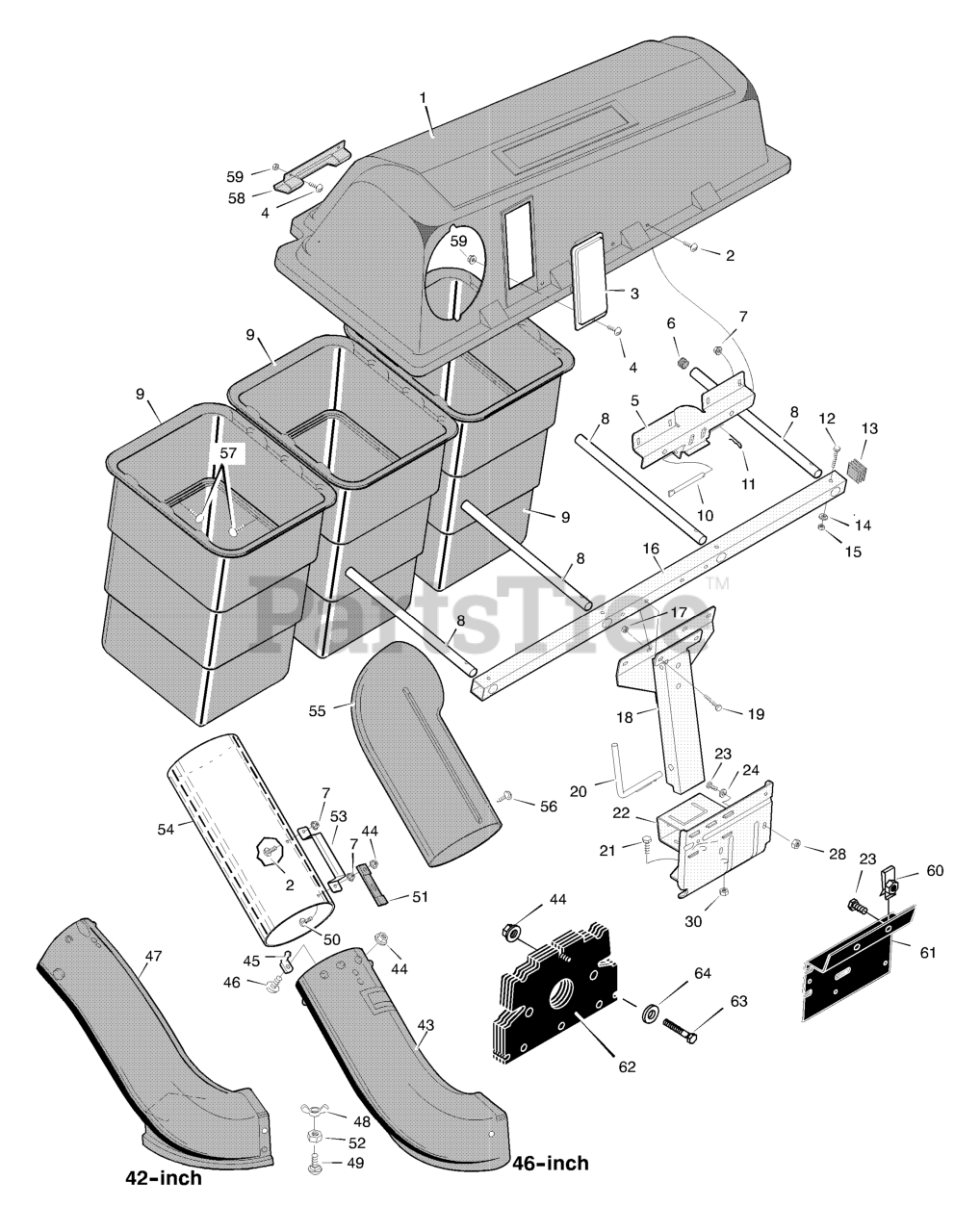

Tripple Bagger 42" & 46" Parts Diagram

  • Title
1

Murray 054750MA

Cover, Bagger

$866.99

$

Usually ships in 2-12 days

0

2

$4.49

$

Usually ships in 2-12 days

0

3

$11.99

$

Usually ships in 2-12 days

0

4

$3.99

$

Usually ships in 2-12 days

0

5

Murray 054754E701

Hinge, Bracket

$33.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

7

Murray 015X66MA

Nut, Hex
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

8

Murray 054753E701MA

Tube, Container

$23.99

$

Usually ships in 2-12 days

0

9

Murray 054752

Container

$444.99

$

Usually ships in 2-12 days

0

10

Murray 054407ZMA

Pin, Cover Hinge

$14.99

$

In Stock, only 1 left!

0

11

Murray 0031X6MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

12

$3.49

$

Usually ships in 2-12 days

0

13

Murray 054777

Plug
(Superseded to 054777MA)

$4.49

$

Usually ships in 2-12 days

0

14

Murray 018X15MA

Lockwasher

$3.99

$

In Stock, only 1 left!

0

$3.99

$

In Stock, only 1 left!

0

16

Murray 054761E701MA

Tube, Support

$25.99

$

Usually ships in 2-12 days

0

$4.49

$

Usually ships in 2-12 days

0

18

Murray 054757E701

Assembly, Channel

$148.99

$

Usually ships in 2-12 days

0

19

$9.99

$

In Stock, only 1 left!

0

20

Murray 054408 Z

Pin, Channel Mount

$

$

Currently unavailable

21

Murray 01X125MA

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

22

Murray 094690E701MA

Assembly, Bagger Mount
(Superseded to 7400298BMYP)

$216.99

$

Usually ships in 2-12 days

0

23

Murray 01X141MA

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

24

$

$

Currently unavailable

28

Murray 15X108MA

Nut, Super Flange

$3.99

$

Usually ships in 2-12 days

0

30

Murray 015X41MA

Nut, Hex

$5.49

$

Usually ships in 2-12 days

0

43

Murray 054774MA

Extension, Chute 46

$140.99

$

Usually ships in 2-12 days

0

44

Murray 015X89MA

Locknut, Flange

$4.49

$

Usually ships in 2-12 days

0

45

Murray 054563MA

Pin, Latch

$23.99

$

In Stock, only 2 left!

0

46

Murray 002X39MA

Bolt, Carriage

$3.49

$

In Stock, only 1 left!

0

47

Murray 054692MA

Extension, Chute 42

$319.99

$

Usually ships in 2-12 days

0

48

Murray 014X86MA

Wingnut
(Superseded to 703141)

$3.49

$

In Stock, only 3 left!

0

49

Murray 002X74MA

Bolt, Carriage
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

50

$4.99

$

In Stock, only 4 left!

0

51

Murray 054695MA

Latch, Rubber

$10.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

53

Murray 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 3 left!

0

54

Murray 054778MA

Tube, Connecting

$107.99

$

Usually ships in 2-12 days

0

55

$93.99

$

Usually ships in 2-12 days

0

56

$4.49

$

Usually ships in 2-12 days

0

57

Murray 0193X1MA

Fastener, Panel

$3.99

$

In Stock, only 1 left!

0

58

Murray 054537MA

Handle, Plastic

$18.99

$

Usually ships in 2-12 days

0

59

Murray 015X81MA

Nut, Hex

$4.99

$

Usually ships in 2-12 days

0

60

$9.49

$

Usually ships in 2-12 days

0

61

Murray 054758E701

Bracket, Adapter

$49.99

$

Usually ships in 2-12 days

0

62

Murray 690370E701MA

Weight, Front

$27.99

$

Usually ships in 2-12 days

0

63

$3.49

$

Usually ships in 2-12 days

0

64

$

$

Currently unavailable

--

Murray F-010907L

Book, Instruction

$

$

Currently unavailable
