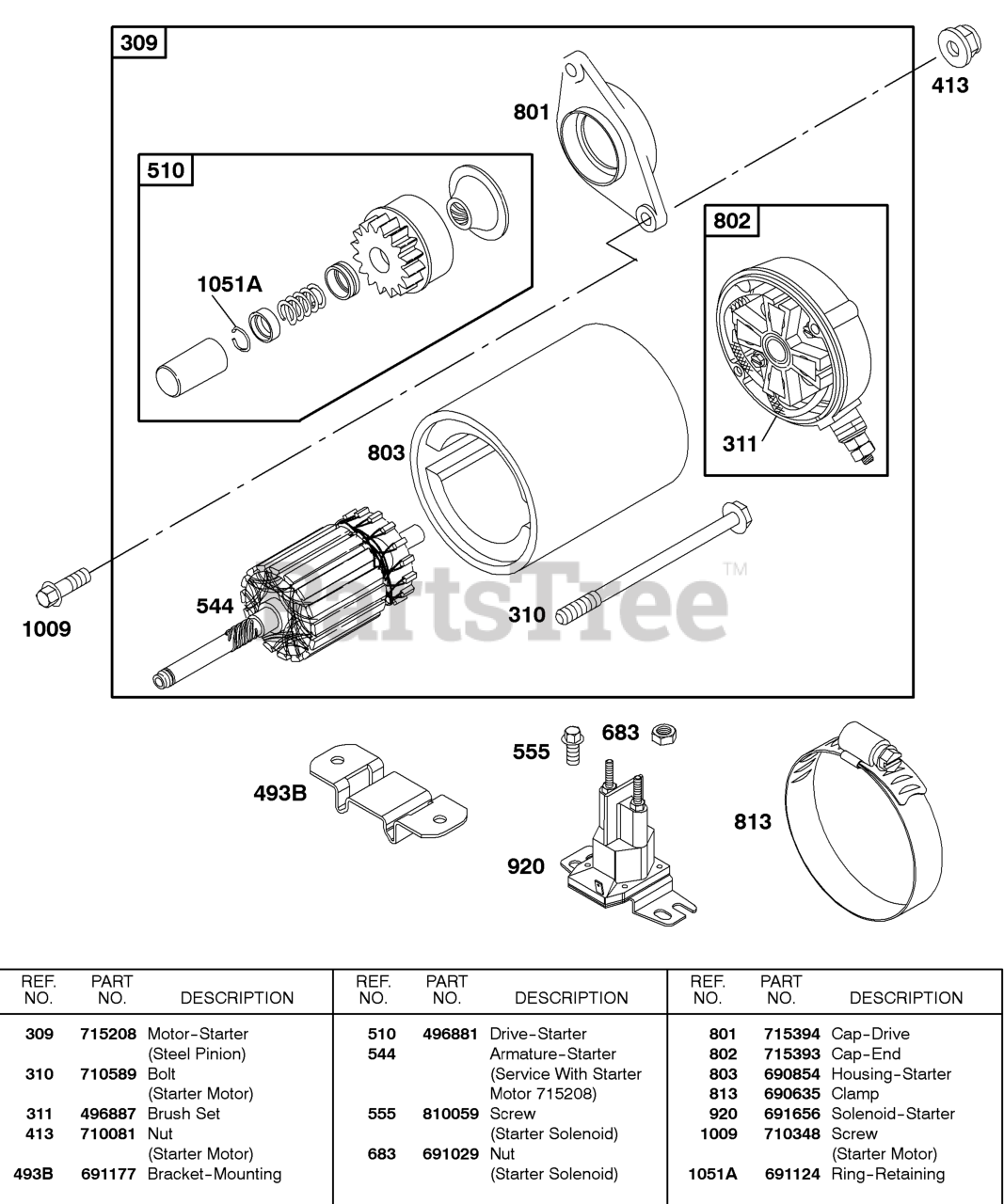

247437-0111-E1 - Briggs & Stratton Horizontal Engine ELECTRIC STARTER Parts Diagram

Horizontal Engine

ELECTRIC STARTER Parts Diagram

  • Title

309

Briggs & Stratton 715208

Motor-Starter

Note: (Steel Pinion)

$503.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 710589

Screw

Note: (Starter Motor)

$6.49

$

Usually ships in 2-12 days

0

311

Briggs & Stratton 496887

Brush Set

$29.99

$

Usually ships in 2-12 days

0

413

Briggs & Stratton 710081

Nut

Note: (Starter Motor)

$3.99

$

In Stock, only 2 left!

0

493B

Briggs & Stratton 691177

BRACKET, Mounting

Note: (Starter Solenoid)

$24.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 496881

Drive-Starter

$61.99

$

Usually ships in 2-12 days

0

544

Armature-Starter

Note: (Service With Starter Motor 715208)

$

$

Not available

555

Briggs & Stratton 810059

Screw

Note: (Starter Solenoid)

$6.99

$

Usually ships in 2-12 days

0

683

Briggs & Stratton 691029

NUT

Note: (Starter Solenoid)

$5.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 715394

Cap-Drive
(Superseded to 715208)

$503.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 715393

Cap-End

$38.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 690854

Housing-Starter

$69.99

$

Usually ships in 2-12 days

0

813

Briggs & Stratton 690635

CLAMP

$24.99

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 691656

SOLENOID, Starter

$31.99

$

In Stock, Qty 20+

0

1009

Briggs & Stratton 710348

Screw

Note: (Starter Motor)

$5.49

$

Usually ships in 2-12 days

0

1051A

Briggs & Stratton 691124

Ring-Retaining

$7.99

$

Usually ships in 2-12 days

0
