247437-0111-E1 - Briggs & Stratton Horizontal Engine CRANKCASE COVER, LUBRICATION Parts Diagram

Horizontal Engine

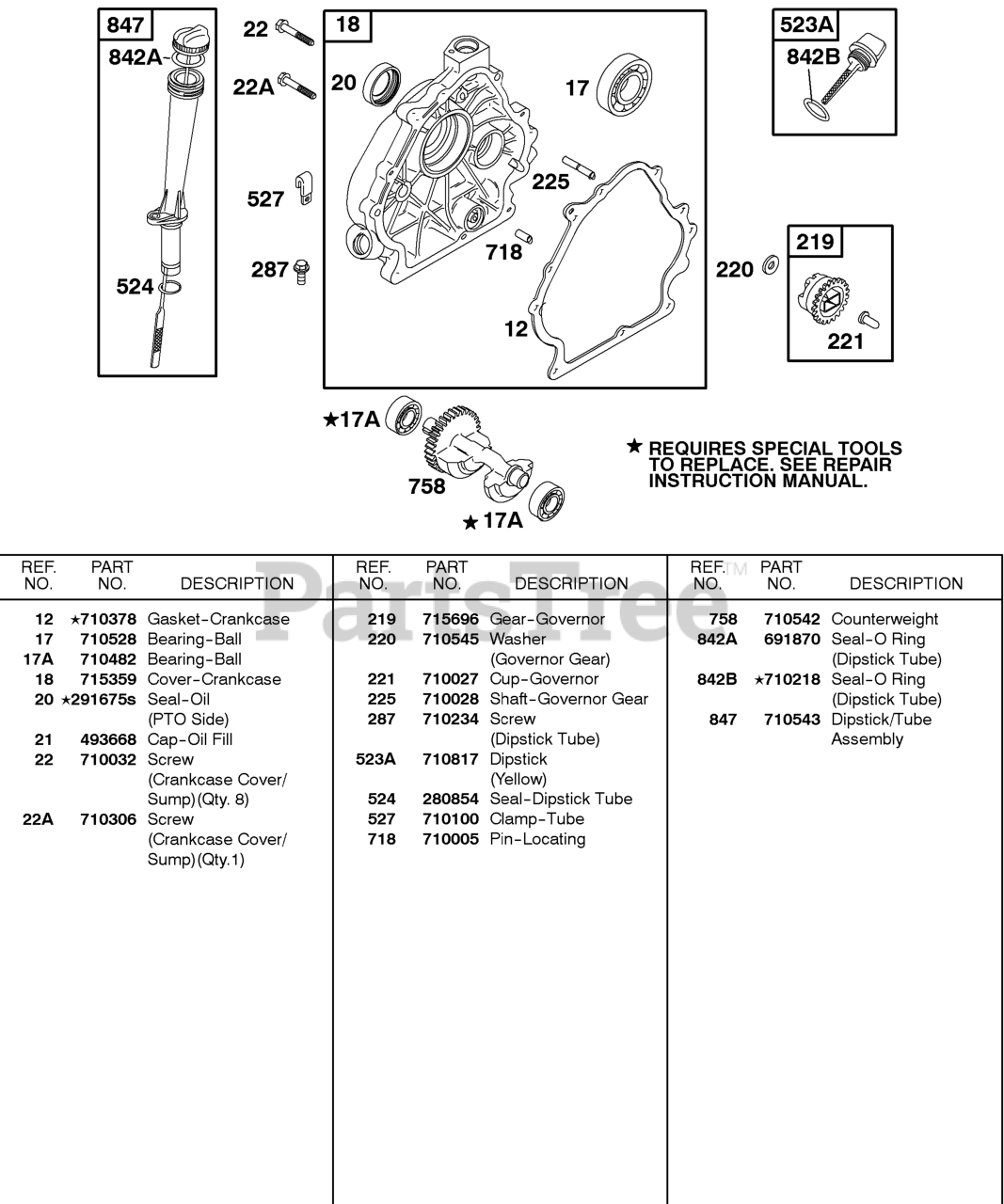

CRANKCASE COVER, LUBRICATION Parts Diagram

  • Title

12

Briggs & Stratton 710378

Gasket-Crankcase

$14.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 710528

Bearing-Ball

$36.99

$

Usually ships in 2-12 days

0

17A

Briggs & Stratton 710482

Bearing-Ball

$16.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 715359

Cover-Crankcase

$180.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 291675S

Seal-Oil

Note: (PTO Side)

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 710032

Screw

Note: (Crankcase Cover/Sump) (Quantity 8)

$4.99

$

Usually ships in 2-12 days

0

22A

Briggs & Stratton 710306

Screw

Note: (Crankcase Cover/Sump) (Quantity 1)

$5.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 715696

Gear-Governor

$42.99

$

Usually ships in 2-12 days

0

220

Briggs & Stratton 710545

Washer

Note: (Governor Gear)

$4.99

$

In Stock, only 1 left!

0

221

Briggs & Stratton 710027

Cup-Governor
(Superseded to 710872)

$5.99

$

Usually ships in 2-12 days

0

225

Briggs & Stratton 710028

Shaft-Governor Gear

$18.99

$

Usually ships in 2-12 days

0

287

Briggs & Stratton 710234

Screw

Note: (Dipstick Tube)

$4.99

$

Usually ships in 2-12 days

0

523A

Briggs & Stratton 710817

Dipstick

Note: (Yellow)

$14.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 280854

Seal-Dipstick Tube

$

$

Not available

527

Briggs & Stratton 710100

Clamp-Tube

$6.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 710005

Pin-Locating

$5.49

$

Usually ships in 2-12 days

0

758

Briggs & Stratton 710542

Counterweight
(Superseded to 712123)

$109.99

$

Usually ships in 2-12 days

0

842A

Briggs & Stratton 691870

Seal-O Ring

Note: (Dipstick Tube)

$4.49

$

Usually ships in 2-12 days

0

842B

Briggs & Stratton 710218

Seal-O Ring

Note: (Dipstick Tube)

$6.99

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 710543

Dipstick/Tube Assembly

$58.99

$

Usually ships in 2-12 days

0
