247.985400 (31AS2S1D793) - Craftsman Snow Thrower (2013) General Assembly Parts Diagram

Snow Thrower

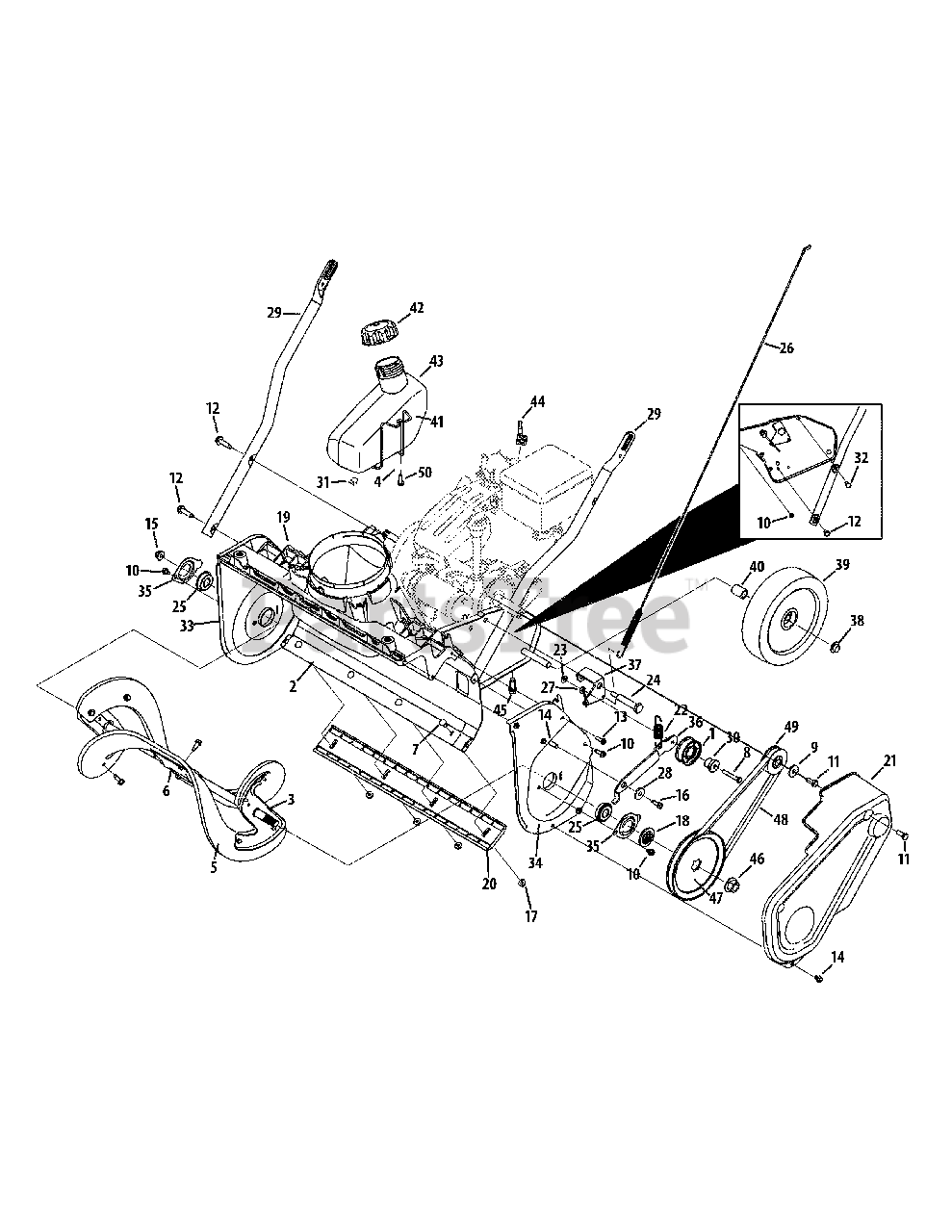

General Assembly Parts Diagram

  • Title

1

MTD 684-04168

Idler Pulley Assembly

$38.99

$

In Stock, only 1 left!

0

2

MTD 684-04398-4044

Frame
(Superseded to 753-11131A)

$138.99

$

In Stock, only 2 left!

0

3

MTD 684-04394-0637

Auger Assembly Axle

Note: (Not shown, w/o paddles and center auger bracket)

$50.99

$

In Stock, only 1 left!

0

3

MTD 984-04393

Auger Assembly Complete

$230.99

$

In Stock, only 1 left!

0

4

MTD 736-3092

Flat Washer, .265 x 1.000 x .030

$3.99

$

In Stock, Qty 9

0

5

MTD 753-06469

Auger Rubber Replacement Kit

Note: (Inc. 2 Paddles and 12 Hex Washer Screws)

$90.99

$

In Stock, Qty 20+

0

5

MTD 710-05058

Hex Washer Screw, 1/4-20 x .750

Note: (not shown)

$3.99

$

In Stock, Qty 8

0

6

MTD 790-00427-0637

Center Auger Bracket

$8.49

$

Usually ships in 3-6 days

0

6

MTD 710-0642

Hex Washer Bolt 1/4-20 x.750

Note: (replaces 710-05058 in this application) (4 bolts required for Center Auger Bracket)

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0778

Hex Washer Screw, 1/4-20 x 1.500

$4.49

$

In Stock, Qty 20+

0

9

MTD 736-0343

Flat Washer, .330 x 1.250 x .120

$4.49

$

In Stock, Qty 7

0

10

MTD 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0627

Hex Lock Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0817

Hex Washer Screw, 5/16-18 x 1.250

$6.99

$

In Stock, Qty 15

0

13

MTD 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.49

$

In Stock, only 4 left!

0

14

MTD 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

18

MTD 718-04836

Pulley Hub

$4.49

$

In Stock, Qty 5

0

19

MTD 931-07626B

Chute Adapter

$42.99

$

Usually ships in 3-6 days

0

20

MTD 731-08171

Shave Plate

$18.99

$

In Stock, Qty 20+

0

21

MTD 731-07737A

Belt Cover

$28.99

$

In Stock, only 3 left!

0

22

MTD 732-04748

Extension Spring, .70 x 3.035

$4.49

$

In Stock, only 1 left!

0

23

MTD 726-0233

Push Nut, .25 x .50

$4.49

$

In Stock, Qty 20+

0

24

MTD 738-04456

Shoulder Bolt, 5/16-24 x .496 x 2.18

$5.99

$

In Stock, Qty 6

0

25

MTD 741-04517

Ball Bearing

$8.99

$

In Stock, only 2 left!

0

26

MTD 946-04701

Clutch Cable

$23.99

$

In Stock, Qty 11

0

27

MTD 747-05360A

Drive Cable Wire Support

$3.99

$

Usually ships in 3-6 days

0

28

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

29

MTD 749-04810-0637

Lower Handle

$12.99

$

Usually ships in 3-6 days

0

30

MTD 750-04571

Shoulder Spacer, .260 x .785 x .538

$6.99

$

In Stock, only 3 left!

0

31

MTD 726-0205

Hose Clamp, .490

$3.99

$

In Stock, Qty 20+

0

32

MTD 710-05183

Hex Screw, 5/16-24 x 1.25

$4.49

$

Usually ships in 3-6 days

0

33

MTD 790-00444-4044

RH Auger Plate

$45.99

$

In Stock, only 1 left!

0

34

MTD 790-00445-4044

LH Auger Plate

$45.99

$

Usually ships in 3-6 days

0

35

MTD 790-00457-4044

Bearing Cup

$13.99

$

Usually ships in 3-6 days

0

36

MTD 790-00461-0637

Idler Bracket

$4.49

$

Usually ships in 3-6 days

0

37

MTD 790-00426-0637

Cable Idler Bracket

$8.99

$

Usually ships in 3-6 days

0

38

MTD 726-0299

Push Cap, 1/2

$8.49

$

In Stock, Qty 20+

0

39

MTD 734-04063A

Wheel, 7"
(Superseded to 734-04063B)

$18.99

$

In Stock, only 3 left!

0

40

MTD 750-04432

Spacer, .525 x .775 x .835

$4.49

$

Usually ships in 3-6 days

0

41

MTD 747-05513

Gas Tank Wire Support

$11.99

$

In Stock, only 1 left!

0

42

MTD 751-14006

Fuel Cap
(Superseded to 751-10487C)

$16.99

$

In Stock, Qty 5

0

43

MTD 751-14001

Fuel Tank, 2 quart
(Superseded to 751-14001A)

$44.99

$

Usually ships in 3-6 days

0

44

MTD 731-07664

Choke Extension Lever

$4.99

$

Usually ships in 3-6 days

0

45

MTD 710-0654A

Hex Washer Screw, 3/8-16 x 1.000

$4.49

$

In Stock, Qty 20+

0

46

MTD 912-0702

Flange Nut, 9/16-20

$18.99

$

In Stock, only 1 left!

0

47

MTD 756-04443

Pulley, 1/2 x 6.00

$23.99

$

In Stock, only 4 left!

0

48

MTD 954-04050

Belt, .500 x 35.06
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

49

MTD 956-0416B

Pulley Half, .625 x 2.25

$10.99

$

In Stock, only 2 left!

0

50

MTD 710-04065

Tri-Plask Screw, 1/4-10 x .625

$6.49

$

In Stock, Qty 20+

0

MTD 952Z265-JU-12

Engine

Note: (not shown)

$787.99

$

Usually ships in 3-6 days

0
