247.985400 (31AS2S1D793) - Craftsman Snow Thrower (2012) (Sears) Handle & Shroud Parts Diagram

Snow Thrower

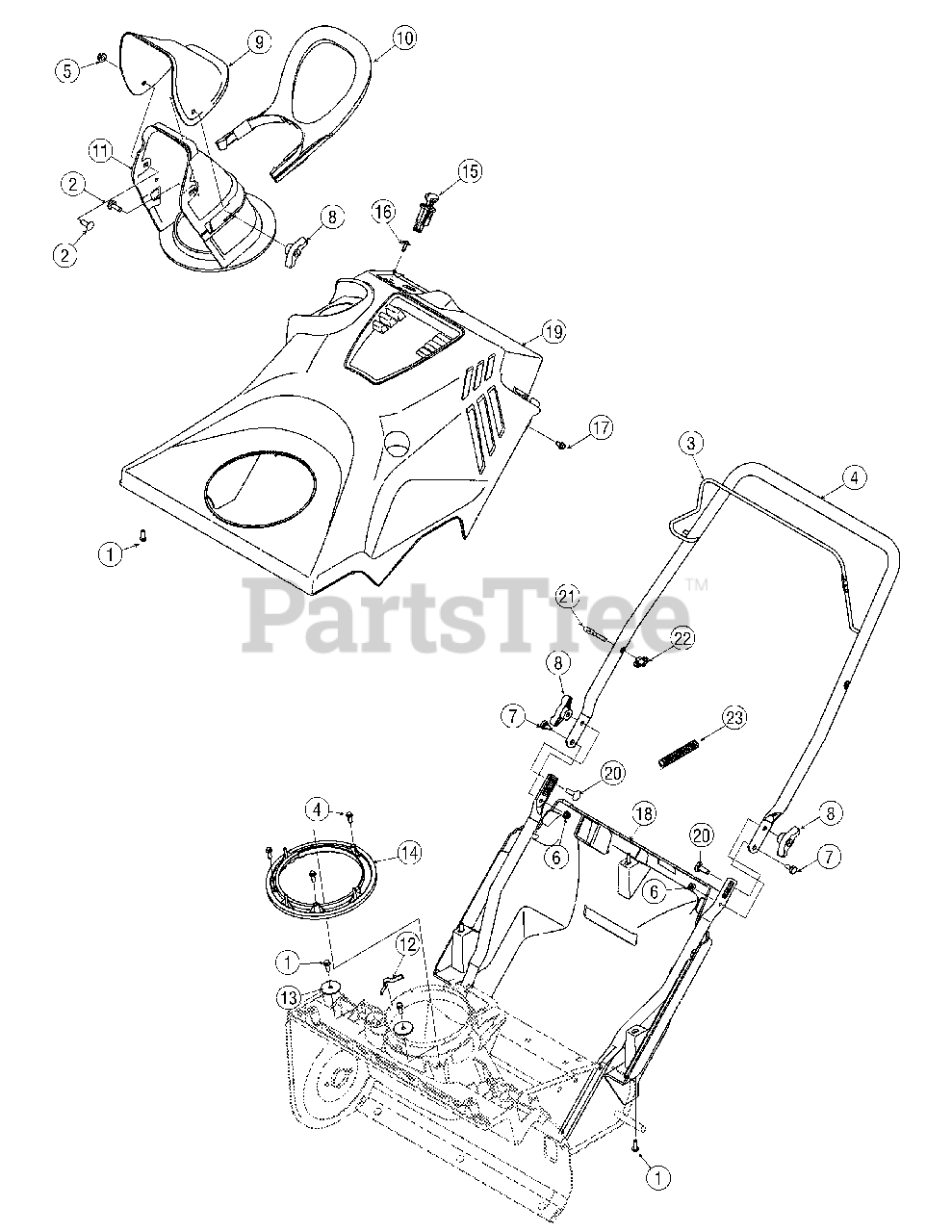

Handle & Shroud Parts Diagram

  • Title

1

MTD 710-0895

Screw, 1/4-15 x 0.75

$6.49

$

In Stock, Qty 5

0

2

MTD 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

3

MTD 747-05490A

Auger Control

Variations

MTD 747-05490A-0637

Operator Bail - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

4

MTD 749-04808

Upper Handle

Variations

MTD 749-04808-0637

Upper Handle, Snow - POWDER BLACK (0637)

$26.99

$

In Stock, only 1 left!

0

$23.99

$

Usually ships in 3-6 days

0

5

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

MTD 738-04419A

Shoulder Screw, 1/4-20 x .375 x .148

$4.49

$

In Stock, Qty 14

0

8

MTD 720-04122

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 5

0

9

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, only 4 left!

0

10

MTD 731-07644

Chute Handle

$25.99

$

In Stock, only 1 left!

0

11

MTD 931-07753A

Lower Chute

$35.99

$

Usually ships in 3-6 days

0

12

MTD 932-04111

Chute Adjustment Spring

$4.99

$

In Stock, Qty 6

0

13

MTD 736-04576

Flat Washer, .28 x 1.51 x .066

$3.99

$

Usually ships in 3-6 days

0

14

MTD 731-08274

Chute Ring

$13.99

$

In Stock, only 1 left!

0

15

MTD 925-04031A

Ignition Switch Assembly
(Superseded to 951-10637)

$14.99

$

In Stock, only 1 left!

0

15

MTD 731-05632

Key, Ignition
(Superseded to 951-10630)

Note: (not shown)

$6.99

$

In Stock, Qty 7

0

16

MTD 710-04187

Hex Washer Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 7

0

17

MTD 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

18

MTD 731-07725

Bottom Cover
(Superseded to 731-07725B)

$56.99

$

In Stock, only 1 left!

0

19

MTD 931-04578A

Top Cover
(Superseded to 931-04578C)

$74.99

$

Usually ships in 3-6 days

0

20

MTD 710-04998

Carriage Screw, 5/16-18 x 1.00

$5.99

$

Usually ships in 3-6 days

0

21

MTD 710-05348

Eye Bolt, 1/4-20

$3.99

$

In Stock, only 1 left!

0

22

MTD 720-0279

Handle Knob

$4.49

$

Usually ships in 3-6 days

0

23

MTD 731-08631

Conduit, .375

$1.49

$

Usually ships in 3-6 days

0
