247.985390 (31AH55TH793) - Craftsman Snow Thrower (2012) (Sears) Drive Assembly Parts Diagram

Snow Thrower

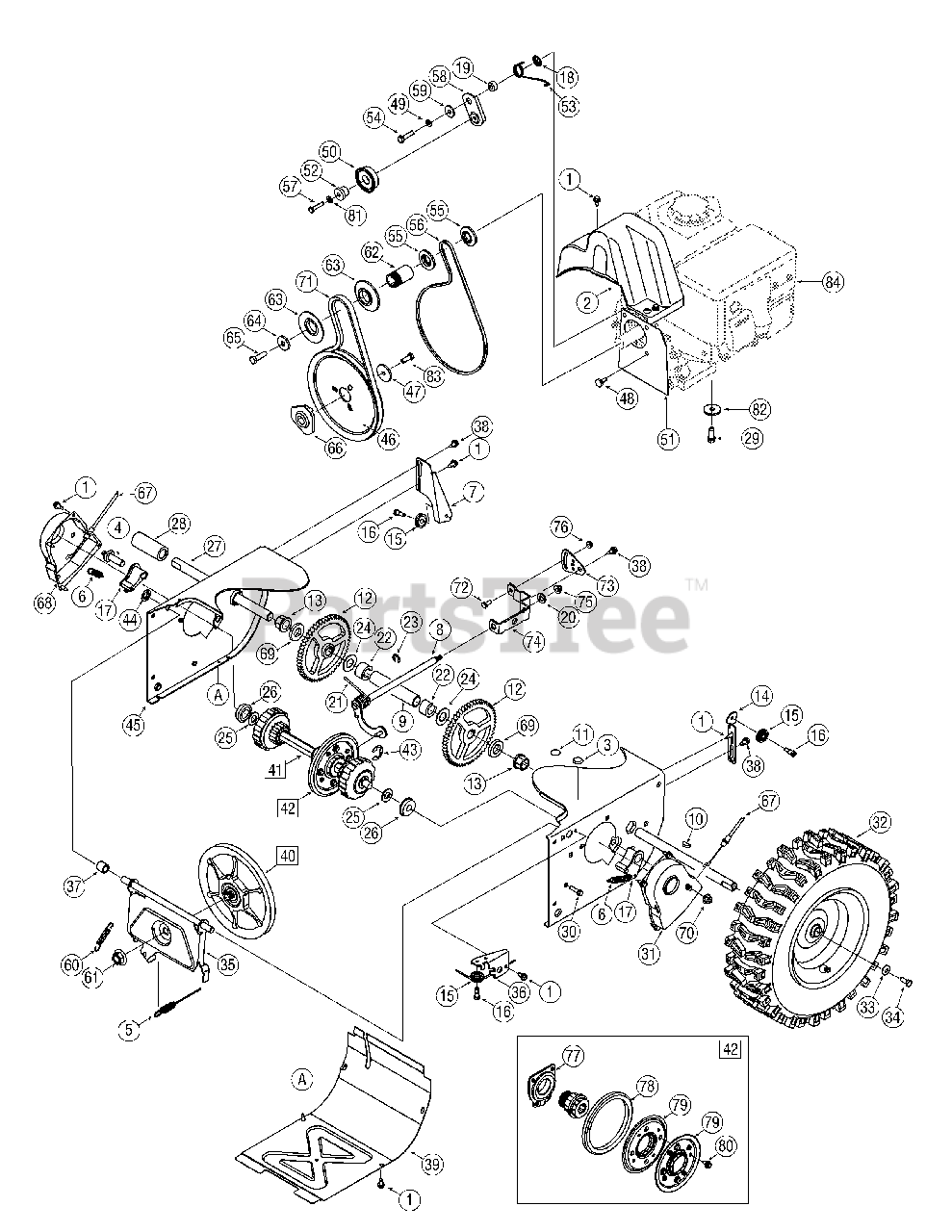

Drive Assembly Parts Diagram

  • Title

1

MTD 710-1652

AB Screw, 1/4-20 x 0.625

$4.49

$

In Stock, Qty 20+

0

2

MTD 731-06401

Belt Cover
(Superseded to 753-09065)

$27.99

$

In Stock, Qty 11

0

3

MTD 735-04099

Plug, 3/8 ID

$5.99

$

Usually ships in 3-6 days

0

4

MTD 711-1268B

Actuator Shaft

$10.99

$

Usually ships in 3-6 days

0

5

MTD 946-04229B

Drive Clutch Cable

$21.99

$

In Stock, Qty 20+

0

6

MTD 732-04345

Extension Spring

$10.99

$

In Stock, only 1 left!

0

7

MTD 790-00207C

Drive Clutch Cable Guide Bracket
(Superseded to 790-03997)

$5.49

$

In Stock, only 4 left!

0

8

MTD 684-04156A

Shift Rod Assembly

$61.99

$

Usually ships in 3-6 days

0

9

MTD 750-04474

Axle Support Tube

$42.99

$

In Stock, only 1 left!

0

10

MTD 914-0126

Hi Pro Key
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 18

0

11

MTD 735-04100

Plug, 1/2 ID

$5.99

$

Usually ships in 3-6 days

0

12

MTD 917-04210

Gear, 56T

$79.99

$

Usually ships in 3-6 days

0

13

MTD 941-0245

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

14

MTD 790-00206A-0637

Auger Clutch Cable Guide Bracket
(Superseded to 790-00206B)

$8.49

$

In Stock, only 1 left!

0

15

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 16

0

16

MTD 738-0924A

C Screw, 1/4-28 x 0.375

$6.99

$

In Stock, Qty 5

0

17

MTD 618-04288

Dogg Assembly - LH

$21.99

$

Usually ships in 3-6 days

0

17

MTD 618-04287

Dogg Assembly - RH

$23.99

$

Usually ships in 3-6 days

0

18

MTD 926-04012

Push-on Nut
(Superseded to 726-04012)

$

$

Not available

19

MTD 750-04477A

Spacer

$5.49

$

In Stock, only 4 left!

0

20

MTD 936-3015

Washer, Flat

$4.49

$

In Stock, only 1 left!

0

21

MTD 732-04311A

Torsion Spring, .750ID x .968 Lg.

$10.99

$

In Stock, only 1 left!

0

22

MTD 731-05297

Spacer

$9.99

$

In Stock, only 2 left!

0

23

MTD 916-0104

E Ring

$3.99

$

In Stock, Qty 15

0

24

MTD 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0626

Flat Washer

$9.49

$

In Stock, only 2 left!

0

26

MTD 741-04076

Ball Bearing

$14.99

$

In Stock, Qty 16

0

27

MTD 938-04180

Axle

$70.99

$

In Stock, only 2 left!

0

28

MTD 731-04873

Spacer

$10.99

$

In Stock, only 2 left!

0

29

MTD 710-0654A

TT Sems Screw, 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

30

MTD 710-0788

TT Screw, 1/4-20 x 1.0

$7.49

$

In Stock, only 4 left!

0

31

MTD 790-00185-0691

Shaft Retainer - LH

$28.99

$

Usually ships in 3-6 days

0

32

MTD 634-04136-0911

Wheel Complete - LH

$283.99

$

Usually ships in 3-6 days

0

32

MTD 634-04137-0911

Wheel Complete - RH

$268.99

$

Usually ships in 3-6 days

0

33

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

34

MTD 710-0627

Hex Bolt, 5/16-24 x 0.75

$4.49

$

In Stock, Qty 20+

0

35

MTD 684-04154B-0637

Friction Wheel Support Brkt. Assy.

$41.99

$

Usually ships in 3-6 days

0

36

MTD 790-00096-0637

Auger Cable Guide Bracket
(Superseded to 790-00096B-0637)

$9.49

$

In Stock, only 1 left!

0

37

MTD 748-0190

Spacer

$6.49

$

In Stock, only 1 left!

0

38

MTD 738-04184A

Shoulder Screw

$6.99

$

In Stock, Qty 15

0

39

MTD 790-00316-0637

Frame Cover

$47.99

$

In Stock, only 1 left!

0

40

MTD 656-04055

Friction Wheel Disc Assembly
(Superseded to 656-04055A)

$59.99

$

Usually ships in 3-6 days

0

41

MTD 918-04322A

Drive Shaft Assembly

$495.99

$

Usually ships in 3-6 days

0

42

MTD 684-04159

Friction Wheel Assembly
(Superseded to 684-04159C)

$96.99

$

In Stock, only 2 left!

0

43

MTD 716-0136

Retainer Ring

$8.99

$

In Stock, only 2 left!

0

44

MTD 726-0221

Speed Nut

$6.49

$

In Stock, only 1 left!

0

45

MTD 790-00183B-0637

Wheel Drive Frame
(Superseded to 790-00183E-0637)

$106.99

$

Usually ships in 3-6 days

0

46

MTD 756-04109

Auger Pulley

$54.99

$

In Stock, only 2 left!

0

47

MTD 736-0505

Flat Washer

$6.49

$

In Stock, only 2 left!

0

48

MTD 738-04439

Shoulder Screw

$3.99

$

In Stock, Qty 6

0

49

MTD 936-0119

Lock Washer

$4.99

$

In Stock, Qty 20+

0

50

MTD 684-04169

Idler Pulley Assembly

$34.99

$

In Stock, only 2 left!

0

51

MTD 790-00332-0637

Plt., Cvr.
(Superseded to 790-00332A)

$6.49

$

Usually ships in 3-6 days

0

52

MTD 750-04571

Spacer

$6.99

$

In Stock, only 3 left!

0

53

MTD 732-04308B

Torsion Spring

$

$

Currently unavailable

54

MTD 710-0672

Hex Screw, 5/16-24 x 1.25

$4.49

$

In Stock, Qty 18

0

55

MTD 756-04252

Pulley Half

$6.49

$

In Stock, only 1 left!

0

56

MTD 954-04201A

Belt, Wheel Drive

$34.99

$

In Stock, Qty 20+

0

57

MTD 710-0809

TT Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

58

MTD 790-00208C

Drive Clutch Idler Bracket
(Superseded to 790-00208D)

$8.99

$

Usually ships in 3-6 days

0

59

MTD 748-04112B

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

60

MTD 932-0264

Extension Spring

$4.99

$

In Stock, Qty 20+

0

61

MTD 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

62

MTD 750-04303

Spacer

$17.99

$

In Stock, only 1 left!

0

63

MTD 756-04113

Pulley Half
(Superseded to 756-06563)

$3.99

$

In Stock, Qty 6

0

64

MTD 736-0247

Flat Washer

$9.49

$

In Stock, Qty 15

0

65

MTD 710-0191

Hex Bolt, 3/8-24 x 1.25

$4.99

$

In Stock, Qty 8

0

66

MTD 748-04053A

Pulley Adapter

$22.99

$

In Stock, only 1 left!

0

67

MTD 946-0956B

Steering Cable
(Superseded to 946-0956C)

$23.99

$

In Stock, Qty 7

0

68

MTD 790-00186-0691

Shaft Retainer - RH

$26.99

$

Usually ships in 3-6 days

0

69

MTD 750-0767

Axle Spacer

$5.99

$

Usually ships in 3-6 days

0

70

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

71

MTD 954-04195

V-Belt,.500 x 37.00 Lg
(Superseded to 954-04195A)

$34.99

$

In Stock, Qty 20+

0

72

MTD 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

73

MTD 790-00217A-0637

Speed Selector Pivot Bracket
(Superseded to 790P01117)

$53.99

$

In Stock, only 1 left!

0

74

MTD 790-00218A-0637

Speed Selector Shift Bracket
(Superseded to 790-00218A)

$47.99

$

Usually ships in 3-6 days

0

75

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

76

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

77

MTD 618-0063A

Friction Wheel Bearing Assembly

$92.99

$

Usually ships in 3-6 days

0

78

MTD 935-04054

Friction Wheel
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

79

MTD 790-00174

Friction Plate
(Superseded to 790-00174C)

$14.99

$

Usually ships in 3-6 days

0

80

MTD 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

81

MTD 936-0329

Lock Washer

$4.49

$

In Stock, Qty 11

0

82

MTD 736-0320

Washer, Flat, .38 x 1.38 x .125

$6.99

$

In Stock, Qty 7

0

83

MTD 710-1245B

Hex Bolt, 5/16-24 x 0.875

$8.49

$

In Stock, only 2 left!

0

84

MTD 952Z483-SUB

Replacement Engine
(Superseded to 952Z683-WUB)

$1500.99

$

Usually ships in 3-6 days

0
