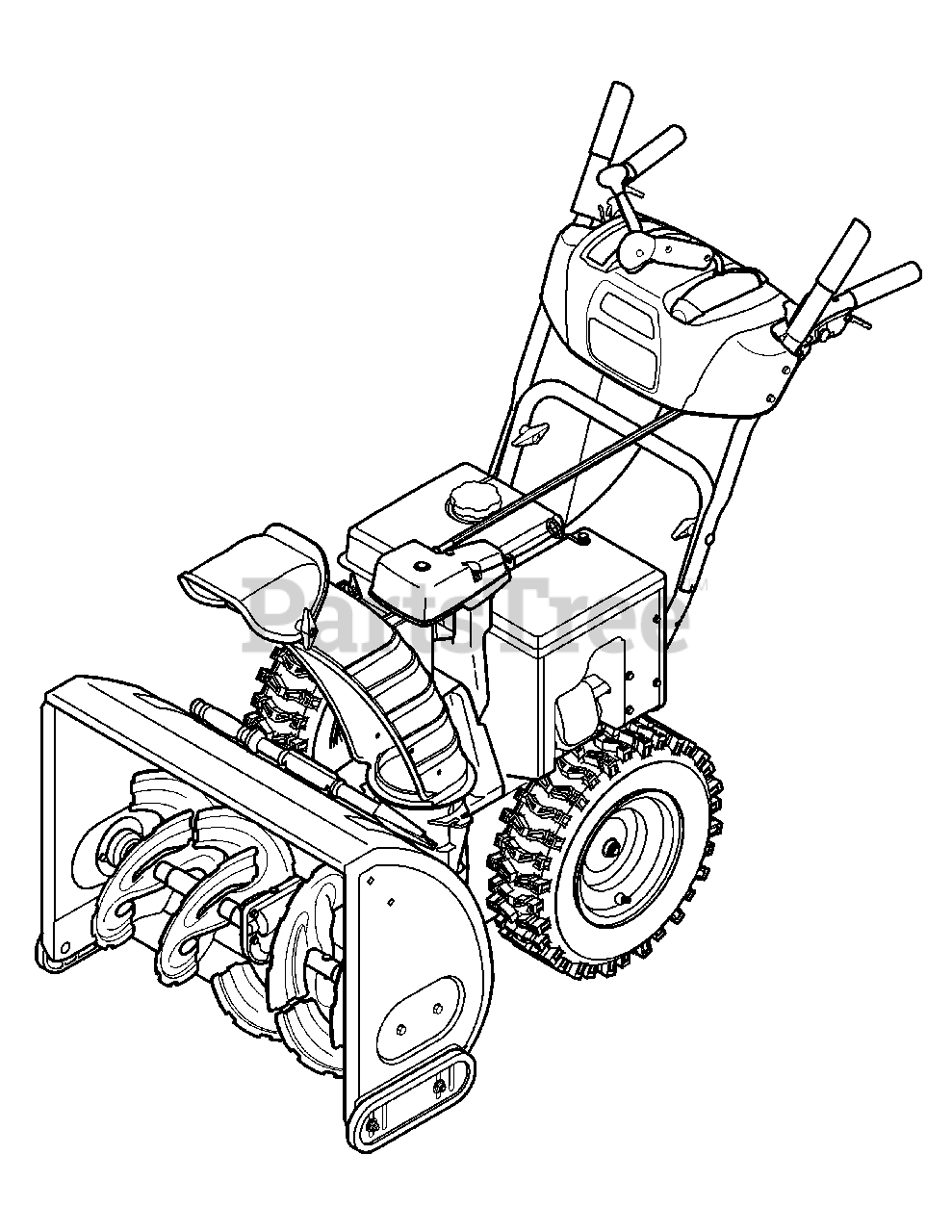

247.985380 (31AH54SG793) - Craftsman Snow Thrower (2012) (Sears) .Quick Reference Parts Diagram

Snow Thrower

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

MTD 951-10630

Key, Ignition

Note: (same as 731-05632)

$6.99

$

In Stock, only 3 left!

0

MTD 929-0071A

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0

MTD 931-2643

Snow Removal Tool

$19.99

$

In Stock, Qty 11

0

MTD 946-04229B

Drive Cable

$21.99

$

In Stock, Qty 20+

0

MTD 946-04230A

Auger Cable
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

MTD 946-04396A

Speed Cable

$20.99

$

In Stock, Qty 20+

0

MTD 946-0956B

Steering Cable
(Superseded to 946-0956C)

$23.99

$

In Stock, Qty 15

0

MTD 684-04107-4044

Auger Assembly - LH
(Superseded to 684-04107A-4044)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04108-4044

Auger Assembly - RH
(Superseded to 684-04108A-4044)

$94.99

$

In Stock, Qty 10

0

MTD 684-04057A-0637

Impeller Assembly
(Superseded to 684-04057C-0637)

$73.99

$

In Stock, Qty 20+

0

MTD 790-00118-0691

Shave Plate
(Superseded to 790-00118-0637)

$37.99

$

In Stock, Qty 20+

0

MTD 731-05984A

Slide Shoe, Polymer Reversible

$30.99

$

In Stock, Qty 6

0

MTD 753-06205

Polymer Reversible Shoe Kit

Note: (Will replace 731-05984A, includes hardware & 2 shoes)

$45.99

$

In Stock, only 3 left!

0

MTD 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

$11.99

$

In Stock, Qty 11

0

MTD 954-04195

Auger Drive Belt
(Superseded to 954-04195A)

$34.99

$

In Stock, Qty 20+

0

MTD 954-04201A

Wheel Drive Belt

$34.99

$

In Stock, Qty 15

0

MTD 684-04159

Friction Wheel Assembly
(Superseded to 684-04159C)

$96.99

$

In Stock, only 1 left!

0

MTD 935-04054

Friction Wheel Rubber
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

MTD 634-04145-0911

Wheel - LH

$268.99

$

Usually ships in 3-6 days

0

MTD 634-04146-0911

Wheel - RH

$267.99

$

Usually ships in 3-6 days

0

MTD 490-290-0010

Snow Cover

Note: (Optional)

$47.99

$

In Stock, only 4 left!

0

MTD 490-241-0032

Snow Cab

Note: (Optional)

$160.99

$

Usually ships in 3-6 days

0

MTD 490-241-0034

Garage Floor Mat
(Superseded to 735-04255)

Note: (Optional)

$

$

Not available

MTD 490-850-0008

Gas & Oil Siphon

Note: (Optional)

$18.99

$

In Stock, Qty 13
