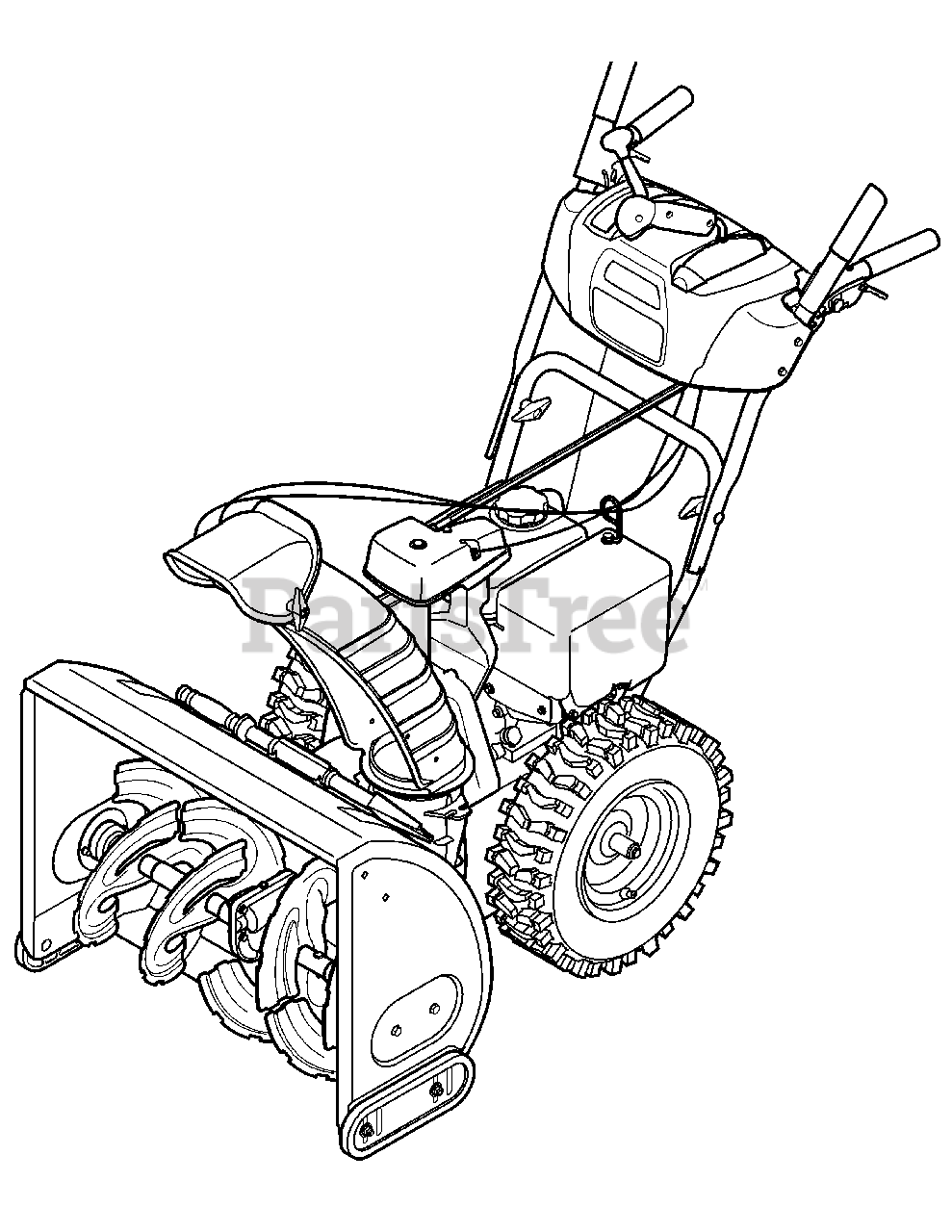

247.985370 (31AS53SF793) - Craftsman Snow Thrower (2012) (Sears) .Quick Reference Parts Diagram

Snow Thrower

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

MTD 951-10630

Key, Ignition

Note: (same as 731-05632)

$6.99

$

Usually ships in 3-6 days

0

MTD 929-0071A

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

MTD 931-2643

Snow Removal Tool

$19.99

$

In Stock, Qty 16

0

MTD 946-04229B

Drive Cable

$21.99

$

In Stock, Qty 20+

0

MTD 946-04230A

Auger Cable
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

MTD 946-04396A

Speed Cable

$20.99

$

In Stock, Qty 20+

0

MTD 946-0956B

Steering Cable
(Superseded to 946-0956C)

$23.99

$

In Stock, Qty 20+

0

MTD 684-04107-0637

Auger Assembly - LH
(Superseded to 684-04107A-0637)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04108-0637

Auger Assembly - RH
(Superseded to 684-04108A-0637)

$94.99

$

In Stock, Qty 10

0

MTD 684-04057A-0637

Impeller Assembly
(Superseded to 684-04057C-0637)

$73.99

$

In Stock, Qty 20+

0

MTD 790-00121-0637

Shave Plate

$36.99

$

In Stock, Qty 20+

0

MTD 731-06439

Slide Shoe, Standard Polymer

$21.99

$

In Stock, Qty 19

0

MTD 753-06206

Standard Polymer Reversible Shoe Kit

Note: (Will replace 731-06439, includes hardware & 2 shoes)

$54.99

$

In Stock, Qty 8

0

MTD 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

MTD 954-04050

Auger Drive Belt
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

MTD 954-04260

Wheel Drive Belt

$28.99

$

In Stock, Qty 20+

0

MTD 684-04159

Friction Wheel Assembly
(Superseded to 684-04159C)

$96.99

$

In Stock, only 1 left!

0

MTD 935-04054

Friction Wheel Rubber
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

MTD 634-04167A-0911

Wheel Complete - LH

$189.99

$

In Stock, Qty 5

0

MTD 634-04168A-0911

Wheel Complete - RH

$189.99

$

Usually ships in 3-6 days

0

MTD 490-290-0010

Snow Cover

Note: (Optional)

$47.99

$

In Stock, only 4 left!

0

MTD 490-241-0032

Snow Cab

Note: (Optional)

$160.99

$

In Stock, only 1 left!

0

MTD 490-241-0034

Garage Floor Mat
(Superseded to 735-04255)

Note: (Optional)

$

$

Not available
