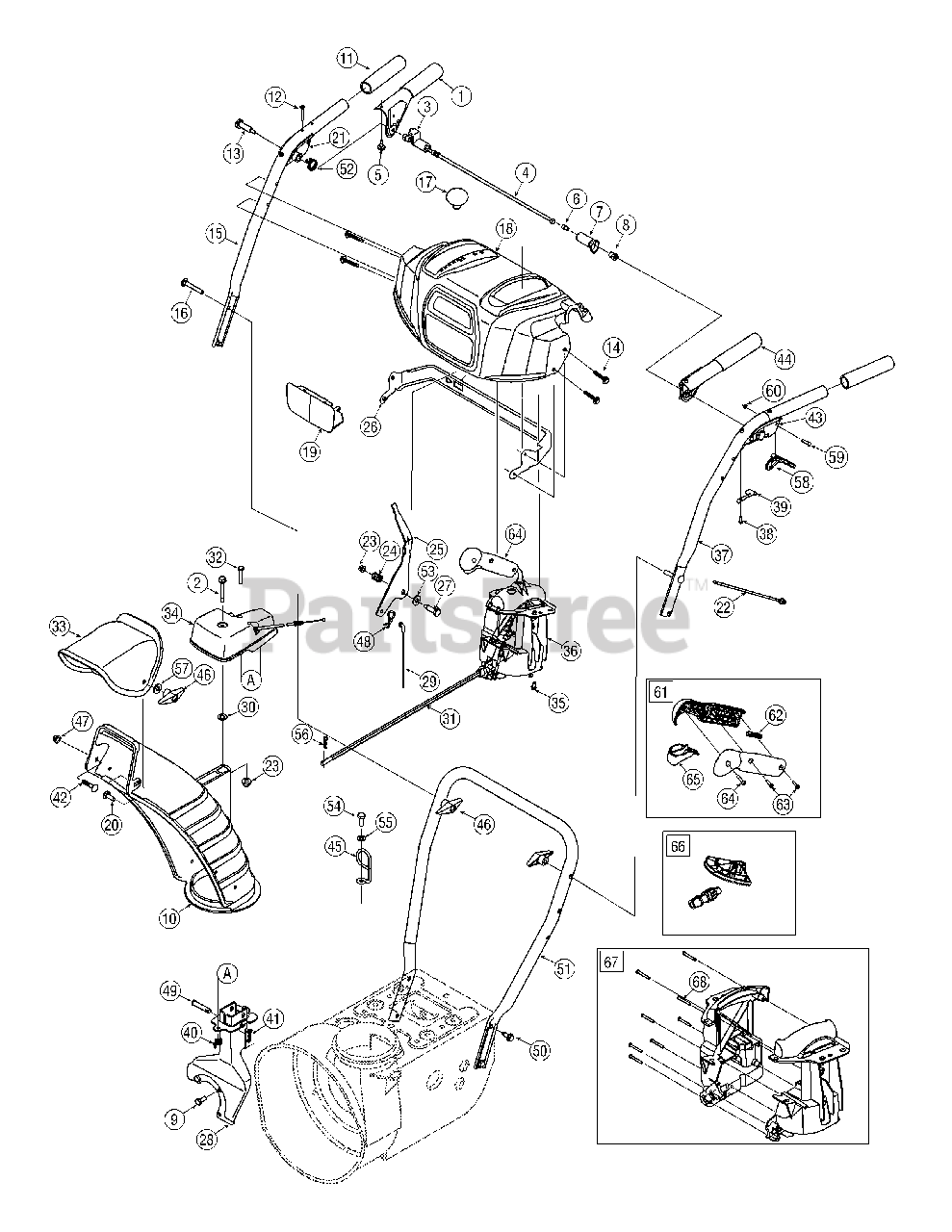

247.985370 (31AS53SF793) - Craftsman Snow Thrower (2012) (Sears) Handle Panel Parts Diagram

Snow Thrower

Handle Panel Parts Diagram

  • Title

1

MTD 684-04112C

Handle Engagement Assembly RH
(Superseded to 684-04112D)

$21.99

$

Usually ships in 3-6 days

0

2

MTD 738-04367

Flange Shoulder Screw

$4.99

$

In Stock, Qty 8

0

3

MTD 731-04894D

Lock Plate

$5.49

$

In Stock, Qty 9

0

4

MTD 684-04250

Pivot Rod

$12.99

$

In Stock, only 2 left!

0

5

MTD 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

6

MTD 710-3069

Screw, 1/4-20 x .500

$4.99

$

In Stock, Qty 10

0

7

MTD 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-04081A

Shoulder Nut, 1/4-20

$7.49

$

In Stock, Qty 20+

0

9

MTD 710-0627

Hex Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

10

MTD 731-06440A

Lower Chute

$51.99

$

In Stock, Qty 16

0

11

MTD 720-0274

Handle Grip

$11.99

$

In Stock, Qty 8

0

12

MTD 710-1233

Screw, #10-24 x 0.375

$4.99

$

In Stock, Qty 11

0

13

MTD 738-04348

Shoulder Screw, 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-04586

Screw, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

15

MTD 749-04190A-0637

Upper Handle RH

$45.99

$

Usually ships in 3-6 days

0

16

MTD 710-0572

Carriage Screw, 5/16-18 x 2.25

$4.49

$

In Stock, Qty 20+

0

17

MTD 720-04039

Shift Knob

$10.99

$

In Stock, only 1 left!

0

18

MTD 753-06437

Handle Panel

$108.99

$

Usually ships in 3-6 days

0

19

MTD 731-05324

Lens

$14.99

$

Usually ships in 3-6 days

0

20

MTD 710-04071

Carriage Bolt, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 10

0

21

MTD 631-04134B

Handle Clutch Lock RH Assembly

$15.99

$

Usually ships in 3-6 days

0

22

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

23

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

MTD 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

25

MTD 790-00311A-0637

Shift Lever
(Superseded to 790-00311C-0637)

$27.99

$

In Stock, Qty 5

0

26

MTD 790-00248C-0637

Panel Bracket
(Superseded to 790-00248E-0637)

$24.99

$

In Stock, Qty 5

0

27

MTD 738-04125

Shoulder Screw

$4.99

$

In Stock, only 3 left!

0

28

MTD 684-04311A-0637

Chute Support Bracket

$42.99

$

Usually ships in 3-6 days

0

29

MTD 946-04396A

Speed Selector Cable

$20.99

$

In Stock, Qty 20+

0

30

MTD 736-04446

Flat Washer, .25 x .630 x .0515

$4.49

$

In Stock, Qty 20+

0

31

MTD 747-05116

Chute Rod

$30.99

$

In Stock, Qty 10

0

32

MTD 710-04370

Hex Screw, 1/4-20 x 3.00

$4.49

$

In Stock, Qty 8

0

33

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 11

0

34

MTD 918-04801A

Gearbox Assembly
(Superseded to 918-04801B)

$128.99

$

In Stock, Qty 13

0

35

MTD 710-04187

Hi-Lo Screw, 1/4-15 x 0.5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

36

MTD 984-04348

2-Way Chute Control Assembly

$130.99

$

In Stock, only 2 left!

0

37

MTD 749-04191A-0637

Upper Handle LH

$45.99

$

Usually ships in 3-6 days

0

38

MTD 710-04326

Screw, #8-16 x 0.50

$3.99

$

In Stock, only 2 left!

0

39

MTD 732-04219C

Clutch Lock Spring

$4.49

$

In Stock, Qty 20+

0

40

MTD 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

41

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

42

MTD 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

43

MTD 631-04133A

Handle Clutch Lock LH Assembly

$15.99

$

In Stock, Qty 7

0

44

MTD 684-04111B

Handle Engagement Assembly
(Superseded to 684-04111D)

$22.99

$

Usually ships in 3-6 days

0

45

MTD 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

46

MTD 920-0284

Wing Knob
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

47

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

48

MTD 914-0145

Click Pin
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

49

MTD 711-04469A

Clevis Pin

$5.99

$

In Stock, only 2 left!

0

50

MTD 710-04484

Screw, 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

51

MTD 749-04138A-0637

Lower Handle
(Superseded to 749-04138C-0637)

$88.99

$

Usually ships in 3-6 days

0

52

MTD 732-04238

Torsion Spring
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 10

0

53

MTD 936-0267

Flat Washer
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

54

MTD 710-04022

Screw, M8-1.25
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

55

MTD 936-0264

Flat Washer, .330 x .630 x .0635

$6.99

$

In Stock, only 2 left!

0

56

MTD 914-0101

Cotter Pin
(Superseded to 714-0101)

$

$

Not available

57

MTD 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

58

MTD 731-06113

Steering Control

$4.99

$

In Stock, Qty 20+

0

59

MTD 738-04126

Pin, 3/16

$3.99

$

In Stock, Qty 20+

0

60

MTD 716-04036

E-Ring

$6.49

$

In Stock, Qty 20+

0

61

MTD 753-06151

Handle Assembly

$28.99

$

In Stock, Qty 8

0

62

MTD 731-04893A

Handle Plunger

$6.49

$

Usually ships in 3-6 days

0

63

MTD 710-04879

Screw, Mach., #8-32 x .750

$3.49

$

Usually ships in 3-6 days

0

64

MTD 710-04353

Screw, #8 x 1.00

$6.99

$

Usually ships in 3-6 days

0

65

MTD 731-07031

Handle Lever

$7.49

$

Usually ships in 3-6 days

0

66

MTD 753-06152

Gear Set Assembly

$25.99

$

In Stock, only 2 left!

0

67

MTD 753-06154

Handle Housing Assembly

$52.99

$

Usually ships in 3-6 days

0

68

MTD 710-1256

Screw, #8-18 x 1.250

$5.99

$

In Stock, only 2 left!

0
