247.889981 (12AE764Y099) - Craftsman Walk-Behind Mower (2011) (Sears) Transaxle Parts Diagram

Walk-Behind Mower

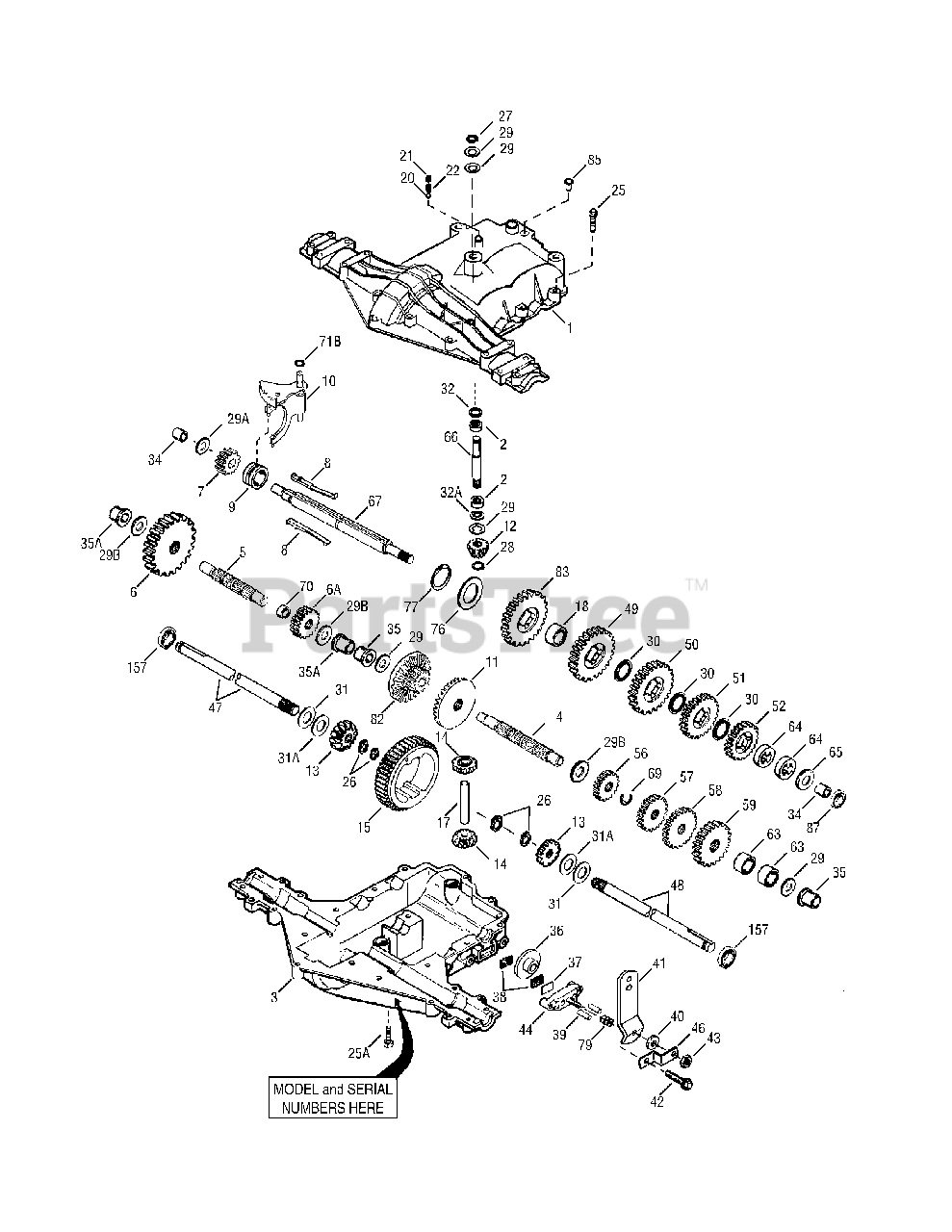

Transaxle Parts Diagram

  • Title

1

MTD TC-772147

Transaxle Cover
(Superseded to TC-772157A)

$194.99

$

Usually ships in 3-6 days

0

2

MTD TC-780086A

Needle Bearing (¹/2" long)
(Superseded to TC-780086)

$12.99

$

In Stock, Qty 20+

0

3

MTD TC-770128A

Transaxle Case
(Superseded to TC-770148A)

$157.99

$

Usually ships in 3-6 days

0

4

MTD TC-776395

Countershaft

$25.99

$

In Stock, only 1 left!

0

5

MTD TC-776409

Output Shaft

$27.99

$

Usually ships in 3-12 days

0

6

MTD TC-778364

Spur Gear (38T-PM/SER)

$33.99

$

Usually ships in 3-12 days

0

6A

MTD TC-778369

Spur Gear (15T-PM/SER)

$

$

Not available

7

MTD TC-778330

Spur Gear (11T-PM/SER)

$22.99

$

Usually ships in 3-12 days

0

8

MTD TC-792180A

Shift Key Set (Qty. 2)

$26.99

$

Usually ships in 3-12 days

0

9

MTD TC-784352

Shift Collar

$17.99

$

In Stock, only 2 left!

0

10

MTD TC-784378

Shift Rod & Fork Assembly
(Superseded to TC-784378A)

$

$

Not available

11

MTD TC-778334

Bevel Gear (30T-PM)

$25.99

$

Usually ships in 3-12 days

0

12

MTD TC-778309

Input Bevel Pinion (13T-PM)

$10.99

$

In Stock, only 2 left!

0

13

MTD TC-778368

Bevel Gear 13T (Incl. ref. 13 & 14)

$48.99

$

Usually ships in 3-12 days

0

14

MTD TC-778368

Bevel Gear 13T (Incl. ref. 13 & 14)

$48.99

$

Usually ships in 3-12 days

0

15

MTD TC-778370

Ring Gear (43T)

$49.99

$

Usually ships in 3-12 days

0

17

MTD TC-786188

Drive Pin

$31.99

$

Usually ships in 3-12 days

0

18

MTD TC-786102

Spacer (1.130" x .695")

$14.99

$

Usually ships in 3-12 days

0

20

MTD TC-792077A

Ball (Stainless Steel 5/16" dia.)

$4.49

$

In Stock, only 4 left!

0

21

MTD TC-792211

Screw, 3/8-16 x 3/8"

$4.49

$

Usually ships in 3-12 days

0

22

MTD TC-792079

Spring

$4.49

$

In Stock, only 1 left!

0

25

MTD TC-792073A

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

25A

MTD TC-792177

Screw, 1/4-20 x 1-3/8"

$4.49

$

Usually ships in 3-12 days

0

26

MTD TC-792125

Retaining Ring-package of 2

$4.49

$

In Stock, only 3 left!

0

27

MTD TC-792035

Retaining Ring

$4.49

$

In Stock, Qty 13

0

28

MTD TC-788040

Retaining Ring

$4.49

$

In Stock, only 4 left!

0

29

MTD TC-780072

Washer .627" ID .031"

$4.49

$

In Stock, Qty 20+

0

29A

MTD TC-780160

Thrust Washer (.563" ID x .031")

$4.49

$

Usually ships in 3-12 days

0

29B

MTD TC-780051

Thrust Washer (.762" ID X .031")

$4.49

$

Usually ships in 3-12 days

0

30

MTD TC-780108

Shift Washer (Cupped)

$4.49

$

In Stock, Qty 9

0

31

MTD TC-780001

Washer .750" ID .56"

$4.49

$

In Stock, only 4 left!

0

31A

MTD TC-780195

Washer .750" ID .062

$3.99

$

Usually ships in 3-12 days

0

32

MTD TC-788083

Oil Seal 5/8"

$15.99

$

Usually ships in 3-12 days

0

32A

MTD TC-792001

O Ring (.823" OD)

$4.49

$

In Stock, Qty 11

0

34

MTD TC-780194

Bushing (.563")

$4.49

$

Usually ships in 3-12 days

0

35

MTD TC-780193

Flanged Bushing (.625" ID)
(Superseded to TC-780210)

$5.49

$

Usually ships in 3-6 days

0

35A

MTD TC-780197

Flanged Bushing (.751" ID)

$4.49

$

Usually ships in 3-12 days

0

36

MTD TC-790075

Brake Disk

$10.99

$

Usually ships in 3-12 days

0

37

MTD TC-790007

Brake Pad Plate

$5.99

$

In Stock, only 1 left!

0

38

MTD TC-799021A

Brake Pad (pkg. of 2)
(Superseded to TC-799021)

$10.99

$

In Stock, only 1 left!

0

39

MTD TC-786026

Dowel Pin .3125" x .750"

$4.49

$

Usually ships in 3-12 days

0

40

MTD 736-3078

Washer .312" ID .059"

$4.49

$

In Stock, only 3 left!

0

41

MTD TC-790104

Brake Lever

$17.99

$

Usually ships in 3-12 days

0

42

MTD TC-792177

Screw 1/4-20 x 1-3/8"

$4.49

$

Usually ships in 3-12 days

0

43

MTD 912-0237

Lock Nut 5/16-24
(Superseded to 712-0237)

$

$

Not available

44

MTD TC-790025

Brake Pad Holder

$17.99

$

Usually ships in 3-12 days

0

46

MTD TC-786086

Bracket

$6.49

$

Usually ships in 3-12 days

0

47

MTD TC-775146

Axle (10.719" long) (Incl. 26)

$

$

Not available

48

MTD TC-775147

Axle (15.312" long) (Incl. 26)

$

$

Not available

49

MTD TC-778338

Spur Gear (27T-PM/IC)

$20.99

$

Usually ships in 3-12 days

0

50

MTD TC-778342

Spur Gear (22T-PM/IC)

$

$

Not available

51

MTD TC-778313

Spur Gear (19T-PM/IC)

$15.99

$

Usually ships in 3-12 days

0

52

MTD TC-778350

Spur Gear (16T-PM/IC)

$26.99

$

Usually ships in 3-12 days

0

56

MTD TC-778337

Spur Gear (13T-PM/SER)

$8.49

$

Usually ships in 3-12 days

0

57

MTD TC-778341

Spur Gear (18T-PM/SER)

$

$

Not available

58

MTD TC-778351

Spur Gear (21T-PM/SER)

$66.99

$

Usually ships in 3-12 days

0

59

MTD TC-778349

Spur Gear (24T-PM/SER)

$44.99

$

In Stock, only 1 left!

0

63

MTD TC-786071

Countershaft Spacer 1-1/8" x 3/8’’

$4.49

$

In Stock, only 2 left!

0

64

MTD TC-786072

Brake Shaft Spacer 1-3/8" x 3/8’’

$4.49

$

In Stock, only 1 left!

0

65

MTD TC-780189

Washer .563" ID .062

$4.49

$

Usually ships in 3-12 days

0

66

MTD TC-776472

Input Shaft

$

$

Not available

67

MTD TC-776396

Brake Shaft

$86.99

$

Usually ships in 3-12 days

0

69

MTD TC-792170

Retaining Ring (.75" x .042")

$

$

Not available

70

MTD TC-786187

Spacer (.890")

$

$

Not available

71B

MTD TC-788092

O-Ring

$

$

Not available

76

MTD TC-780090

Flat Washer (1.128" ID x .058")

$4.49

$

In Stock, Qty 7

0

77

MTD TC-788078A

Retaining Ring (1.125" x .050")

$4.49

$

Usually ships in 3-12 days

0

79

MTD TC-792144

Spring

$4.49

$

In Stock, only 2 left!

0

82

MTD TC-778333

Bevel (30T) & Spur Gear

$43.99

$

Usually ships in 3-12 days

0

83

MTD TC-778338

Spur Gear (27T-PM/IC)

$20.99

$

Usually ships in 3-12 days

0

85

MTD TC-792154

Oil Fill Plug

$4.49

$

In Stock, only 2 left!

0

87

MTD TC-788089A

Oil Seal 9/16" ID

$4.99

$

In Stock, only 2 left!

0

157

MTD TC-788088A

Oil Seal 3/4" ID

$6.49

$

In Stock, only 1 left!

0
