247.889980 (12AE764H099) - Craftsman Walk-Behind Mower (2010) (Sears) Handle & Frame Parts Diagram

Walk-Behind Mower

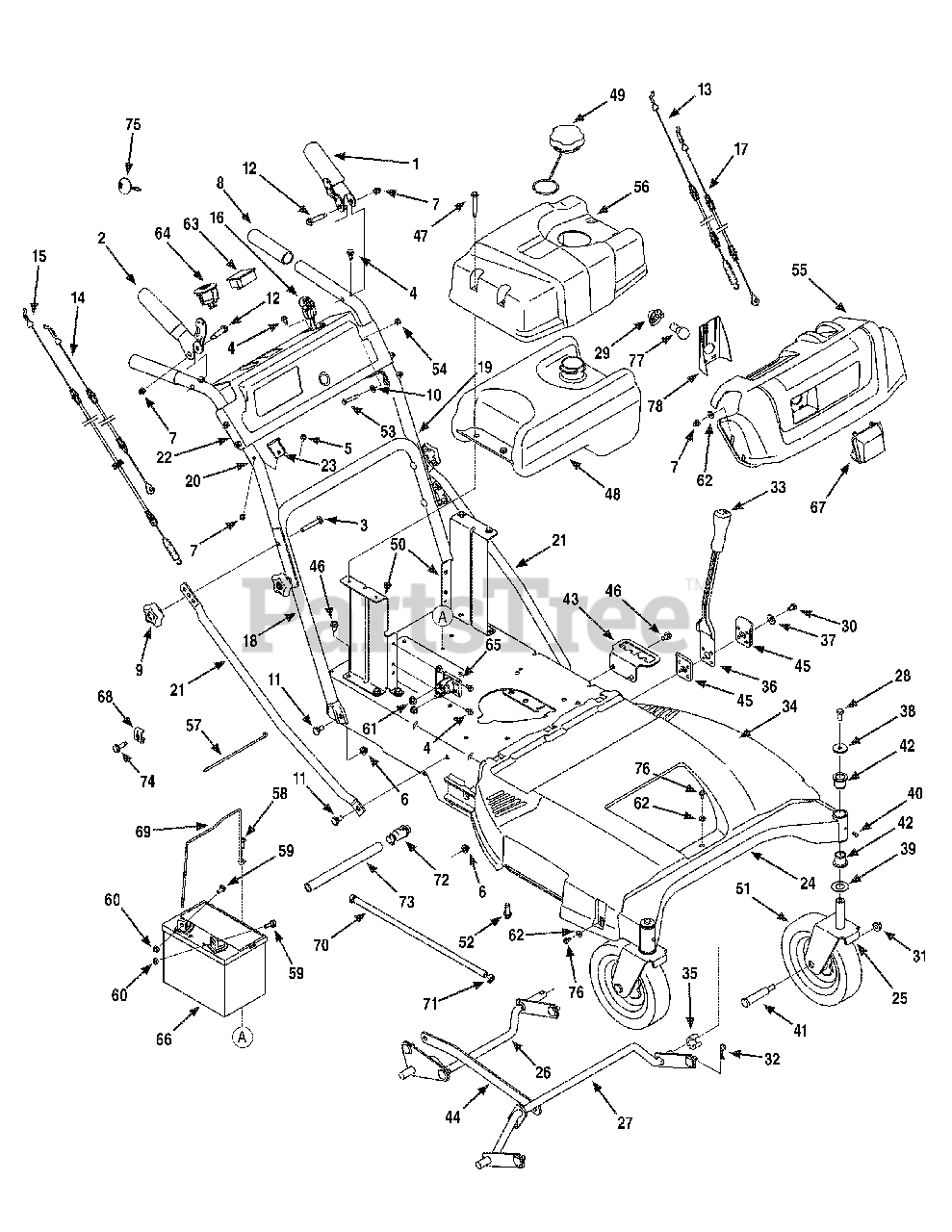

Handle & Frame Parts Diagram

  • Title

1

MTD 687-02427

Lever Assembly: LH
(Superseded to 687P02427C)

$28.99

$

In Stock, only 1 left!

0

2

MTD 687-02426

Lever Assembly: RH
(Superseded to 687P02426C)

$28.99

$

In Stock, only 1 left!

0

3

MTD 710-0572

Screw, Carriage: 5/16-18 x 2.25

$4.49

$

In Stock, only 4 left!

0

4

MTD 710-0599

Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0606

Screw, Cap: 1/4-20 x 1.50

$5.49

$

In Stock, Qty 9

0

6

MTD 712-04063

Nut, Flange Lock: 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 912-0442

Nut, Lock Cap: 1/4-20
(Superseded to 712-0442)

$

$

Not available

8

MTD 720-0274

Grip, 1.0 ID x 5.0 Lg

$11.99

$

In Stock, only 1 left!

0

9

MTD 720-04072A

Star Knob 5/16-18

$6.99

$

In Stock, Qty 20+

0

10

MTD 736-0270

Washer, Bell: .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

11

MTD 938-0140

Screw, Shoulder, .435 x .178-5/16
(Superseded to 738-0140)

$

$

Not available

12

MTD 938-1226

Screw, Shoulder, .375 x 1.355: 1/4-20

$7.99

$

In Stock, only 1 left!

0

13

MTD 946-04609

Cable, Clutch Wheel
(Superseded to 753-08265A)

$59.99

$

In Stock, only 4 left!

0

14

MTD 946-04606

Cable, Brake, Transmission: RH
(Superseded to 946-05076A)

$36.99

$

In Stock, Qty 5

0

15

MTD 946-04610

Cable, Clutch Deck
(Superseded to 753-08266)

$44.99

$

In Stock, Qty 6

0

16

MTD 946-04604

Cable, Throttle/Choke: 38 x 1.1

$42.99

$

Usually ships in 3-6 days

0

17

MTD 946-04608

Cable, Brake, Transmission: LH
(Superseded to 946-05077A)

$36.99

$

In Stock, Qty 9

0

18

MTD 749-04330-0637

Lower Handle

$84.99

$

In Stock, only 1 left!

0

19

MTD 749-04331-0637

Upper Handle: LH

$

$

Not available

20

MTD 749-04332-0637

Upper Handle: RH

$52.99

$

Usually ships in 3-6 days

0

21

MTD 749-04333-0637

Brace Tube

$46.99

$

Usually ships in 3-6 days

0

22

MTD 787-01548-4028

Handle Panel

$95.99

$

Usually ships in 3-6 days

0

23

MTD 787-01490A-0637

Cable Mount Bracket: RH

$10.99

$

Usually ships in 3-6 days

0

23

MTD 787-01491A-0637

Cable Mount Bracket: LH

$19.99

$

Usually ships in 3-6 days

0

24

MTD 687-02255B-4028

Frame Assembly
(Superseded to 687-02591A-4028)

$557.99

$

Usually ships in 3-6 days

0

25

MTD 687-02263-0637

Caster Wheel Bracket Assembly

$83.99

$

Usually ships in 3-6 days

0

26

MTD 687-02419-0637

Deck Lift Assembly: RR

$68.99

$

In Stock, only 1 left!

0

27

MTD 687-02265-0637

Deck Lift Assembly: Front

$59.99

$

Usually ships in 3-6 days

0

28

MTD 710-0627

Screw, HH Cap: 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

29

MTD 925-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

30

MTD 710-04312

Screw, HH Cap: 5/16-18 x .50

$7.49

$

In Stock, only 1 left!

0

31

MTD 712-04065

Nut, Flange Lock: 3/8-16

$3.99

$

In Stock, Qty 20+

0

32

MTD 914-0145

Click Pin: .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

33

MTD 720-0311

Handle Grip 1/2

$15.99

$

In Stock, only 2 left!

0

34

MTD 931-05684

Belt Cover 33 Wide Cut Mower

$121.99

$

Usually ships in 3-6 days

0

35

MTD 731-05791

Snap Spacer: .63 ID x .75 LG

$5.99

$

In Stock, only 2 left!

0

36

MTD 732-04418A

Deck Height Lever
(Superseded to 732-04418C)

$45.99

$

Usually ships in 3-6 days

0

37

MTD 736-0242

Washer, Bell: .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

38

MTD 736-0343

Washer, Flat: .330 x 1.25 x .120

$4.49

$

In Stock, Qty 7

0

39

MTD 936-0351

Washer, Flat: .760 ID x 1.50 OD
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

40

MTD 937-3000

Lube Fitting: 3/16: LNC#70

$4.99

$

In Stock, Qty 20+

0

41

MTD 738-04216A

Bolt, Shoulder: .625 x 2.515 x 3/8-16

$8.49

$

In Stock, Qty 9

0

42

MTD 741-0660A

Flange Bearing: .760 x .941 x 1.0

$3.49

$

In Stock, Qty 10

0

43

MTD 787-01496-4028

Height Adjustment Bracket

$19.99

$

Usually ships in 3-6 days

0

44

MTD 787-01510-0637

Link Pivot Bracket

$39.99

$

Usually ships in 3-6 days

0

45

MTD 787-01521-0637

Lever Pivot Bracket
(Superseded to 787-06323-0637)

$9.49

$

Usually ships in 3-6 days

0

46

MTD 710-0604A

Screw, TT: 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

47

MTD 738-04282

Screw, Shoulder: .32 x 1.8 x 1/4-20

$4.49

$

Usually ships in 3-6 days

0

48

MTD 951-10541

Fuel Tank, 2 Gal.

$134.99

$

Usually ships in 3-6 days

0

49

MTD 951-10514

Fuel Cap

$37.99

$

In Stock, only 1 left!

0

50

MTD 787-01507-4028

Fuel Tank Mounting Bracket
(Superseded to 787-01507B-4028)

$16.99

$

Usually ships in 3-6 days

0

51

MTD 734-04243

Wheel, 8 x 1.75

$57.99

$

In Stock, only 1 left!

0

51

MTD 941-0706

Flange Bearing, Wheel

$8.49

$

In Stock, Qty 6

0

52

MTD 710-1315

Screw, TT: 3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

53

MTD 710-0136

Screw, HH Cap: 1/4-20 x 1.75

$3.99

$

In Stock, only 2 left!

0

54

MTD 712-3006

Nut, Hex: 1/4-20

$4.99

$

In Stock, Qty 19

0

55

MTD 631-04339P

Handle Panel
(Superseded to 931-04339A)

$

$

Not available

56

MTD 931-06935

Tank Cover
(Superseded to 931-06935A)

$52.99

$

Usually ships in 3-6 days

0

57

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

58

MTD 710-0642

Screw, TT: 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

59

MTD 710-04666

Screw, 1/4-20 x .75

$6.99

$

In Stock, only 3 left!

0

60

MTD 712-0271

Nut, Sems: 1/4-20

$4.49

$

In Stock, Qty 10

0

61

MTD 712-04064

Nut, Flange Lock: 1/4-20

$3.99

$

In Stock, Qty 20+

0

62

MTD 936-0463

Washer, Flat: .25 x .63 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

63

MTD 925-04022B

Hour Indicator Meter

$146.99

$

In Stock, only 1 left!

0

64

MTD 925-1741

Key Switch

$45.99

$

In Stock, Qty 7

0

65

MTD 725-04439

Solenoid, 12V
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

66

MTD 925-1707D

Battery

$

$

Not available

67

MTD 731-05319

Lens

$13.99

$

In Stock, only 4 left!

0

68

MTD 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 10

0

69

MTD 747-04657

Battery Hold Down

$12.99

$

In Stock, only 2 left!

0

70

MTD 751-10349

Fuel Hose

$9.49

$

Usually ships in 3-6 days

0

71

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

72

MTD 951-10517A

Oil Drain

$24.99

$

In Stock, only 1 left!

0

73

MTD 751-3141-14

Oil Drain Hose

$11.99

$

In Stock, Qty 8

0

74

MTD 710-1237

Screw, 10-32 X .625

$4.49

$

Usually ships in 3-6 days

0

75

MTD 925-1745A

Key, Ignition, Black

$17.99

$

In Stock, Qty 20+

0

76

MTD 710-0896

Screw, 1/4-20 x 1.75

$4.49

$

In Stock, Qty 20+

0

77

MTD 925-04213

Lamp

$4.99

$

In Stock, only 1 left!

0

78

MTD 777X41805

Label Reflector

$9.49

$

In Stock, only 4 left!

0

MTD 725-04478

Starter Wire

Note: Not Shown

$19.99

$

Usually ships in 3-6 days

0

MTD 925-04911

Wiring Harness

Note: Not Shown

$

$

Not available
